NX COLUMN ARRAYS

THE NEXT GENERATION OF SOUND

Raise the bar of performance

NXL modular line-source active speaker systems are specifically designed for rental companies, professional DJs, and musicians but also intended for permanent installation. Their sleek and innovative design commands an incredible size-to-power ratio, featuring powerful amplifiers, full onboard DSP, and a complete set of rigging accessories.

Multiple configurations

The vertically asymmetrical waveguide’s design delivers accurate sound to the coverage area without tilting the enclosure.

The woofers’ vertical configuration takes inspiration from line array technology for hemicylindrical coverage.

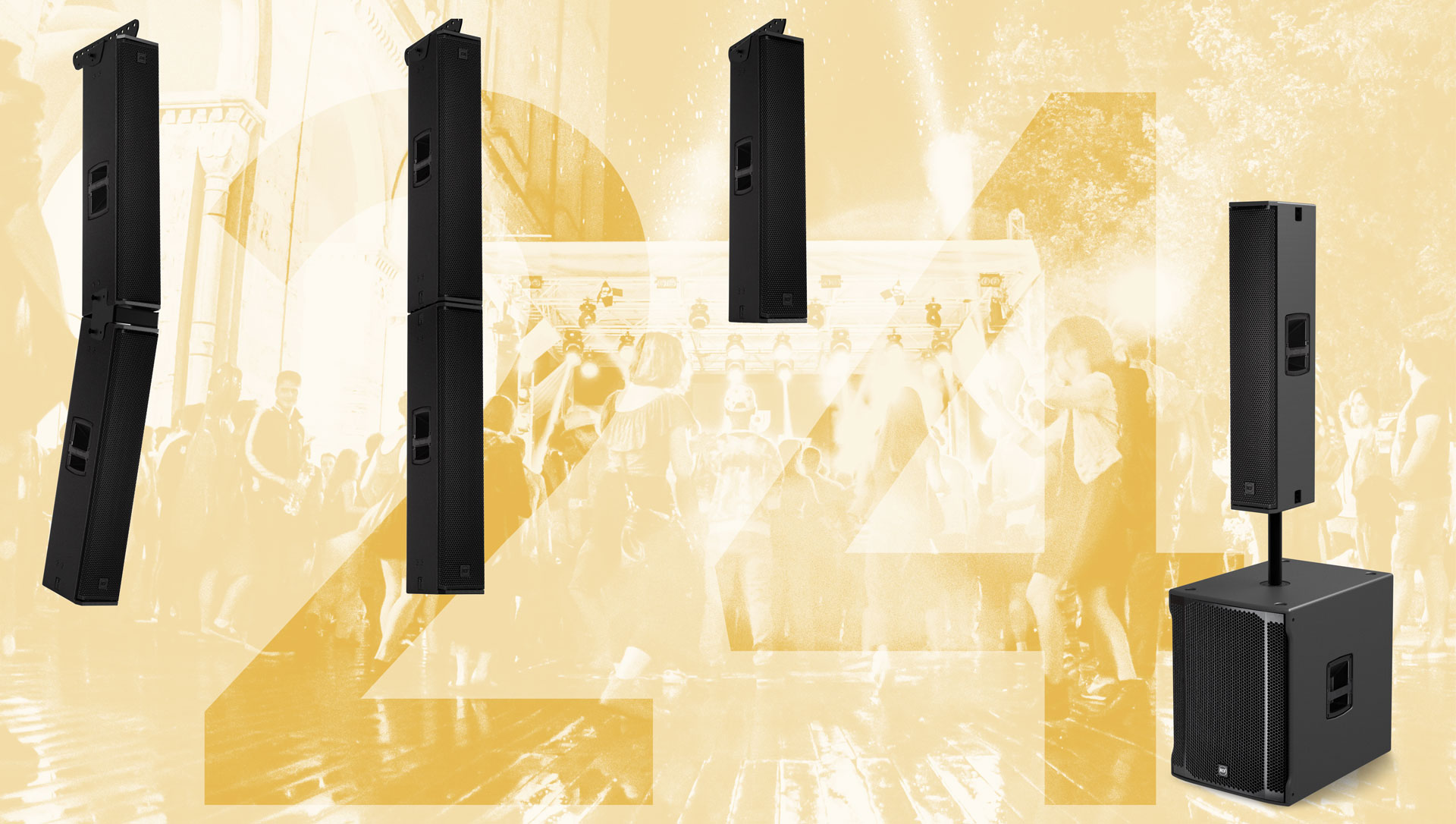

It’s easy to set up, and the flyware accessories allow multiple speaker configurations in line for extended coverage both flying or stacking. The sturdy, ergonomic cabinets are easy to move with several handle positions.

NXL 44-A MK2

NXW 44-A

NXL 24-A MK2

NXL 44-A MK2

100° x 25° Constant Directivity Waveguide

NXW 44-A

100° x 50° Constant Directivity Horn

Engage your audience

Based on RCF precision transducers and wooden cabinets, the NXL Series is the RCF’s most flexible active speaker system when the need for deploying high-power and pristine sound for live events is required. With its streamlined design and small footprint, the NXL Series provides a powerful sound system when the space for speakers is limited.

All in one solution

Designed as the ideal sound system for the day-to-day live event, the NXL Series packs a variety of features for professional users. With the best size to power ratio in its class, advanced DSP, and equipped with multiple rigging points, the NXL Series is a solid and reliable choice. RCF products represent the 70-year commitment to excellence in manufacturing, precise and careful assembly, and extensive quality control procedures.

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
