PRO SOUND LIVE SOUND

NXL 44-A MK2

ACTIVE TWO-WAY ARRAY
  • Up to 135 dB Sound Pressure Level
  • 2100W Class-D Amplifier
  • 100° x 25° Constant Directivity Coverage Angle
  • 3" Titanium Neodymium Compression Driver
FiRPHASE
BASS MOTION CONTROL
Where to buy
Features Specifications Accessories Related products Downloads
Where to buy
Features
  • Up to 135 dB Sound Pressure Level
  • 2100W Class-D Amplifier
  • 100° x 25° Constant Directivity Coverage Angle
  • 3" Titanium Neodymium Compression Driver
  • 3 x 10" High Power Neodymium Woofers
  • 45-20000 Hz linear Frequency Response
  • Bass Motion Control and FiRPHASE processing
  • 8 x M8 Rigging Points and 8 x Quick Lock
  • IP Rated Powercon TRUE1 TOP IN/OUT

NXL 44-A MK2 is a line array column speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of premium RCF transducers and a 2,100W two-channel amplifier produce coherent 100° x 25° coverage for the listening area up to 135 dB SPL. The two-way design features three 10” neodymium woofers and a 3” driver on a waveguide. The speaker delivers an extended frequency range down to 45 Hz and can be used as a stand-alone speaker, flown, or coupled with another NXL 44-A MK2 for extended coverage. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXL 44-A MK2 speaker is perfectly tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, plywood cabinet is easy to carry and installed securely using the dedicated rigging points. Pairing the speaker with subwoofers delivers full-range power for medium-sized concerts and DJ systems.

Read More
READ MORE

Part number:

13000609
NXL 44-A MK2
220-240V, EAN 8024530019860

13000756
NXL 44-A MK2
115V, EAN 8024530019853

Power that moves

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and more powerful. With 2,100W of power, the NXL MK2 2-channel Class-D amplifier is 50% more powerful than previous models. NXL manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low power loss. NXL modules are energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet - with no moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NXL amplifiers are designed according to EN62368-1 for maximum safety and house a Switch Mode Power Supply section with minimum weight.
Responsive Image
Responsive Image

Line array performance and coverage

The vertically advanced horn design accurately projects the sound energy and avoids unwanted reflections when placed on a sub or a speaker stand, without tilting the enclosure. This design also allows configuring two cascading NXL columns for optimal coverage. Intelligibility is significantly increased in challenging acoustic environments. The speaker delivers an extended low-frequency range that is increased when paired with a subwoofer for medium-sized concerts and DJ sets.

Superior transducers

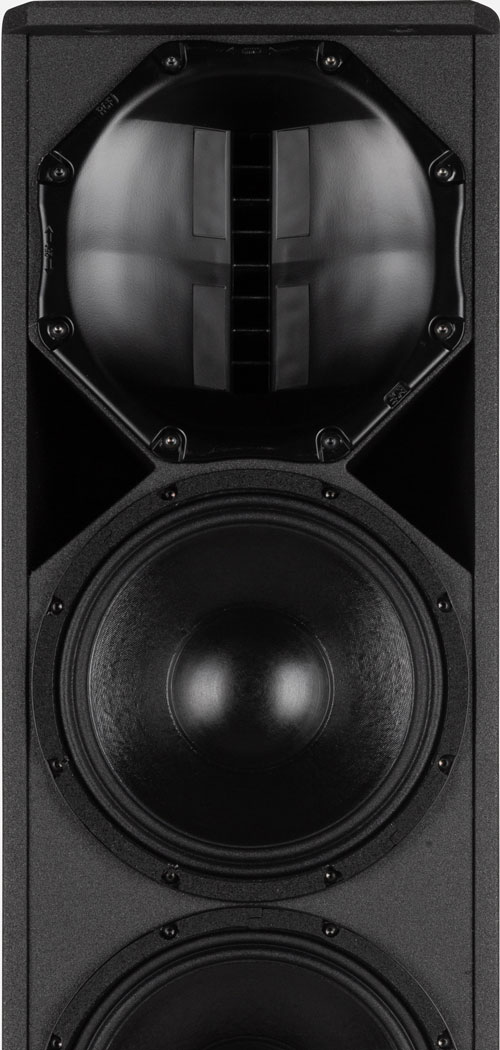

Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The extended clarity of the 3" compression driver features a neodymium magnet for improved current handling and reduced weight. The best-in-class titanium dome and the Polyimide/Kapton voice coil handle extreme power levels with very low distortion. Three, high-power 10" low-frequency woofers with a new advanced transducer design gain more stability over higher currents, with less distortion, fast transient response, and better heat dissipation.
Responsive Image
Responsive Image

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.
The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Responsive Image

Raising the bar of sound

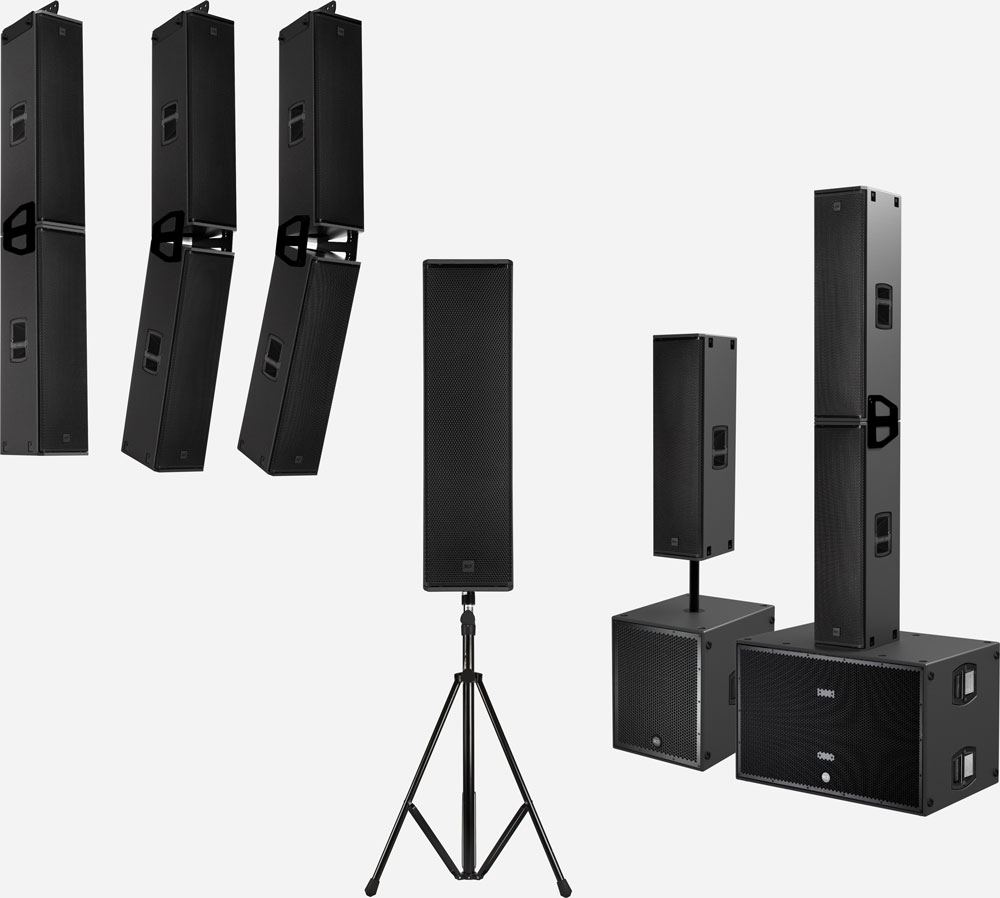

NXL series consists of full-range column line array speakers ideal for high-powered portable and installed professional applications where size is a critical factor. The sleek column design and flexible rigging options make it a smart choice for a wide range of sound applications. The rugged, high-quality Baltic birch plywood cabinet is easy to carry, with ergonomic handles on each side. It can be used alone, on a pole, or paired with a sub, vertically coupled for improved vertical coverage, and can also be flown or truss-mounted using the included rigging points and special accessories. From the cabinet to the final texture and the rugged protective grille, NXL Series offers maximum strength for intensive use on the road and can be used for fixed installation.
Specifications
Acoustical specifications
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
135 dB
Horizontal coverage angle
100°
Vertical coverage angle
25°
Transducers
Compression Driver
1 x 1.4'' neo, 3.0'' v.c
Woofer
3 x 10'' neo, 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
Combo XLR/Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
800
Protections
Thermal, Excurs., RMS
Limiter
Soft Limiter

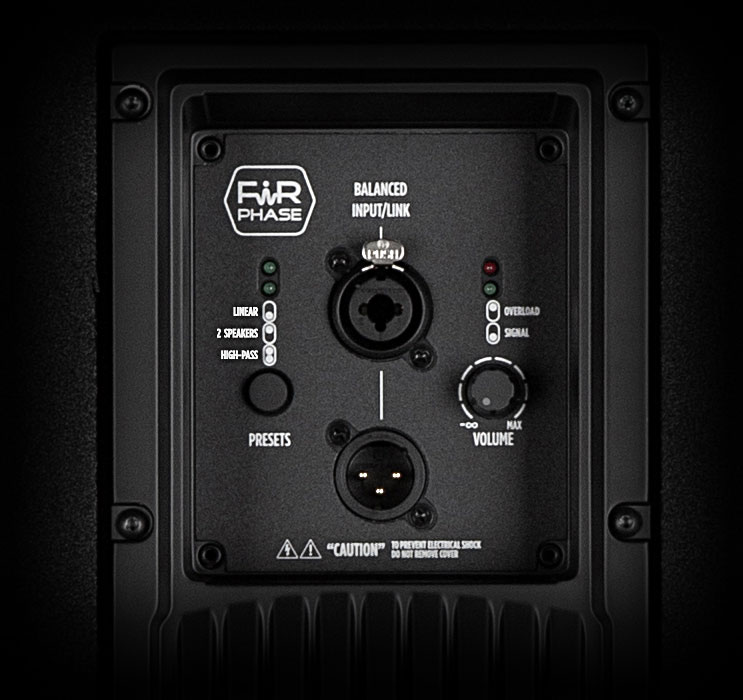

Controls
Linear/2 Speakers/High-Pass presets, Volume
Power section
Total Power
2100 W Peak
High frequencies
700 W Peak
Low frequencies
1400 W Peak
Cooling
Convection
Connections
Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
8 x M8, 8 x quick lock
Handles
2 side
Pole mount/Cap
35 mm insert
Grille
Steel
Color
Black
Size / Weight
Height
1080 mm / 42.52 inches
Width
297.5 mm / 11.71 inches
Depth
373 mm / 14.69 inches
Weight
33.4 kg / 73.63 lbs
Shipping information
Package Height
400 mm / 15.75 inches
Package Width
1115 mm / 43.9 inches
Package Depth
327 mm / 12.87 inches
Package Weight
35.5 kg / 78.26 lbs
Accessories
Related products
Downloads
MANUALS
USER MANUAL - ENG ITA
PDF
4.6 MB
06-06-2024
GUIDES
PRE-ALIGNMENT DELAYS
PDF
196 KB
04-06-2024
SPECIFICATIONS
SPECSHEET - DEU
PDF
1.3 MB
28-10-2024
SPECSHEET - FRA
PDF
1.3 MB
28-10-2024
SPECSHEET - ITA
PDF
1.3 MB
28-10-2024
SPECSHEET - SPA
PDF
1.3 MB
28-10-2024
ACOUSTIC MEASUREMENTS
PDF
253 KB
11-07-2024
STANDARD COMPLIANCES
CE DECLARATION OF CONFORMITY - ENG
PDF
26 KB
06-11-2024
UKCA DECLARATION OF CONFIRMITY
PDF
28 KB
06-11-2024
DRAWINGS
LINE ART 2D
DXF
5 MB
31-07-2024
LINE ART 2D
PDF
602 KB
31-07-2024
LINE ART 3D
DXF
659 KB
01-08-2024
SOFTWARE
GLL
GLL
804 KB
16-01-2023
