PRO SOUND LIVE SOUND

NXW 44-A

ACTIVE TWO-WAY COLUMN SPEAKER
  • Up to 135 dB Sound Pressure Level
  • 2100W Class-D Amplifier
  • 100° x 50° Constant Directivity Coverage Angle
  • 3" Titanium Neodymium Compression Driver
FiRPHASE
BASS MOTION CONTROL
Where to buy
Features Specifications Accessories Related products Downloads
Where to buy
Features
  • Up to 135 dB Sound Pressure Level
  • 2100W Class-D Amplifier
  • 100° x 50° Constant Directivity Coverage Angle
  • 3" Titanium Neodymium Compression Driver
  • 3 x 10" High Power Neodymium Woofers
  • 45-20000 Hz linear Frequency Response
  • Bass Motion Control and FiRPHASE processing
  • 8 x M8 Rigging Points and 8 x Quick Lock
  • IP Rated Powercon TRUE1 TOP IN/OUT

NXW 44-A is a column speaker masterfully engineered from the ground up to deliver stellar audio performance for bands, DJs, nightclubs, and rental companies. The best-in-class combination of premium RCF transducers and a 2,100W two-channel amplifier produces coherent 100° x 50° coverage for the listening area up to 135 dB SPL. The two-way design features three 10” neodymium woofers and a CMD horn-loaded 3” compression driver. The Constant Matching Design horn delivers accurate sound to the coverage area without tilting the cabinet. The speaker delivers an extended frequency range down to 45 Hz and can be used as a stand-alone speaker, flown or pole-mounted. Pairing the speaker with a subwoofer delivers full-range power for medium-sized concerts and high-powered DJ systems. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXW 44-A speaker is tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, high-quality baltic birch plywood enclosure is easy to carry and installed securely using dedicated rigging points.

Read More
READ MORE

Part number:

13000805
NXW 44-A
220-240V, EAN 8024530020439

13000806
NXW 44-A
100-120V, EAN 8024530020507

Power that Moves

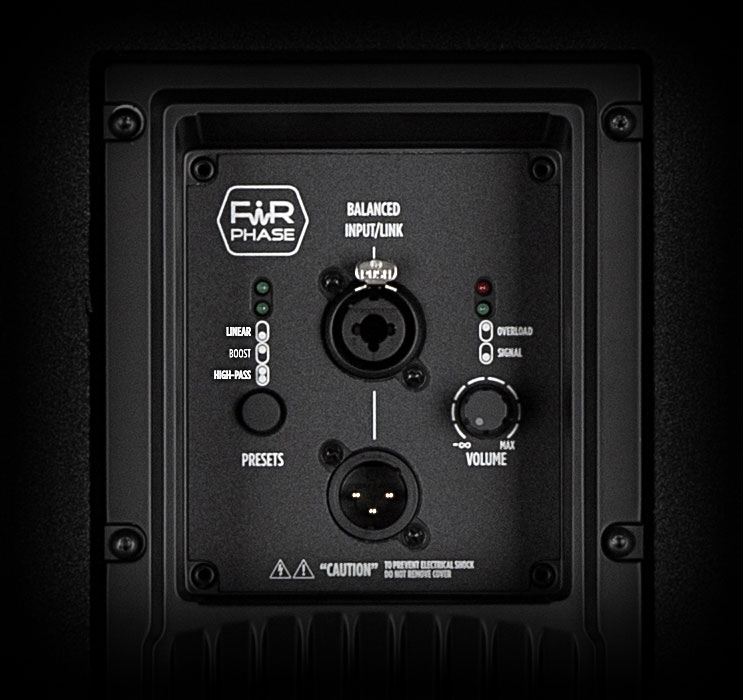

The most powerful amplifier in its class. RCF continues to make improvements in transducer design to make them stronger and more powerful. With 2100W of power, the new NXW 2-channel Class-D amplifier is 50% more powerful than previous models. The speaker manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low power loss. RCF amplifier modules are energy-efficient so there's no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger to the rear of the cabinet, with no moving parts. The input circuit features a new low-distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All amplifiers are designed according to EN62368-1 for maximum safety and house a Switch Mode Power Supply section with minimum weight.
Responsive Image
Responsive Image

Accurate Performance and Coverage

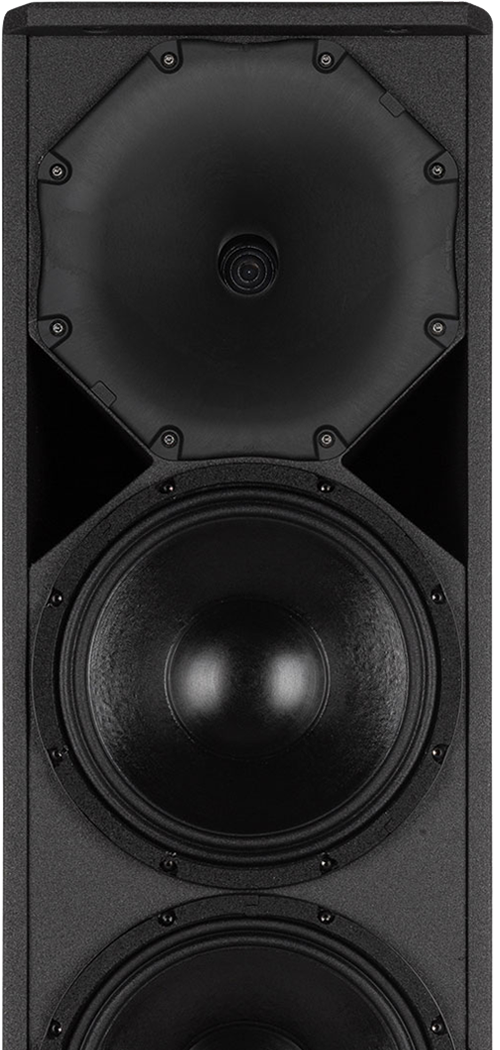

The advanced horn design accurately projects the sound energy and avoids unwanted reflections when placed on a sub or a speaker stand. Intelligibility is then significantly increased in acoustically challenging environments. The speaker delivers an extended low-frequency range that is increased when paired with a subwoofer for medium-sized concerts and DJ sets.

Superior Transducers

Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components.

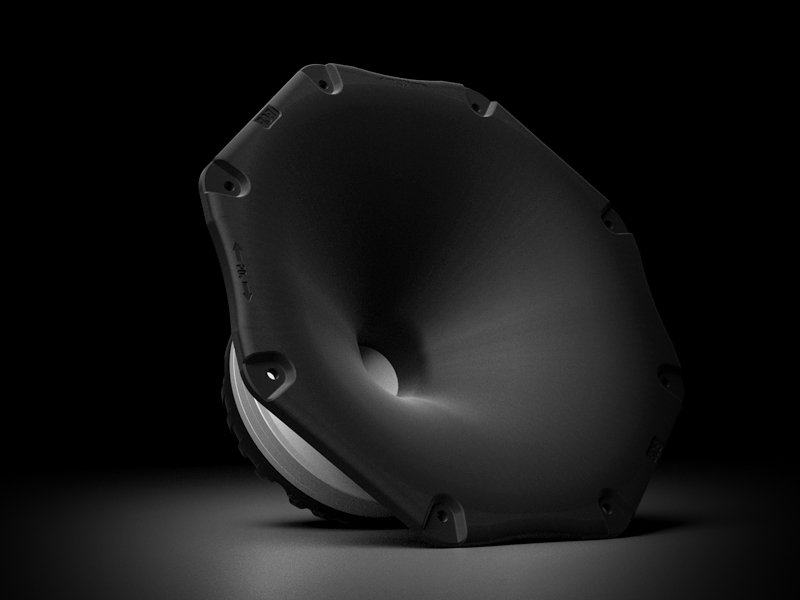

The extended clarity of the 3" compression driver features a neodymium magnet for improved current handling and weight reduction. The best-in-class titanium dome and the Polyimide/Kapton voice coil handle extreme power levels with very low distortion.



Three, high-power 10" low-frequency woofers with a new advanced transducer design gain more stability over higher currents, with less distortion, fast transient response, and better heat dissipation.

Responsive Image
Responsive Image

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
Responsive Image
Responsive Image

Raising the bar of Sound

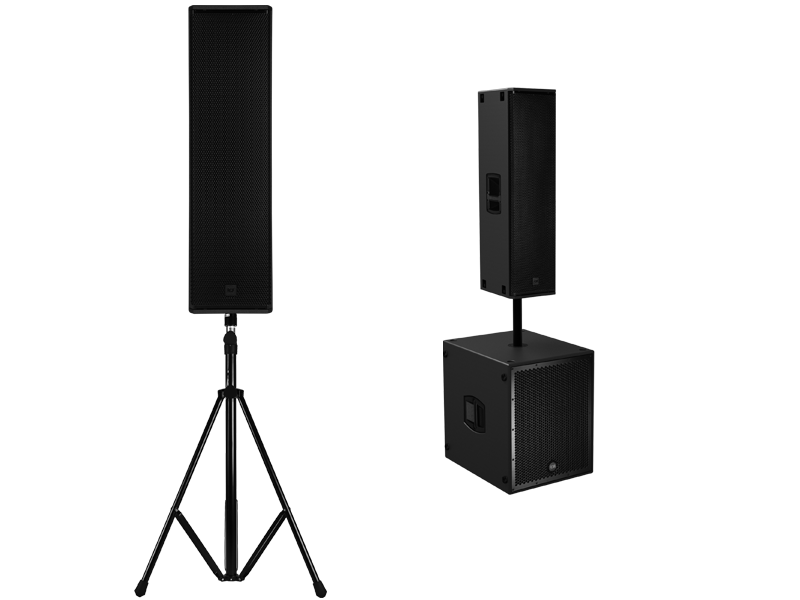

NXW 44-A is ideal for high-powered portable and installed professional applications where size is a critical factor. The sleek column design and flexible rigging options make it a smart choice for a wide range of sound applications. The rugged, high-quality Baltic birch plywood enclosure is easy to carry, with ergonomic handles on each side. It can be used alone, on a pole, or paired with a sub, and can also be flown or truss-mounted with included rigging points and special accessories. From the cabinet to the final texture, and the rugged protective grille, NXW 44-A offers maximum strength for intensive use on the road and can be used for fixed installation.
Specifications
Acoustical specifications
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
135 dB
Horizontal coverage angle
100°
Vertical coverage angle
50°
Transducers
Compression Driver
1 x 1.4'' neo, 3.0'' v.c
Woofer
3 x 10'' neo, 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
Combo XLR/Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
800
Protections
Thermal, Excurs., RMS
Limiter
Soft Limiter
Controls
Linear/Boost/High-Pass presets, Volume
Power section
Total Power
2100 W Peak
High frequencies
700 W Peak
Low frequencies
1400 W Peak
Cooling
Convection
Connections
Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
8 x M8, 8 x quick lock
Handles
2 side
Pole mount/Cap
35 mm insert
Grille
Steel
Color
Black
Size / Weight
Height
1080 mm / 42.52 inches
Width
297.5 mm / 11.71 inches
Depth
373 mm / 14.69 inches
Weight
31.55 kg / 69.56 lbs
Shipping information
Package Height
400 mm / 15.75 inches
Package Width
1115 mm / 43.9 inches
Package Depth
327 mm / 12.87 inches
Package Weight
33.65 kg / 74.19 lbs
