NXL 14-A

COMPACT ACTIVE POINT SOURCE SPEAKER
  • 128 dB max SPL
  • 2100W Class-D Bi-Amplification
  • 70-20000 Hz linear frequency range
  • 1.75" PKX / Neodymium Compression Driver
FiRPHASE
BASS MOTION CONTROL
Où acheter
Caractéristiques Caractéristiques Accessoires Produits connexes Téléchargements
Où acheter
Caractéristiques
  • 128 dB max SPL
  • 2100W Class-D Bi-Amplification
  • 70-20000 Hz linear frequency range
  • 1.75" PKX / Neodymium Compression Driver
  • 2 x 6" High Power Neodymium Woofers
  • Rotatable 100° x 70° TRW Waveguide
  • FiRPHASE and Bass Motion Control

NXL 14-A is the most compact active speaker in the professional NXL series. It features two 6” woofers in a symmetrical configuration and the new 1.75” Precision Transducers PKX driver loaded on a rotatable TRW waveguide, all powered by a 2,100W two-channel amplifier. Available in black or white finish, the NXL 14-A is designed to deliver definition, power, and portability in any live application. Perfect for vocal reproduction, ideal in compact live systems paired with SUB Series subwoofers, in immersive setups, or as a fill speaker.

NEW

Part number:

13000888
NXL 14-A
220-240V, Black - RAL 9005, EAN 8024530022006

13000891
NXL 14-A W
220-240V, White - RAL 9003, EAN 8024530022013

13000892
NXL 14-A
100-120V, Black - RAL 9005, EAN 8024530022204

13000893
NXL 14-A W
100-120V, White - RAL 9003, EAN 8024530022211

Small Framework.

Massive Sound.

NXL 14-A is the most compact active speaker in the professional NXL series. Offered in a sleek black or white finish, this point source speaker is engineered for clarity, power, and versatility in any live setting or installation. Ideal for vocal reproduction, it excels in compact live systems paired with SUB Series subwoofers, immersive setups, or as a reliable fill speaker. The NXL 14-A delivers professional audio performance where it matters most.
Responsive Image

La puissance en mouvement

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and more powerful. With 2,100W of power, the NXL MK2 2-channel Class-D amplifier is 50% more powerful than previous models. NXL manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low power loss. NXL modules are energy efficient, so there's no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger at the rear of the enclosure, which has no moving parts. The input circuit features a new low-distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NXL amplifiers are designed according to EN62368-1 for maximum safety and house a Switch Mode Power Supply section with minimum weight.
Responsive Image

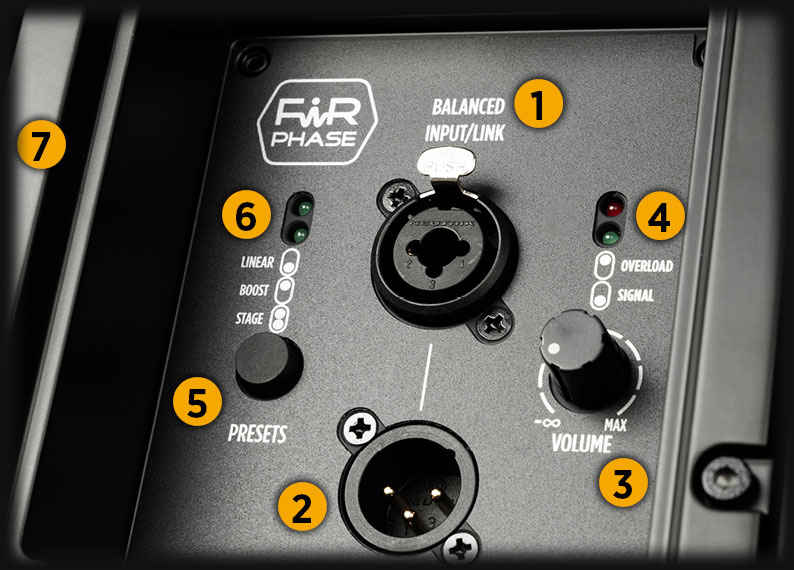

1
Entrée ligne symétrique
2
Renvoi Link/sortie ligne symétrique
3
Potentiomètre de volume [tourner pour régler le niveau]
4
LED d’état : Signal [vert - niveau d’entrée sûr] et Overload [rouge - limiteur actif]
5
Bouton de sélection de preset
6
Presets:
LINEAR - Un son parfaitement optimisé, assurant la meilleure clarté
BOOST - Accentuation physiologique, pour la musique d’ambiance ou des basses percutantes
STAGE - Réglage parfait pour une utilisation comme frontfill
7
Panneau arrière en aluminium
Responsive Image

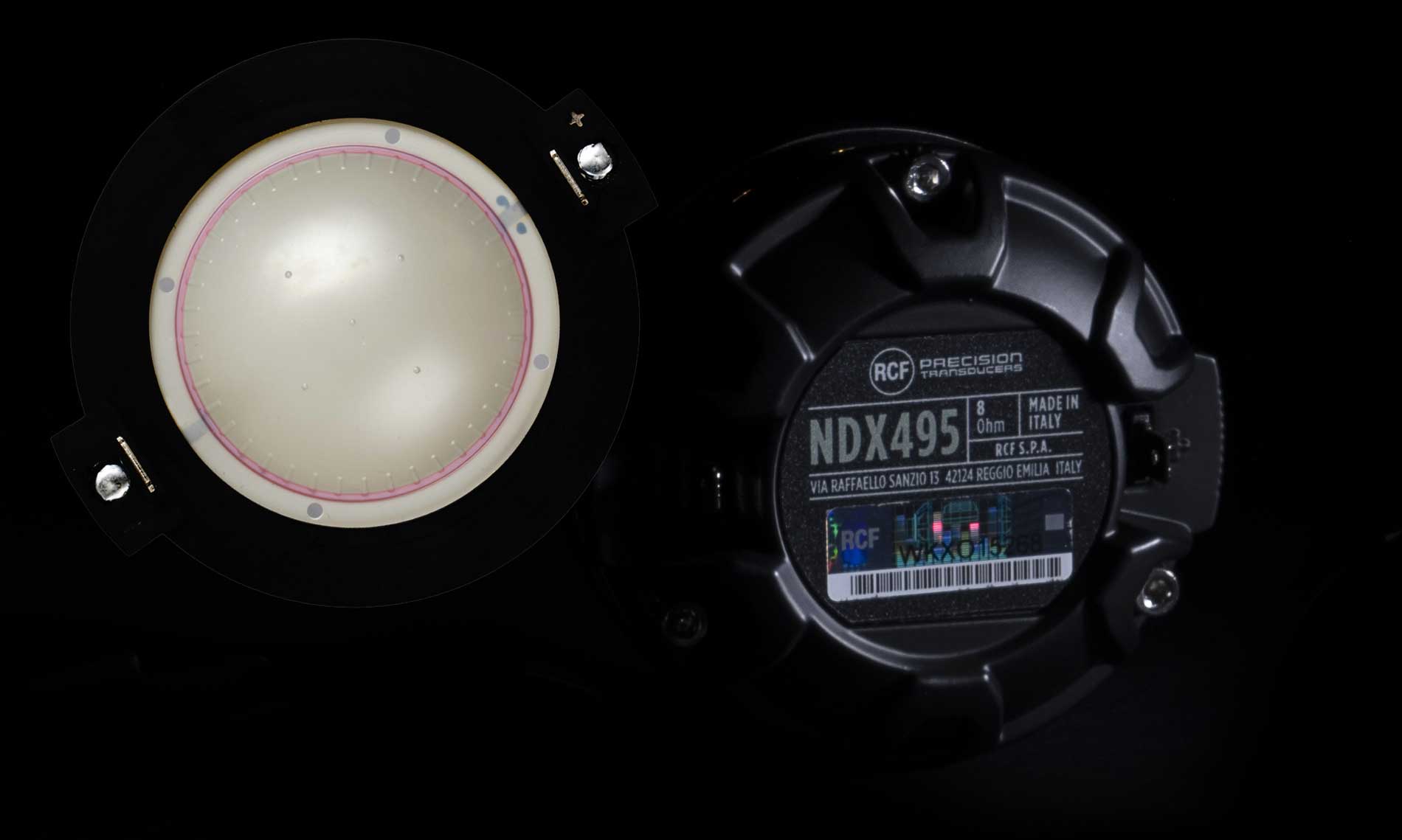

High Frequencies

The 1.75" compression driver features a newly developed dome made of PKX (Modified Polyether Ether Ketone). PKX is a rigid yet lightweight colorless organic polymer. It is possibly the best of the thermoplastic resin films for their specification in audio applications. Developed by the RCF Precision Transducers laboratory and enhanced with reinforcing ribs for high-performance slim dome designs, this new compression driver offers greater precision and reliability.

Responsive Image
Responsive Image

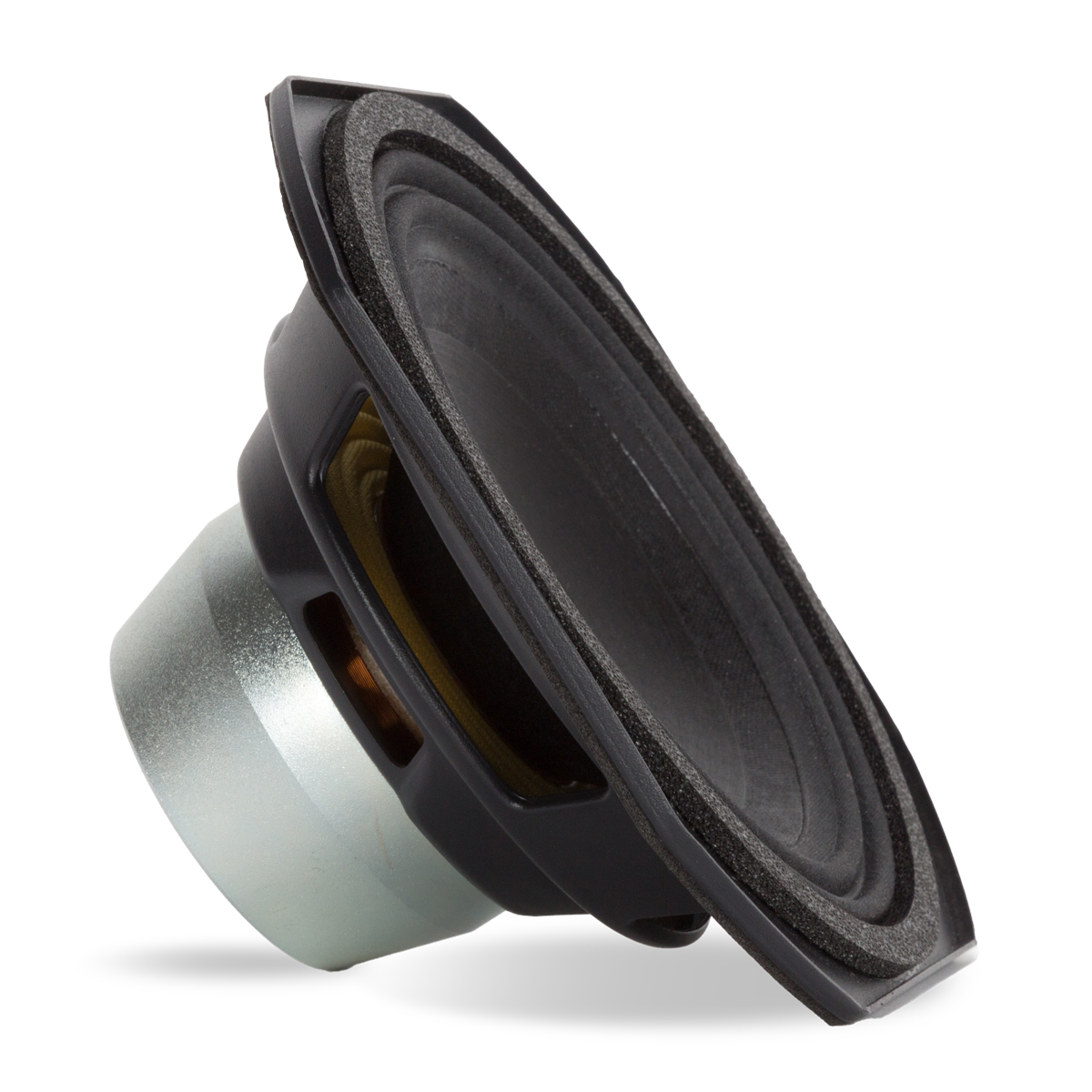

Graves

La conception du haut-parleur grave apporte une plus grande stabilité sur des courants plus élevés, avec moins de distorsion et une meilleure gestion de la chaleur. Le contrôle de la qualité de RCF est particulièrement strict. Nos haut-parleurs grave ont été testés durant 200 heures avec un signal continu les sollicitant à des niveaux extrêmes. Seuls les meilleurs haut-parleurs grave conviennent à la Série NX 9.

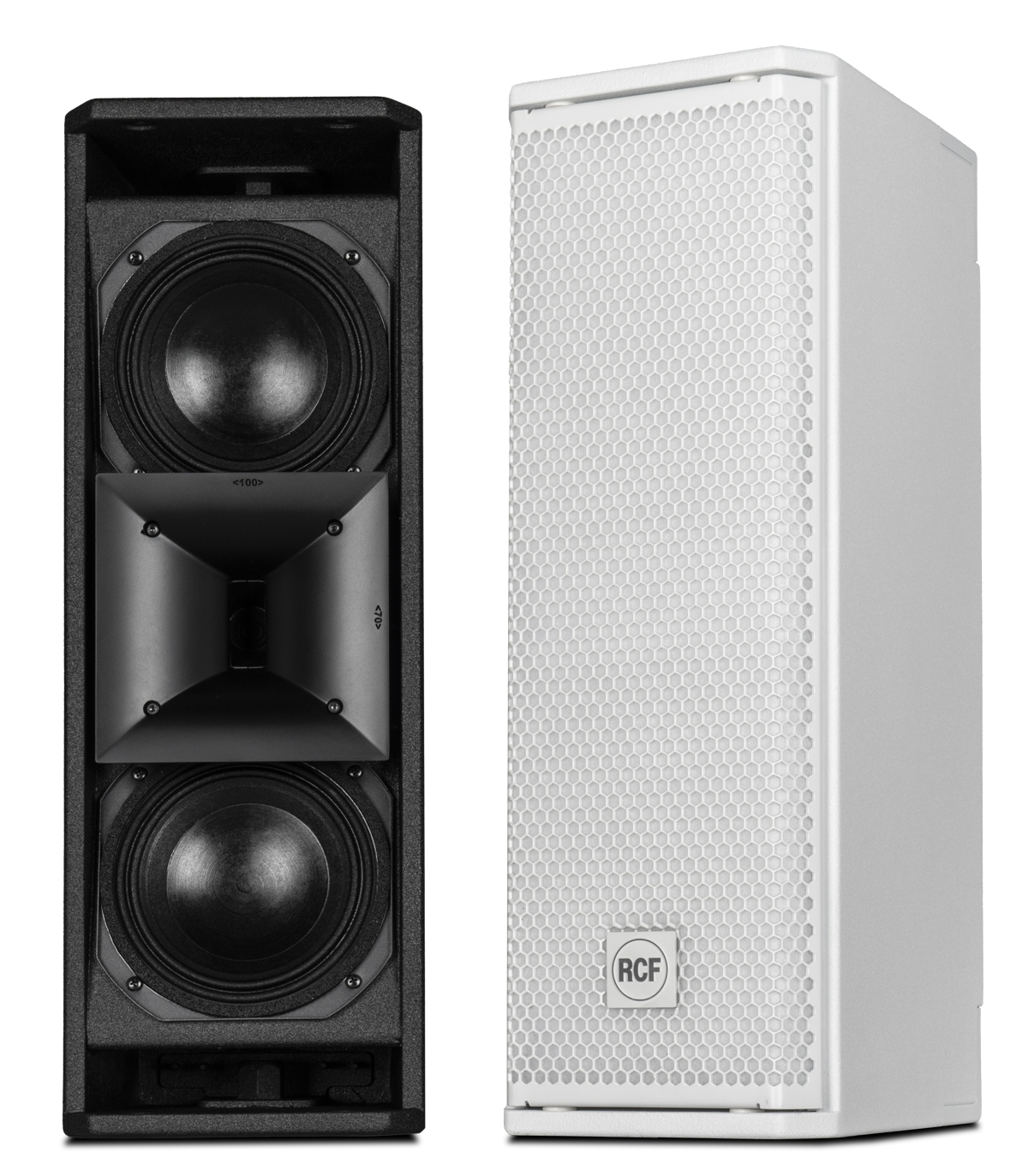

Superior Directivity

Symmetrically aligned transducers ensure coherent wavefront projection and smooth response, providing consistent directional control in both horizontal and vertical orientation. The rotatable 100º x 70º waveguide produces precise, constant coverage. This special configuration allows for excellent control of directional characteristics, significantly increasing intelligibility in difficult acoustic environments.

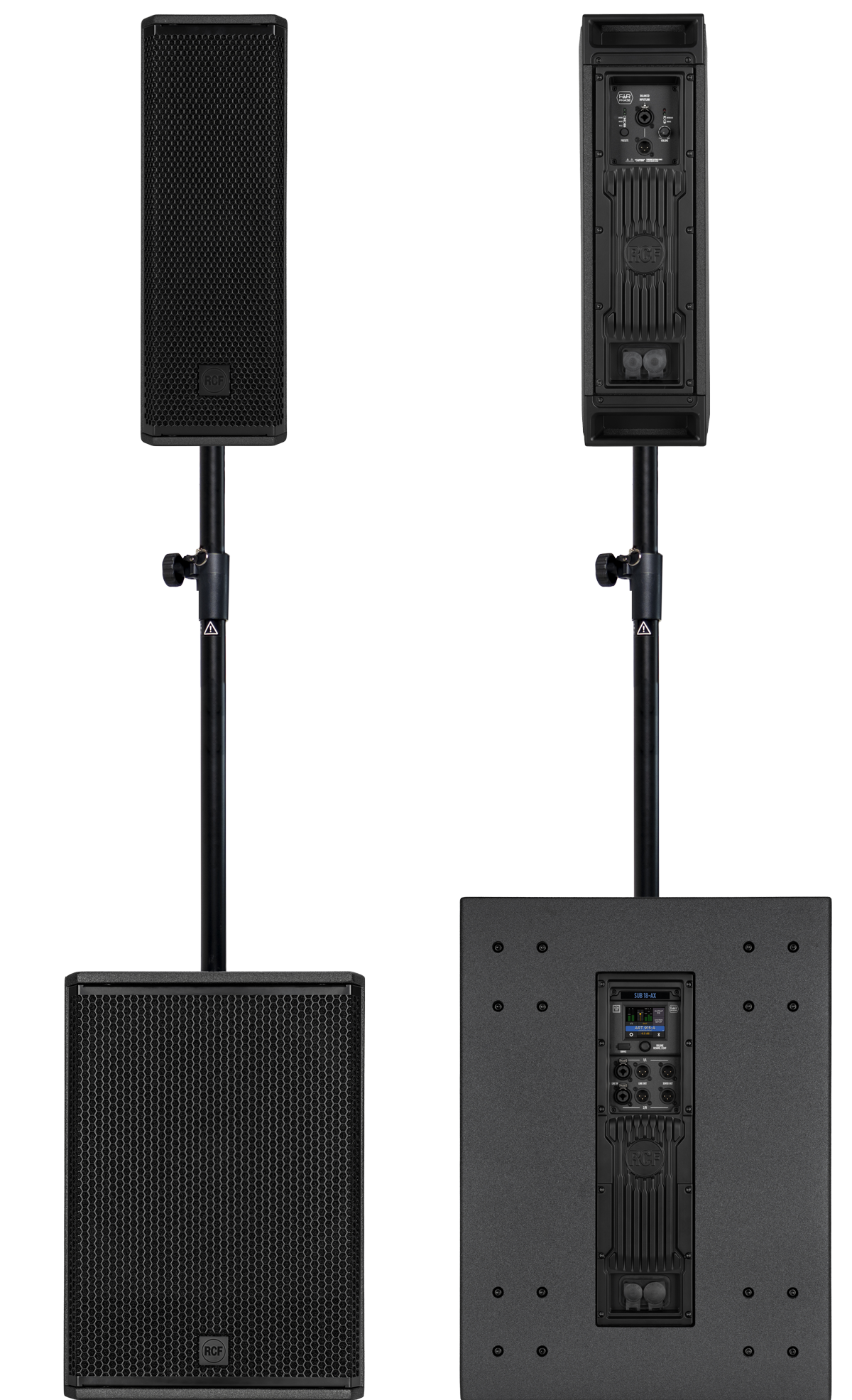

Pair it with SUB AX

Unlock your NXL 14-A’s true potential with RCF’s SUB AX Series. The key to optimizing your sound system is the precise match between your subs and tops. This not only elevates sound quality but also enhances bass response, giving your audience both the beat they can hear and the vibe they can feel.

Responsive Image
With internal factory-tuned crossover presets for NXL 14-A, your sound system is show-ready in a few easy steps. Simply connect your speakers to the SUB AX, select the crossover preset from the user interface, and you are ready to go. FiRPHASE linear phase is extended to match the subwoofer phase down to the lowest frequencies.

Available in 15” and 18” models, SUB AX subwoofers deliver earth-shaking bass (up to 135 dB) with pristine clarity by combining powerful 2200-Watt Class-D amplifiers with high-power, long-excursion transducers. Featuring stereo crossovers, 8-band EQs, delays, factory-tuned crossover presets, a color touch panel, and remote control via Bluetooth®, the SUB AX lets you tailor your live sound effortlessly. Built for the road with a rugged design and cardioid configuration option, the SUB AX is the perfect solution for powerful, solid bass on the go.

Engage your audience

Based on RCF Precision Transducers and wooden enclosures, the NXL Series is RCF’s most flexible active speaker system when high-power and pristine sound are required. The internal DSP has a wide range of protections for the transducers and includes special FiRPHASE and BMC processing to achieve a coherent sound distribution without phase distortion and deep, tight bass at any volume. With its streamlined design and small footprint, the NXL Series provides a powerful sound system when the space for speakers is limited.

Construite pour une utilisation quotidienne

Designed as the ideal portable sound system for daily use, the NXL 14-A offers a variety of features for professional users. The weatherproof enclosure is constructed from high-strength plywood and coated with robust, scratch-resistant polyurea paint. Its sleek look provides ultimate flexibility for tight spaces and small stages with extreme power and without blocking critical sightlines. A strong powder-coated metal grille protects the front, while an acoustically transparent foam backing inside the grille shields against dust and humidity.
Responsive Image Responsive Image

Accrochez-la partout

With multiple rigging accessories and the unobtrusive form factor of the cabinet, NXL 14-A is suitable for a wide range of configurations including hanging, pole-, truss-, wall- or ceiling-mounting— at any angle in horizontal or vertical orientation. The rotatable waveguide (and rotatable logo) allows for perfect dispersion control at any position.

Rigging the speaker is quick and straightforward. The convenient Quick Fit socket at the top and bottom of the enclosure allows for rapid attachment to accessories. No matter the setup, you'll always find a spot for the NXL 14-A.
Responsive Image Responsive Image
NXL 14-A features both top and bottom handles for effortless handling, while the padded cover* ensures protection during transport, enhancing its portability.
*sold separately

Tour Ready Construction

Attached to a solid machined aluminum structure on the rear panel, the amplifier ensures efficient heat dissipation. The enclosure is internally reinforced and sturdy, equipped with waterproof powerCON® TRUE1 TOP mains connectors, guaranteeing durability under any outdoor conditions.
Responsive Image
Responsive Image

Bass Motion Control

Afin d’étendre la réponse dans les basses et d’améliorer les performances, les ingénieurs de RCF ont trouvé le moyen de supprimer le filtre passe-haut, en le remplaçant par une approche novatrice. Voici le BMC (Bass Motion Control), un nouveau traitement avancé de gestion de l'excursion du haut-parleur grave. L’enceinte équipée du traitement BMC peut gérer les plus basses fréquences audibles sans affecter la stabilité du haut-parleur grave, avec une linéarité étendue et un rendu plus fidèle.

L’approche du traitement BMC s’appuie sur la cartographie complète du comportement dynamique du haut-parleur grave, afin de générer un algorithme spécifique ne limitant que les excursions excessives. Il laisse donc une liberté totale de reproduction du signal au haut-parleur. Les filtres coupe-bas normalement utilisés réduisent le débattement susceptible d’endommager le haut-parleur grave, mais ils modifient aussi la réponse en phase. Le nouveau traitement BMC permet de s’affranchir de cette règle.

Nouvelle perspective sur la linéarité

Les enceintes RCF sont conçues en utilisant une technologie avancée brevetée de filtrage FiR, mise au point pour offrir à l’auditeur un son transparent, une précision absolue et des images stéréo impeccables.
Les filtres spéciaux FiRPHASE permettent d’atteindre une répartition cohérente du son pour tous les auditeurs sans distorsion de phase, assurant des temps de latences minimes au système.
Responsive Image
Caractéristiques
Specifications acoustiques
Réponse en fréquence
70 Hz ÷ 20000 Hz
SPL max. @ 1m
128 dB
Angle de couverture horizontale
100°
Angle de détection vertical
70°
Hauts-parleurs
Pilote de compression
1 x 1.0'' neo, 1.75'' v.c
Woofer
2 x 6.0'' neo, 2.0'' v.c
Sections entrées/sorties
Signal d’entrée
bal/unbal
Connecteurs d’entrée
Combo XLR/Jack
Connecteurs de sortie
XLR
Sensibilité d’entrée
-2 dBu/+4 dBu
Section processeur
Fréquences de recouvrement
1200
Protections
Excurs.
Limiteur
Fast Limiter
Commandes
Linear/Boost/Stage Presets, Volume.
Section alimentation
Puissance totale
2100 W Peak
Hautes fréquences
700 W Peak
Basses fréquences
1400 W Peak
Système de refroidissement
Convection
Connexions
Powercon TRUE1 TOP IN/OUT
Conformité standard
Safety agency
CE compliant
Specifications physiques
Matériau du cabinet/caisson
Plywood
Matériel
2X M10 TOP AND BOTTOM
2X PIN D.10
Poignées
2 TOP AND BOTTOM
Montage sur pied/embase
Quick-fit socket
Grille
Steel
Couleur
Black - RAL 9005, White - RAL 9003
Taille
Hauteur
567 mm / 22.32 inches
Largeur
197 mm / 7.76 inches
Profondeur
270 mm / 10.63 inches
Poids
12.8 kg / 28.22 lbs
Infos colisage
Hauteur du colis
600 mm / 23.62 inches
Largeur du colis
232 mm / 9.13 inches
Profondeur du colis
302 mm / 11.89 inches
Poids du colis
14.6 kg / 32.19 lbs
