AVAILABLE ON ORDER
INSTALLED SOUND

HVL 15-S

BANDPASS SUBWOOFER SYSTEM
  • 3000 W power handling
  • 133 dB max SPL
  • 33 ÷ 180 Hz frequency range
  • 2 x 15" high-power woofers
Où acheter
Caractéristiques Caractéristiques Produits connexes Téléchargements
Où acheter
Caractéristiques
  • 3000 W power handling
  • 133 dB max SPL
  • 33 ÷ 180 Hz frequency range
  • 2 x 15" high-power woofers
  • Symmetric design
  • Baltic birch plywood cabinet and steel grille
  • Weatherproof treatment

HVL 15-S is a double 15” subwoofer system for long-throw applications, outfitted with 2 x 15” woofers. Equipped with the latest generation of RCF precision transducers with powerful neodymium magnets, HVL 15-S provides very high output and accurate sound reproduction. The system can produce a max SPL of 133 dB, handling 3000 W. The enclosure is trapezoidal with a coupling angle of 15°. The cabinet is made of Baltic birch plywood, and the finishing is a waterproof, textured, polyurea coating. A heavy-duty, weatherproof barrier strip provides connections. The grille is in epoxy coated heavy-duty steel with open-cell fibers and water repellent woven-fabric backing.

AVAILABLE ON ORDER
LIRE LA SUITE

Part number:

13000705
HVL 15-S W
EAN 8024530018719

Long throw applications

Focusing on stadiums and big arenas, HVL Series speakers are capable of true, concert-level high performance in arena-sized venues. Featuring point source, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.
Responsive Image
Amplificateur recommandé

SÉRIE XPS

4 x 4000 W

Puissance de sortie continue sous 2,7 ohms, en Classe D

40 bits virgule flottante Traitement audio à 96 kHz
Prêt à utiliser

Configurations et presets pour enceintes RCF

Hauteur 2U de rack

Pour systèmes son de touring et d’installation

Assignation en 32 bits d’une grande souplesse

grâce aux entrées/sorties analogiques, numériques AES/EBU et Dante

Protections sophistiquées
au niveau de chaque canal d’ampli et de l’alimentation secteur
Responsive Image
Système à trois voies longue portée
Système de 4 doubles 15” pavillonnés (HVL 15-S)
Salles de grandes dimensions, arenas
Responsive Image
Responsive Image

Precision transducers

With in-house transducers’ design and manufacturing for no-compromise performances, the HVL Series excels in any comparison. All transducers feature state of the art neodymium magnetic circuits, radically new voice coil ventilation systems, and ground-breaking voice coil assemblies.

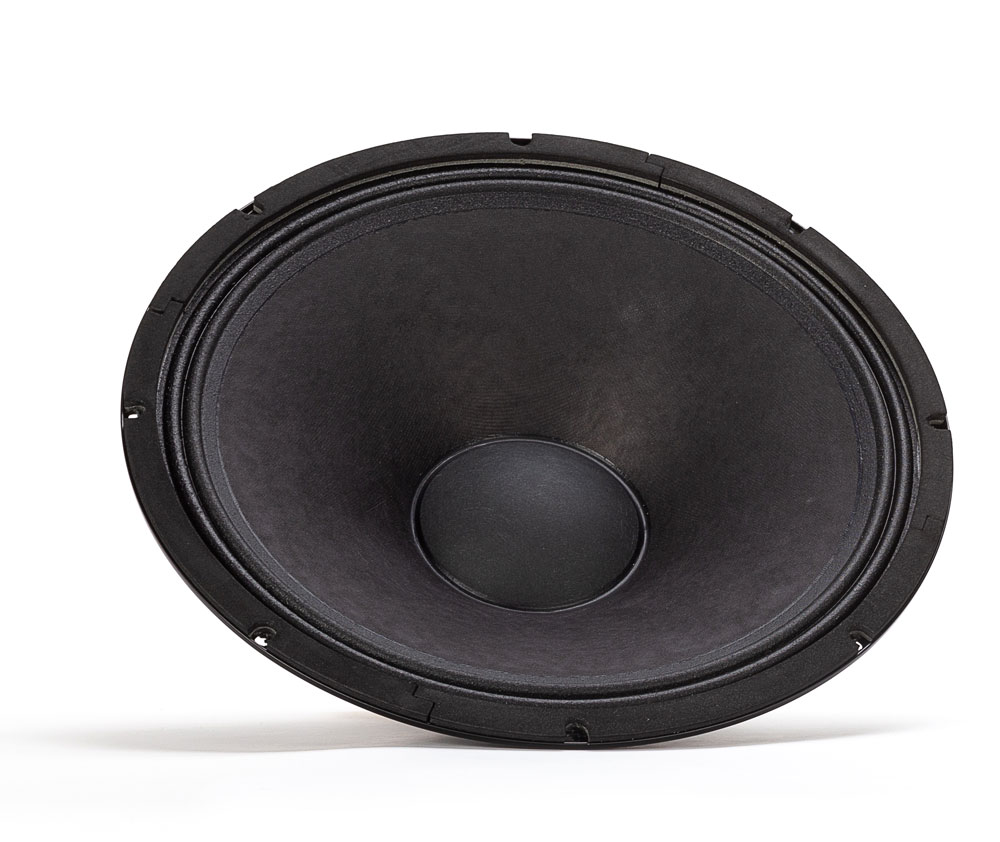

Low frequencies 2 x 15” high-power woofer, 3,5" inside/outside voice coil, dual spider, hypervented, neodymium magnet.

4path waveguide

The custom 4 PATH-designed waveguide allows precise coverage while also delivering an excellent, linear high-frequency response. The unique shape of the four ducts forming the guide creates an ideal isophasic load from the vocal range up to the highest audible frequencies.
Responsive Image
Responsive Image

Consistent robustness

Reduce the commissioning time on your new projects with HVL’s modular array-ability, multiple directivity indexes (Q, and small footprint in comparison to its power. HVL can lower overall system costs by delivering full coverage with fewer modules precisely matching the audience area. Rated for direct-exposure outdoor installations, each cabinet is made of Baltic birch plywood with polyurea coating and includes a weatherproof barrier strip for connections. The grille is powder-coated heavy-duty steel with open-cell fibers and water repellent woven-fabric backing.
Responsive Image

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Responsive Image
Caractéristiques
Specifications acoustiques
Réponse en fréquence (-10 dB)
33 Hz ÷ 180 Hz
Réponse en fréquence (-3 dB)
40 Hz ÷ 150 Hz
SPL max. @ 1m
133 dB
Sensibilité du système:
97 dB
Section alimentation
Amplification
Bi-Amp
Impédance nominale LF
8 ohm
Manipulation de tension LF
1500 W
Manipulation de tension de crête LF
6000 W
Sensibilité LF
97 dB
Impédance nominale LF2
8 ohm
Manipulation de tension LF2
1500 W
Manipulation de tension de crête LF2
6000 W
Sensibilité LF2
97 dB
Amplificateur recommandé
XPS 16K, XPS 16KD, QPS 10K
Hauts-parleurs
Woofer
2 x 15'', 4.0'' v.c
Sections entrées/sorties
Connecteurs d’entrée
Screw Terminals
Connecteurs de sortie
Screw Terminals
Conformité standard
Safety agency
CE compliant
Specifications physiques
Matériau du cabinet/caisson
Baltic birch plywood
Matériel
n° 8 x M20 on each side panel
n° 8 x M20 on top and bottom panel
Grille
Steel
Couleur
White - RAL 9010, Black - RAL 9005
Taille / Poids
Hauteur
525 mm / 20.67 inches
Largeur
1380 mm / 54.33 inches
Profondeur
734 mm / 28.9 inches
Poids
110 kg / 242.51 lbs
Infos colisage
Hauteur du colis
840 mm / 33.07 inches
Largeur du colis
1405 mm / 55.31 inches
Profondeur du colis
545 mm / 21.46 inches
Poids du colis
120 kg / 264.55 lbs
Produits connexes
Téléchargements
MANUELS
USER MANUAL - ENG ITA
PDF
929 Ko
17-06-2021
FICHES TECHNIQUES
SPECSHEET - ENG
PDF
1,6 Mo
18-10-2024
ACOUSTIC MEASUREMENTS
PDF
86 Ko
11-07-2024
CONFORMITÉ AUX NORMES
CE DECLARATION OF CONFORMITY - ENG
PDF
139 Ko
30-08-2022
UKCA DECLARATION OF CONFORMITY - ENG
PDF
155 Ko
30-08-2022
DESSINS
LINE ART 2D
DXF
3,8 Mo
22-01-2024
LINE ART 2D
PDF
411 Ko
22-01-2024
LINE ART 3D
DXF
2,2 Mo
22-01-2024
