HVL 15-L

LONG THROW THREE-WAY SYSTEM
  • 1000 W (LF) + 900 W (MHF) power handling
  • 147 dB max SPL
  • 43 ÷ 18000 Hz frequency range
  • 90° x 30° coverage angles
Où acheter
Caractéristiques Caractéristiques Produits connexes Téléchargements
Où acheter
Caractéristiques
  • 1000 W (LF) + 900 W (MHF) power handling
  • 147 dB max SPL
  • 43 ÷ 18000 Hz frequency range
  • 90° x 30° coverage angles
  • Fully equipped with neodymium transducers
  • Bi-amped system with passive filter between MF and HF

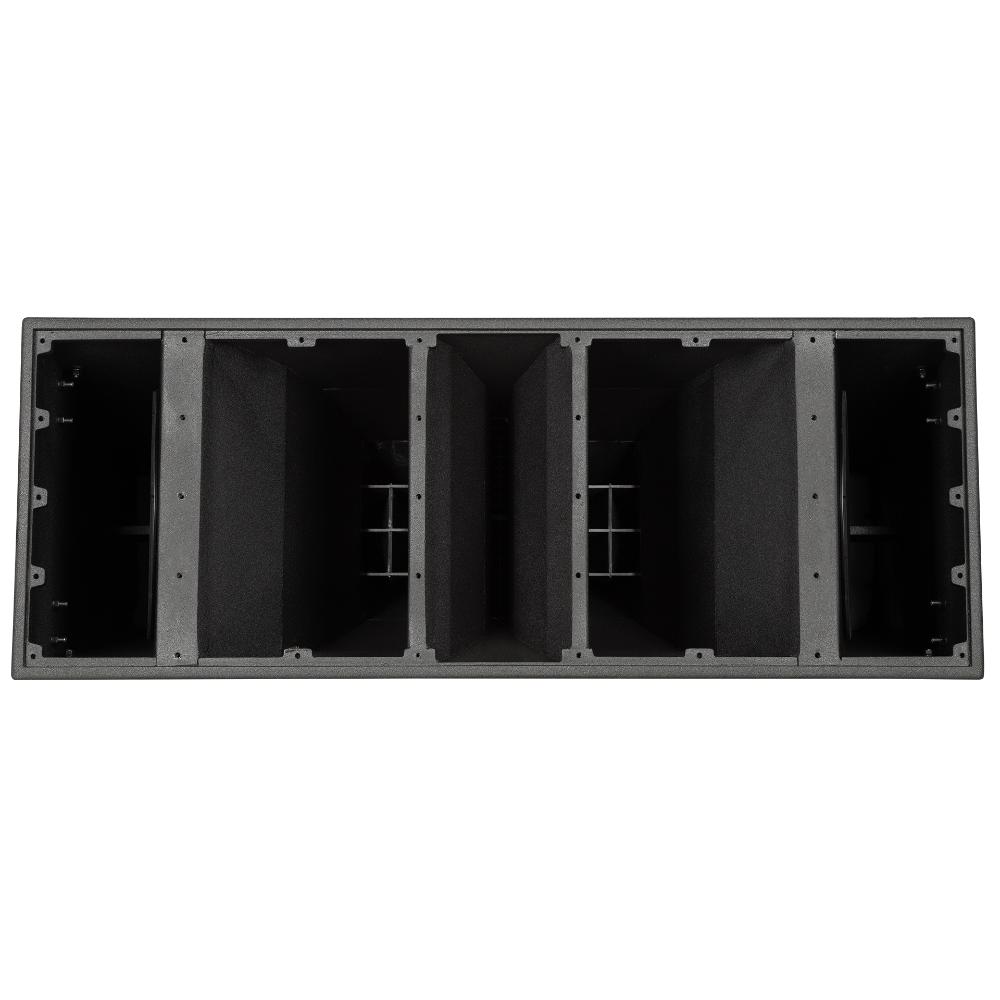

  • Horn Loaded symmetric design
  • Baltic birch plywood cabinet and steel grille
  • Weatherproof treatment

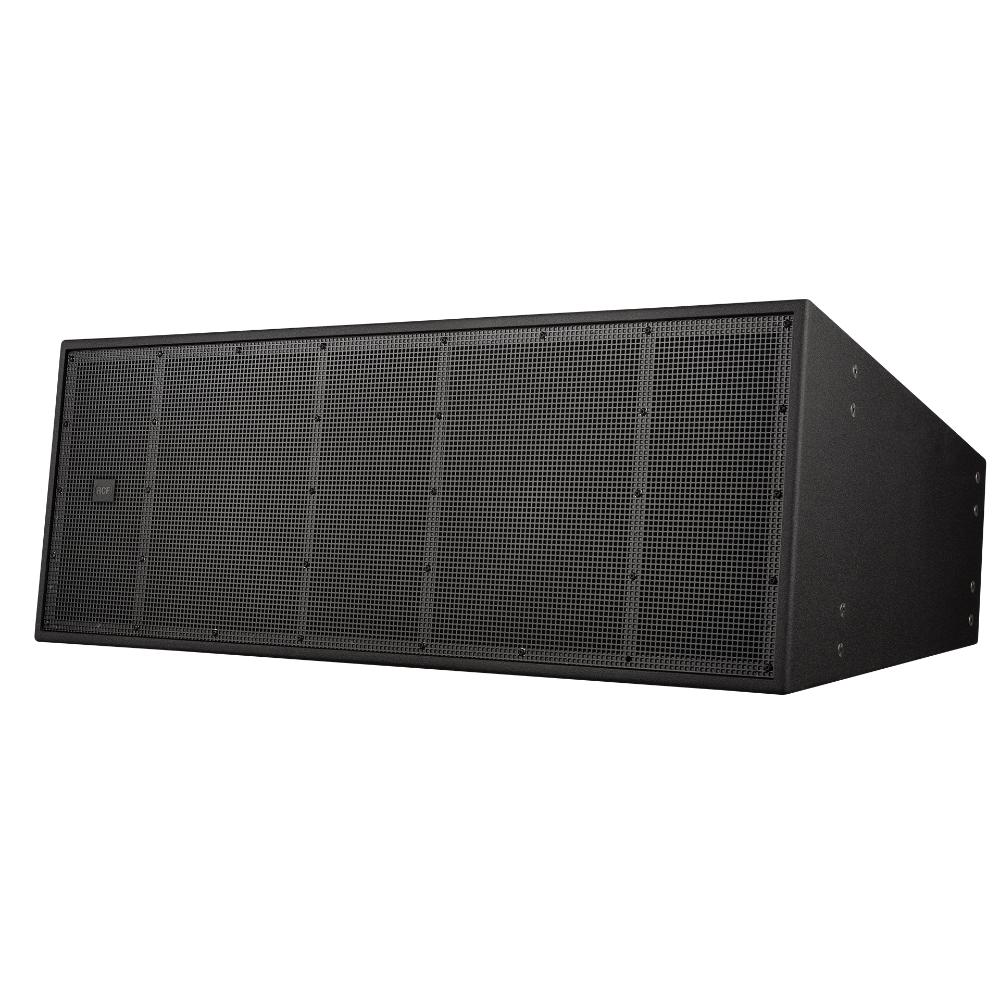

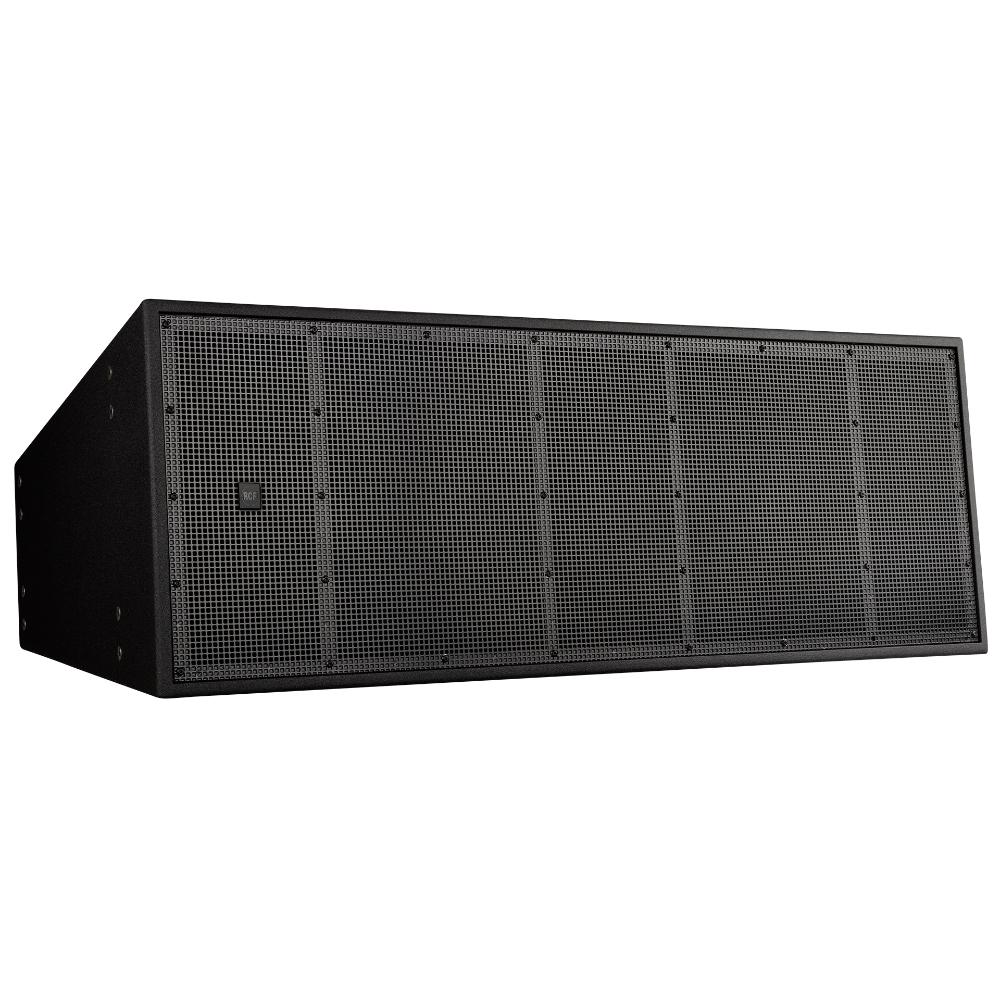

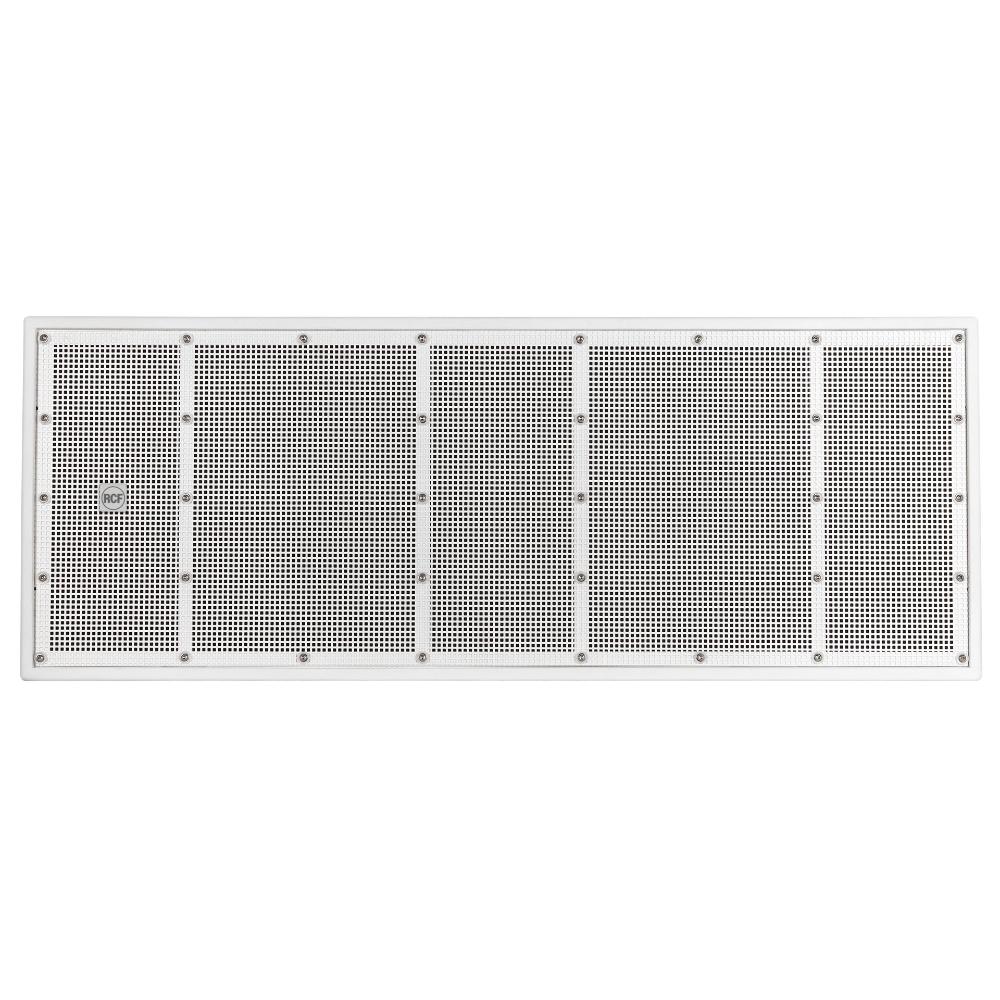

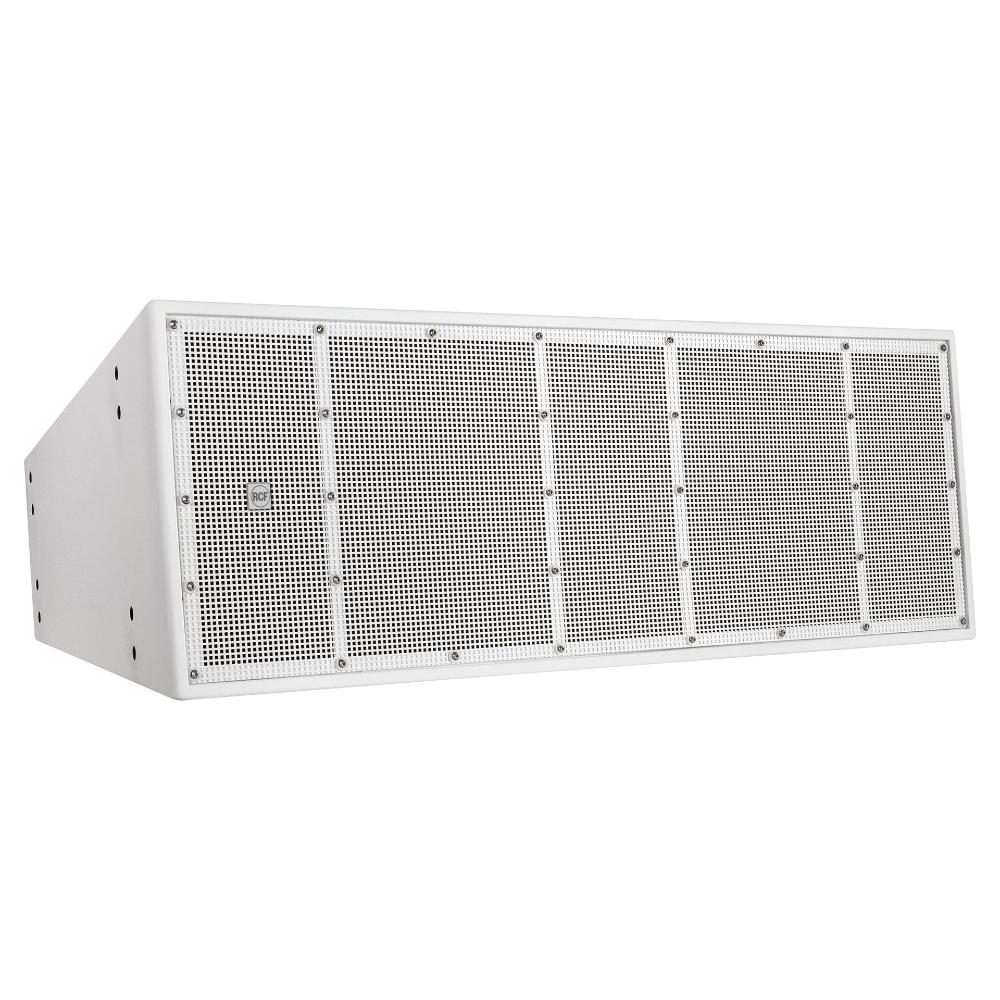

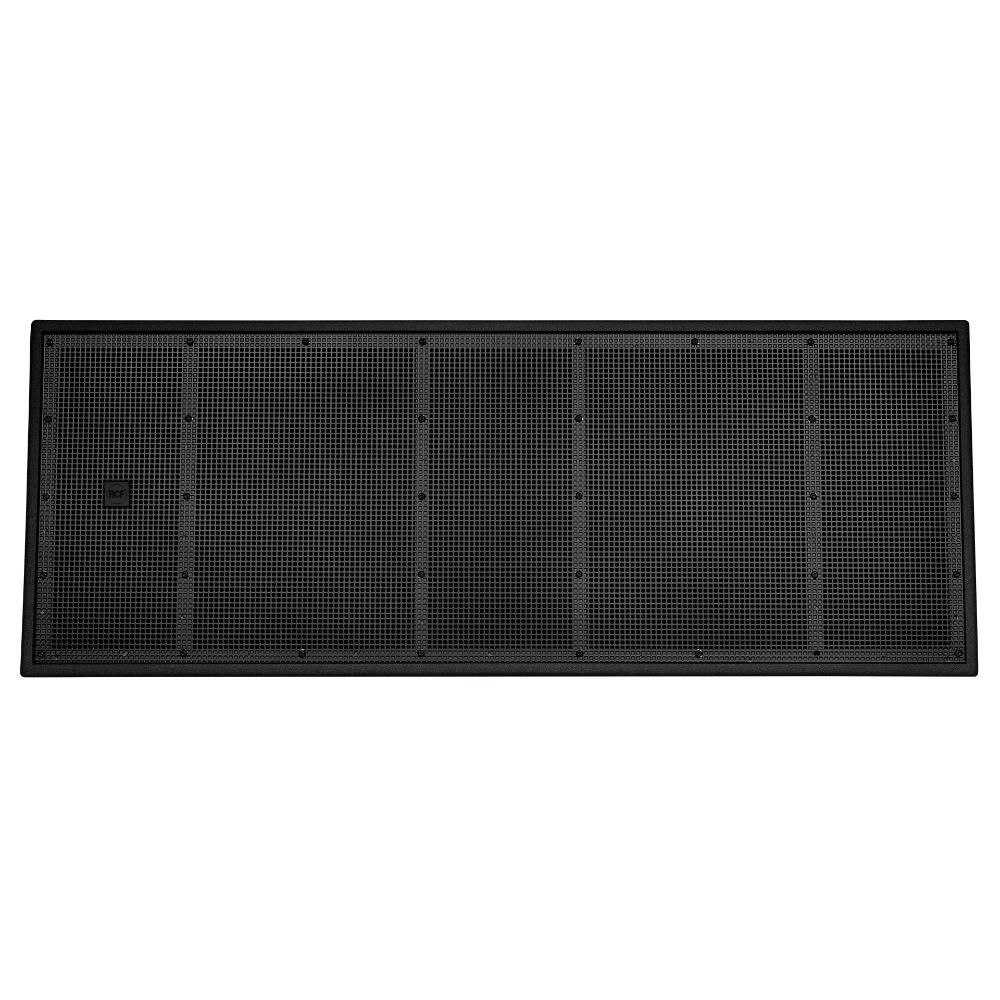

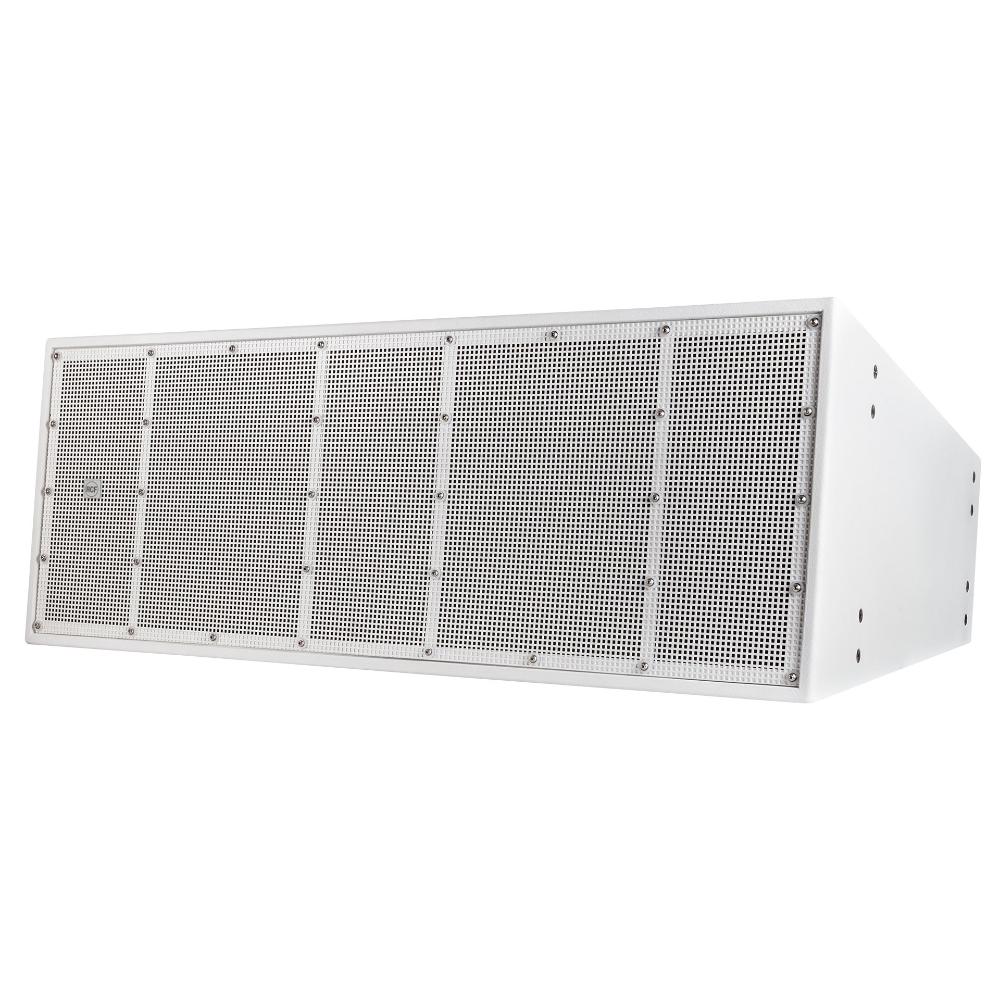

HVL 15-L is a three-way, bi-amp loudspeaker system for long-throw applications, outfitted with 2 x 15” woofers, 2 x 10” midranges, and 2 x 4.0” voice coil, titanium dome compression drivers. Equipped with the latest generation of RCF precision transducers with powerful neodymium magnets, HVL 15-L provides very high output and accurate sound and voice reproduction. The system, driven in bi-amped mode, can produce a max SPL of 144 dB, handling 1000 W RMS (LF) + 900 W RMS (MHF). An internal passive filter provides crossover and equalization between the midranges and the compression drivers. The horizontal coverage is 90°, and the vertical coverage is 30°. A heavy-duty, weatherproof barrier strip provides connections. The cabinet is made of Baltic birch plywood. The finishing is a waterproof, textured, polyurea coating. The grille is in epoxy coated heavy-duty steel with open-cell fibers and water repellent woven-fabric backing.

AVAILABLE ON ORDER
LIRE LA SUITE

Part number:

13000640
HVL 15-L W
EAN 8024530017606

Long throw applications

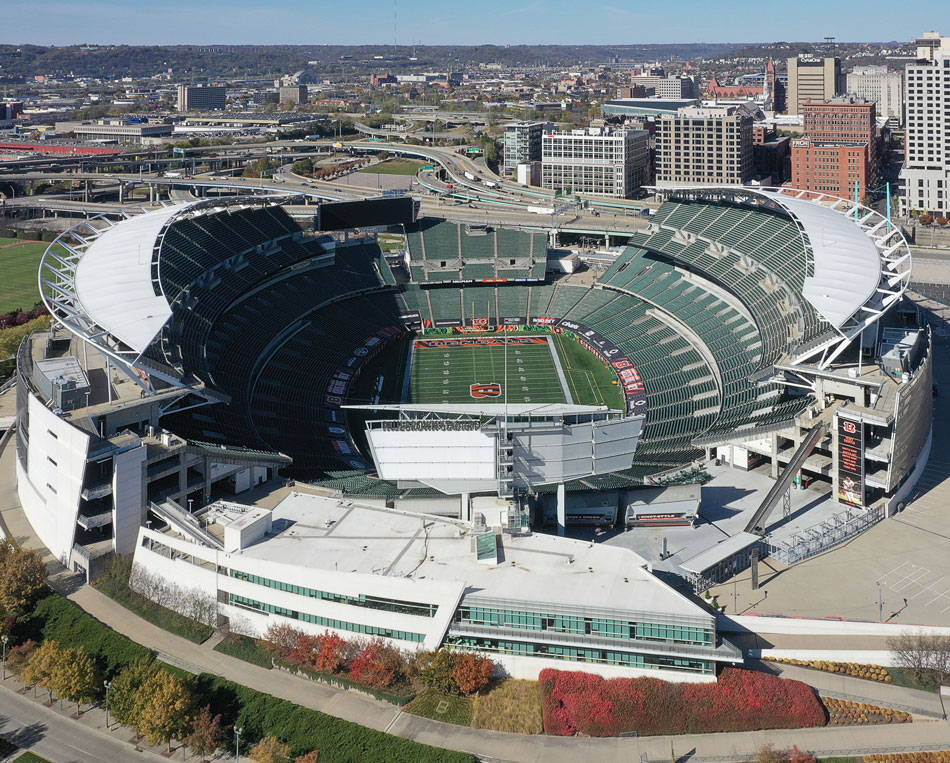

Focusing on stadiums and big arenas, HVL Series speakers are capable of true, concert-level high performance in arena-sized venues. Featuring point source, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.
Responsive Image
Amplificateur recommandé

SÉRIE XPS

4 x 4000 W

Puissance de sortie continue sous 2,7 ohms, en Classe D

40 bits virgule flottante Traitement audio à 96 kHz
Prêt à utiliser

Configurations et presets pour enceintes RCF

Hauteur 2U de rack

Pour systèmes son de touring et d’installation

Assignation en 32 bits d’une grande souplesse

grâce aux entrées/sorties analogiques, numériques AES/EBU et Dante

Protections sophistiquées
au niveau de chaque canal d’ampli et de l’alimentation secteur
Responsive Image
Système à trois voies longue portée
Système de 4 doubles 15” pavillonnés (HVL 15-L)
Salles de grandes dimensions, arenas
Responsive Image
Responsive Image

Precision transducers

With in-house transducers’ design and manufacturing for no-compromise performances, the HVL Series excels in any comparison. All transducers feature state of the art neodymium magnetic circuits, radically new voice coil ventilation systems, and ground-breaking voice coil assemblies.

Low frequencies 2 x 15” high-power woofer, 3,5" inside/outside voice coil, dual spider, hypervented, neodymium magnet.

Mid frequencies 2 x 10” neodymium midrange, 3" voice coil, high performance sealed basket design.

High frequencies 2 x 4” neodymium compression driver, titanium dome, 4 slot phase plug, copper inductance ring for extended response.

4path waveguide

The custom 4 PATH-designed waveguide allows precise coverage while also delivering an excellent, linear high-frequency response. The unique shape of the four ducts forming the guide creates an ideal isophasic load from the vocal range up to the highest audible frequencies.
Responsive Image
Responsive Image

Consistent robustness

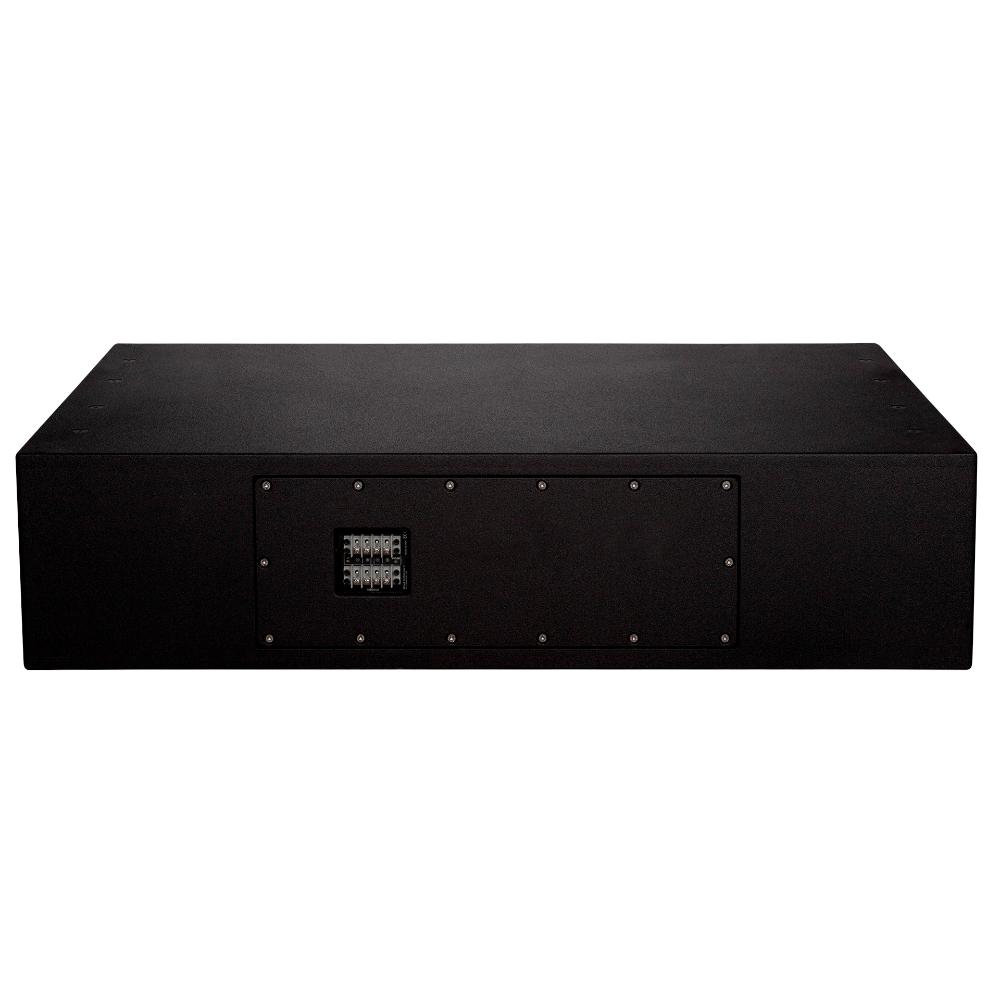

Reduce the commissioning time on your new projects with HVL’s modular array-ability, multiple directivity indexes (Q, and small footprint in comparison to its power. HVL can lower overall system costs by delivering full coverage with fewer modules precisely matching the audience area. Rated for direct-exposure outdoor installations, each cabinet is made of Baltic birch plywood with polyurea coating and includes a weatherproof barrier strip for connections. The grille is powder-coated heavy-duty steel with open-cell fibers and water repellent woven-fabric backing.
Responsive Image

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Responsive Image
Caractéristiques
Specifications acoustiques
Réponse en fréquence (-10 dB)
43 Hz ÷ 18000 Hz
Réponse en fréquence (-3 dB)
59 Hz ÷ 13000 Hz
SPL max. @ 1m
147 dB
Angle de couverture horizontale
90°
Angle de détection vertical
30°
Indice de directivité Q :
12
Section alimentation
Amplification
Bi-Amp
Impédance nominale LF
8 ohm
Manipulation de tension LF
1000 W
Manipulation de tension de crête LF
4000 W
Sensibilité LF
97 dB
Impédance nominale MF+HF
8 ohm
Manipulation de tension MF+HF
900 W
Manipulation de tension de crête MF+HF
3600 W
Sensibilité MF + HF
111 dB
Protections MF+HF
Dynamic Active Mosfet
Fréquences de recouvrement
1000 Hz
Amplificateur recommandé
XPS 16K, XPS 16KD, QPS 10K
Hauts-parleurs
Pilote de compression
2 x 1.4'' neo, 4.0'' v.c
Medium
2 x 10'' neo, 3.0'' v.c
Woofer
2 x 15'' neo, 3.5'' v.c
Sections entrées/sorties

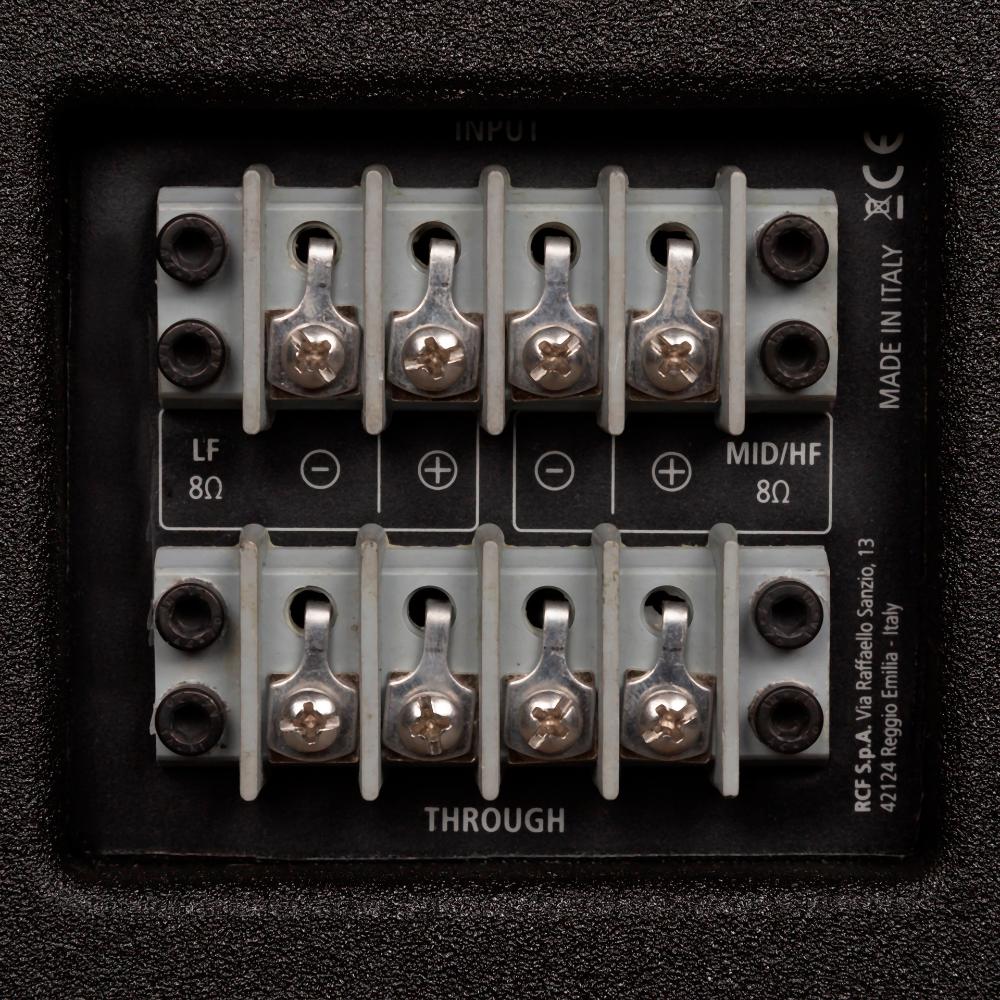

Connecteurs d’entrée
Screw Terminals
Connecteurs de sortie
Screw Terminals
Conformité standard
Safety agency
CE compliant
Specifications physiques
Matériau du cabinet/caisson
Baltic birch plywood

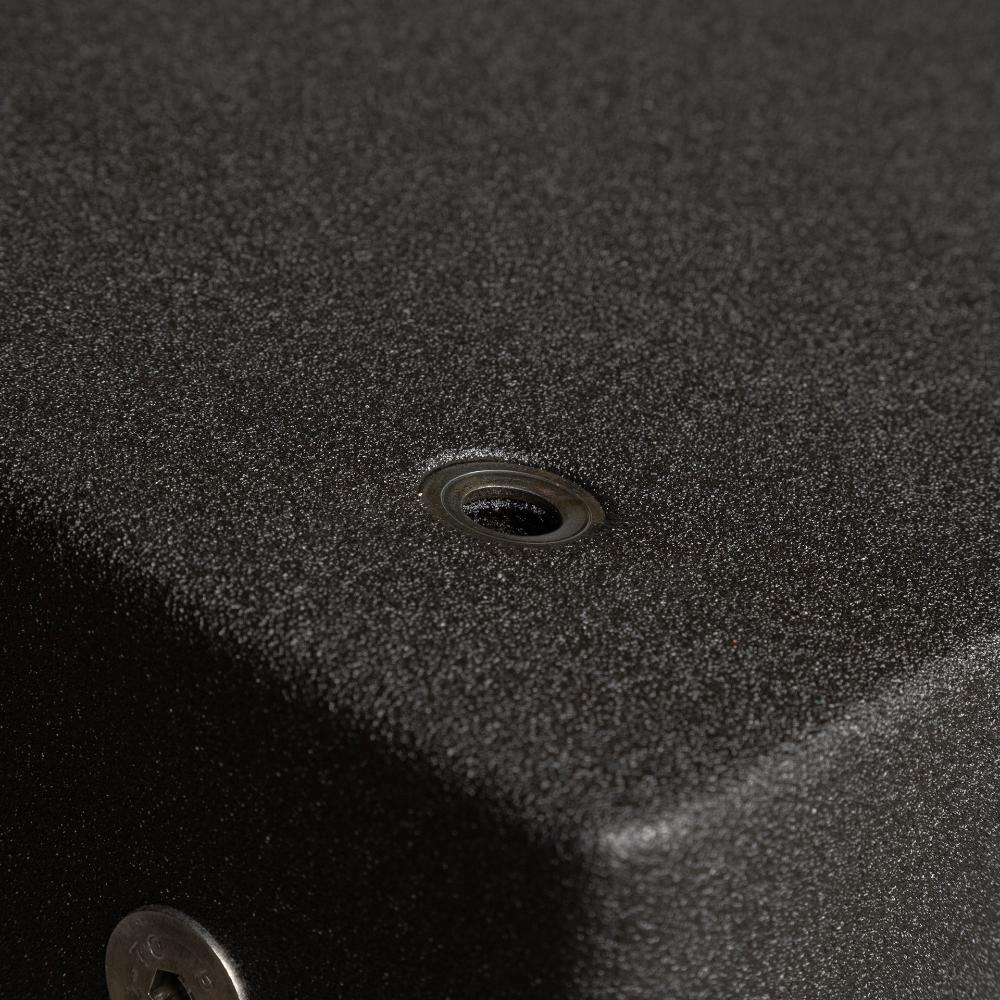

Matériel
n° 8 x M20 on each side panel
n° 8 x M20 on top and bottom panels
Grille
Steel
Couleur
White - RAL 9010, Black - RAL 9005
Taille / Poids
Hauteur
525 mm / 20.67 inches
Largeur
1382 mm / 54.41 inches
Profondeur
815 mm / 32.09 inches
Poids
110 kg / 242.51 lbs
Infos colisage
Hauteur du colis
920 mm / 36.22 inches
Largeur du colis
1405 mm / 55.31 inches
Profondeur du colis
545 mm / 21.46 inches
Poids du colis
120 kg / 264.55 lbs
