Características
  • 300 W RMS power handling
  • 129 dB max SPL
  • 75 Hz ÷ 20000 Hz frequency range
  • 15" neodymium woofer, 2.5" v.c.
  • 1.75" v.c. neodymium compression driver
  • 90° x 60° constant directivity
  • Weatherproof IP55 cabinet with UV protection
  • Aluminum grille
  • AISI 316L stainless steel bracket
  • Built in 100V line transformer

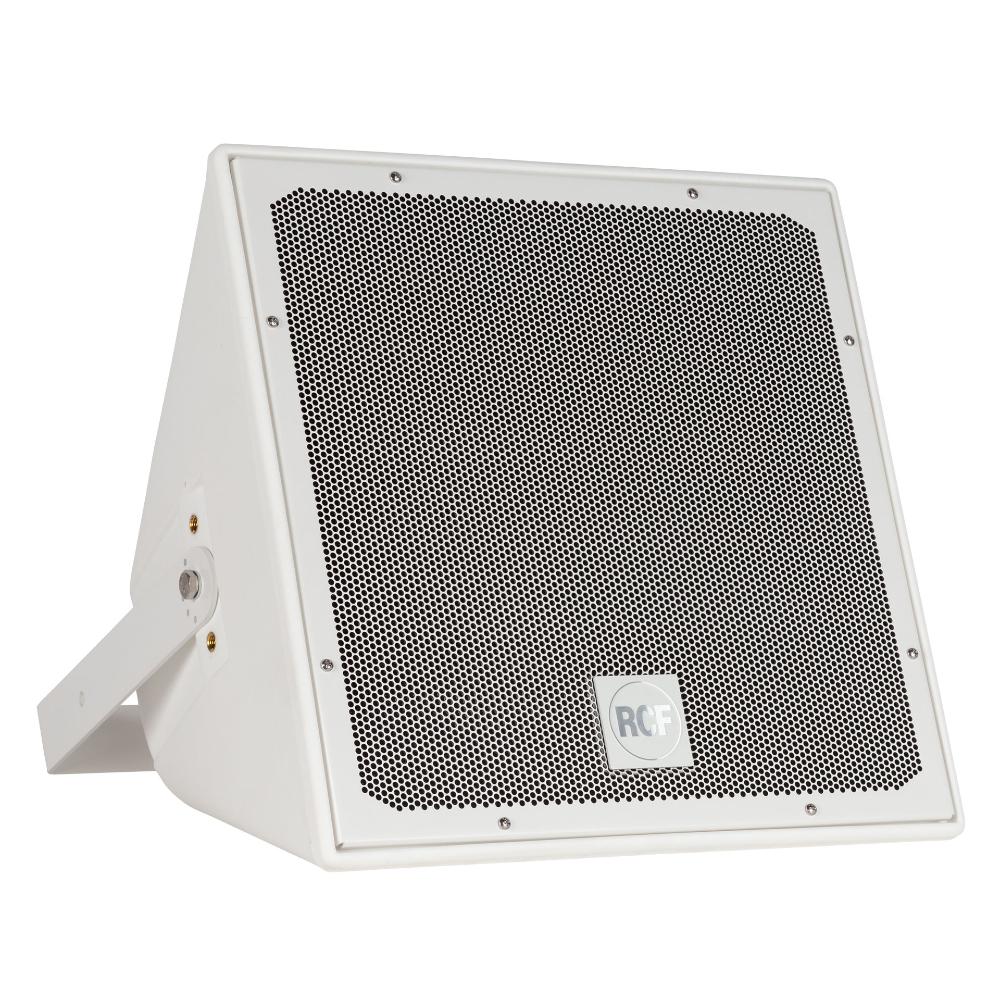

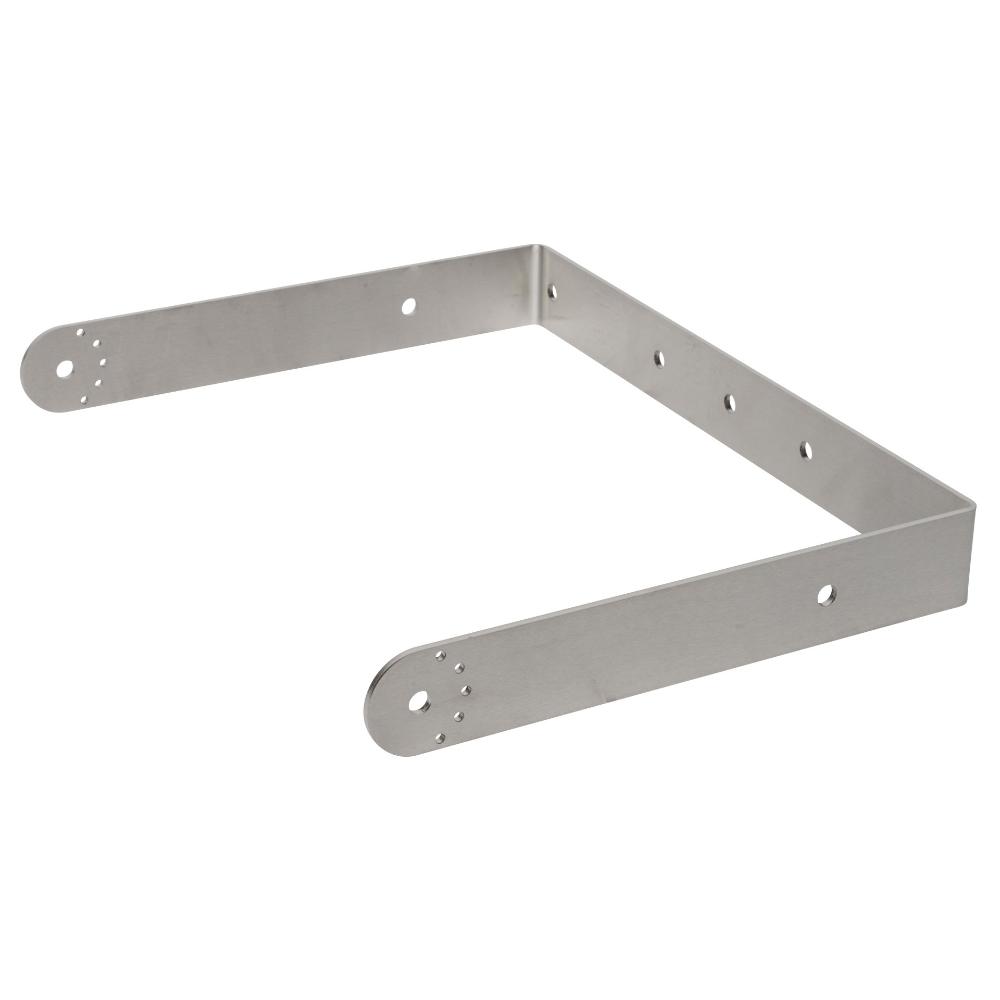

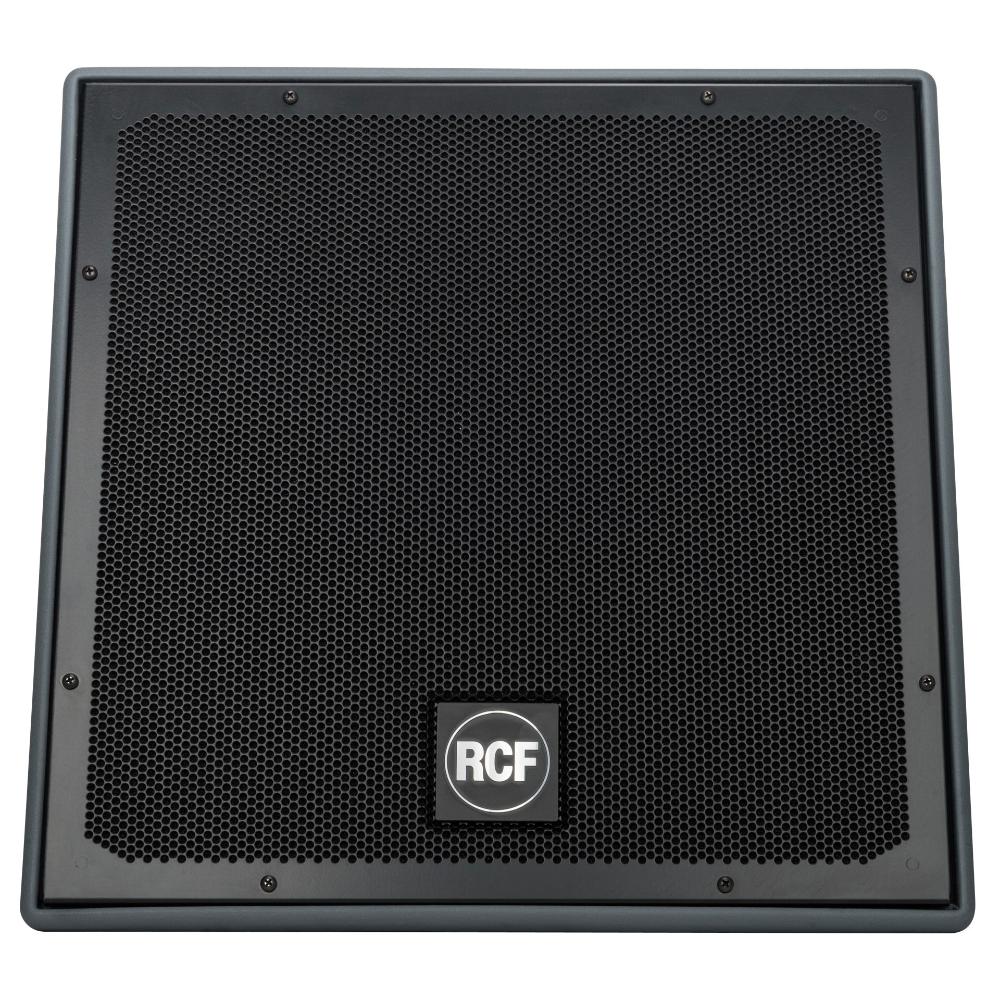

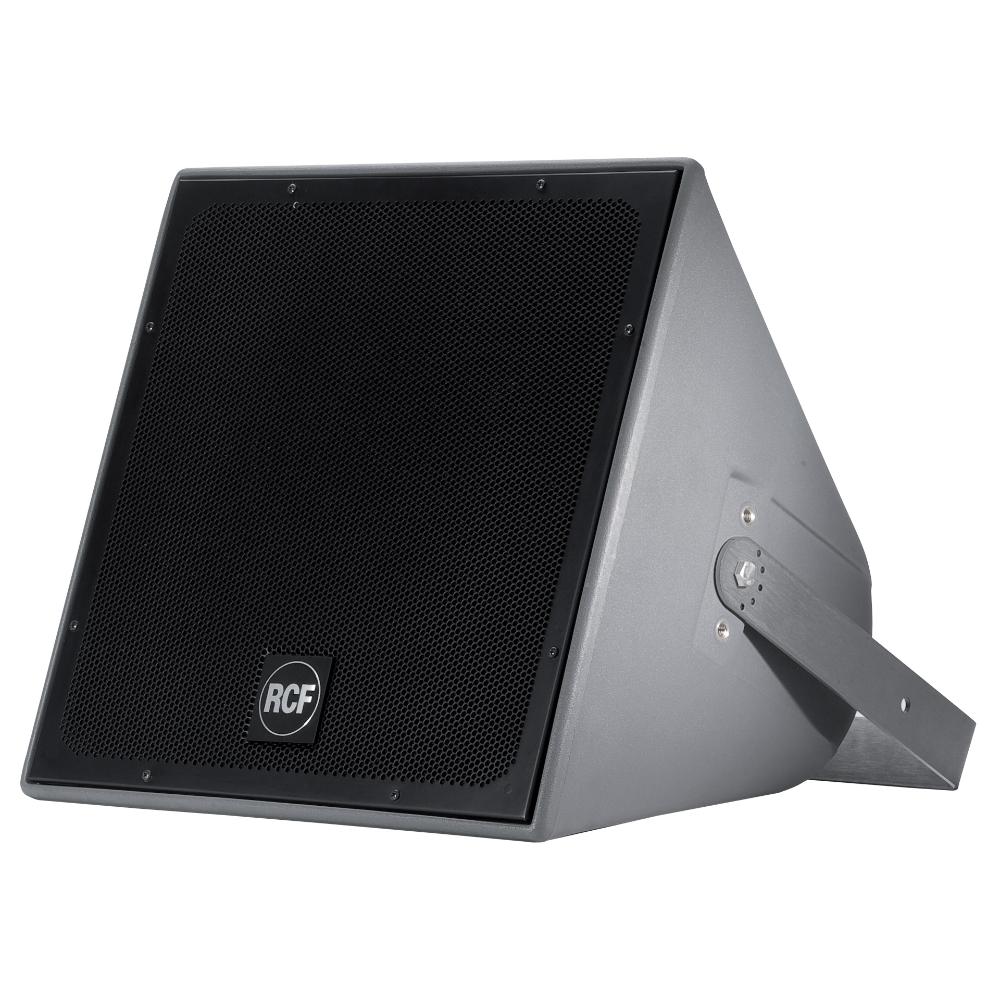

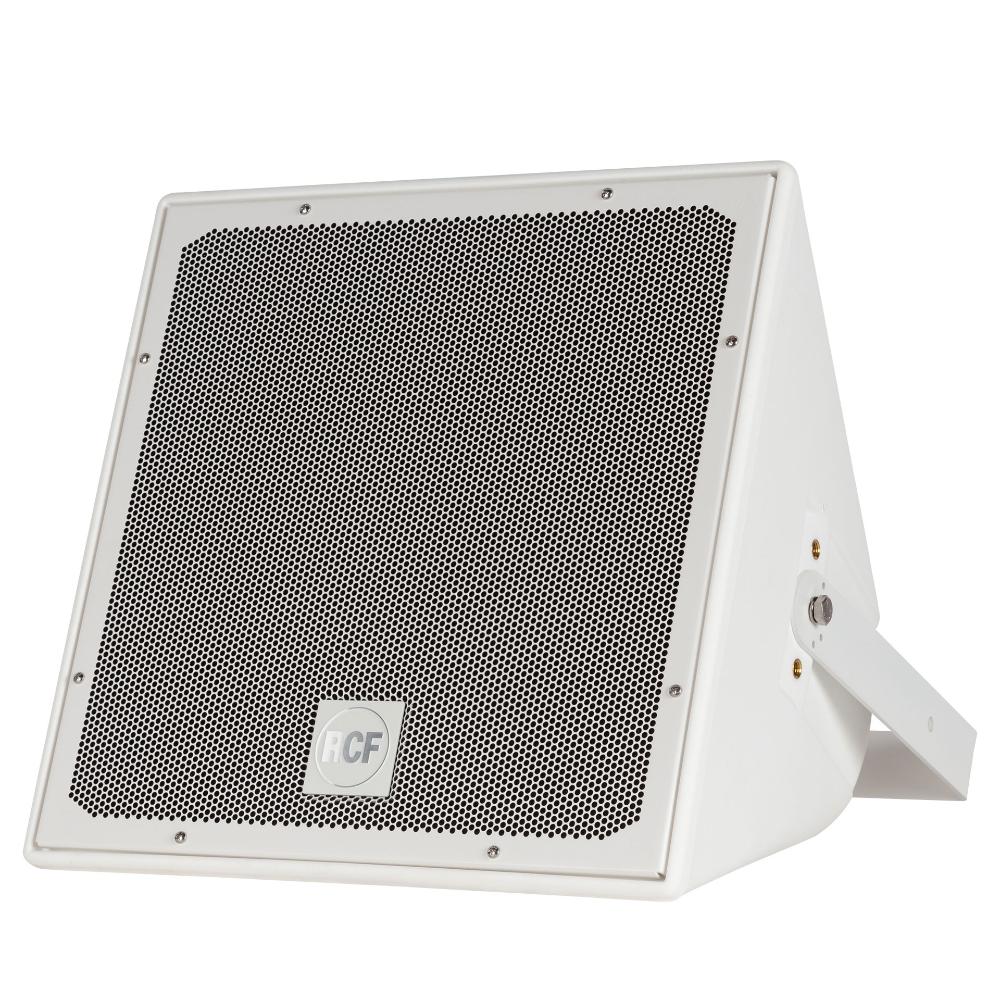

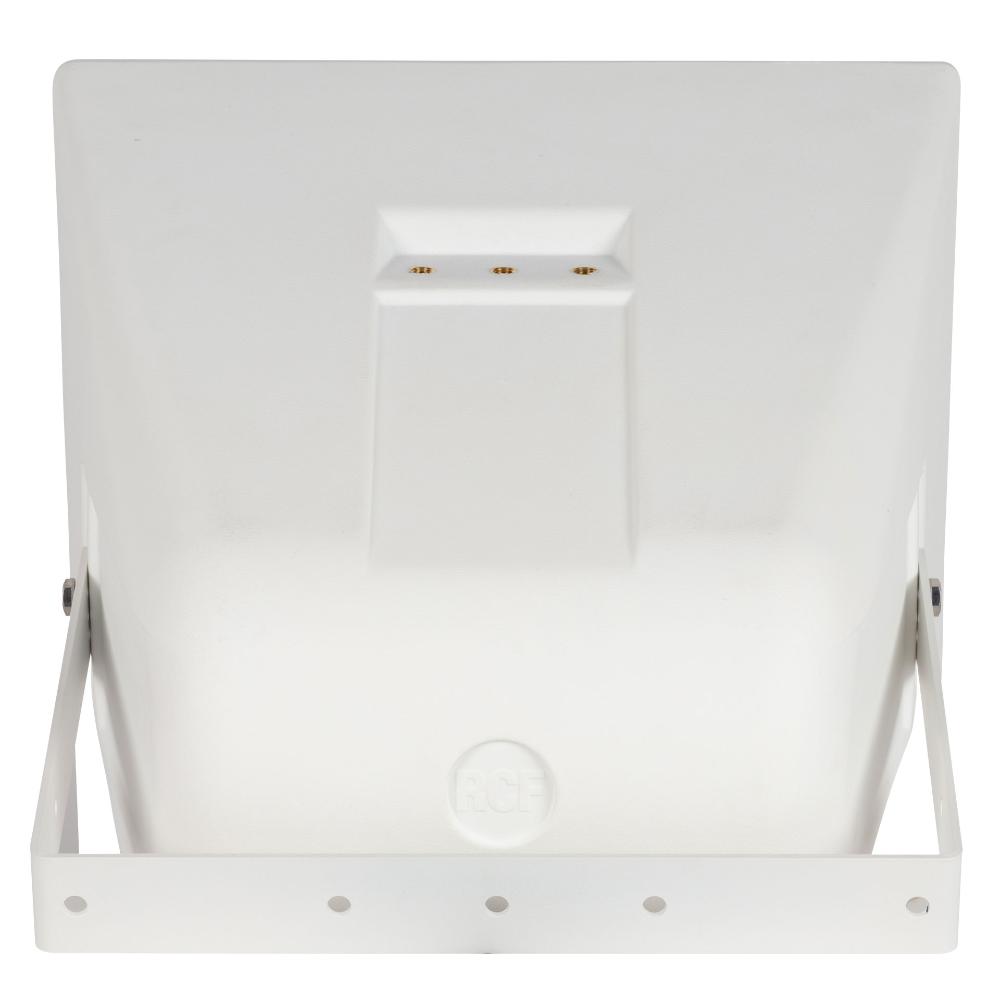

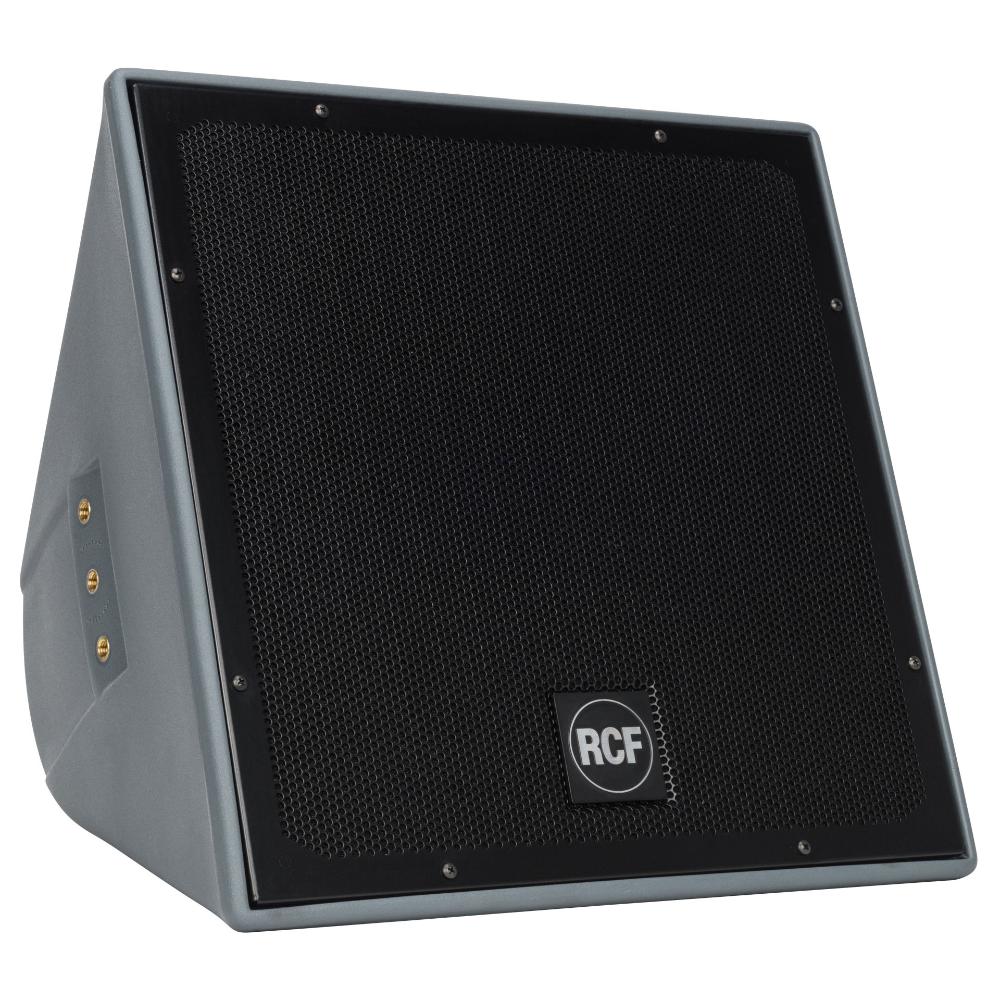

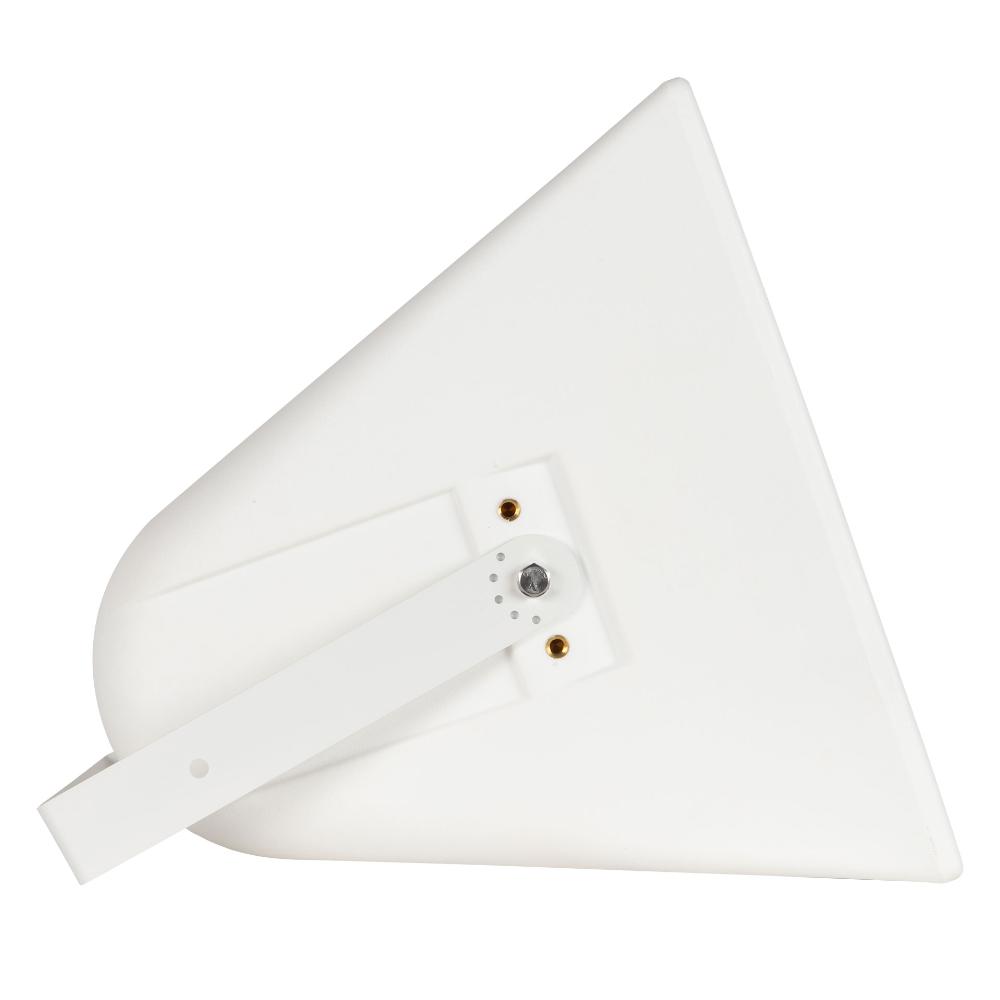

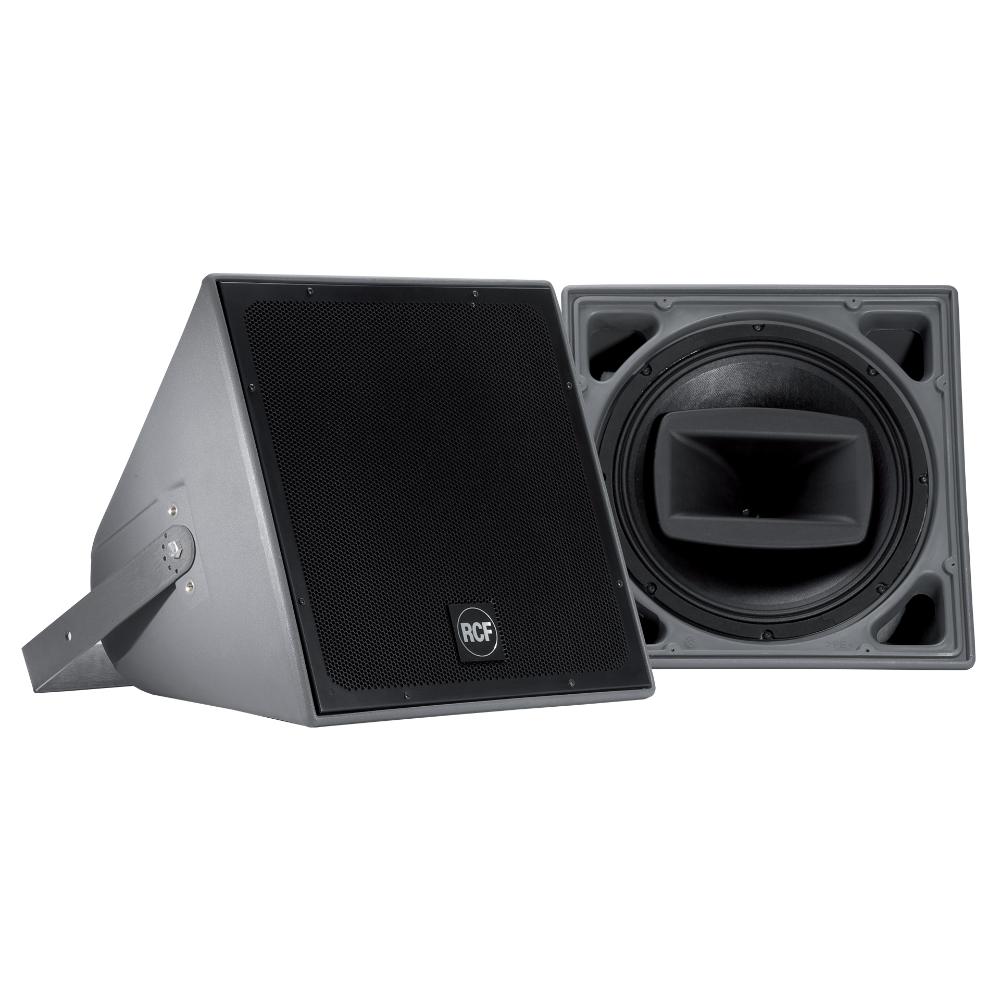

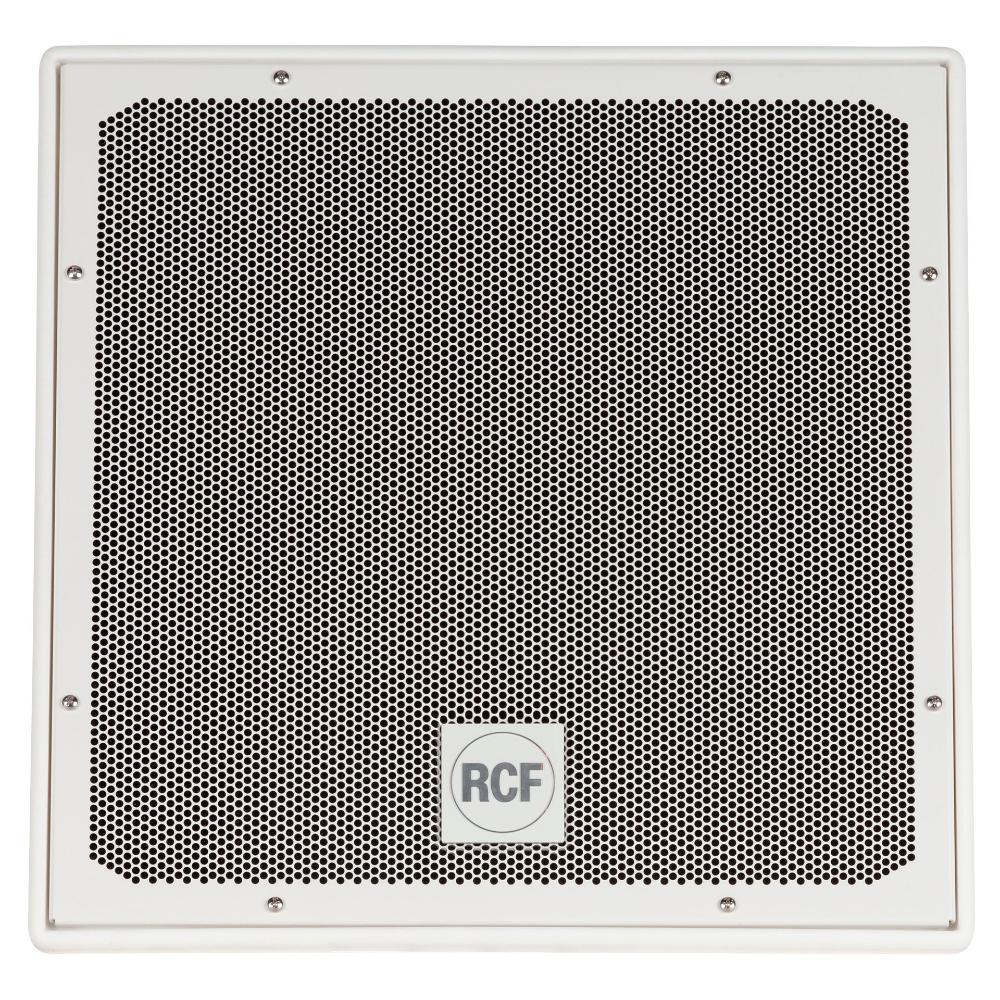

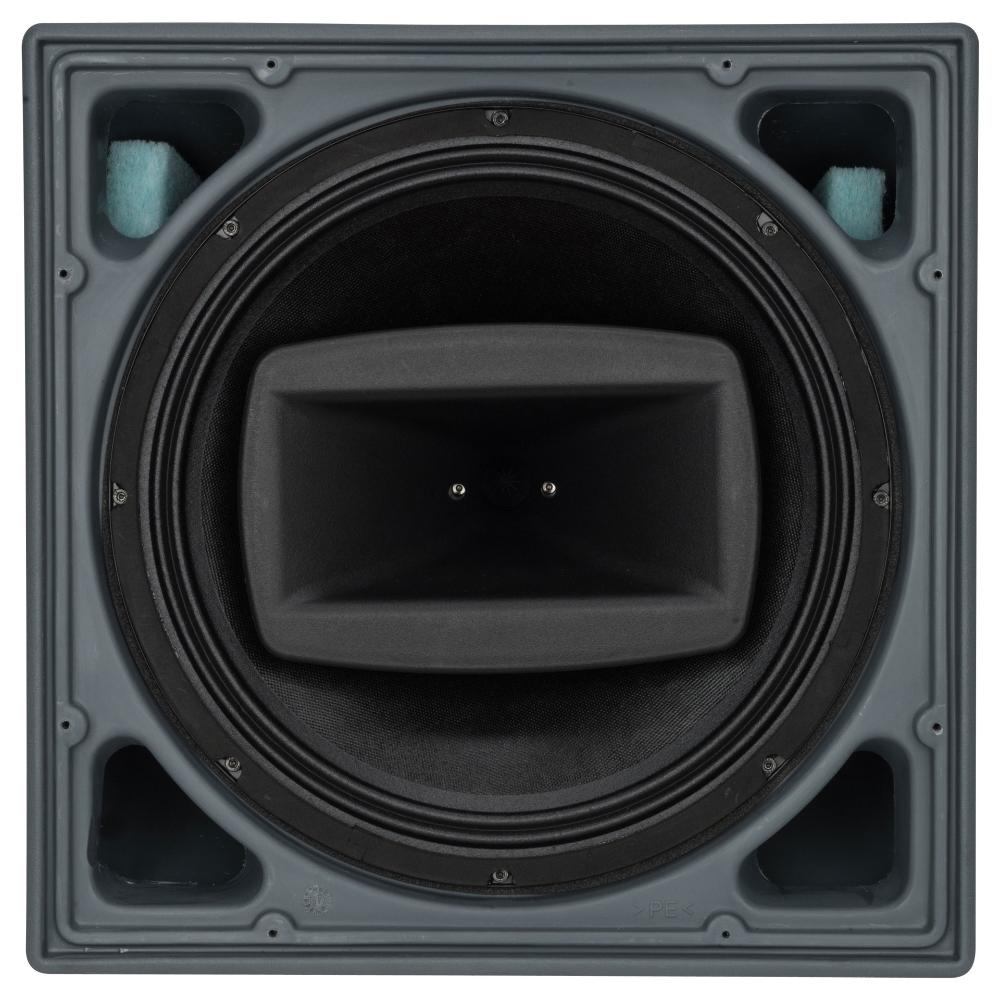

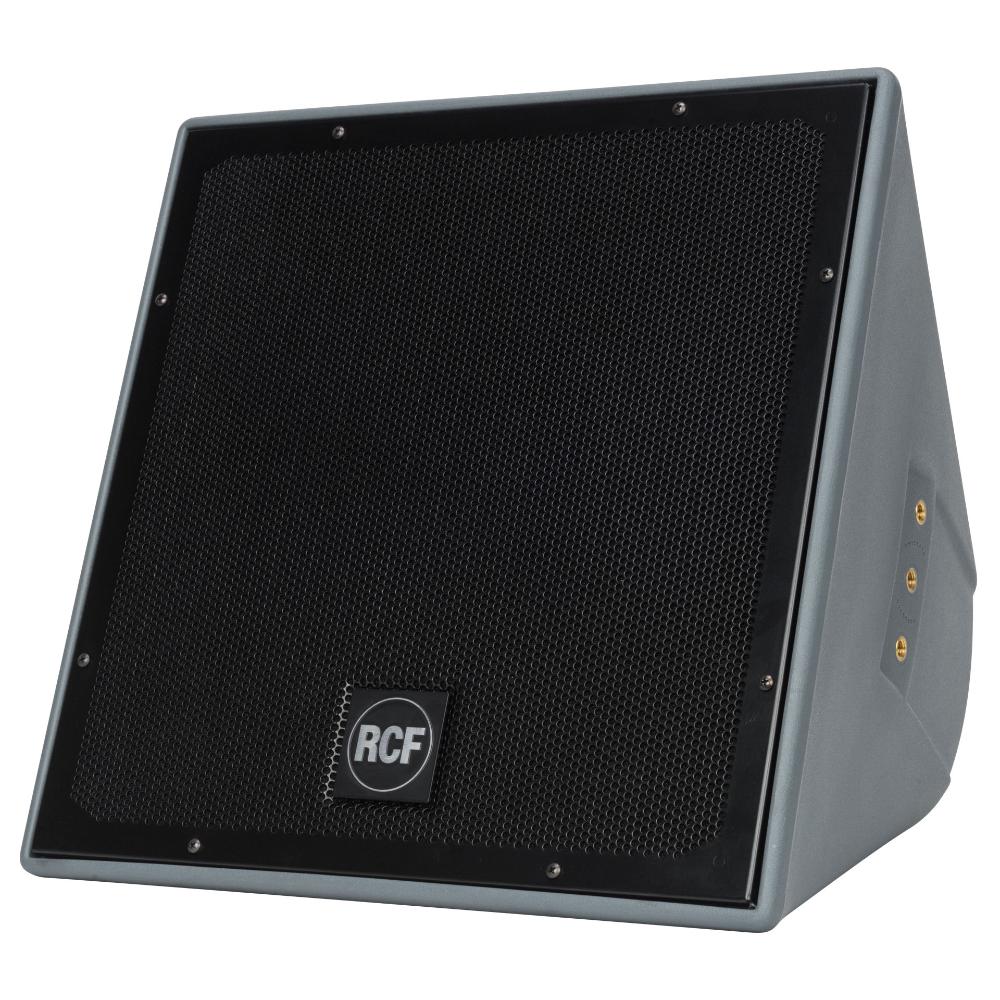

The P 3115T is a weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 15” woofer with a 3” voice coil. The high-frequency section combines a 1.3” RCF Precision compression driver with a 2.5” diaphragm assembly centrally mounted in the throat of the LF driver and loaded on a constant directivity CMD horn for smooth, wide dispersion. The P 3115T features a selectable line transformer for 70 - 100 volt applications, built-in LICC crossover, and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements, equipped with M10 brass inserts (12x), and a durable and corrosion-resistant 316P stainless steel U-Bracket with spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.


AVAILABLE ON ORDER

Part number:

13000135
P 3115T
EAN 8024530008307

13100082
P 3115T W
EAN 8024530017514

Amplificador recomendado

SERIE XPS

4 x 4000 W

Potencia continua de Clase D a 2,7 Ω

Coma flotante de 40 bits
Procesamiento a 96 kHz

Listo para usar
Configuraciones y presets para altavoces RCF

2 unidades de rack
Ideal tanto para giras como para sistemas instalados de sonido

Enrutamiento flexible de 32 bits
con E/S analógicas,
digitales y Dante

Protección avanzada contra errores
para cada canal del amplificador y la fuente de alimentación

Responsive Image


All-weather performance

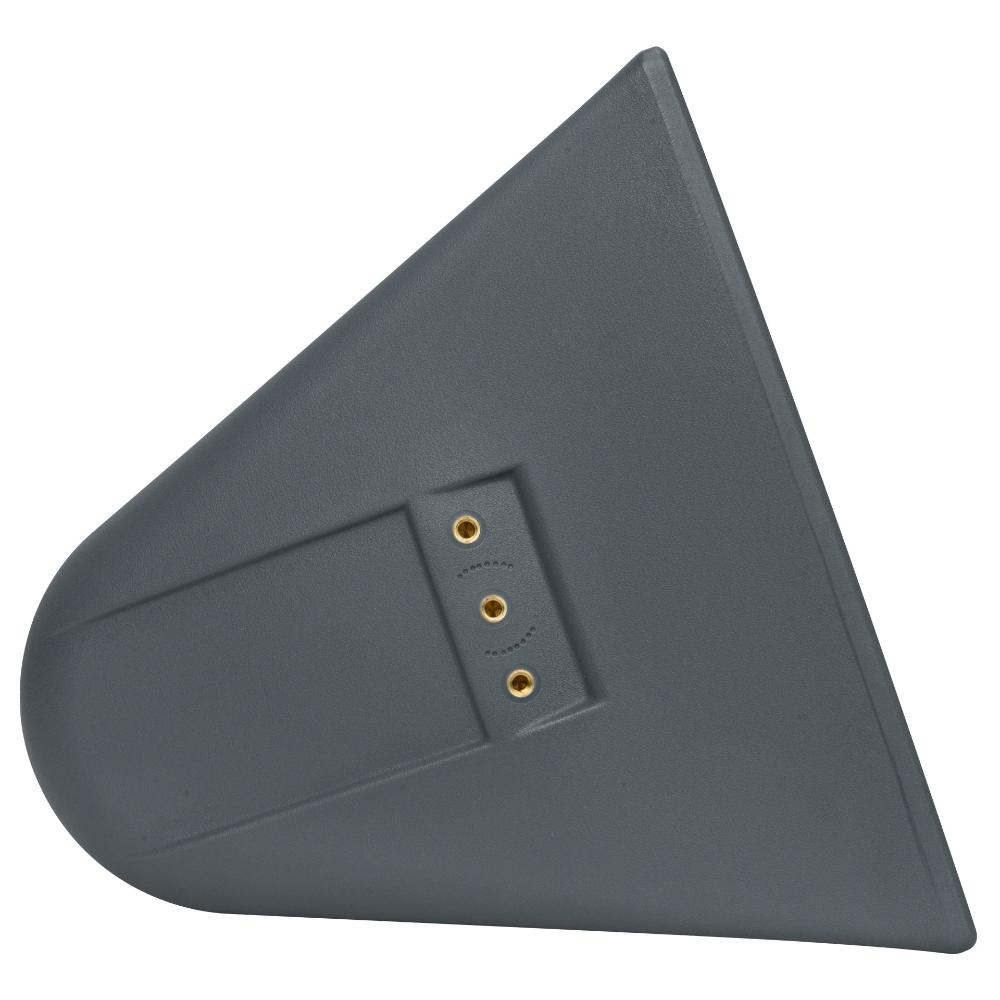

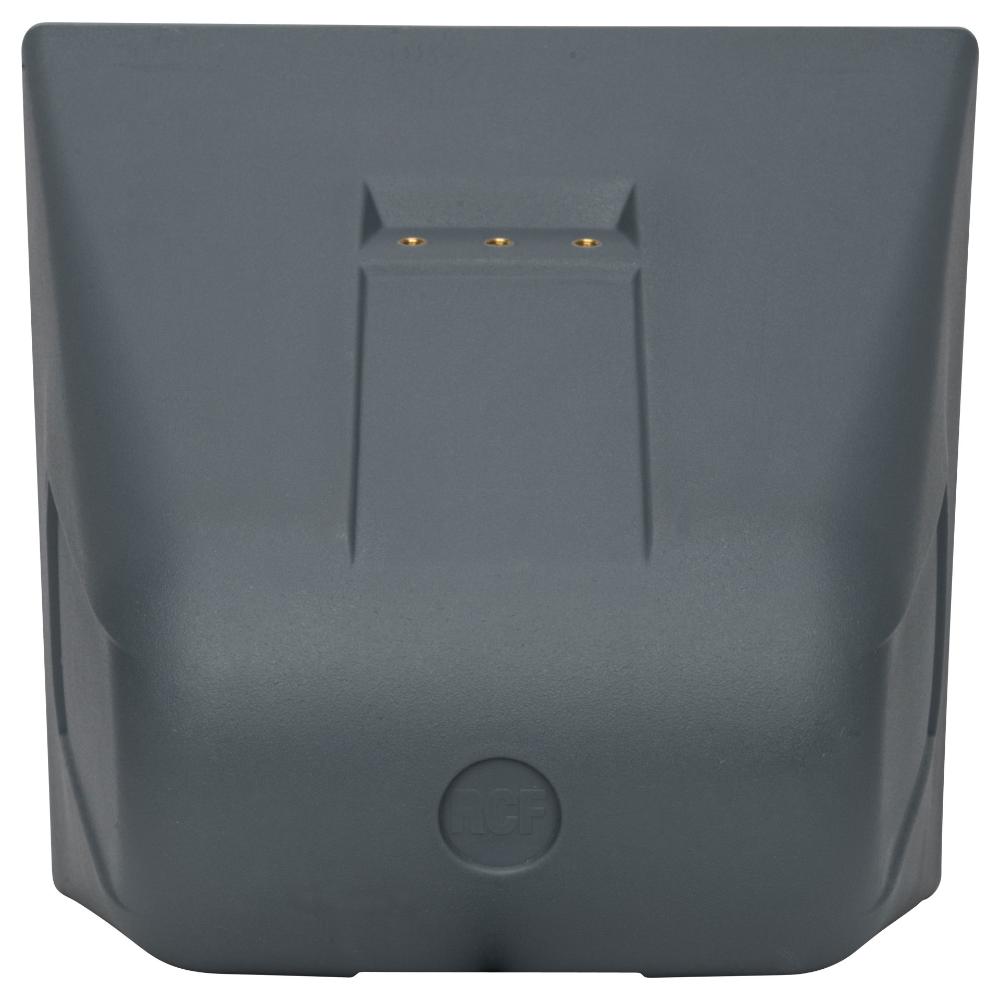

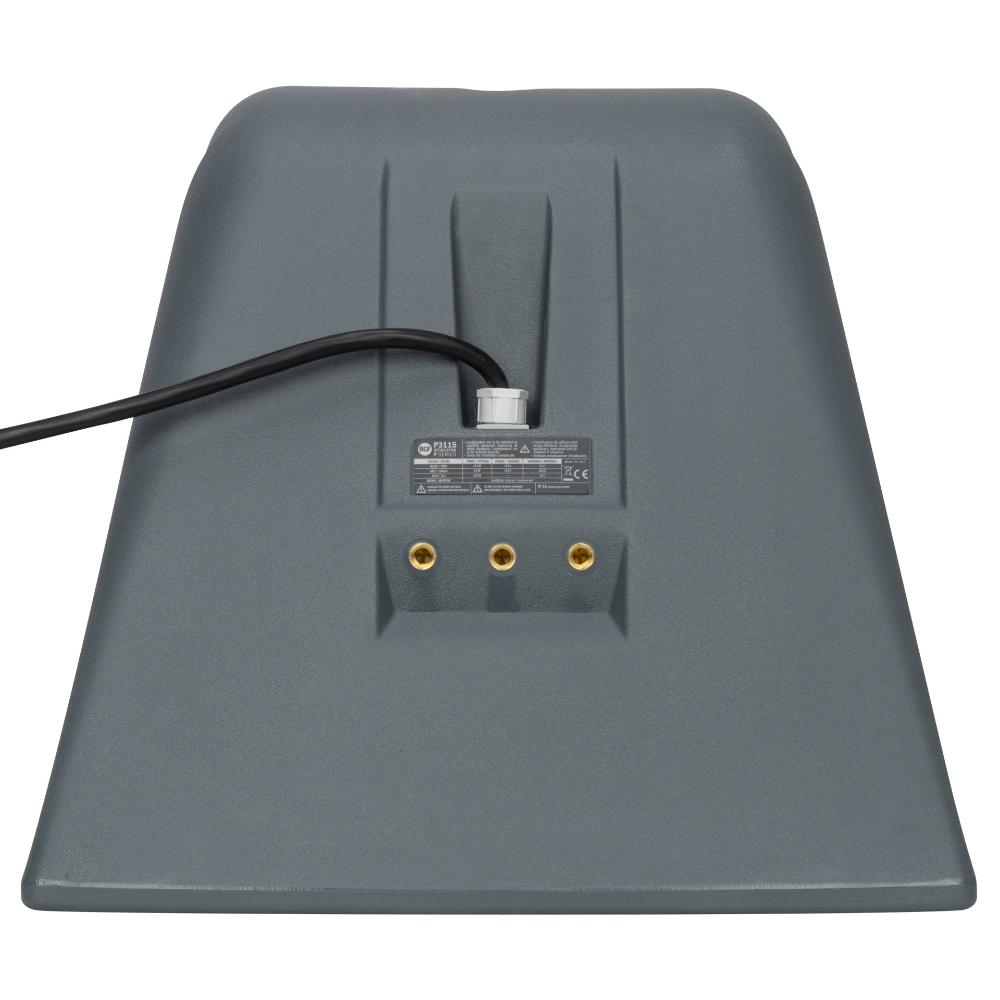

The single-piece rotomolded cabinet is fully UV protected, equipped with multiple brass inserts and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material, front logo is rotatable. All P series speakers meet IP55 standard requirements (International Protection Rating), suitable for indoor and outdoor applications.

Versatility for any application

Focusing on outdoor and indoor large spaces, P Series speakers are capable of true, concert-level high performance in a compact enclosure, installed individually or coupled in array configurations. Featuring coaxial, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coaxial or coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.

Responsive Image

LICC - Low Impedance Compensated Crossover

The system includes a high-level crossover network that features lower than conventional induction values. Its benefits are delay reduction, reduced phase shift and superior transient response for improved audio performance and stability.

CMD - Coverage Matching Design

RCF exclusive CMD technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity.
Responsive Image

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Responsive Image
Especificaciones
Especificaciones acusticas
Respuesta en frecuencia (-10 dB)
75 Hz ÷ 20000 Hz
SPL máx. a 1 m
129 dB
Ángulo de cobertura horizontal
90°
Ángulo de cobertura vertical
60°
Índice de directividad (Q)
13
Sensibilidad del sistema
98 dB
Sección de potencia
Amplification
Full Range
Impedancia nominal
16 ohm
Manejo de potencia
300 W
Manejo de potencia pico
1200 W PEAK
Protecciones
Dynamic active mosfet
Frecuencias de cruce
1300 Hz
Transductores
Motor de compresión
1.0'', 1.5'' v.c
Altavoz de bajos
Coaxial 15'', 2.5'' v.c
Sección de entrada/salida
Conectores de entrada
Neoprene Cable
Transformador de voltaje constante
100 V
Selección de potencia 1
120 W - 83 ohm
Selección de potencia 2
60 W - 167 ohm
Selección de potencia 3
30 W - 333 ohm
Cumplimiento estándar
Grado de protección IP
IP 55
Safety agency
CE compliant
Especificaciones físicas
Material del gabinete/de la caja
PE Low Density
Hardware
12 x M10 inserts + U-brackets and pair of spacers
Rejilla
Aluminum with waterproof clothing
Color
Grey, White - RAL 9003
Tamaño / Peso
Altura
463 mm / 18.23 inches
Ancho
463 mm / 18.23 inches
Profundidad
433 mm / 17.05 inches
Peso
18.4 kg / 40.57 lbs
Informaciones de envío
Altura de paquete
530 mm / 20.87 inches
Anchura de paquete
490 mm / 19.29 inches
Profundidad de paquete
490 mm / 19.29 inches
Peso de paquete
23.2 kg / 51.15 lbs
