Características
  • High quality cardioid microphone
  • 46 cm gooseneck length
  • Active microphone LEDs ring
  • Push-to-lock button for mic mixed mode
  • Push-to-talk button for priority mode
  • 1 W built in loudspeaker for sound reinforcement

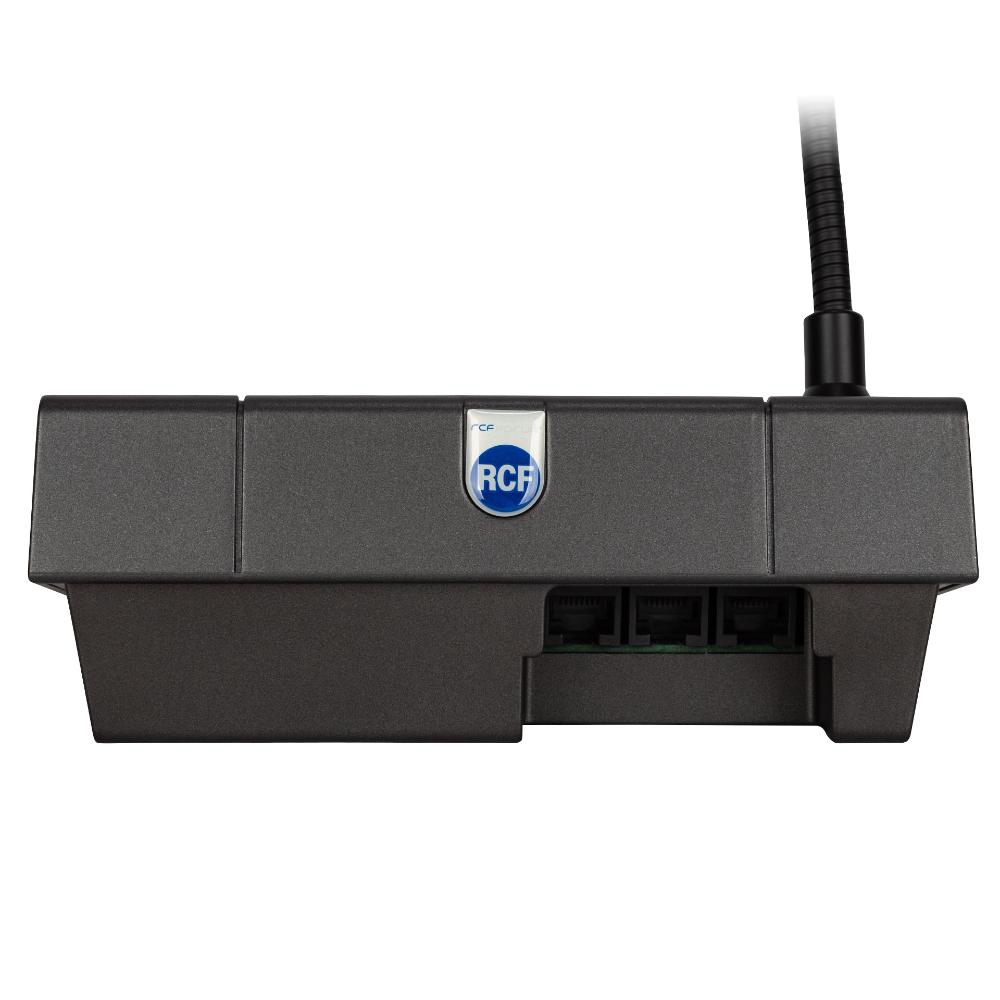

  • Connection to MMU 3100 through CAT5 FTP cable
  • Connection to MMS 3404D branches through CAT5 FTP cable
  • Robust shielded enclosure suitable for desktop or semi-flush mounting

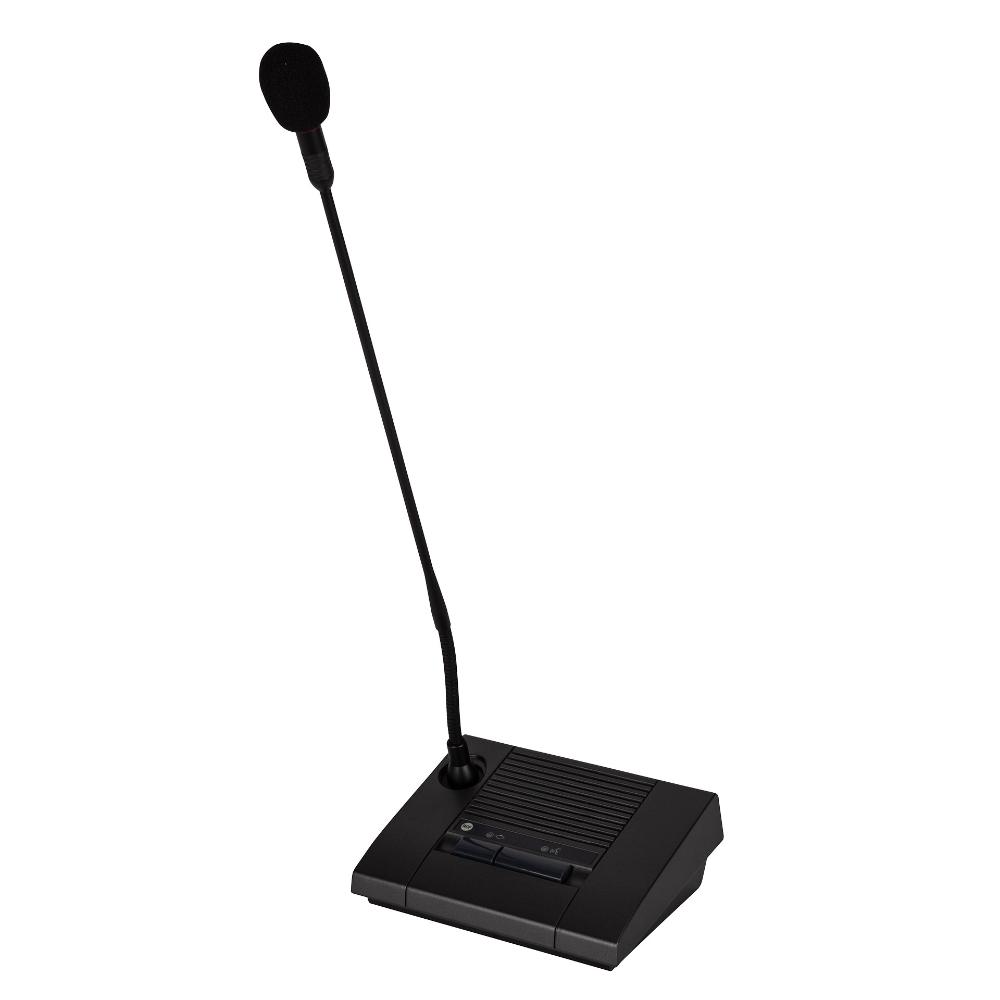

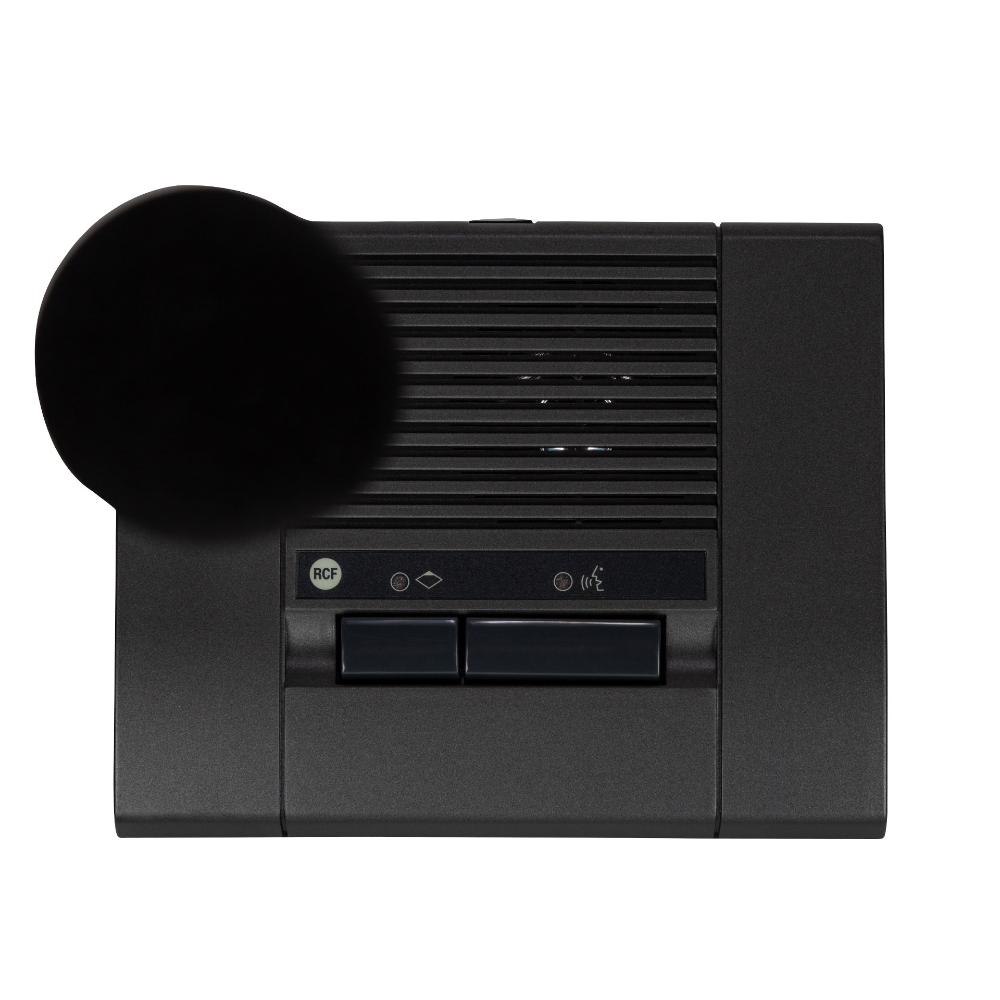

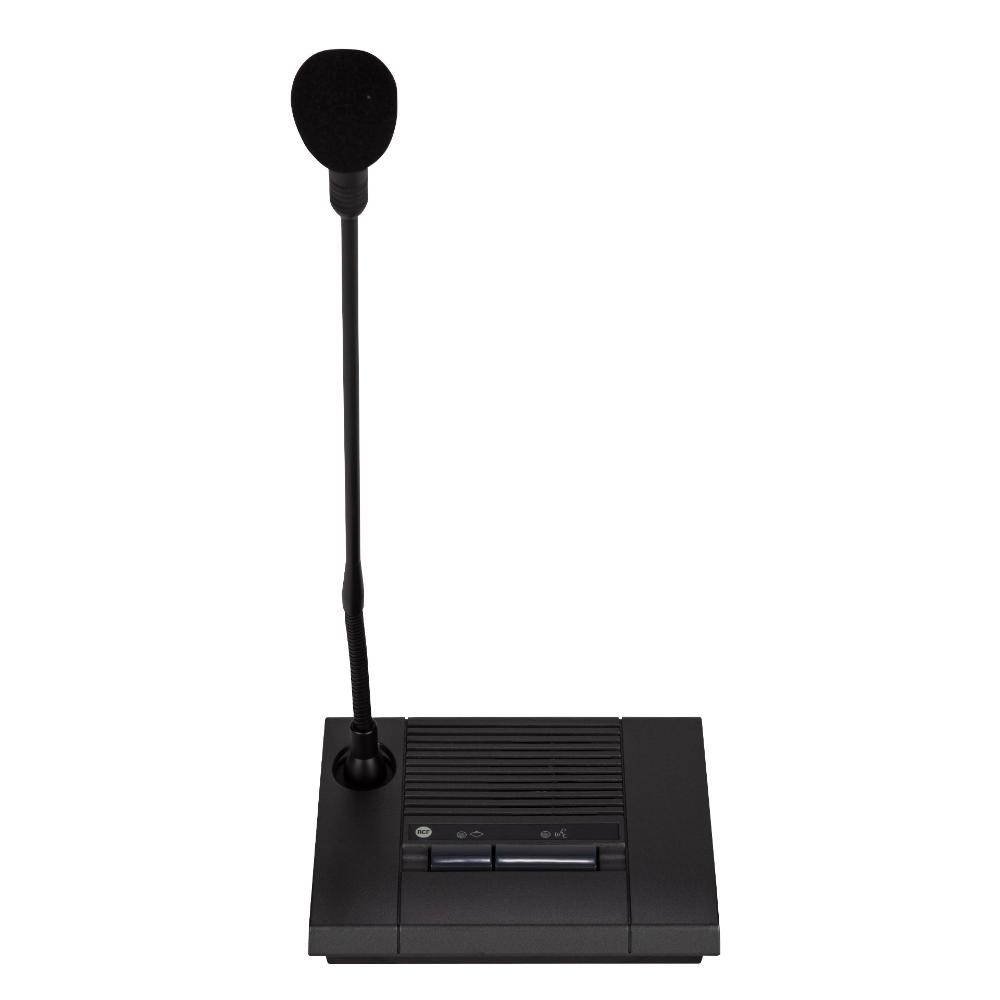

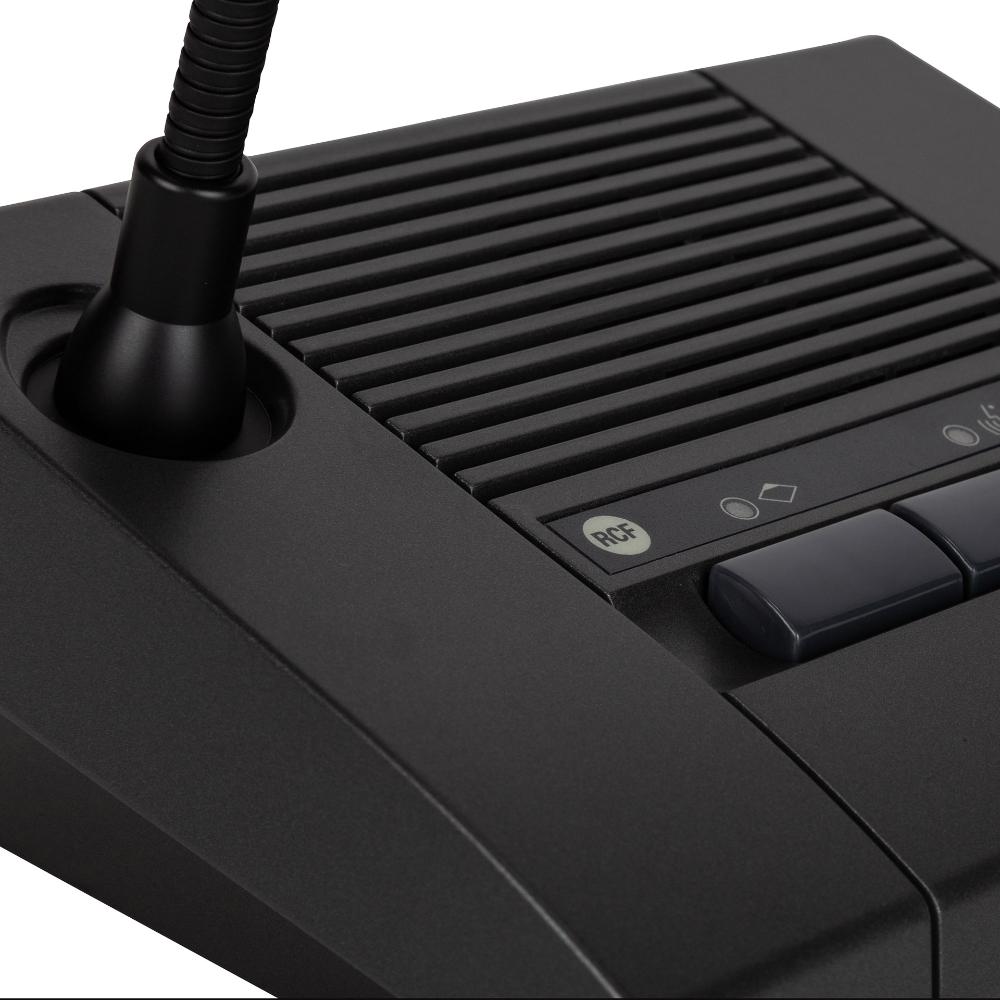

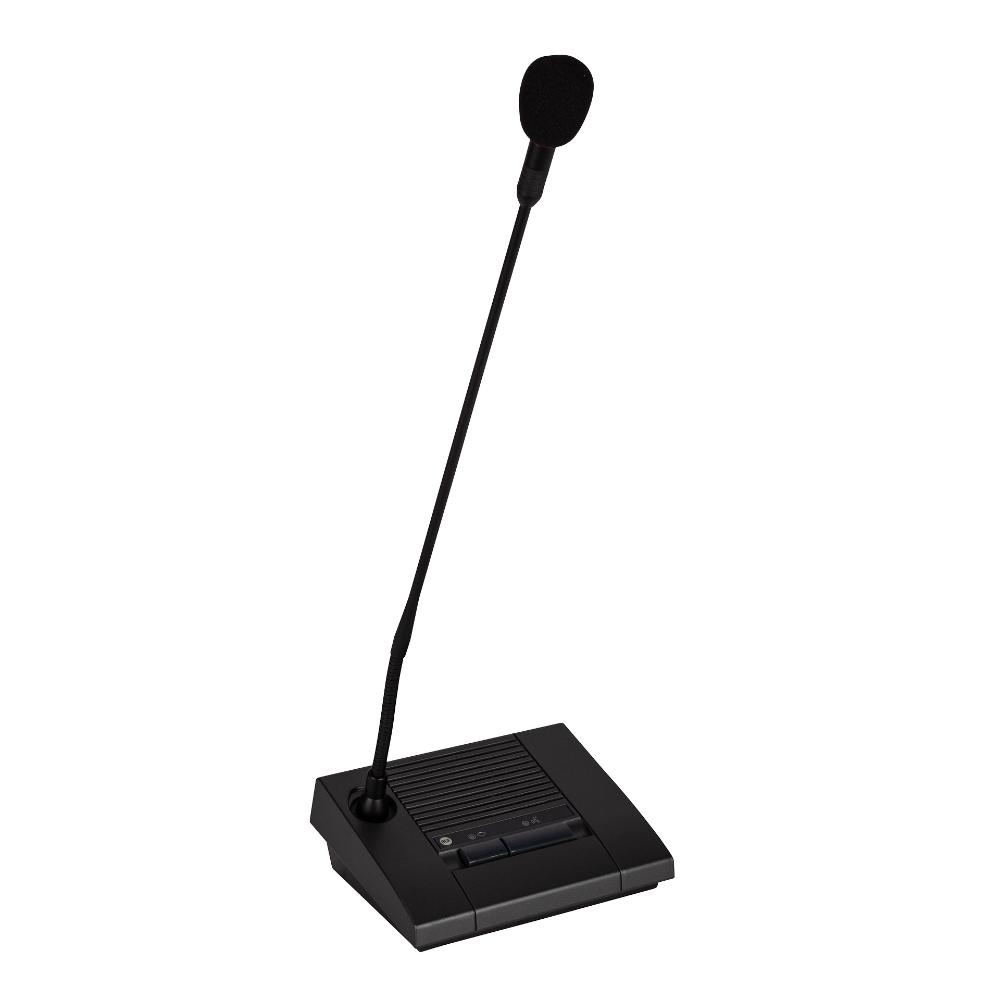

The desk-top chairman microphone console MMS 3405P features two buttons: a latched button to enable the microphone in mixed mode with other active MMS 3404D delegate microphone consoles, and a momentary push button to get the microphone working in priority mode on delegate ones, that stay off till the button has been is released. This function allows the chairman to take the absolute control of the speech. Each button is completed with a LED indicator, lit when pressed. Furthermore the microphone capsule has an LED ring that is ON when the microphone is active. The 46 cm gooseneck microphone mounted on the console has a cardioid pattern, while the miniature high quality transducer assures a good sound reinforcement in small size rooms without needing an additional sound reinforcement system. Two or more MMS 3405P can be cascaded by keeping cascaded priority precedence, over than preserving mixed speech option facility. MMS 3405P is wired directly to the dedicate input of the MMU 3100 unit by means of CAT 5FTP cable provided.

Part number:

14322019
MMS 3405P
EAN 8024530010201

Especificaciones
Especificaciones del microfono
Tipo
Electret
Directividad
Hypercardioid
Sensibilidad (dB)
65 dB
Respuesta en frecuencia (-3 dB)
70 Hz ÷ 18 kHz
Especificaciones de la consola
Tipo consola
Conference
Funcionamiento con
FORUM 3000
Indicadores LED
Yes
Conecciones
Conectores
RJ45
Cable
FTP CAT 5
Funcionalidades
Prioridad
Yes
Cumplimiento estándar
Safety agency
CE compliant
Especificaciones físicas
Color
Grey
Tamaño / Peso
Altura
63 mm / 2.48 inches
Ancho
170 mm / 6.69 inches
Profundidad
154 mm / 6.06 inches
Peso
1 kg / 2.2 lbs
Informaciones de envío
Altura de paquete
150 mm / 5.91 inches
Anchura de paquete
520 mm / 20.47 inches
Profundidad de paquete
190 mm / 7.48 inches
Peso de paquete
1.57 kg / 3.46 lbs
Descargas
ESPECIFICACIONES
PDF
346 KB
18-10-2024
PDF
350 KB
18-10-2024
PDF
349 KB
18-10-2024
DIBUJOS
PDF
359 KB
10-07-2024
