INSTALLED SOUND

HVL 15-S

BANDPASS SUBWOOFER SYSTEM
  • 3000 W power handling
  • 133 dB max SPL
  • 33 ÷ 180 Hz frequency range
  • 2 x 15" high-power woofers
Donde comprar
Características Especificaciones Productos relacionados Descargas
Donde comprar
Características
  • 3000 W power handling
  • 133 dB max SPL
  • 33 ÷ 180 Hz frequency range
  • 2 x 15" high-power woofers
  • Symmetric design
  • Baltic birch plywood cabinet and steel grille
  • Weatherproof treatment

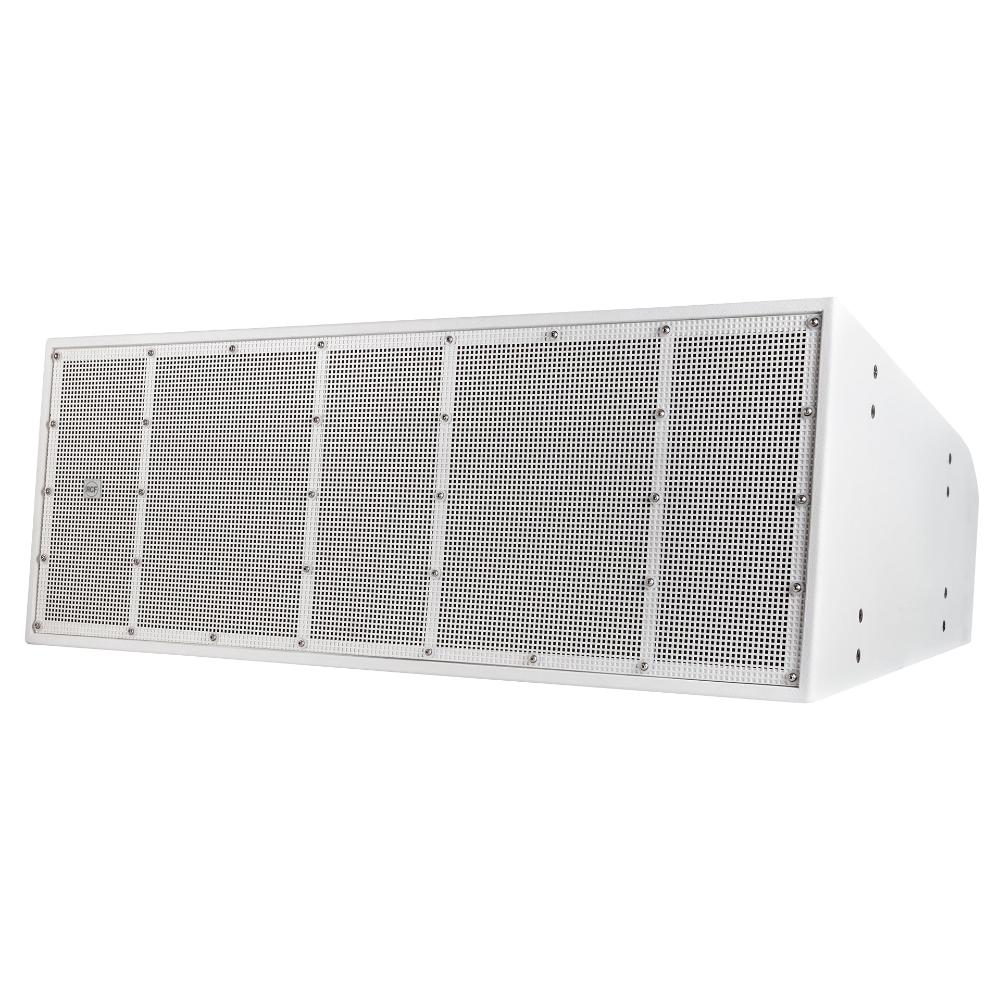

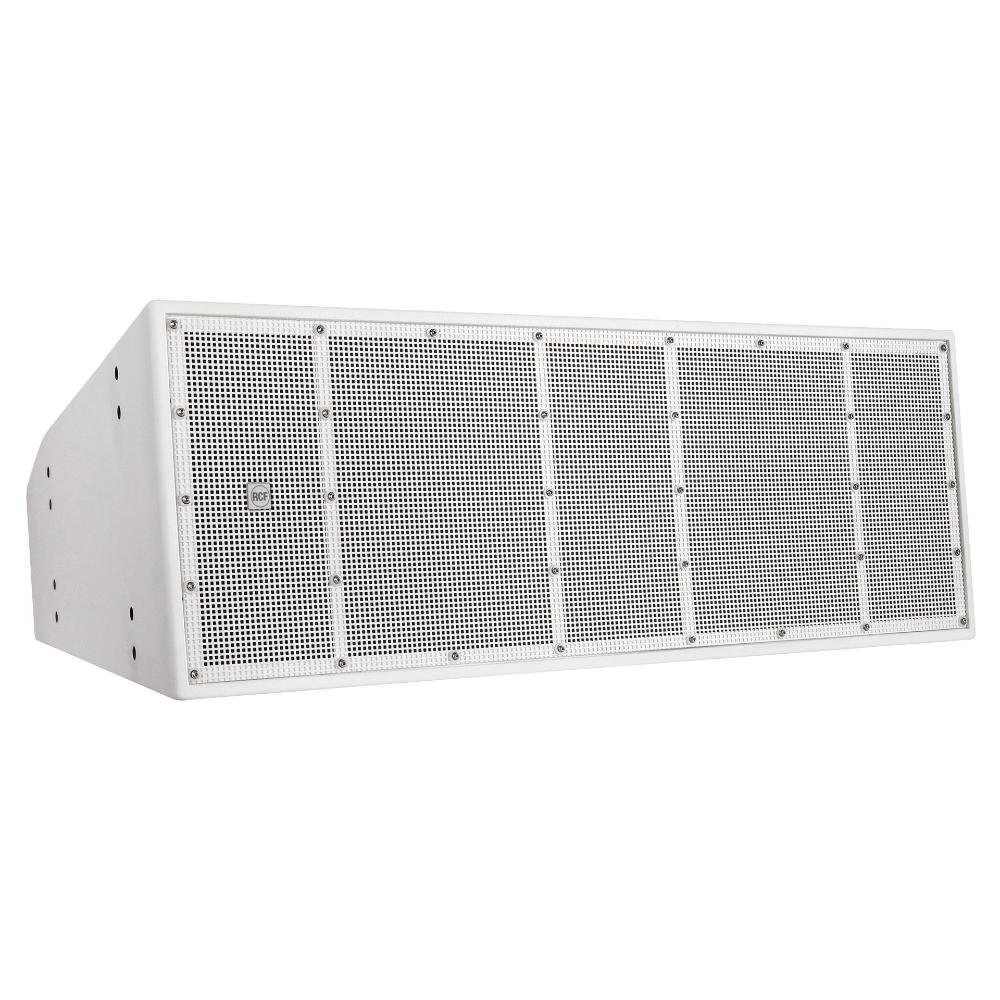

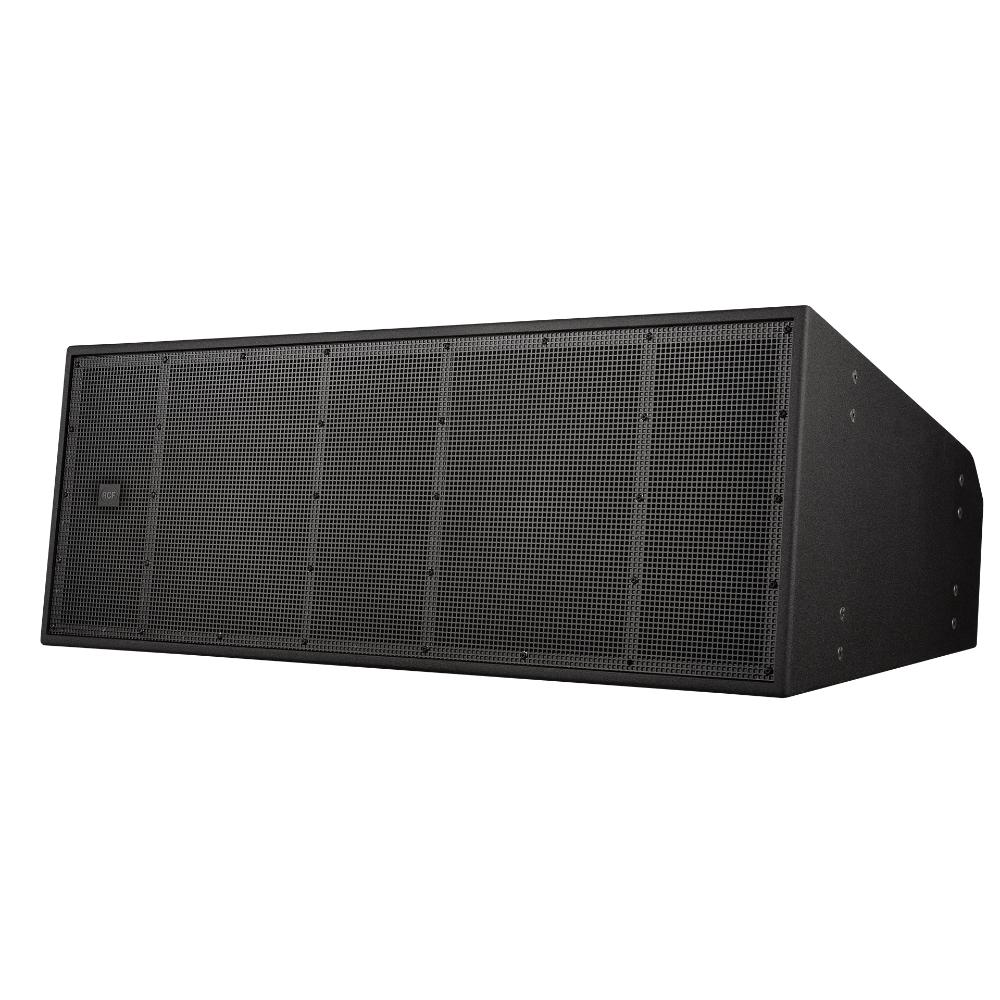

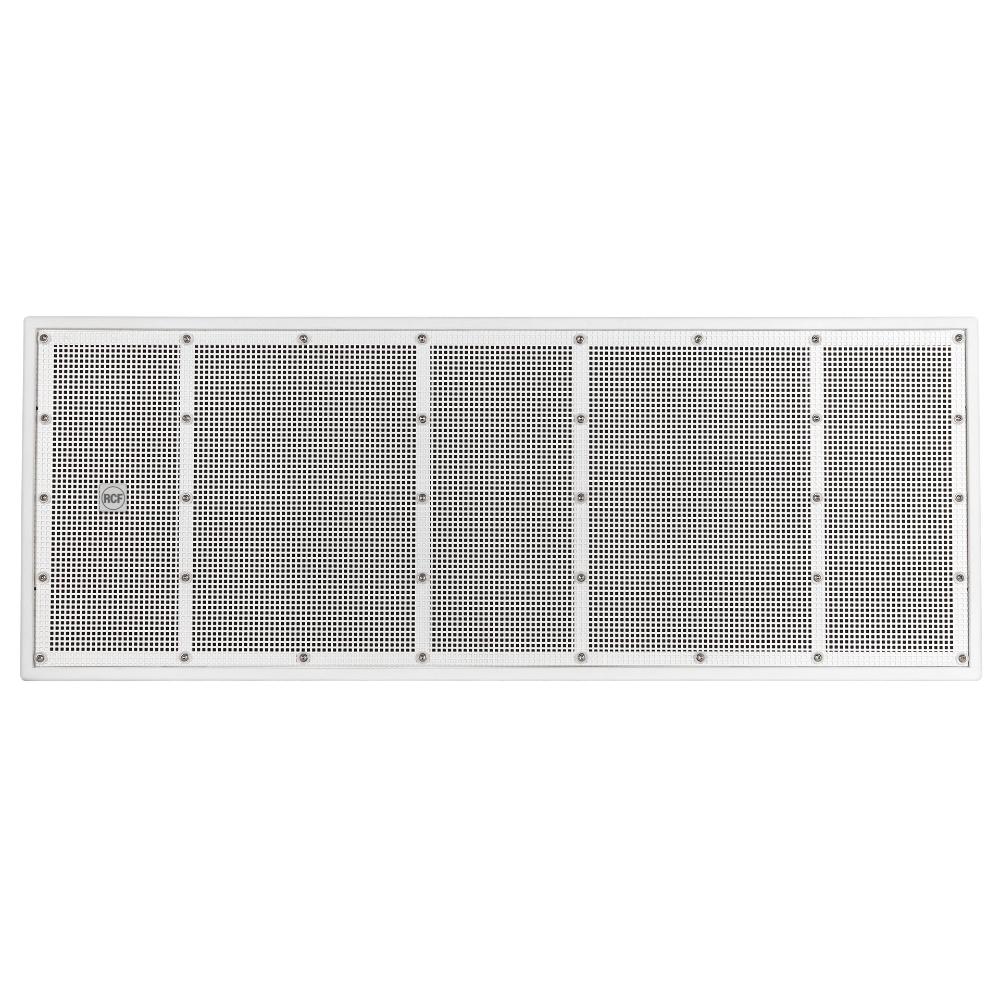

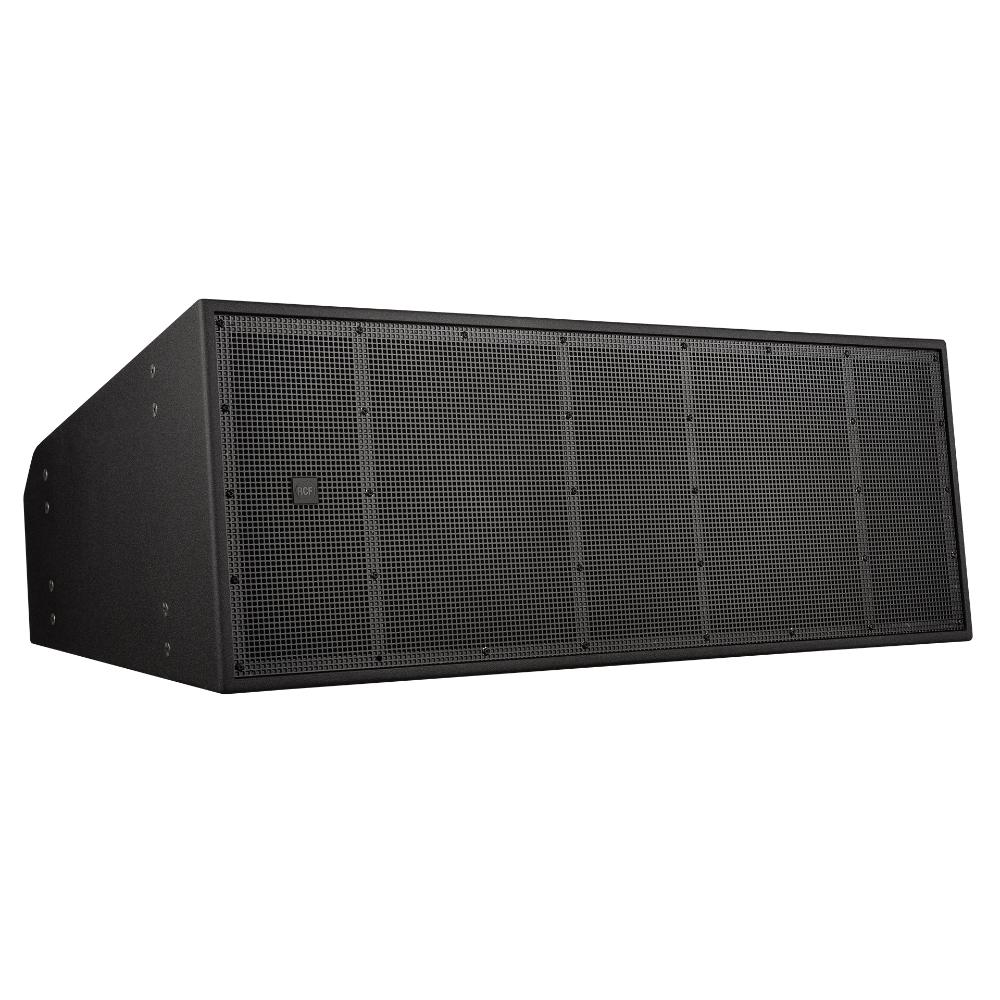

HVL 15-S is a double 15” subwoofer system for long-throw applications, outfitted with 2 x 15” woofers. Equipped with the latest generation of RCF precision transducers with powerful neodymium magnets, HVL 15-S provides very high output and accurate sound reproduction. The system can produce a max SPL of 133 dB, handling 3000 W. The enclosure is trapezoidal with a coupling angle of 15°. The cabinet is made of Baltic birch plywood, and the finishing is a waterproof, textured, polyurea coating. A heavy-duty, weatherproof barrier strip provides connections. The grille is in epoxy coated heavy-duty steel with open-cell fibers and water repellent woven-fabric backing.

AVAILABLE ON ORDER
LEER MÁS

Part number:

13000705
HVL 15-S W
EAN 8024530018719

Long throw applications

Focusing on stadiums and big arenas, HVL Series speakers are capable of true, concert-level high performance in arena-sized venues. Featuring point source, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.
Responsive Image
Amplificador recomendado

SERIE XPS

4 x 4000 W

Potencia continua de Clase D a 2,7 Ω

Coma flotante de 40 bits
Procesamiento a 96 kHz

Listo para usar
Configuraciones y presets para altavoces RCF

2 unidades de rack
Ideal tanto para giras como para sistemas instalados de sonido

Enrutamiento flexible de 32 bits
con E/S analógicas,
digitales y Dante

Protección avanzada contra errores
para cada canal del amplificador y la fuente de alimentación

Responsive Image
Sistema de 3 vías de tiro muy largo
4 sistemas de bocina doble de 15'' de alta potencia (HVL 15-S)
Espacios de tamaño grande a arenas
Responsive Image
Responsive Image

Precision transducers

With in-house transducers’ design and manufacturing for no-compromise performances, the HVL Series excels in any comparison. All transducers feature state of the art neodymium magnetic circuits, radically new voice coil ventilation systems, and ground-breaking voice coil assemblies.

Low frequencies 2 x 15” high-power woofer, 3,5" inside/outside voice coil, dual spider, hypervented, neodymium magnet.

4path waveguide

The custom 4 PATH-designed waveguide allows precise coverage while also delivering an excellent, linear high-frequency response. The unique shape of the four ducts forming the guide creates an ideal isophasic load from the vocal range up to the highest audible frequencies.
Responsive Image
Responsive Image

Consistent robustness

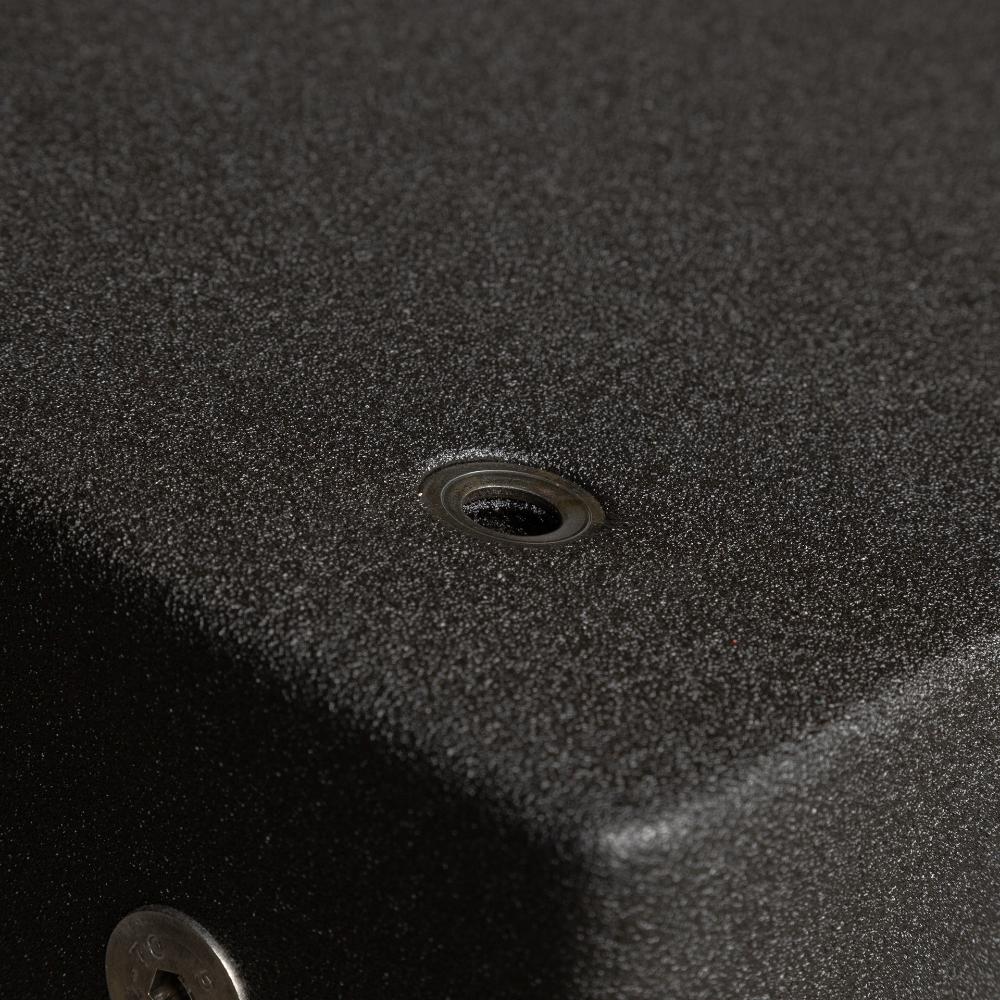

Reduce the commissioning time on your new projects with HVL’s modular array-ability, multiple directivity indexes (Q, and small footprint in comparison to its power. HVL can lower overall system costs by delivering full coverage with fewer modules precisely matching the audience area. Rated for direct-exposure outdoor installations, each cabinet is made of Baltic birch plywood with polyurea coating and includes a weatherproof barrier strip for connections. The grille is powder-coated heavy-duty steel with open-cell fibers and water repellent woven-fabric backing.
Responsive Image

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Responsive Image
Especificaciones
Especificaciones acusticas
Respuesta en frecuencia (-10 dB)
33 Hz ÷ 180 Hz
Respuesta en frecuencia (-3 dB)
40 Hz ÷ 150 Hz
SPL máx. a 1 m
133 dB
Sensibilidad del sistema
97 dB
Sección de potencia
Amplification
Bi-Amp
Impedancia nominal LF
8 ohm
Manejo de potencia LF
1500 W
Manejo de potencia pico LF
6000 W
Sensibilidad LF
97 dB
Impedancia nominal LF2
8 ohm
Manejo de potencia LF2
1500 W
Manejo de potencia pico LF2
6000 W
Sensibilidad LF2
97 dB
Amplificador recomendado
XPS 16K, XPS 16KD, QPS 10K
Transductores
Altavoz de bajos
2 x 15'', 4.0'' v.c
Sección de entrada/salida

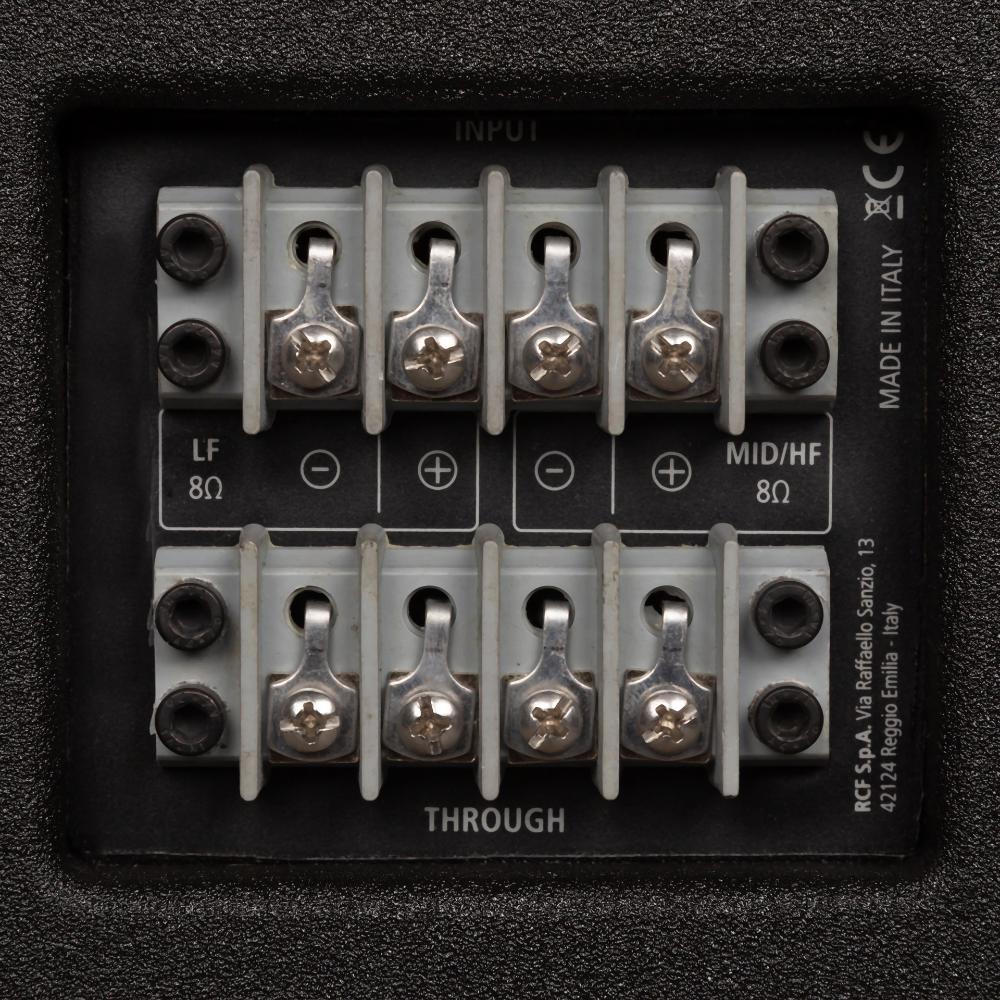

Conectores de entrada
Screw Terminals
Conectores de salida
Screw Terminals
Cumplimiento estándar
Safety agency
CE compliant
Especificaciones físicas
Material del gabinete/de la caja
Baltic birch plywood
Hardware

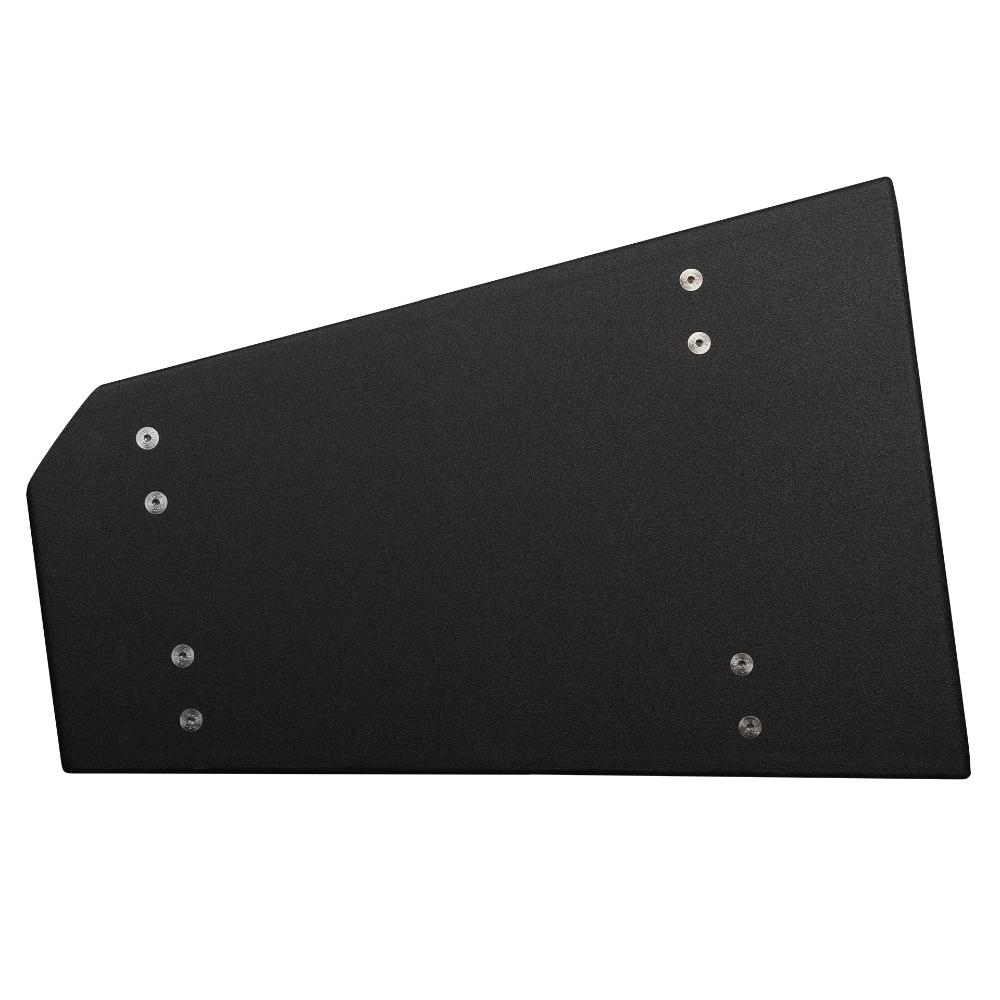

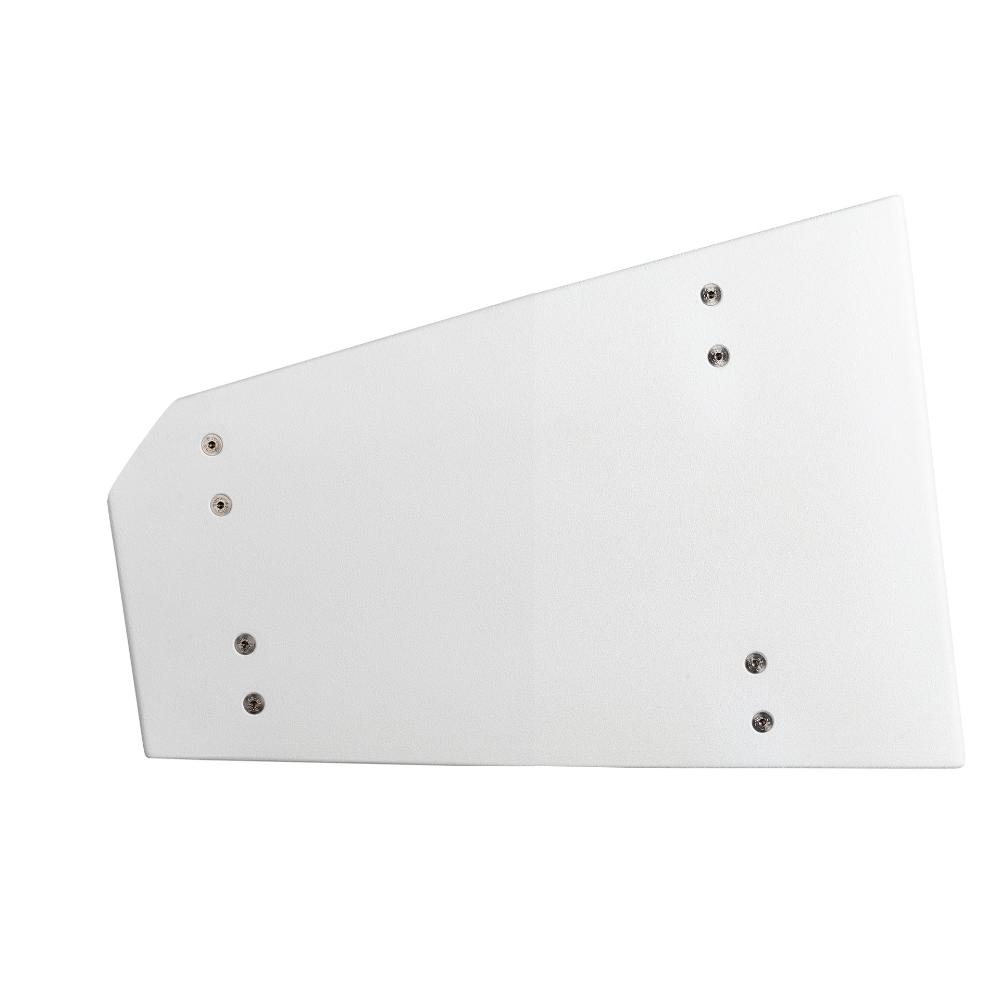

n° 8 x M20 on each side panel
n° 8 x M20 on top and bottom panel
Rejilla
Steel
Color
White - RAL 9010, Black - RAL 9005
Tamaño / Peso
Altura
525 mm / 20.67 inches
Ancho
1380 mm / 54.33 inches
Profundidad
734 mm / 28.9 inches
Peso
110 kg / 242.51 lbs
Informaciones de envío
Altura de paquete
840 mm / 33.07 inches
Anchura de paquete
1405 mm / 55.31 inches
Profundidad de paquete
545 mm / 21.46 inches
Peso de paquete
120 kg / 264.55 lbs
