GTS 29

HIGH-PERFORMANCE FLYABLE SUBWOOFER

144 dB max SPL

2 x 19” neodymium woofers, 4” v.c.

3 handles on each

Designed to operate with XPS 16K amplifier (4 modules per amp unit)

Tour-tested weather-resistant birch plywood enclosure with durable polyurea coating

Heavy-duty, powder-coated, custom perforated front grille

2 Front x 2 Rear P-COM 8 pole bayonet connectors (Gold-plated, CA-COM compatible, IP 68)

GTS 29

HIGH-PERFORMANCE FLYABLE SUBWOOFER

144 dB max SPL

2 x 19” neodymium woofers, 4” v.c.

3 handles on each

Designed to operate with XPS 16K amplifier (4 modules per amp unit)

Tour-tested weather-resistant birch plywood enclosure with durable polyurea coating

Heavy-duty, powder-coated, custom perforated front grille

2 Front x 2 Rear P-COM 8 pole bayonet connectors (Gold-plated, CA-COM compatible, IP 68)

The GTS 29 is a dual 19”subwoofer module for the low-frequency extension in high-demanding touring and install applications, indoors and outdoors. Equipped with two high-excursion best-in-class transducers, it offers excellent reproduction quality and extreme sound pressure. The cabinet is provided with power connections on front and back panels for easy deployment in cardioid configuration.Up to 16 GTS 29 modules can be ground-stacked or flown on a single fly-bar.
Responsive Image

THE SUB

EVOLUTION OF LF PARADIGMS

The GTS 29 is the most versatile and powerful subwoofer ever built by TT+ AUDIO. This subwoofer incorporates the latest transducer technology from our labs and comes with a flyable, fast-to-deploy enclosure. Despite its small and lightweight footprint, the GTS 29 produces powerful yet articulate bass remaining true to even the most subtle low-frequency variations.

HYPERVENTED HIGH POWER 19” SUBWOOFER

The new unconventional motorstructure was requested by touring professionals for accurate low-frequency reproduction using a high excursion piston. The 19 inch cone size is the ideal balance between traditional high-speed 18” and the slower 21” and inherits the best characteristics of the two sizes. Employing lightweight aluminum core coils, high-damping cellulose cone material, composite spiders and a 4-layer inside-outside voice coil, the ultra-long excursion moving mass (67 mm / 2.6”) gains high power with fast acceleration. The improved TT+ Audio’s Hypervented technology reduces power compression, heat and distortion.
Responsive Image
Responsive Image

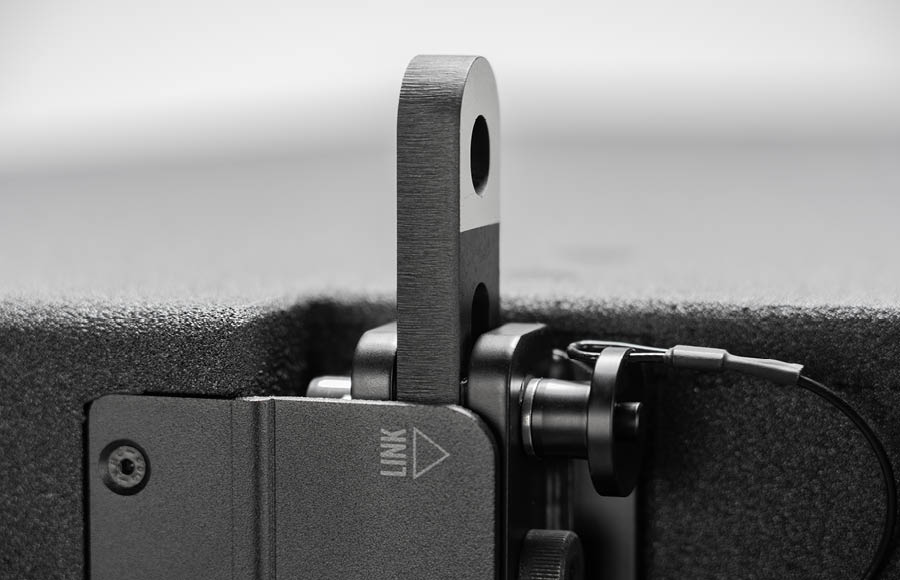

ENCLOSURE AND RIGGING HARDWARE

The sturdy weather-resistant birch plywood enclosure with durable polyurea coating features optimized hardware for speed and efficiency, with  anti-rattle mechanism for fast and safe suspension in both straight and reverse cardioid mode. A detachable cart can be secured to the front (Model# KRT-WH 003), and the stack cart can carry up to three GTS 29 enclosures (Model# KRT-WH 004), with custom-designed protective covers for safe handling.
Part number

13000820
GTS 29
EAN 8024530021245

Acoustical specifications
Frequency Response (-10dB)
25 Hz ÷ 200 Hz
Max SPL @ 1m
144 dB
Power section
Amplification
Full Range
Nominal Impedance LF
8 ohm
Nominal Impedance LF2
8 ohm
Transducers
Woofer
2 x 19'' neo, 4.0'' v.c
Input/Output section
Input connectors
P-COM 8POLE
Output connectors
P-COM 8POLE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Birch plywood
Hardware
Suspension Fittings, M20 Socket
Handles
3 x side
Grille
Steel with clothing
Color
Black
Size
Height
531.5 mm / 20.93 inches
Width
1310 mm / 51.57 inches
Depth
735 mm / 28.94 inches
Weight
96 kg / 211.64 lbs
Shipping information
Package Height
620 mm / 24.41 inches
Package Width
1360 mm / 53.54 inches
Package Depth
800 mm / 31.5 inches
Package Weight
107 kg / 235.89 lbs
