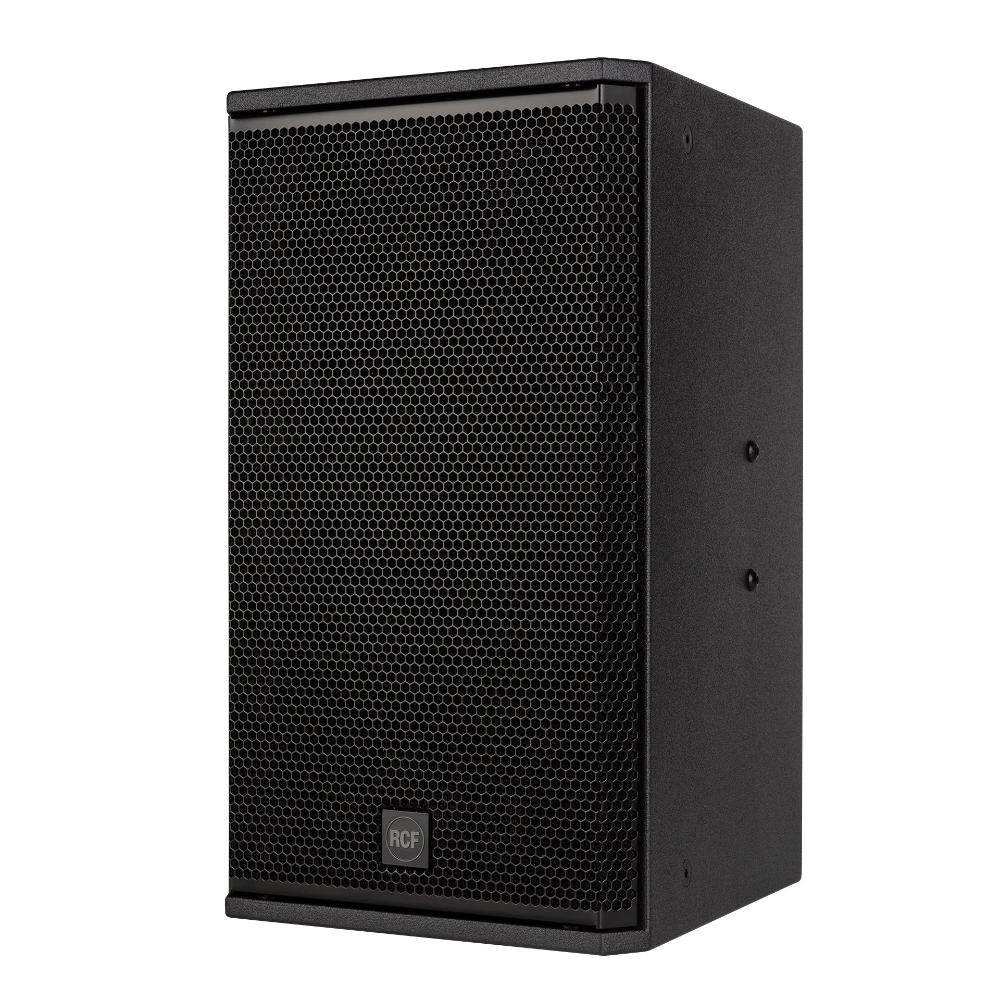

INSTALLED SOUND

X-MAX 12

HIGH POWER TWO-WAY SPEAKER

800 W program power handling
129 dB max SPL
60 ÷ 20000 Hz frequency range
90° x 70° constant directivity coverage angle

Where to buy

Features

800 W program power handling
129 dB max SPL
60 ÷ 20000 Hz frequency range
90° x 70° constant directivity coverage angle
1 x 12" high power woofer
1 x 1.4" voice coil compression driver
High quality plywood cabinet

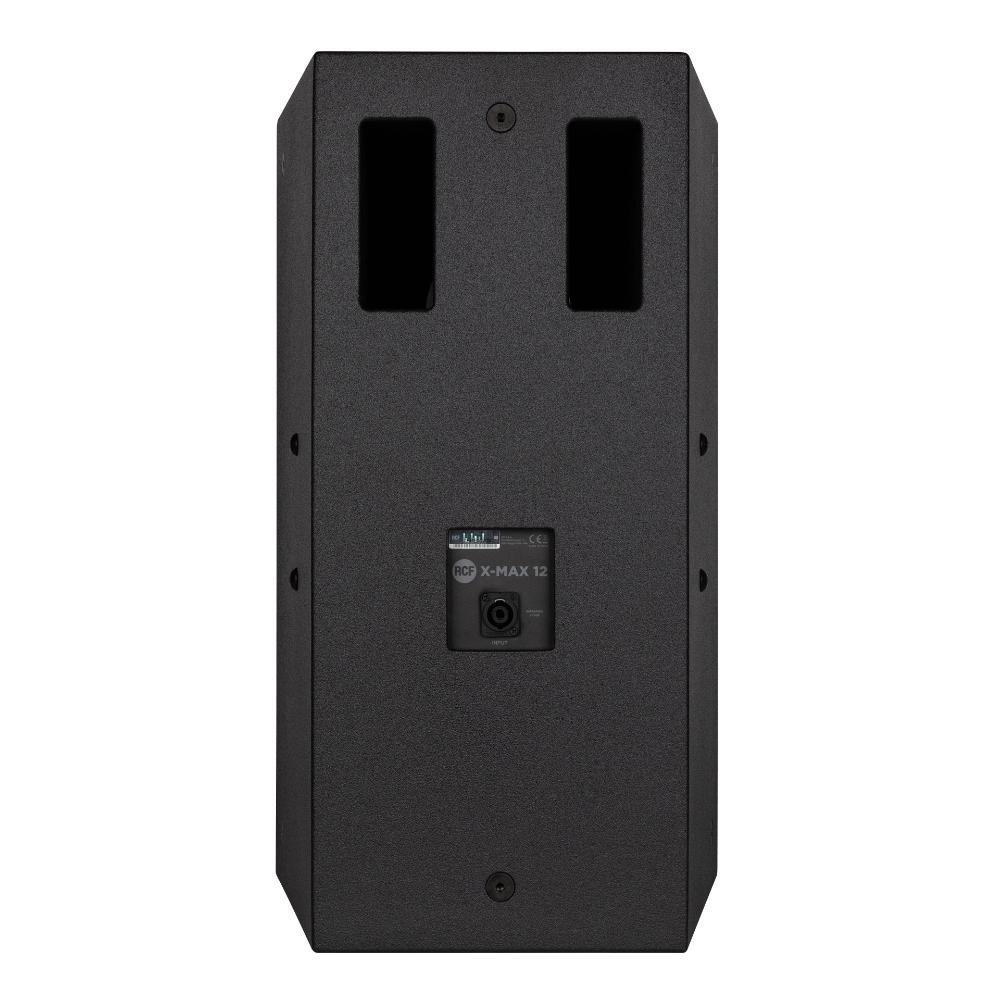

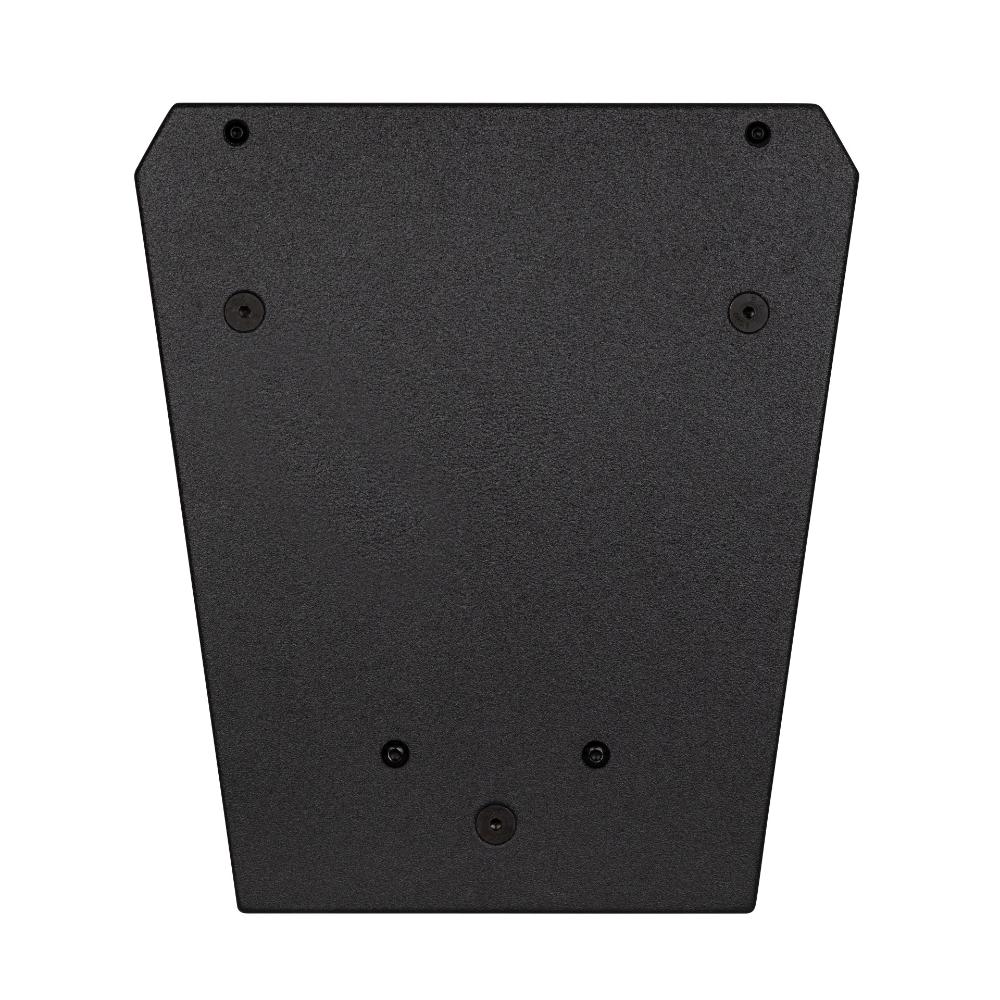

Installation points available on rear, top and bottom panels

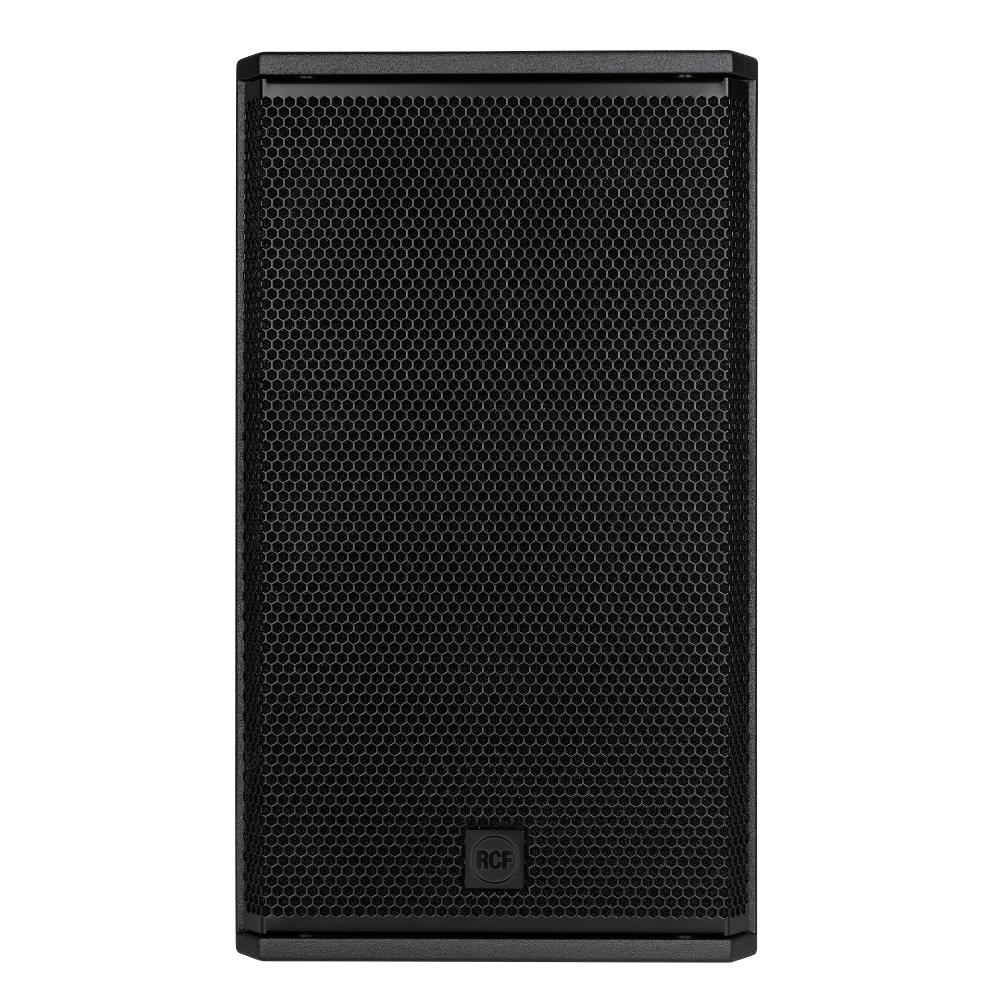

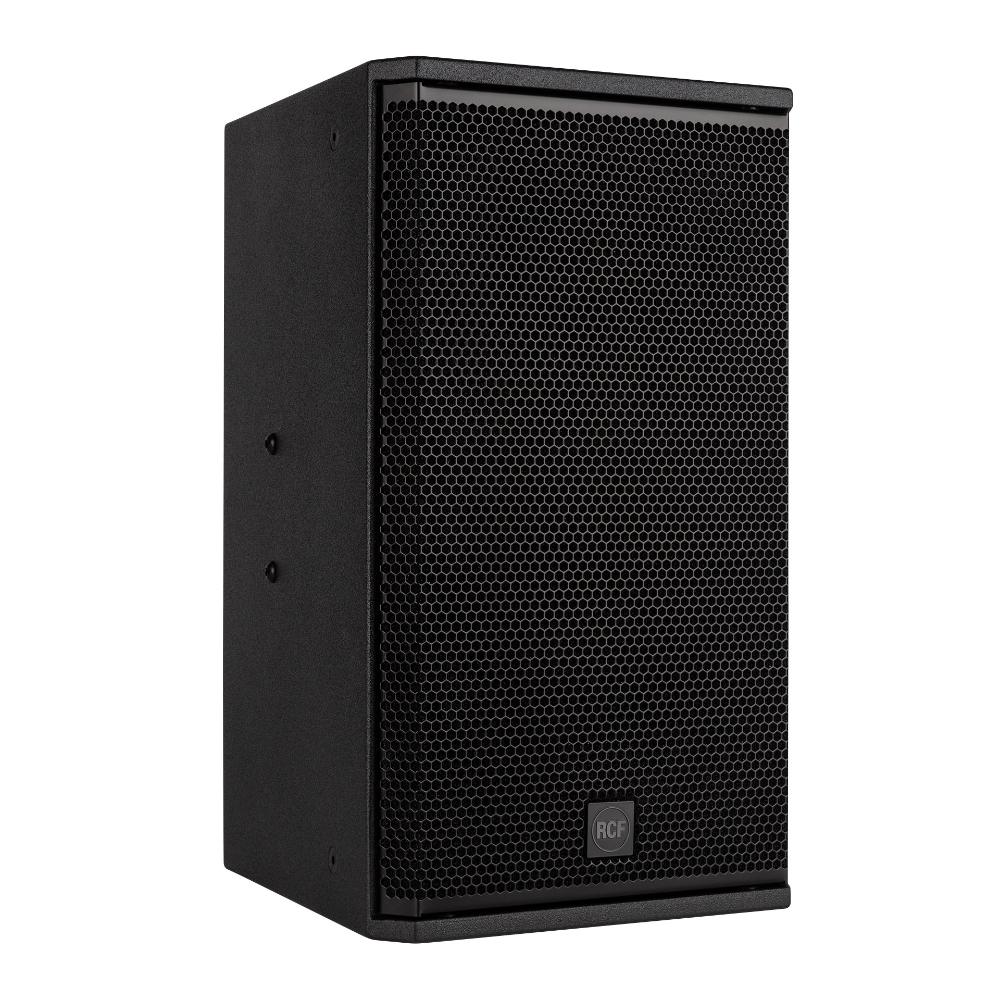

The full-range passive two-way speaker X-MAX 12 has been specifically designed as club systems for entertainment, to achieve the best nearfield quality, vocal coherence and a stable tonal balance even at high volume. The heavy-duty speaker cabinet is made of plywood coated with black textured acrylic paint. Featuring a 12” woofer with a 2.5” voice and a 1.0” compression driver with 1.4” voice coil. The LICC crossover design includes an electronic protection on high-frequency device. The rotatable 90°x70° horn allows installation either vertically or horizontally in any environment and architectural constraint.

Part number:

13000658
X-MAX 12
EAN 8024530018368

Designed to perform

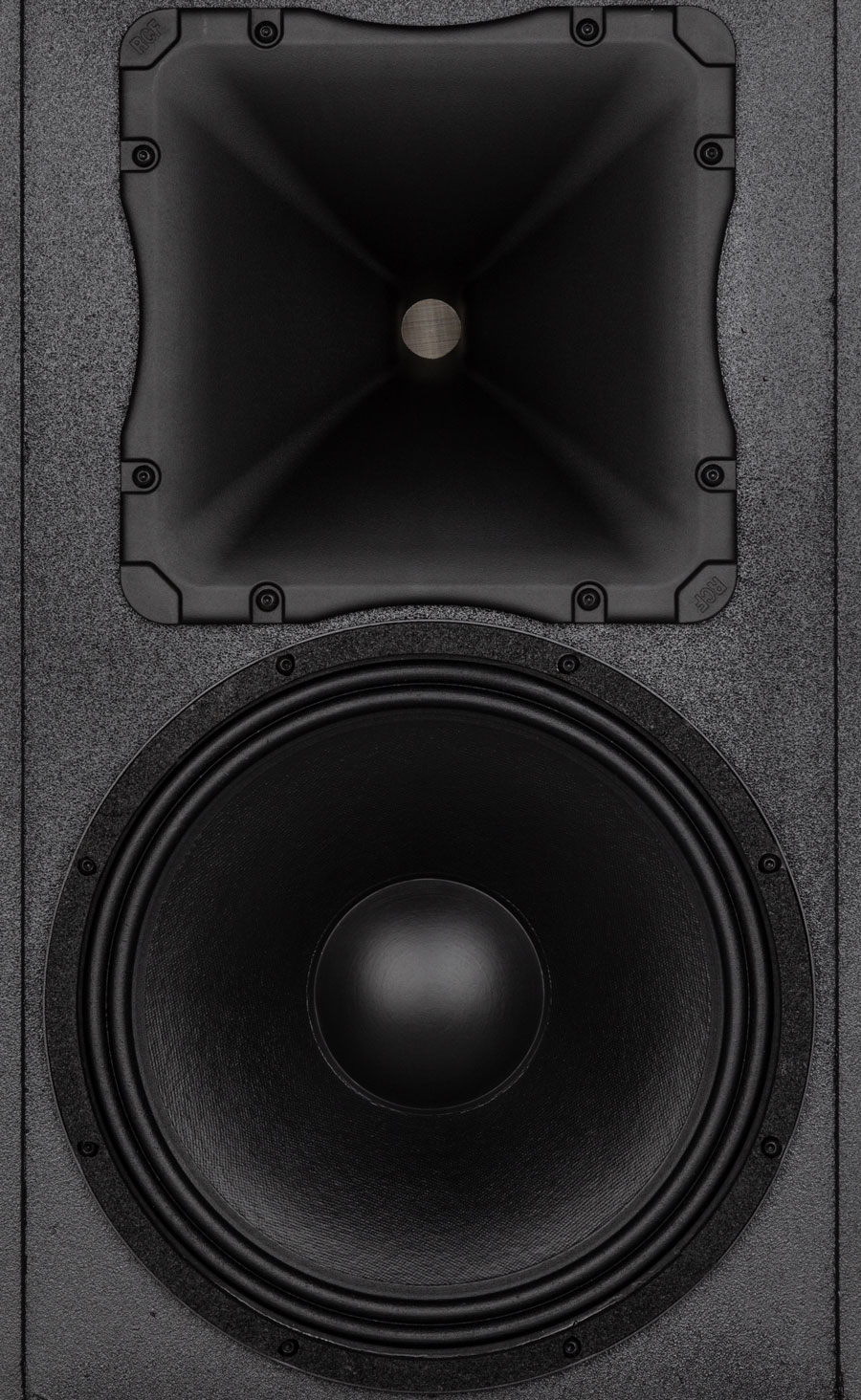

The RCF X MAX series and its components are designed inside RCF’s laboratories and feature superior transducers. Equipped with a rotatable horn with 90° x 70° dispersion pattern, X MAX 12 boasts a 12” woofer and 1” compression driver, and delivers a maximum SPL of 129 dB SPL over a frequency range of 60 Hz – 20 kHz, with a total power handling of 800 W.

Perfectly tuned crossover

The X MAX Series features a custom-designed mid-freq shaping for close distance listening on a perfectly tuned crossover to ensure the best frequency and phase response. The LICC crossover design includes electronic protection on high-frequency device.

Robust workhorse

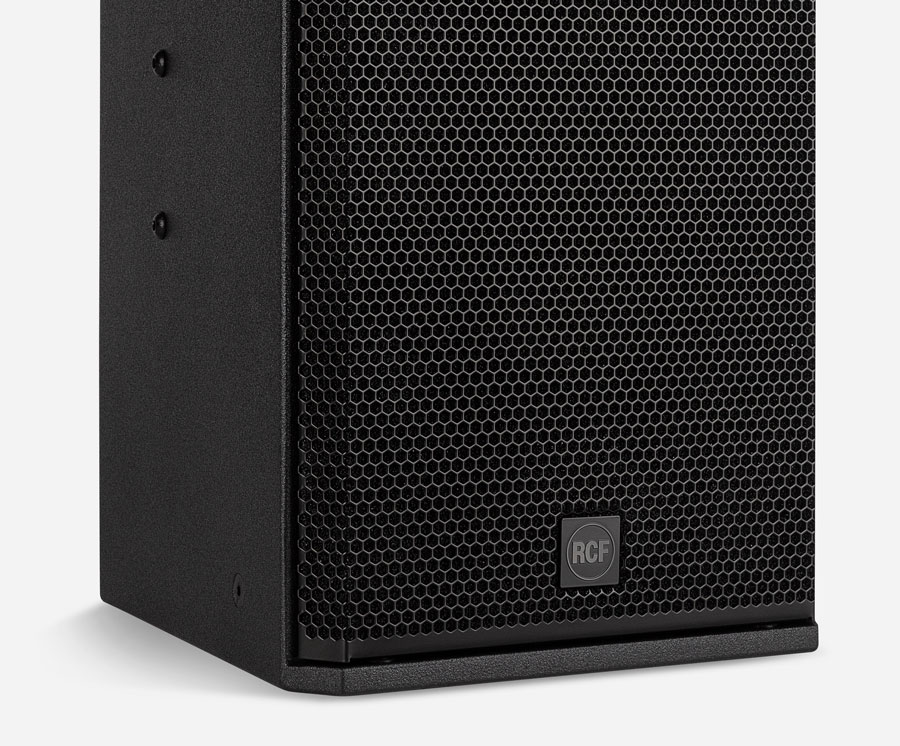

All X MAX Series cabinets are built-in plywood coated with black textured acrylic paint. A sturdy powder-coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

Easy rigging

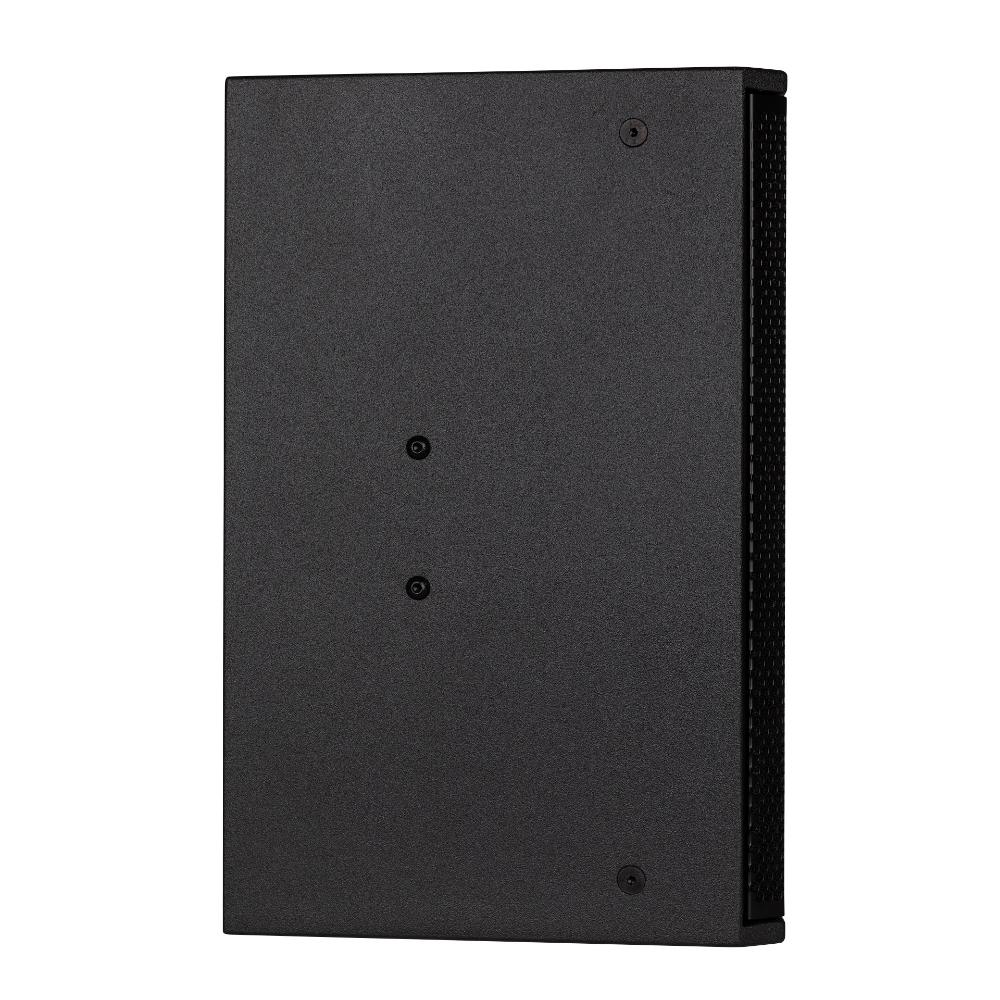

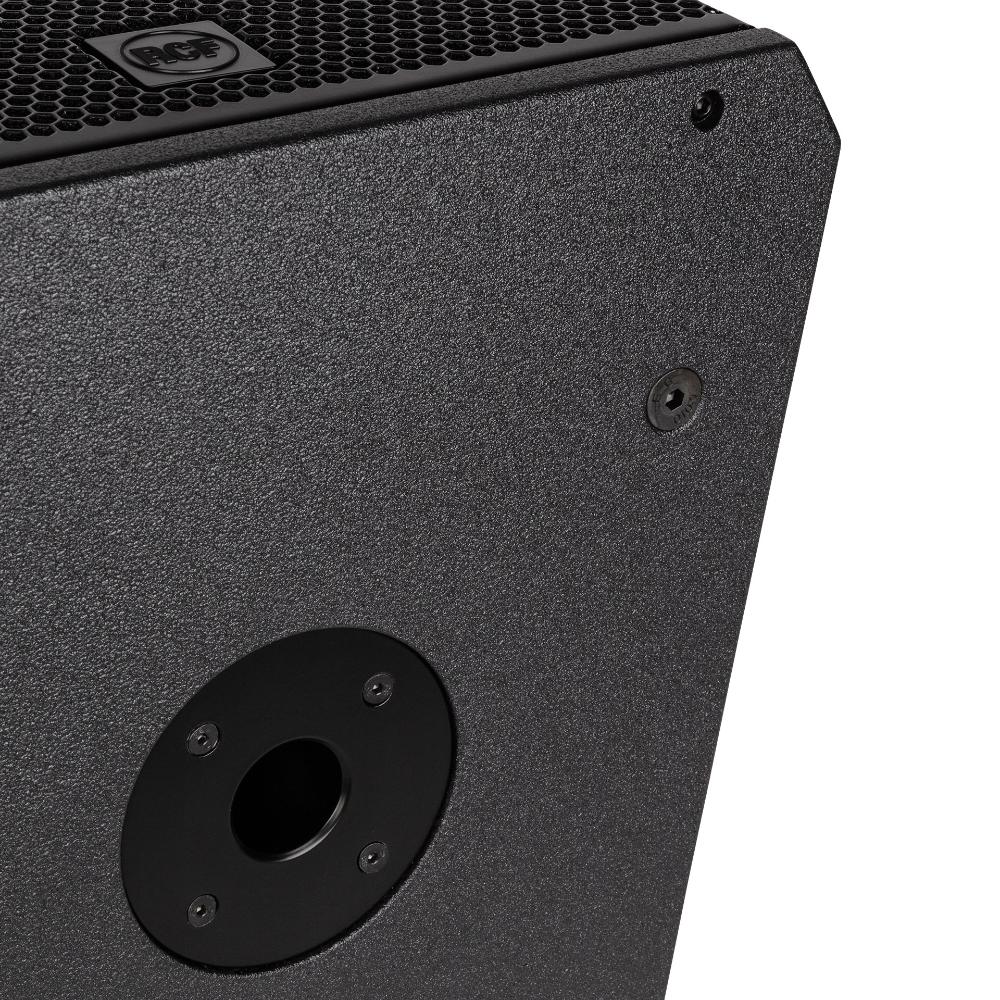

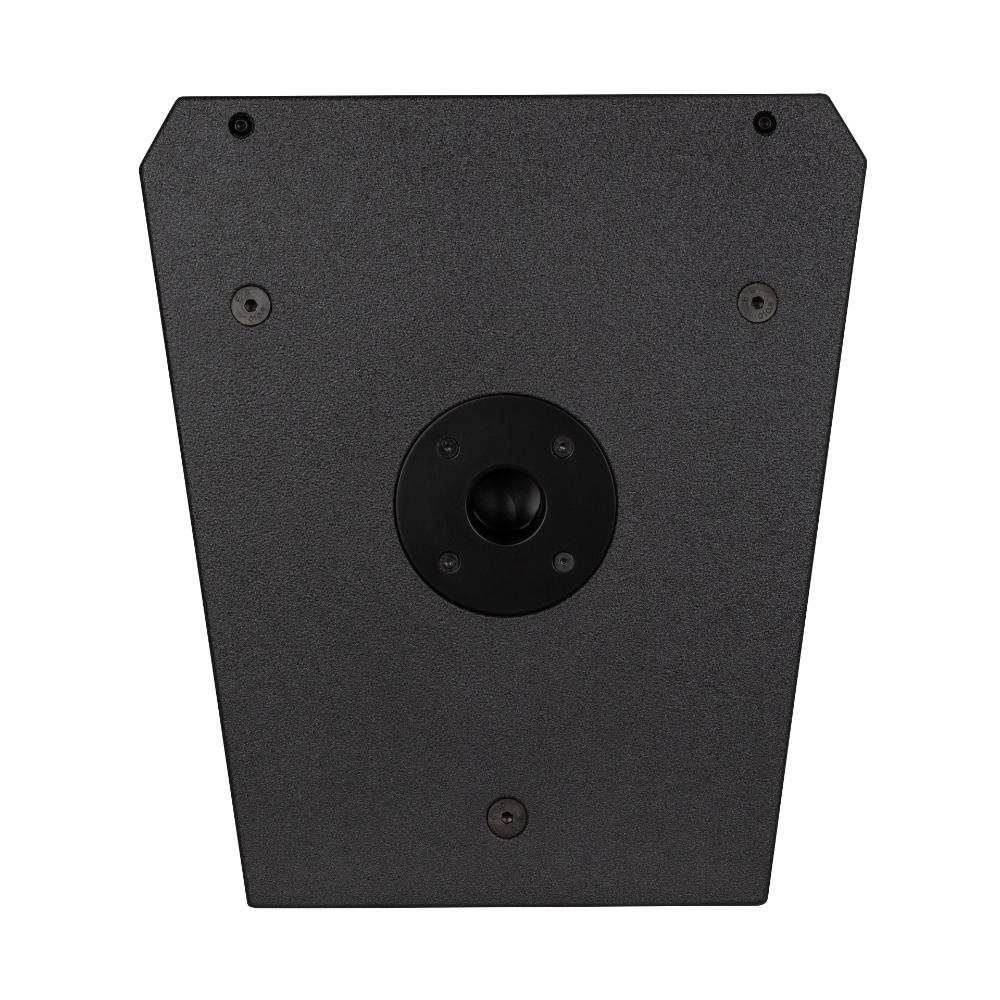

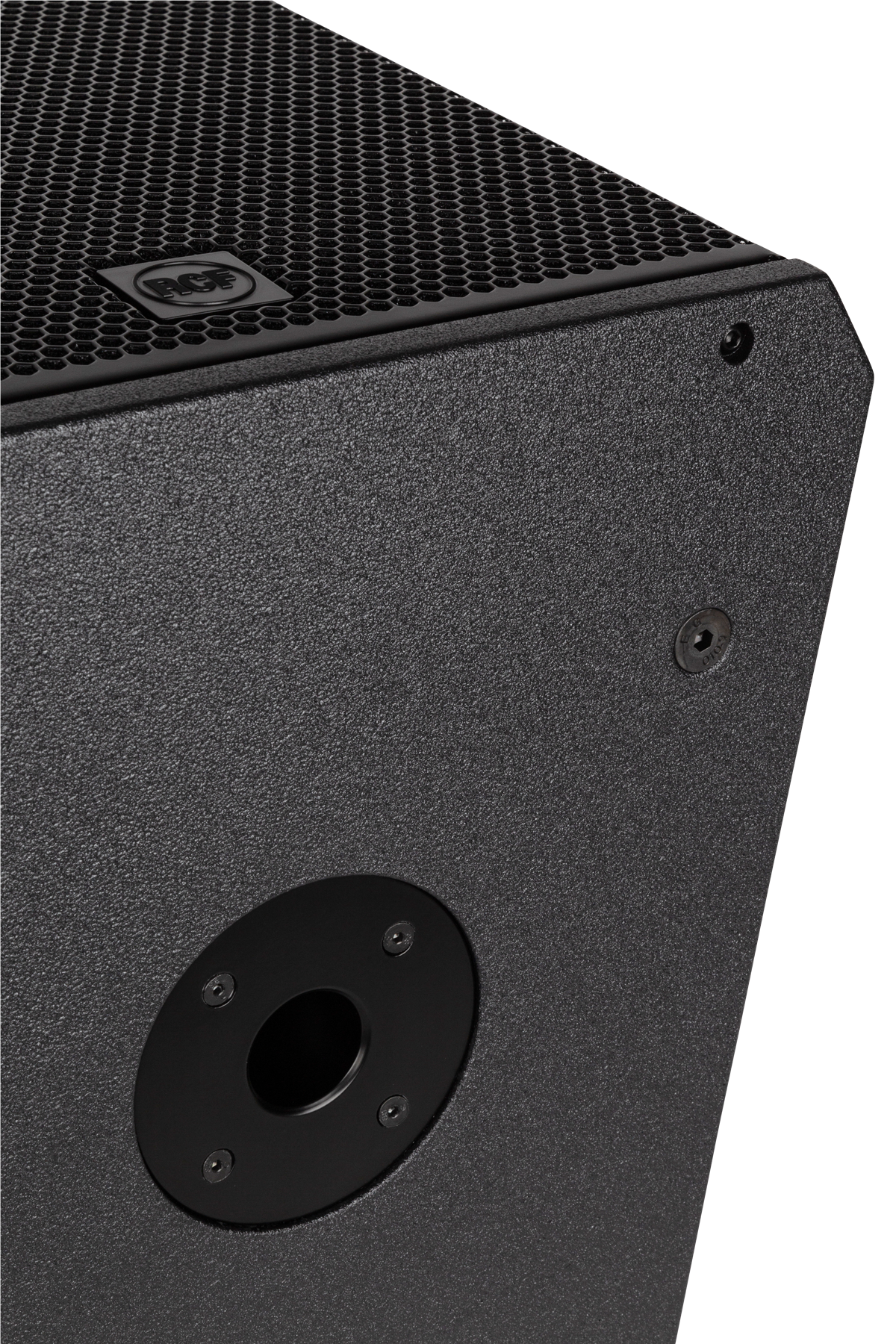

The base of each speaker includes a robust steel pole socket for mounting on a stand or a subwoofer pole. Threaded inserts are provided on all sides for optional mounting hardware. Included are multiple rigging points to fly the speakers for maximum architectural freedom in any installation.

Specifications

Acoustical specifications

Frequency Response (-10dB)

60 Hz ÷ 20000 Hz

Max SPL @ 1m

129 dB

Horizontal coverage angle

90°

Vertical coverage angle

70°

Directivity index Q

System Sensitivity

97 dB

Power section

Amplification

Full Range

Nominal Impedance

8 ohm

Power Handling

400 W

Peak Power Handling

1600 W PEAK

Protections

Dynamic active mosfet

Crossover Frequencies

1800 Hz

Transducers

Compression Driver

1 x 1.0'', 1.4'' v.c

Woofer

1 x 12'', 2.5'' v.c

Input/Output section

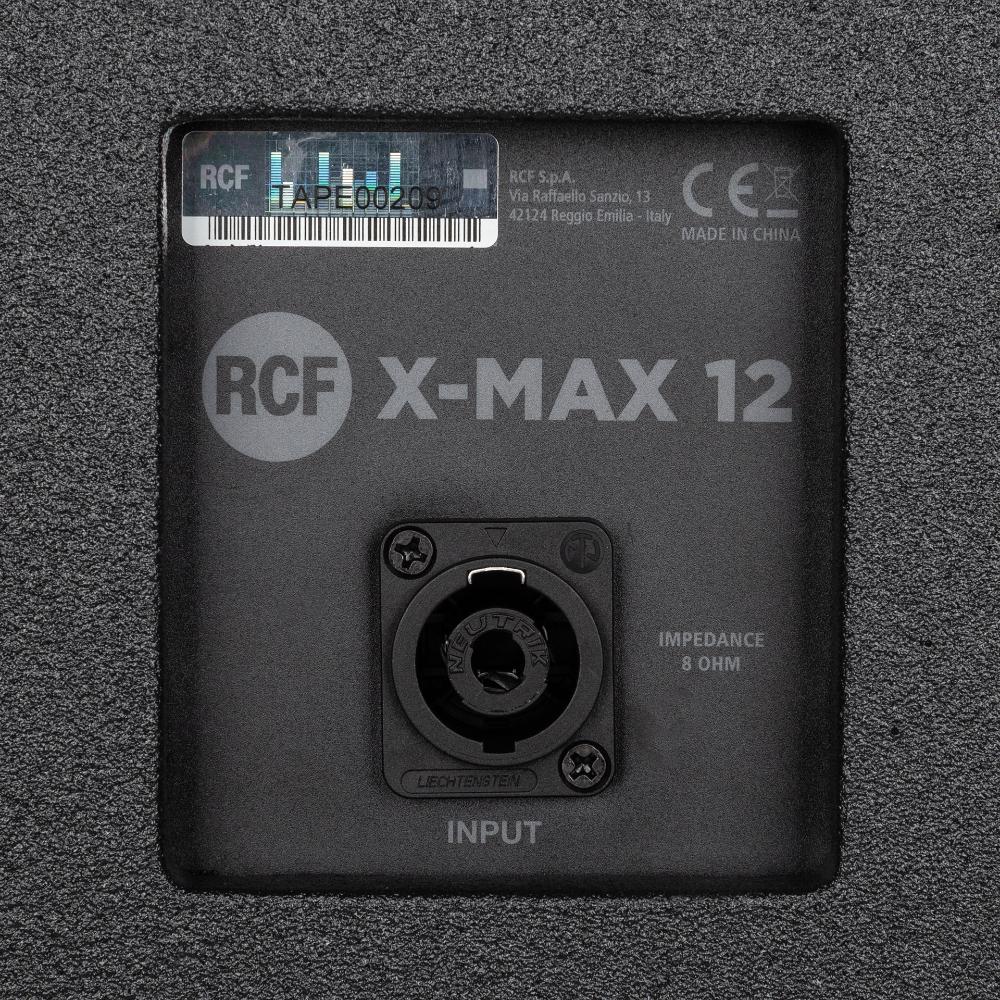

Input connectors

Speakon

Standard compliance

Safety agency

CE compliant

Physical specifications

Cabinet/Case Material

Plywood

Hardware

2 x M8, 16 x M10

Pole mount/Cap

35 mm insert

Grille

Steel with clothing

Color

Black

Size / Weight

Height

620 mm / 24.41 inches

Width

362 mm / 14.25 inches

Depth

404 mm / 15.91 inches

Weight

22 kg / 48.5 lbs

Shipping information

Package Height

655 mm / 25.79 inches

Package Width

442 mm / 17.4 inches

Package Depth

400 mm / 15.75 inches

Package Weight

25.5 kg / 56.22 lbs
