INSTALLED SOUND

X-MAX 10

HIGH POWER TWO-WAY SPEAKER

700 W program power handling
128 dB max SPL
65 ÷ 20000 Hz frequency range
90° x 70° constant directivity coverage angle

Where to buy

Features

700 W program power handling
128 dB max SPL
65 ÷ 20000 Hz frequency range
90° x 70° constant directivity coverage angle
1 x 10" high power woofer
1 x 1.4" voice coil compression driver
High quality plywood cabinet
Installation points available on all panels

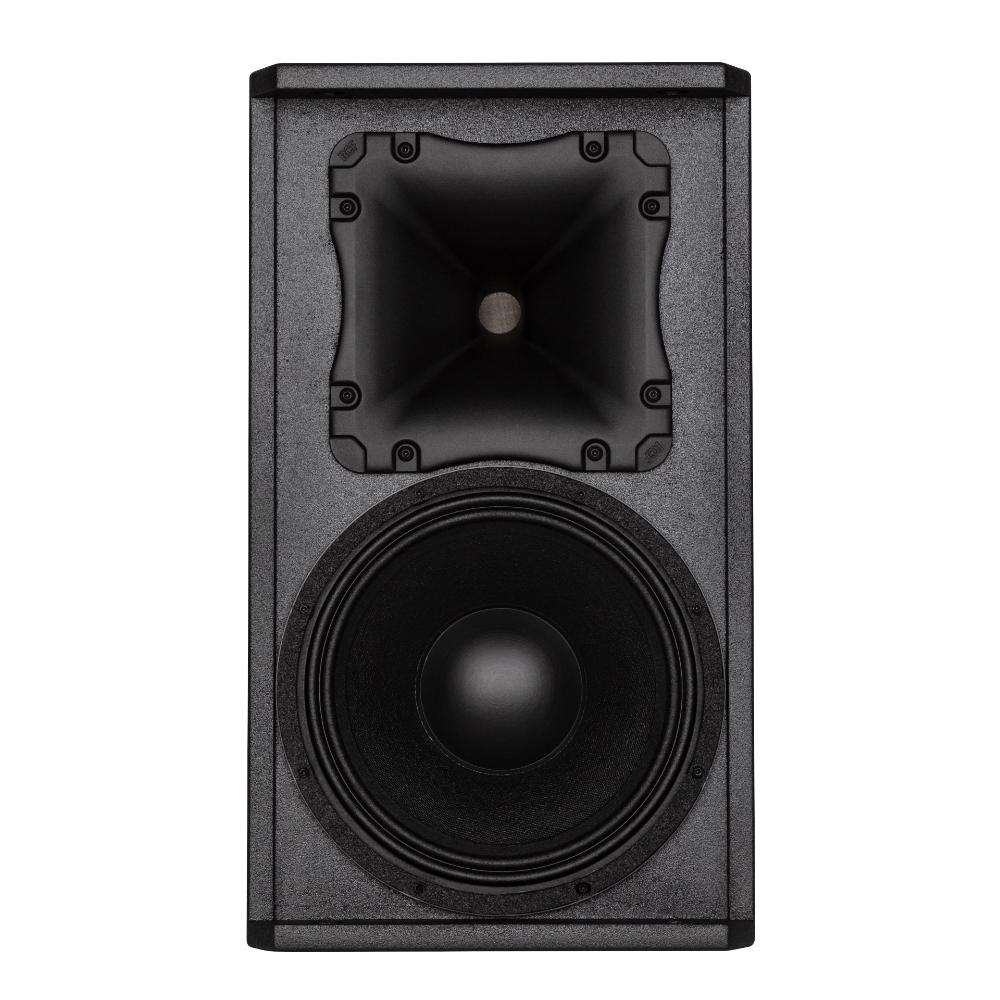

The full-range passive two-way speaker X-MAX 10 has been specifically designed as club systems for entertainment, to achieve the best nearfield quality, vocal coherence and a stable tonal balance even at high volume. The heavy-duty speaker cabinet is made of plywood coated with black textured acrylic paint. Featuring a 10” woofer with a 2.5” voice and a 1.0” compression driver with 1.4” voice coil. The LICC crossover design includes an electronic protection on high-frequency device. The rotatable 90°x70° horn allows installation either vertically or horizontally in any environment and architectural constraint.

Part number:

13000657
X-MAX 10
EAN 8024530018351

Designed to perform

The RCF X MAX series and its components are designed inside RCF’s laboratories and feature superior transducers. Equipped with a rotatable horn with 90° x 70° dispersion pattern, X MAX 10 boasts a 10” woofer and 1” compression driver, and delivers a maximum SPL of 128 dB SPL over a frequency range of 65 Hz – 20 kHz, with a total power handling of 700 W.

Perfectly tuned crossover

The X MAX Series features a custom-designed mid-freq shaping for close distance listening on a perfectly tuned crossover to ensure the best frequency and phase response. The LICC crossover design includes electronic protection on high-frequency device.

Robust workhorse

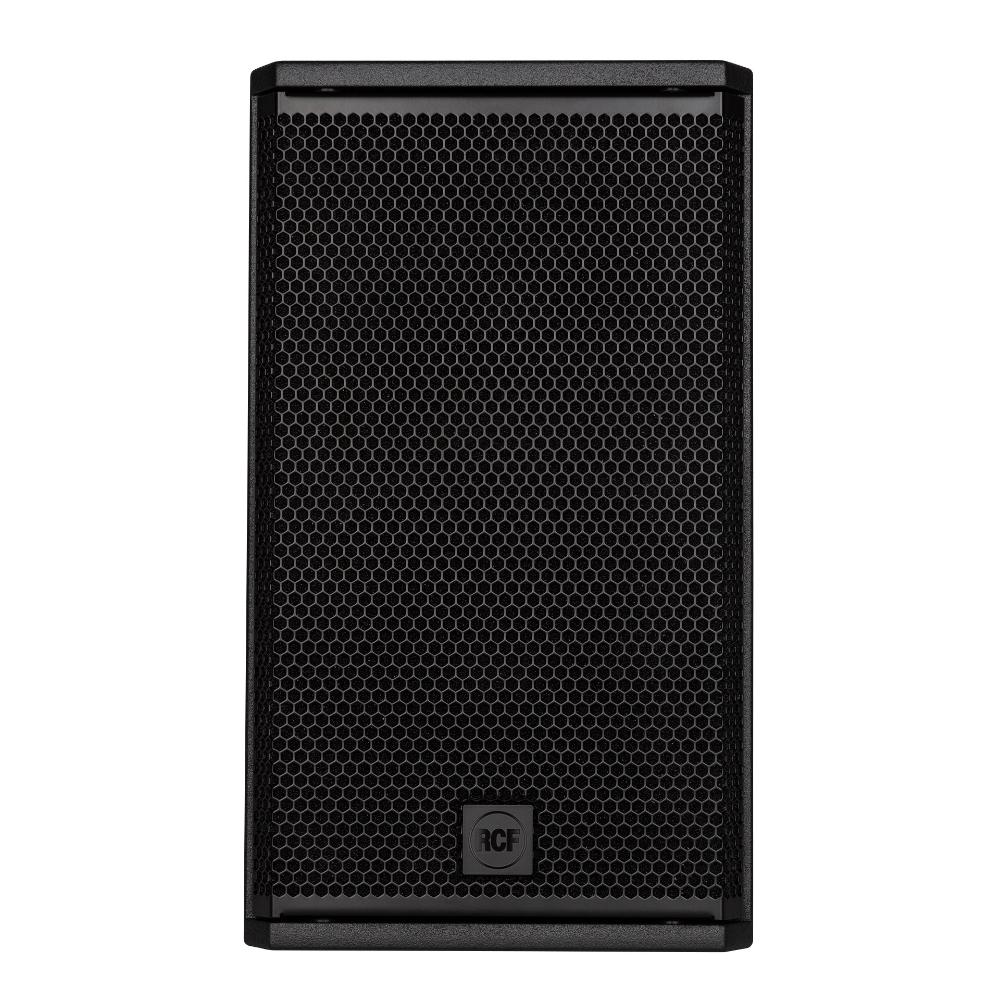

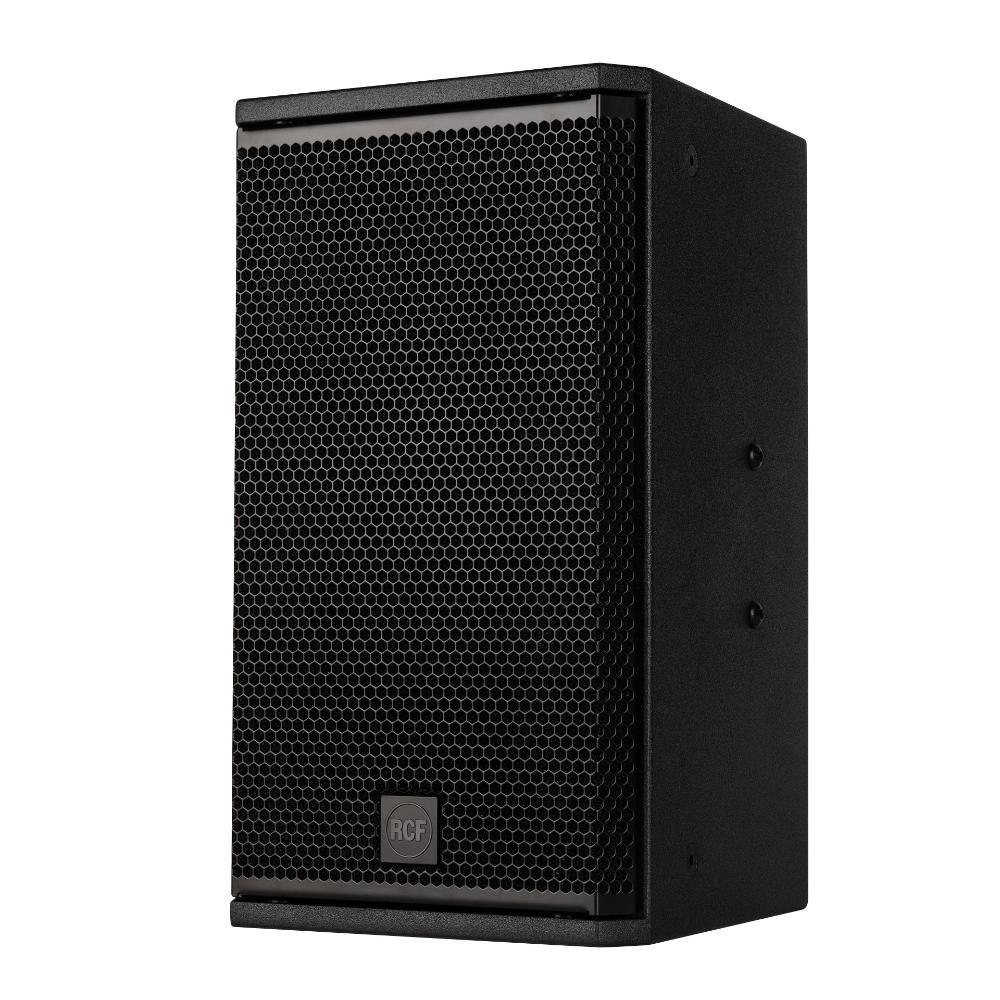

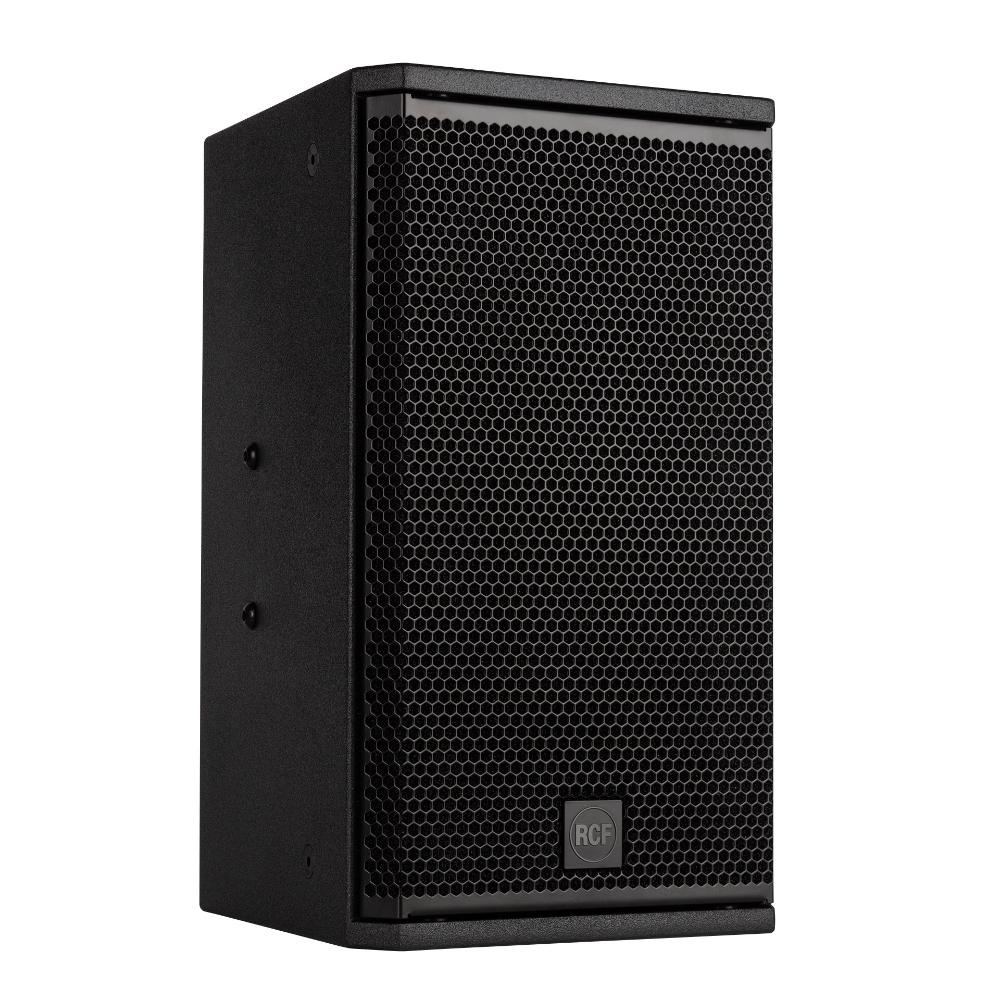

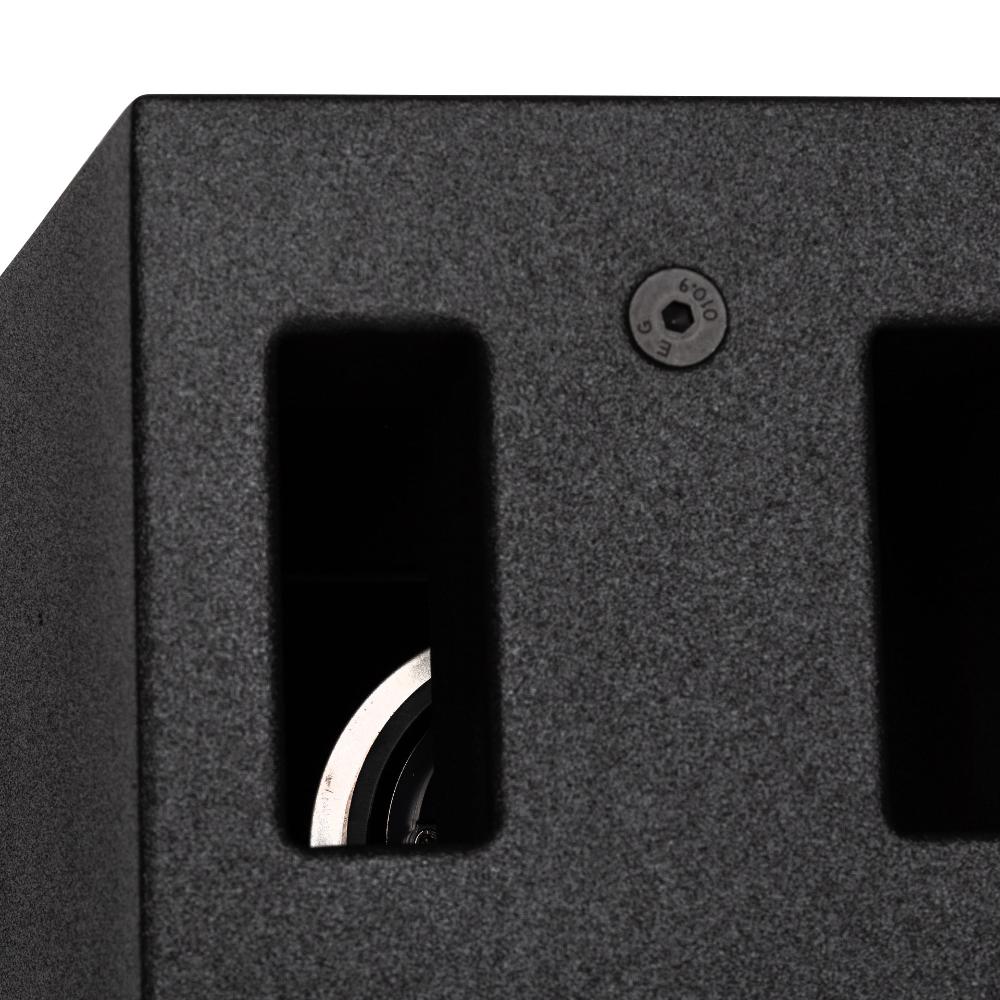

All X MAX Series cabinets are built-in plywood coated with black textured acrylic paint. A sturdy powder-coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

Easy rigging

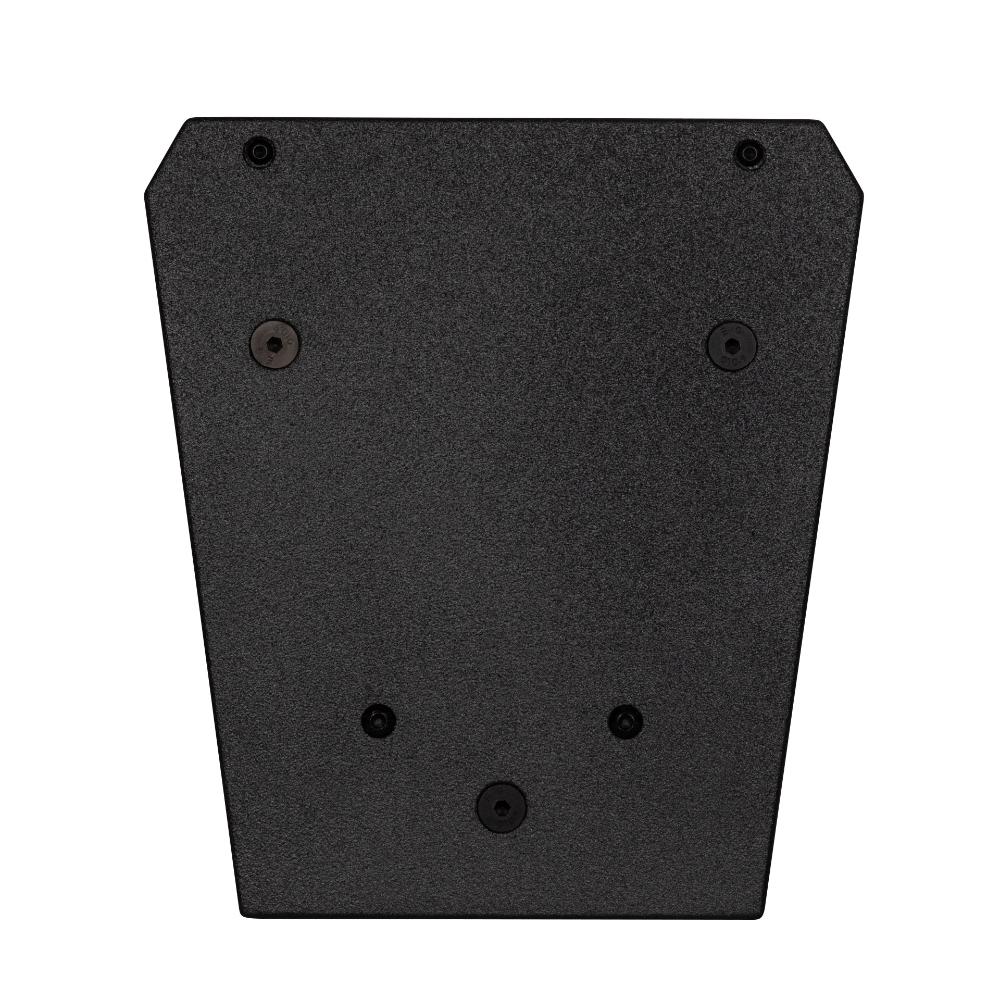

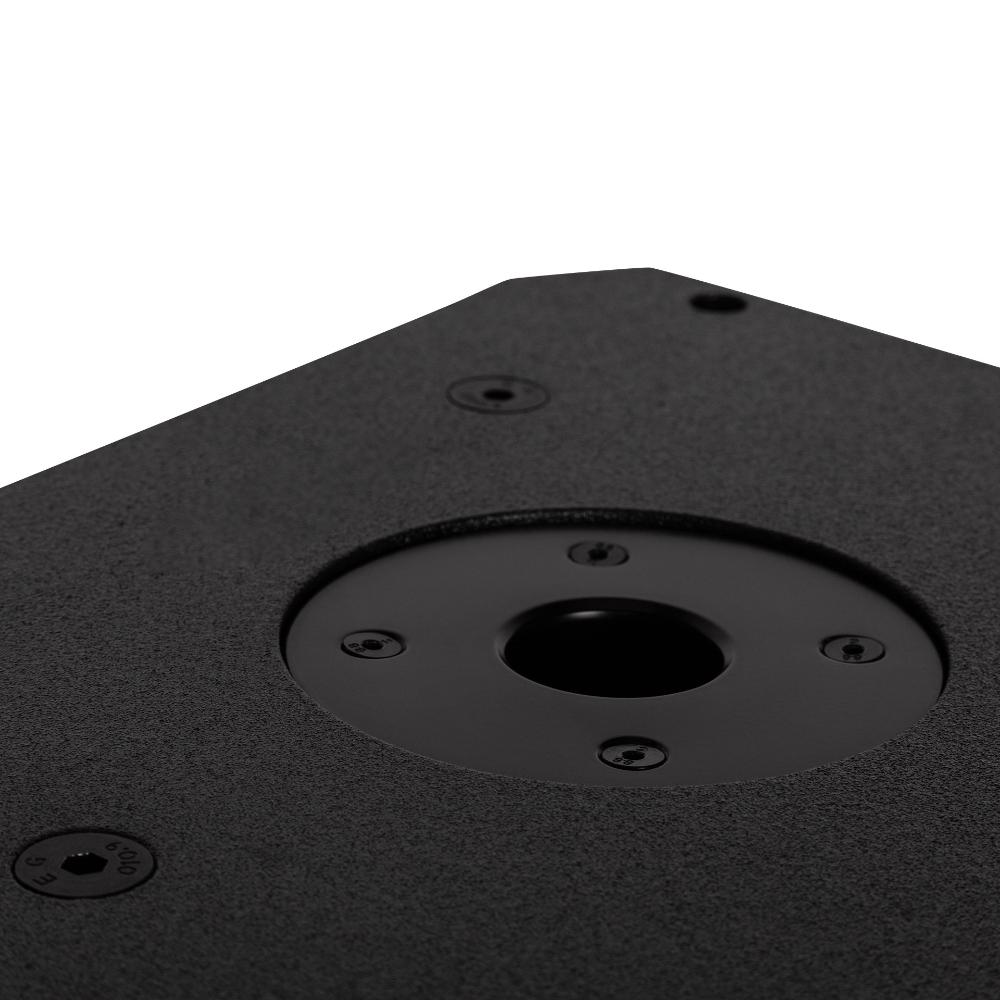

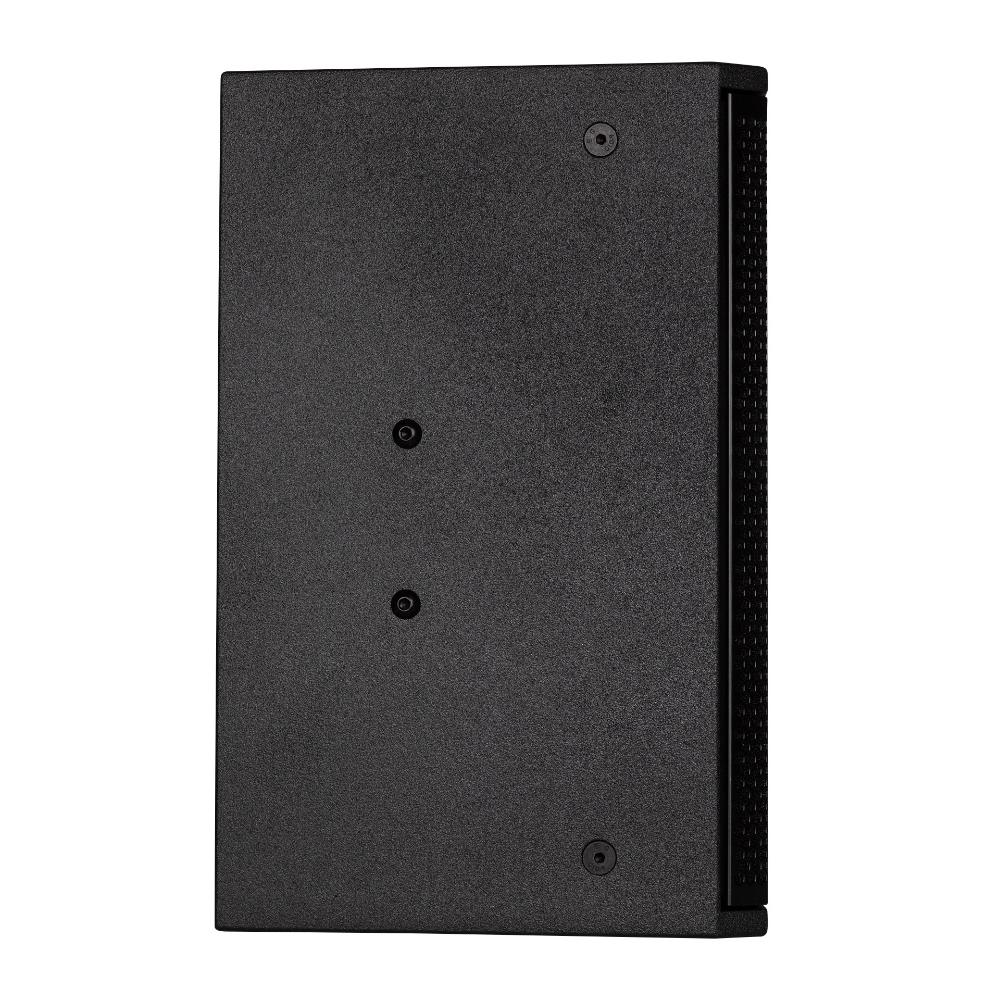

The base of each speaker includes a robust steel pole socket for mounting on a stand or a subwoofer pole. Threaded inserts are provided on all sides for optional mounting hardware. Included are multiple rigging points to fly the speakers for maximum architectural freedom in any installation.

Specifications

Acoustical specifications

Frequency Response (-10dB)

65 Hz ÷ 20000 Hz

Max SPL @ 1m

128 dB

Horizontal coverage angle

90°

Vertical coverage angle

70°

Directivity index Q

System Sensitivity

97 dB

Power section

Amplification

Full Range

Nominal Impedance

8 ohm

Power Handling

350 W

Peak Power Handling

1400 W PEAK

Protections

Dynamic active mosfet

Crossover Frequencies

1800 Hz

Transducers

Compression Driver

1 x 1.0'', 1.4'' v.c

Woofer

1 x 10'', 2.5'' v.c

Input/Output section

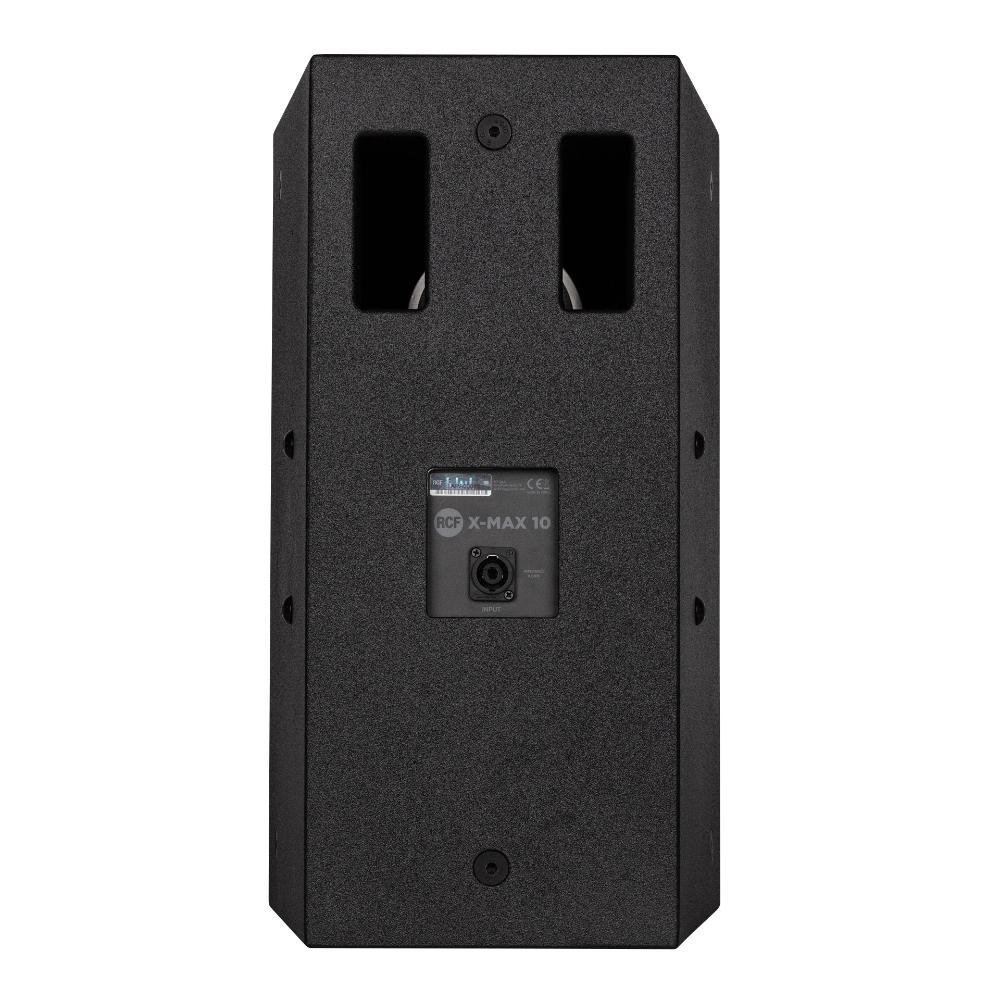

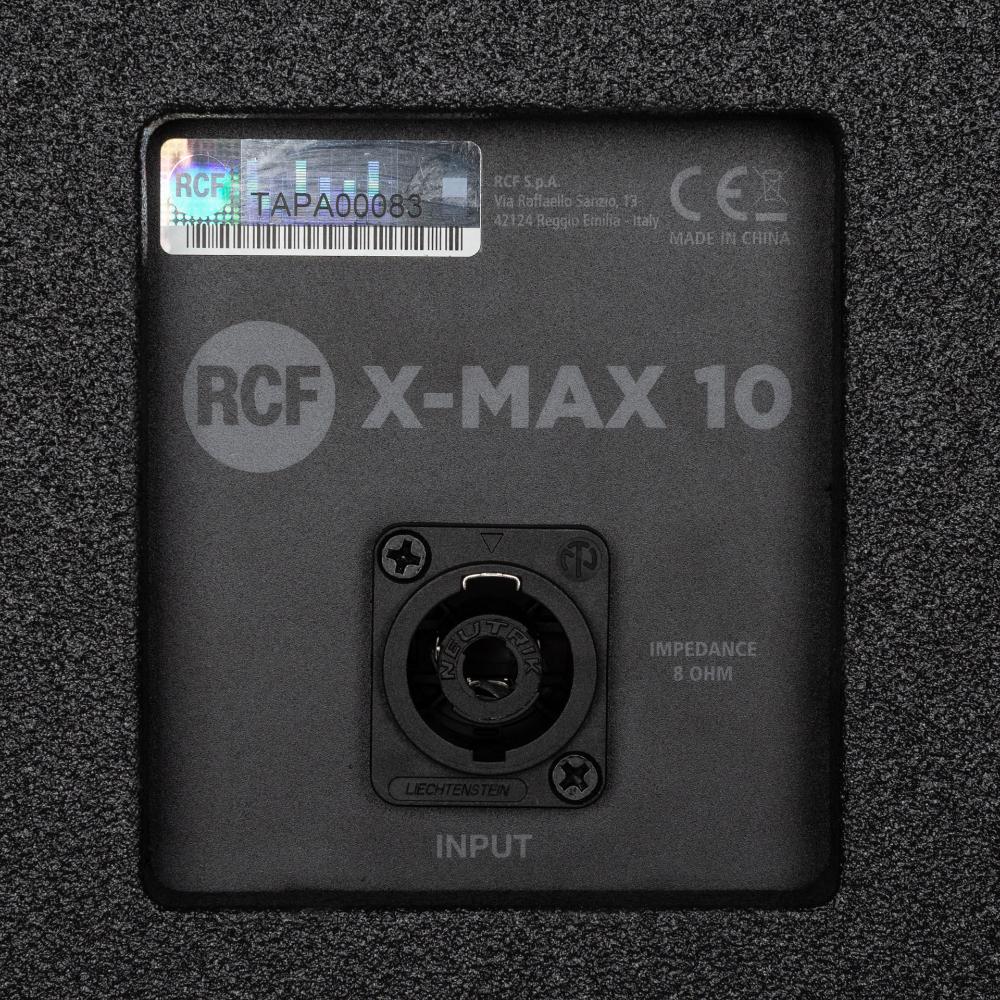

Input connectors

Speakon

Standard compliance

Safety agency

CE compliant

Physical specifications

Cabinet/Case Material

Plywood

Hardware

2 x M8, 16 x M10

Grille

Steel with clothing

Color

Black

Size / Weight

Height

510 mm / 20.08 inches

Width

295 mm / 11.61 inches

Depth

325 mm / 12.8 inches

Weight

17 kg / 37.48 lbs

Shipping information

Package Height

545 mm / 21.46 inches

Package Width

363 mm / 14.29 inches

Package Depth

333 mm / 13.11 inches

Package Weight

20 kg / 44.09 lbs

Downloads

MANUALS

USER MANUAL

PDF

505 KB

15-09-2021

SPECIFICATIONS

SPECSHEET - ENG

PDF

948 KB

18-10-2024

SPECSHEET - ITA

PDF

949 KB

18-10-2024

ACOUSTIC MEASUREMENTS

PDF

256 KB

11-07-2024

STANDARD COMPLIANCES

CE DECLARATION OF CONFORMITY - ENG

PDF

130 KB

11-07-2022

UKCA DECLARATION OF CONFORMITY - ENG

PDF

145 KB

11-07-2022

DRAWINGS

LINE ART 2D

DXF

2.2 MB

22-01-2024

LINE ART 2D

PDF

281 KB

22-01-2024
