WMR 60T TWO-WAY WALL-MOUNT MONITOR SPEAKER
Search RCF products
Choose search system
BUSINESS MUSIC
WMR 60T
TWO-WAY WALL-MOUNT MONITOR SPEAKER
- 80W RMS power handling
- 114 dB max SPL
- Self-extinguishing plastic cabinet and aluminum front grille
- IP55 protection grade
IP55
Features
- 80W RMS power handling
- 114 dB max SPL
- 70 ÷ 20000 Hz frequency range
- 140° x 100° constant directivity coverage angle

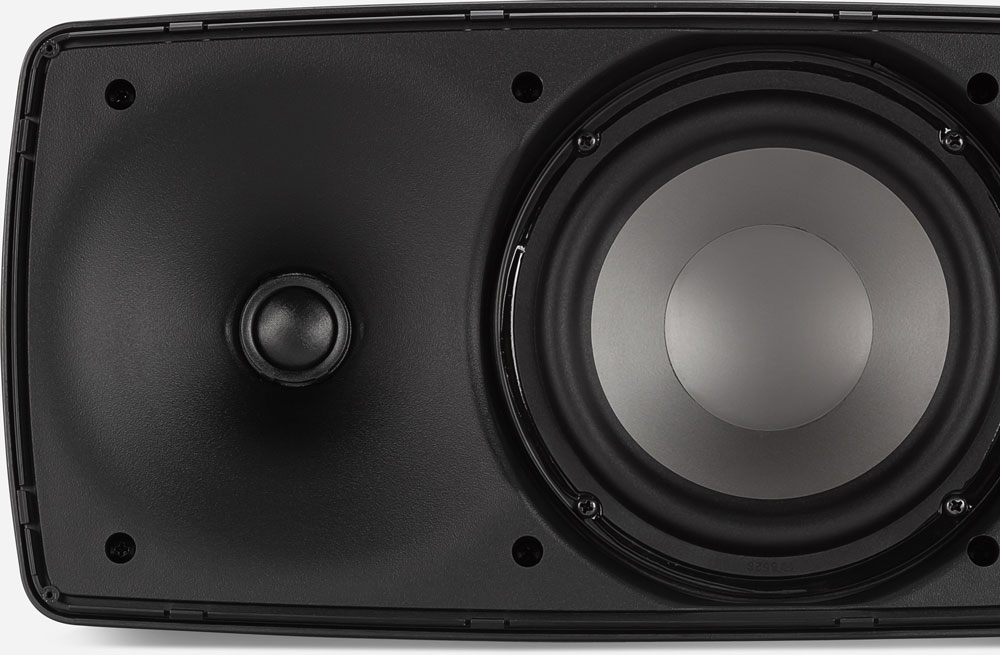

- 6.5" high power woofer
- 1" neodymium dome tweeter
- Self-extinguishing plastic cabinet and aluminum front grille
- Connection board integrated into the wall support
- 4 pole EUROBLOCK connector (audio input and parallel link output)
- IP55 protection grade
WMR 60T is a multi-purpose two-way wall-mounted speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 60T pairs any building's aesthetic. The high-quality transducers guarantee a precise music reproduction of the entire frequency band and provide impressive sound pressure levels for such a compact enclosure. The installation is easy thanks to the dedicated connection board inside the (included) wall mount support, which allows the installer to set the desired tilt first, fix the speaker, and finally connect it without the need for any tooling.
Part number:
13100050
WMR 60T
Black - RAL 9005, EAN 8024530017453
13100071
WMR 60T W
White - RAL 9003, EAN 8024530020026
Multipurpose sound
Music nurtures engagement and improves the feeling of hospitality provided by the environment. With a wide conical coverage angle of 140° x 100°, WMR speakers feature a two-way configuration with a bass-reflex cabinet design, ideal for both speech and music reproduction.
All products designed for Business Music applications offer optimal background performance and consistent tonal quality across all the Series preserving the same performance even during high-powered foreground music. The combination of modern monochrome and discreet design blends into any environment.
All products designed for Business Music applications offer optimal background performance and consistent tonal quality across all the Series preserving the same performance even during high-powered foreground music. The combination of modern monochrome and discreet design blends into any environment.
Uncompromised performance
Quality components and careful acoustic design make the WMR Series a perfect choice for demanding applications. Designed for bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls, and corporate spaces. Their extra-wide directivity significantly reduces the number of speakers and installation points.
Smooth installation

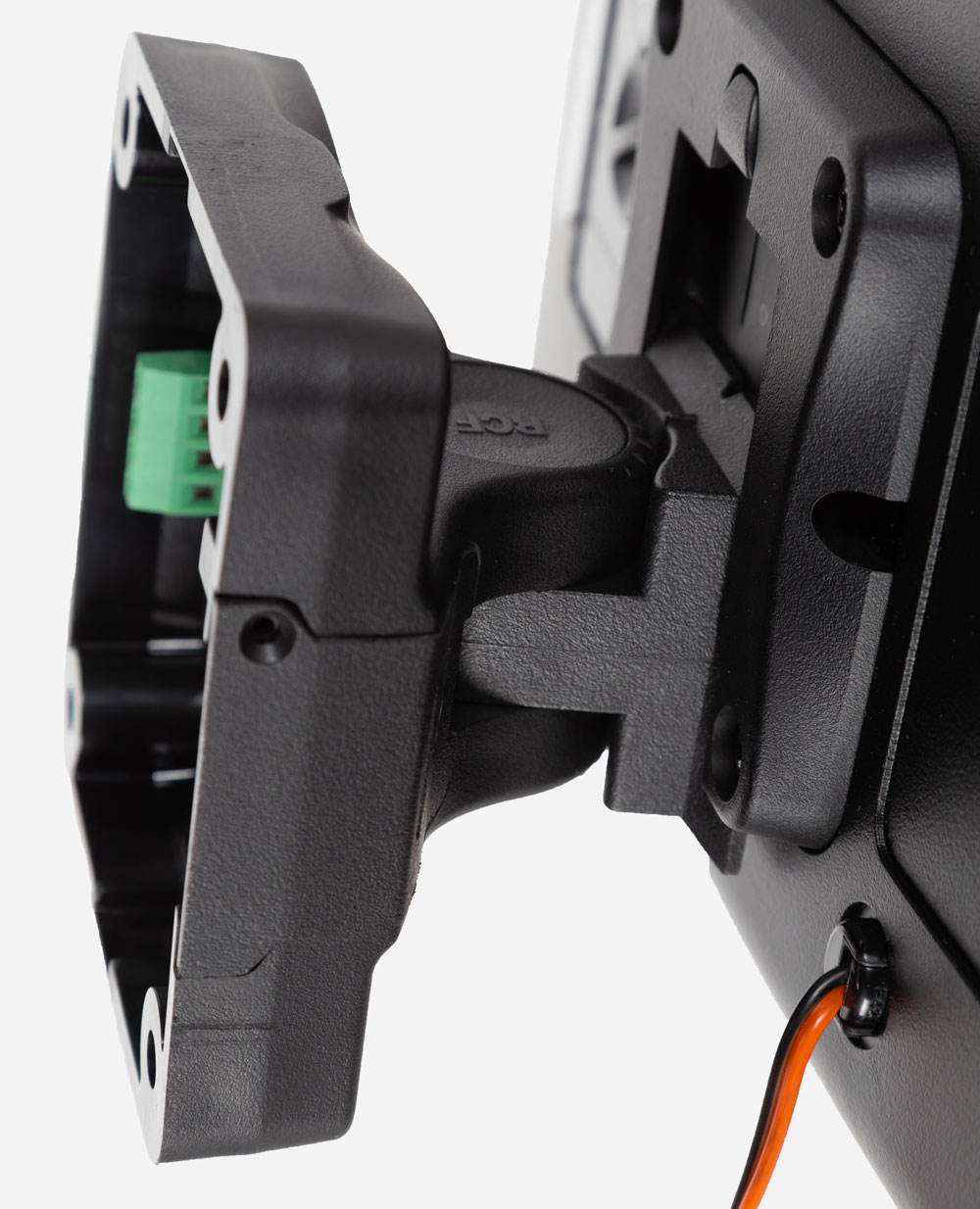

Housed in a compact self-extinguishing plastic cabinet, all models feature Euroblock inputs, a line transformer for 70V-100V systems, and quick and easy installation. The connection panel is embedded inside the wall mount support, for both ease of installation and elegance. The stepped swivel mount is fast to configure and secure.
Specifications
Acoustical specifications
Frequency Response (-10dB)
70 Hz ÷ 20000 Hz
Max SPL @ 1m
114 dB
Horizontal coverage angle
140°
Vertical coverage angle
100°
System Sensitivity
89 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
80 W RMS
Peak Power Handling
320 W PEAK
Protections
Bulb lamp
Crossover Frequencies
2500
Recommended Amplifiers
DMA 504, DMA 162, DMA 82, DMA 162P
Transducers
Dome Tweeter
1 x 1.0'' neo, 1.0'' v.c
Woofer
1 x 6.5'', 1.2'' v.c
Input/Output section
Input connectors
Euroblock
Output connectors
Euroblock
Constant Voltage Transformer
70/100 V
Power selection 1
80 W - 125 ohm
Power selection 2
40 W - 250 ohm
Power selection 3
20 W - 500 ohm
Power selection 4
10 W - 1000 ohm
Power selection 5
5 W - 2000 ohm
Standard compliance
IP protection grade
IP 55
Safety agency
CE compliant, UL 1480A
Physical specifications
Cabinet/Case Material
ABS
Hardware
Wall mount bracket
Grille
Steel
Color
Black - RAL 9005, White - RAL 9003
Size / Weight
Height
403 mm / 15.87 inches
Width
193 mm / 7.6 inches
Depth
293 mm / 11.54 inches
Weight
6 kg / 13.23 lbs
Shipping information
Package Height
298 mm / 11.73 inches
Package Width
468 mm / 18.43 inches
Package Depth
338 mm / 13.31 inches
Package Weight
7.5 kg / 16.53 lbs
