WMF 33EN
TWO-WAY PASSIVE WALL MOUNT SPEAKER
- 2 x 3" full-range transducers with 1" dome tweeter
- Power selectable (70 V / 100 V): 40 W – 20 W – 10 W – 5 W – 2.5 W
- 88 dB sensitivity
- Colour black RAL 9005
EN 54
Features
- 2 x 3" full-range transducers with 1" dome tweeter
- Power selectable (70 V / 100 V): 40 W – 20 W – 10 W – 5 W – 2.5 W
- 88 dB sensitivity
- Colour black RAL 9005
- Voice Alarm EN 54-24 Certified
- In/out ceramic terminal block
- Thermal fuse protection
- Connections integrated in the wall support
- UL rated plastic enclosure
WMF 33EN is a two-way wall mount speaker designed for both horizontal and vertical installation. It is especially suitable for broadcasting background music into commercial spaces, but also includes alarm messages with highly intelligible voice reproduction and EN 54-24 certification. It features a UL rated plastic cabinet with a steel magnetic grille and is easy to install with its smart support system. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker.
Part number:
13100046
WMF 33EN
EAN 8024530017170
Multipurpose sound
A combination of modern design, a wide coverage angle of 100°x160° and RCF signature sound quality to deliver a supreme audio experience in any application. Their 2-way / 3-transducers full-range reflex-loaded speaker design does not require complementary SUBs. There is enough power for a uniform and rich sound distribution for a wide range of installations.

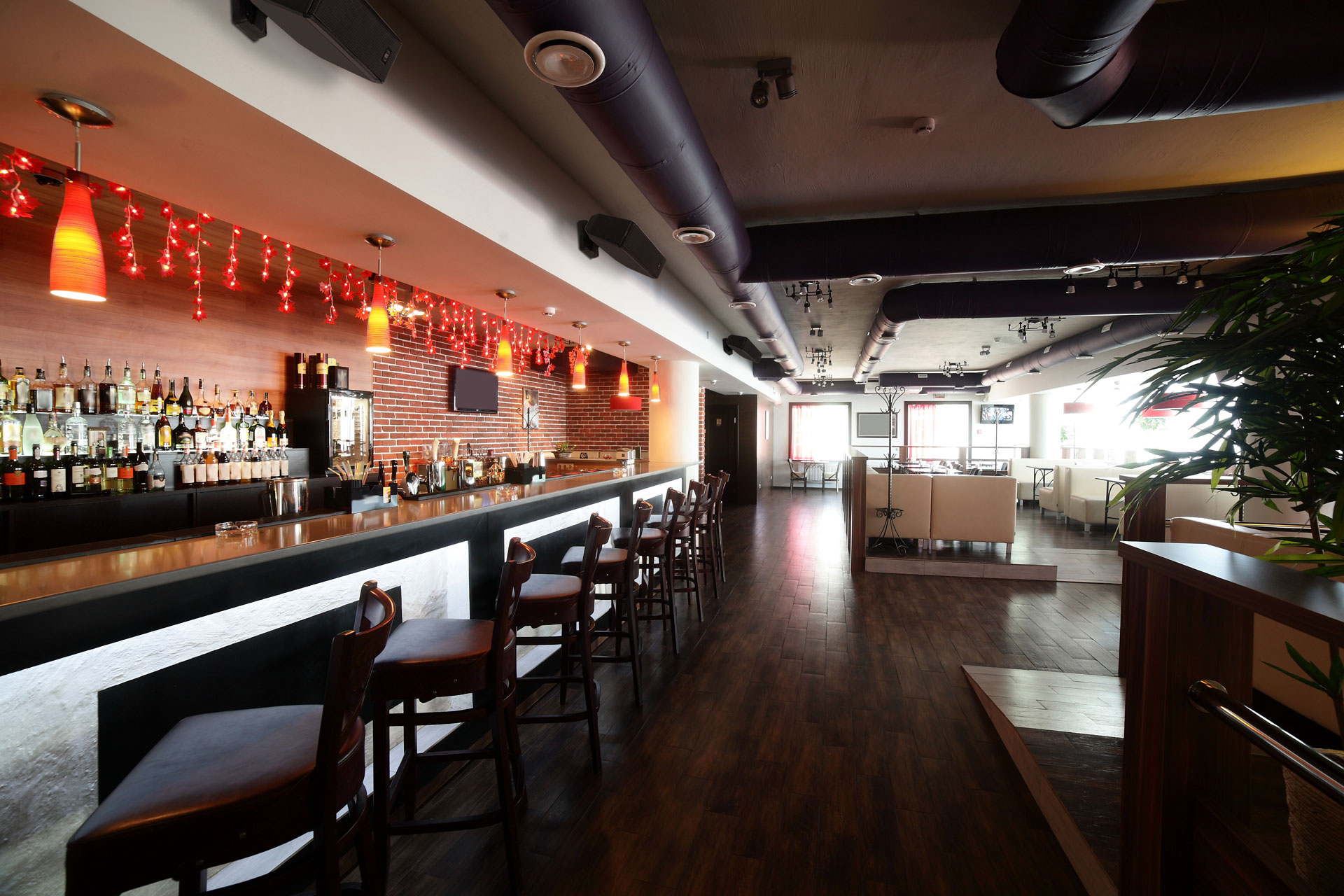

The target application range is extremely wide and varies from retail stores to bars and restaurants, meeting rooms, education or public facilities, and in general to any A/V application and Voice Alarm installation.
The target application range is extremely wide and varies from retail stores to bars and restaurants, meeting rooms, education or public facilities, and in general to any A/V application and Voice Alarm installation.
Improve the audio atmosphere
Music nurtures engagement and improves the feeling of hospitality provided by the environment. All products designed for Business Music applications offer optimal background performance preserving the same quality even during high-powered foreground music. Their extra-wide directivity allows you to significantly reduce the number of speakers and installation points.
Voice alarm ready
The EN 54-24 certification and the highly intelligible voice reproduction make it perfect for voice alarm and EVAC messages (sensitivity 91 dB 1W @ 1m in the range 400 Hz ÷ 8000 Hz according to EN 54-24). The same speaker can be used for both music distribution and Voice Alarm applications.
Discreet power

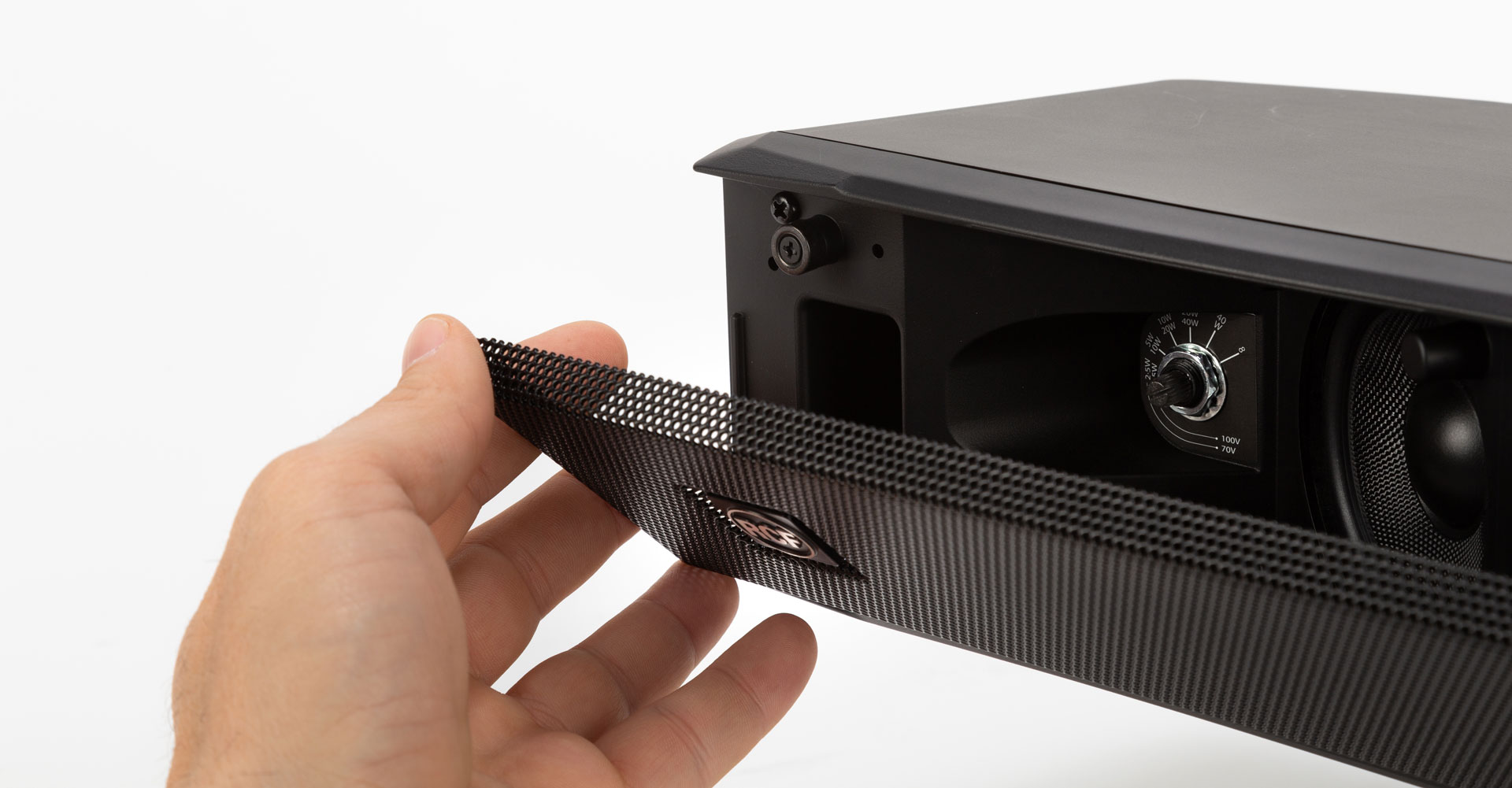

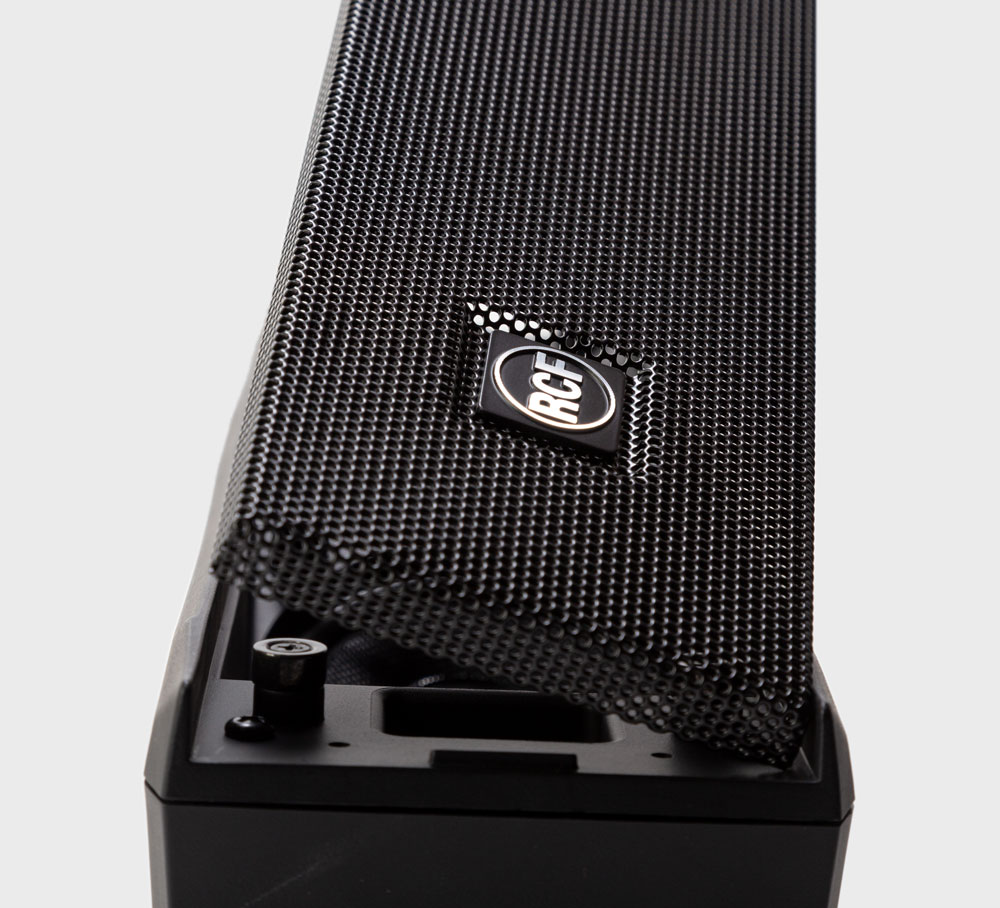

Our audio engineers maintain a strong focus on simplicity without compromising usability. The smooth and subtle design perfectly blends with any architecture, without compromising sound performance and ease of installation. WMF 33EN is so compact and slim that it can be aimed and rotated freely by its discrete swivel bracket, allowing a completely flexible installation. The grill is magnetically removable, ensuring practical and easy maintenance.
New shape of sound

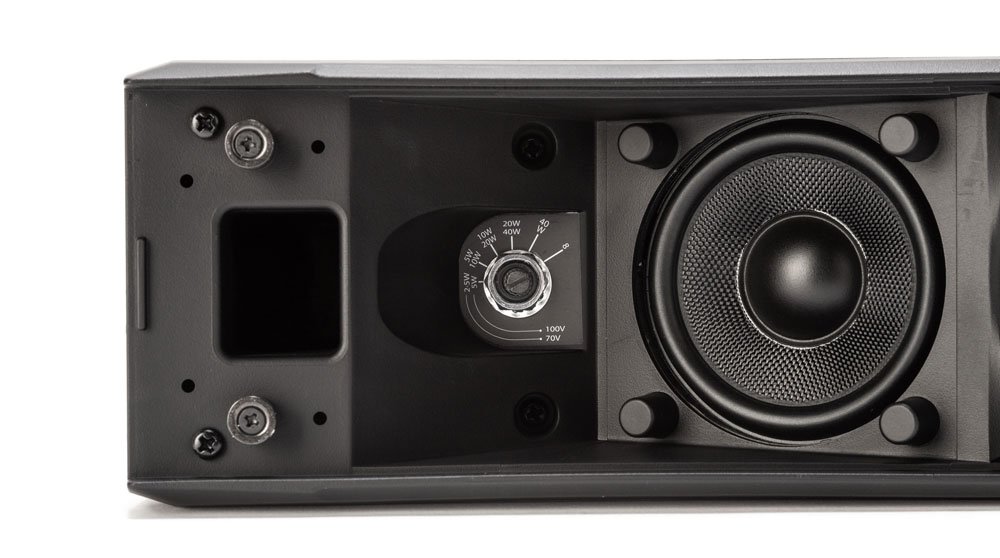

WMF speakers can be driven by both low impedance or constant voltage amplifiers, with mode and power selection, both accessible by simply removing the grille. The connection panel is embedded inside the wall mount support, for both ease of installation and elegance. Their extra-wide directivity significantly reduces the number of speakers and installation points.
Specifications
Acoustical specifications
Frequency Response (-10dB)
80 Hz ÷ 22000 Hz
Max SPL @ 1m
105 dB
Max SPL @ 4m
93 dB
Horizontal coverage angle
100°
Vertical coverage angle
160°
System Sensitivity
88 dB
System Sensitivity 1W @ 4m
76 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
40 W
Peak Power Handling
160 W PEAK
Protections
Thermal fuse - PTC
Crossover Frequencies
2500
Recommended Amplifiers
DMA 504, DMA 162, DMA 82, DMA 162P, DXT 3000, DXT 4000, DXT 7000
Transducers
Dome Tweeter
1 x 1.0'' neo, 1.0'' v.c
Woofer
2 x 3.0'', 1.0'' v.c
Input/Output section
Input connectors
Ceramic screw terminals
Output connectors
Ceramic screw terminals
Constant Voltage Transformer
70/100 V
Power selection 1
40 W - 250 ohm
Power selection 2
20 W - 500 ohm
Power selection 3
10 W - 1000 ohm
Power selection 4
5 W - 2000 ohm
Power selection 5
2.5 W - 4000 ohm
Standard compliance
Safety agency
CE compliant
EN54-24 certified
Yes
CPR number
0068/CPR/057-2019
Physical specifications
Cabinet/Case Material
ABS
Hardware
Wall mount bracket
Grille
Steel
Color
Black - RAL 9005
Size / Weight
Height
399 mm / 15.71 inches
Width
92 mm / 3.62 inches
Depth
236 mm / 9.29 inches
Weight
5 kg / 11.02 lbs
Shipping information
Package Height
186 mm / 7.32 inches
Package Width
596 mm / 23.46 inches
Package Depth
276 mm / 10.87 inches
Package Weight
7 kg / 15.43 lbs
