Features
  • High power, two-way bass reflex full range system
  • 2 x 15" high power, 4" voice coil hypervented woofers
  • 1 x 4" high power titanium neo compression driver
  • 137 dB max SPL
  • 1800 Watt AES
  • Very high output, response down to 40 Hz
  • Birch plywood cabinet
  • Weather resistant, textured, polyurea finish
  • Epoxy powder coated front grille

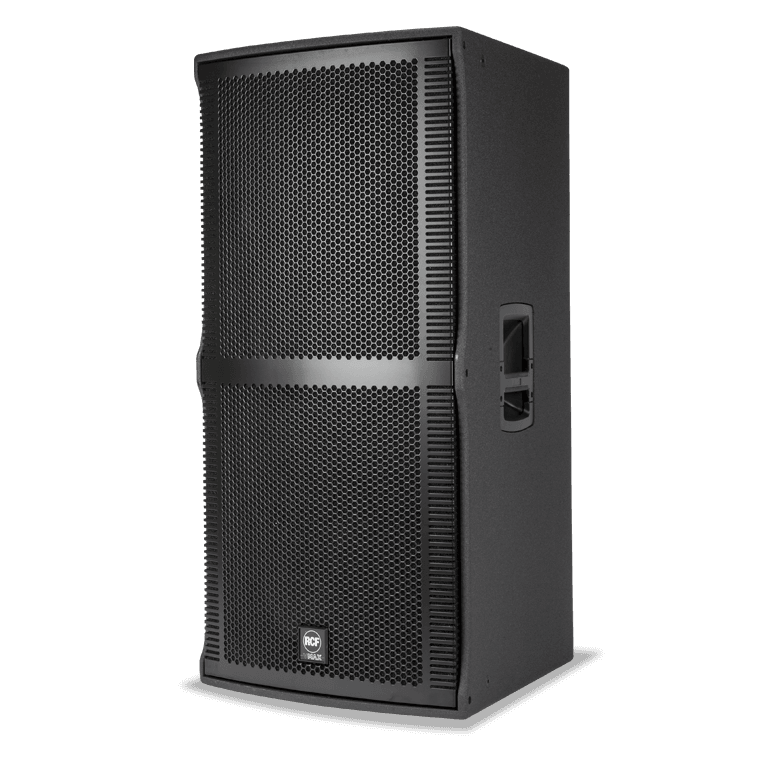

The V45 is two-way full range loudspeaker system that incorporate 2 x 15” LF transducers and a 4” voice coil, titanium, compression driver. The system is very compact and provides very high output and accurate voice and sound reproduction. The system is equipped with the latest generation of RCF precision transducers. The LF drivers are equipped with a 4” voice coil and a state of the art ferrite motor, are mounted in a vented enclosure with optimised front loading. The 4.0” HF titanium compression driver is a state of the art in compression drivers designs and is loaded on a constant directivity horn with a perfect coverage of 90° x 40°.


ARCHIVED

Part number:

13000413
V 45
EAN 8024530010973

Specifications
Acoustical specifications
Frequency Response (-10dB)
30 Hz ÷ 20000 Hz
Max SPL @ 1m
137 dB
Horizontal coverage angle
90°
Vertical coverage angle
40°
Directivity index Q
10
System Sensitivity
99 dB
Power section
Nominal Impedance
4 ohm
Power Handling
1800 W
Peak Power Handling
7200 W PEAK
Crossover Frequencies
1200 Hz
Transducers
Compression Driver
1.4'' neo, 4.0'' v.c
Woofer
2 x 15'', 4.0'' v.c
Input/Output section
Input connectors
Speakon® NL4
Output connectors
Speakon® NL4
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
12 x M10 inserts
Handles
1 side
Grille
Steel
Color
Black
Size / Weight
Height
1109 mm / 43.66 inches
Width
554 mm / 21.81 inches
Depth
579 mm / 22.8 inches
Weight
63 kg / 138.89 lbs
Shipping information
Package Height
1170 mm / 46.06 inches
Package Width
640 mm / 25.2 inches
Package Depth
610 mm / 24.02 inches
Package Weight
63 kg / 138.89 lbs
