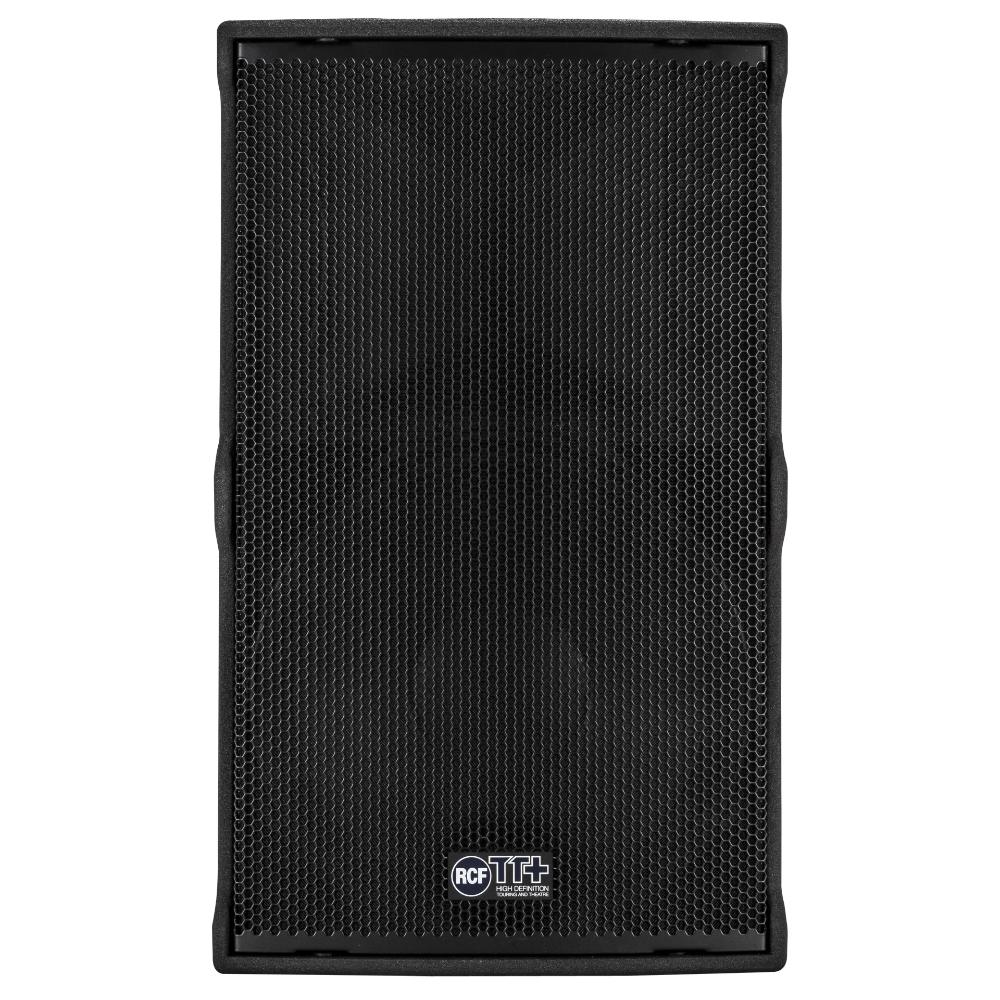

TT 5-A II

ACTIVE TWO-WAY SPEAKER
  • 136 dB max SPL
  • 1600 W Class-D two-channel amplifier
  • 90° x 50° constant directivity coverage
  • FiRPHASE for 0° phase response
RDNet
Support
Features Specifications Accessories Downloads
Support
Features
  • 136 dB max SPL
  • 1600 W Class-D two-channel amplifier
  • 90° x 50° constant directivity coverage
  • FiRPHASE for 0° phase response
  • Heavy-duty touring cabinet
  • 32 bit - 96 kHz processing

Deploying a powerful 4” titanium compression driver, a large-sized constant directivity horn, and an incredibly fast neodymium 15” woofer, TT 5-A offers the highest performance from a wide dispersion, active, 2-way system. The TT 5-A is the ideal professional two-way speaker for high-grade live performance. The integration of an RDNet remote-controllable 1600 W, two-channel Class-D amplifier and the advanced FiRPHASE DSP 0° linear phase processing set new standards for clarity and efficiency.

ARCHIVED

Part number:

13000630
TT 5-A II
220-240V, EAN 8024530017996

13000631
TT 5-A II
115V, EAN 8024530018009

Specifications
Acoustical specifications
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
136 dB
Horizontal coverage angle
90°
Vertical coverage angle
50°
Transducers
Compression Driver
1 x 1.4'' neo, 4.0'' v.c
Woofer
1 x 15'' neo, 4.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, RDNet Ethercon
Output connectors
XLR, RDNet Ethercon
Input sensitivity
+4 dBu
Processor section
Crossover Frequencies
650 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Gain reduction, RDNet local setup/bypass, Time Delay, Presets (Linear, Close, Far listening, High- Pass), RDNet on board
RDNet
Yes
Power section
Total Power
3200 W Peak, 1600 W RMS
High frequencies
1000 W Peak, 500 W RMS
Low frequencies
2200 W Peak, 1100 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
Installation/Rental fittings
Handles
2 side
Pole mount/Cap
Yes
Grille
Steel
Color
Black
Size / Weight
Height
735 mm / 28.94 inches
Width
444 mm / 17.48 inches
Depth
529 mm / 20.83 inches
Weight
42.5 kg / 93.7 lbs
Shipping information
Package Height
870 mm / 34.25 inches
Package Width
630 mm / 24.8 inches
Package Depth
580 mm / 22.83 inches
Package Weight
47.5 kg / 104.72 lbs
