Features
  • 300 W Class D two-channel amplifier
  • Heavy-duty multi-functional cabinet
  • 90° conical coverage
  • FiRPHASE for 0° phase response
  • 2 x 5" neodymium low distortion woofer
  • 1.5" c.driver, 1.0" v.c.

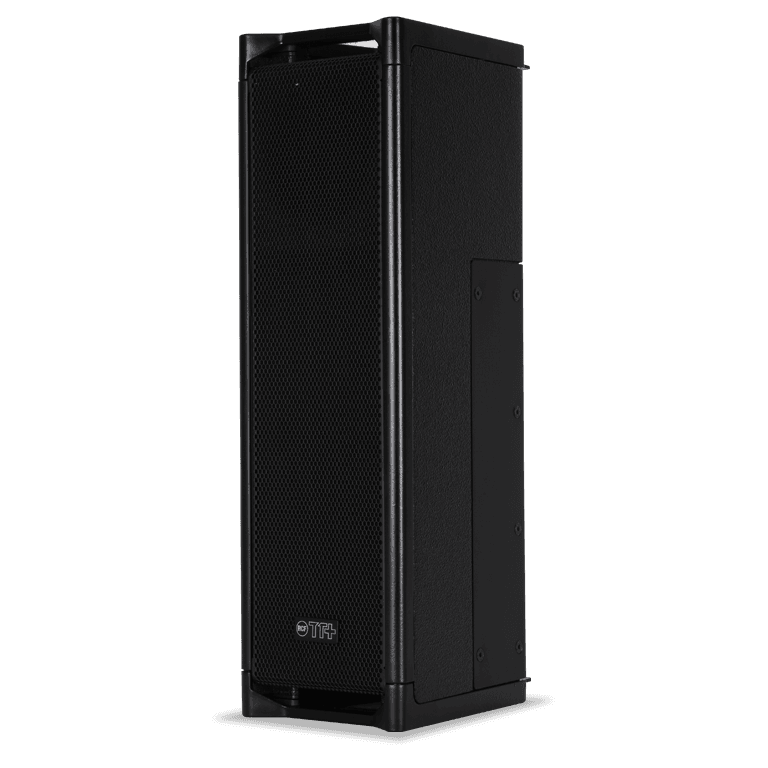

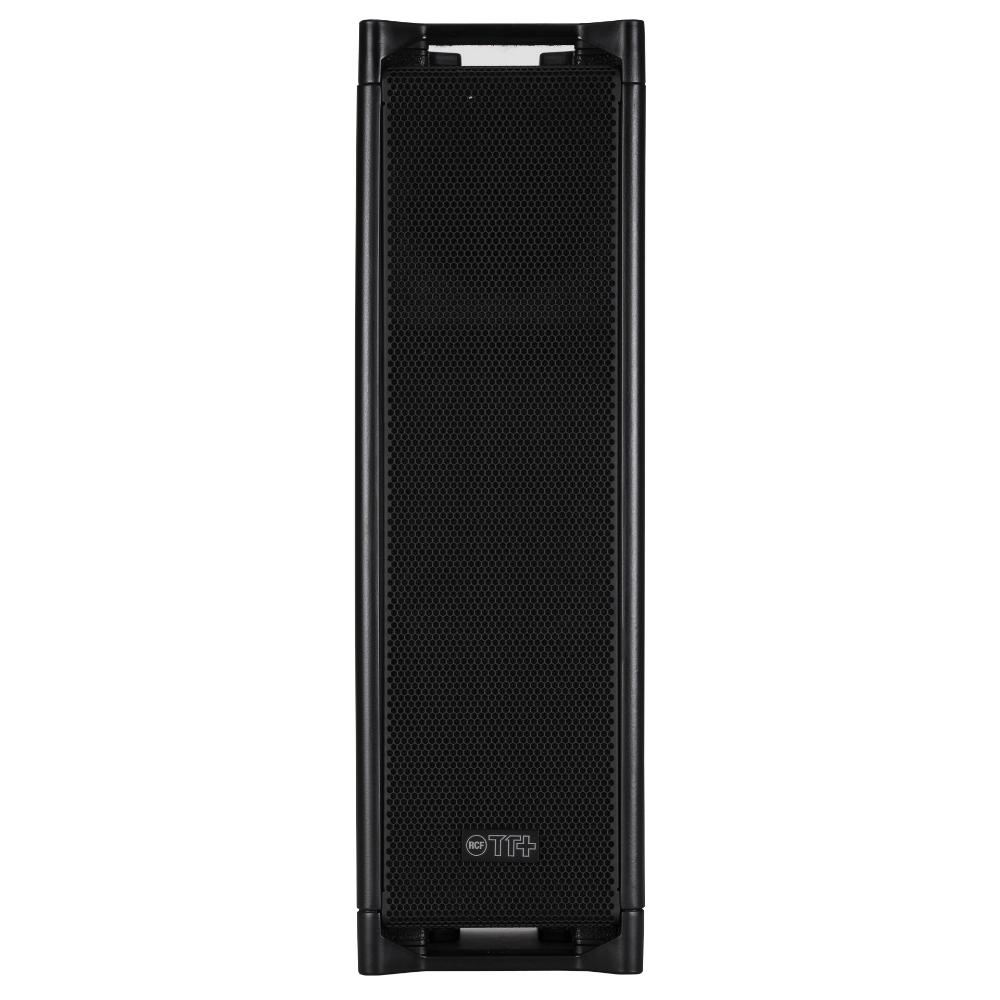

The TT 052-A II is an ultra-compact, active speaker designed for high quality indoor near field sound reinforcement. It is equipped with an onboard two-channel 300 W Class-D amplifier. Two powerful 5” neodymium woofers and a 1” compression driver loaded to a constant directivity horn provide optimal coverage. Thanks to the RDNet networked control, powerful DSP and proprietary FiRPHASE processing, the TT 052-A II features a 0° linear phase response for TT+ class sound quality.


ARCHIVED

Part number:

13000634
TT 052-A II
220-240V, EAN 8024530017712

13000635
TT 052-A II
115V, EAN 8024530017729

Specifications
Acoustical specifications
Frequency Response
65 Hz ÷ 20000 Hz
Max SPL @ 1m
123 dB
Horizontal coverage angle
90°
Vertical coverage angle
90°

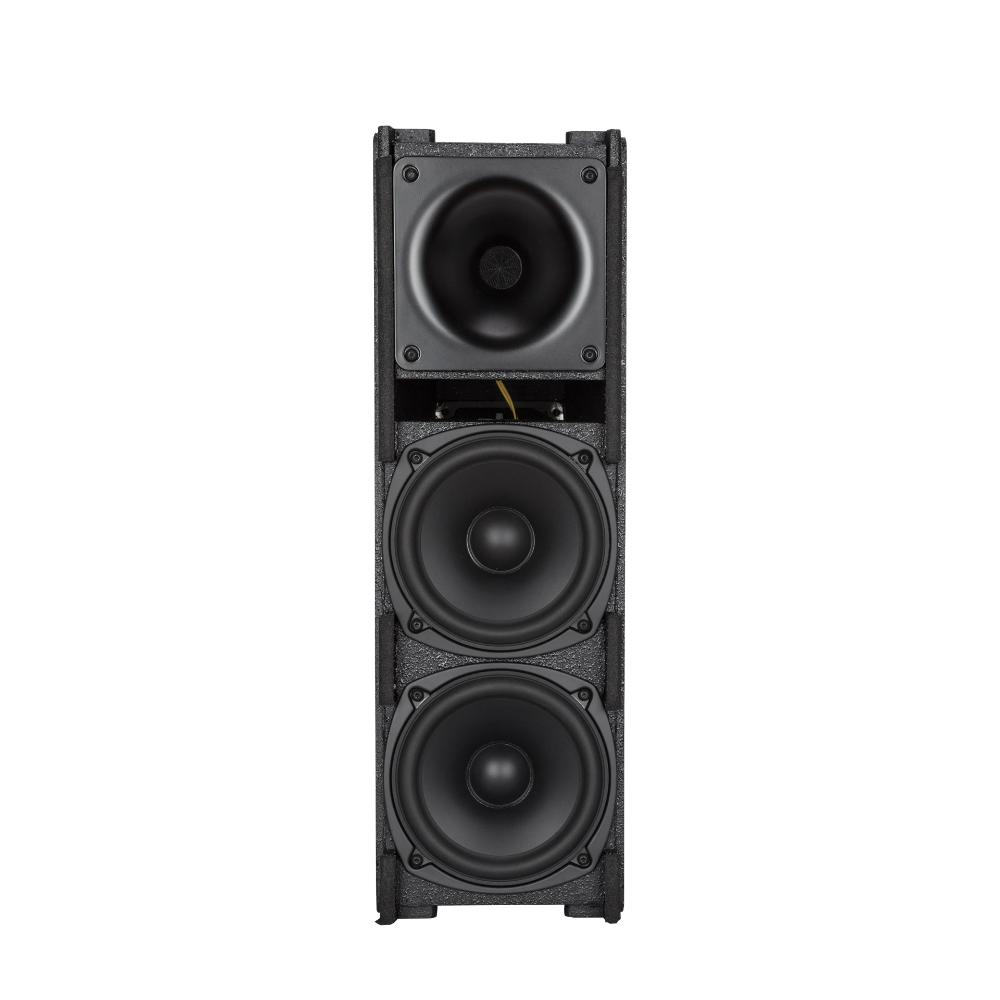

Transducers
Compression Driver
1 x 1.0'' neo, 1.5'' v.c
Woofer
2 x 5.0'', 1.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR
Output connectors
XLR
Input sensitivity
-2 dBu/+10 dBu
Processor section
Crossover Frequencies
1500 Hz
Protections
Thermal, Excurs., HF
Limiter
Soft Limiter
Controls
DSP Controlled RDnet on board
RDNet
Yes
Power section
Total Power
600 W Peak, 300 W RMS
High frequencies
300 W Peak, 150 W RMS
Low frequencies
300 W Peak, 150 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
Multi-functional
Handles
Top, Bottom
Grille
Steel
Color
Black
Size / Weight
Height
493 mm / 19.41 inches
Width
150 mm / 5.91 inches
Depth
207 mm / 8.15 inches
Weight
9.5 kg / 20.94 lbs
Shipping information
Package Height
580 mm / 22.83 inches
Package Width
290 mm / 11.42 inches
Package Depth
220 mm / 8.66 inches
Package Weight
11 kg / 24.25 lbs
