ARCHIVED
TT+

TT 052-A

ULTRA COMPACT HIGH OUTPUT SPEAKER
  • 300 W Class D amplifier
  • 2 x 5" low distortion woofer
  • 1" ne compression driver, 1.5" v.c.

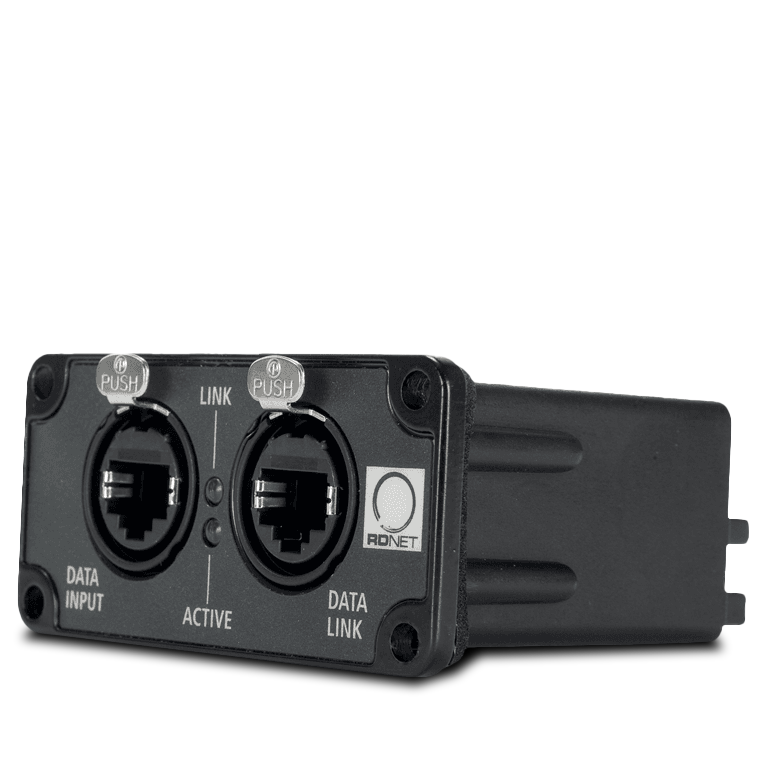

  • RDNet ready
RDNet
Support
Features Specifications Accessories Downloads
Support
Features
  • 300 W Class D amplifier
  • Heavy duty multi-functional cabinet
  • 2 x 5" low distortion woofer
  • 1" ne compression driver, 1.5" v.c.
  • DSP processing
  • Wall mount EQ, High pass EQ
  • RDNet ready

The TT052-A is an extremely compact, active loudspeaker specifically designed for indoor applications where the audio beam must be directed towards specific zones. It is equipped with two 5” neodymium woofers and a 1” compression driver. Thanks to its constant directivity horn and high volume output, the TT052-A can be used to guarantee the perfect intelligibility in critical environments.

ARCHIVED

Part number:

13000245
TT 052-A
220-240V, EAN 8024530008932

13000246
TT 052-A
115V, EAN 8024530008949

Specifications
Acoustical specifications
Frequency Response
65 Hz ÷ 20000 Hz
Max SPL @ 1m
123 dB
Horizontal coverage angle
90°
Vertical coverage angle
90°
Transducers
Compression Driver
1 x 1.0'' neo, 1.5'' v.c
Woofer
2 x 5.0'', 1.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XLR
Output connectors
XLR
Input sensitivity
-2 dBu/+10 dBu
Processor section
Crossover Frequencies
1500 Hz
Protections
Thermal, Excurs., HF
Limiter
Soft Limiter
Controls
DSP Controlled
RDNet
Ready
Power section
Total Power
600 W Peak, 300 W RMS
High frequencies
300 W Peak, 150 W RMS
Low frequencies
300 W Peak, 150 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
Multi-functional
Handles
Top, Bottom
Grille
Steel
Color
Black
Size / Weight
Height
493 mm / 19.41 inches
Width
150 mm / 5.91 inches
Depth
190 mm / 7.48 inches
Weight
9.5 kg / 20.94 lbs
Shipping information
Package Height
580 mm / 22.83 inches
Package Width
290 mm / 11.42 inches
Package Depth
220 mm / 8.66 inches
Package Weight
11 kg / 24.25 lbs
