SWM-BR VSA II
PAIR OF SWIVEL BRACKETS
- Two mounting points for the VSA loudspeaker rear side.
- Three holes for wall mounting through M5 wall plugs.
- Two bolts and nuts (used as pins) can be tightened to fix the VSA loudspeaker when the horizontal angle pointing is correct.
- Two holes to secure the VSA loudspeaker to the swivel bracket through two screws (M5x10).
![](https://www.rcf.it/documents/20128/824637/000_SWM-BR-VSA-II.png/407cbd19-3d98-55c8-2e92-4336b14e89a7?version=1.0&t=1654760302281&imagePreview=1)
![](https://www.rcf.it/documents/20128/824637/002_SWM-BR-VSA-II-BLACK_montata.jpg/894af584-6091-5456-e330-b489ab62ef1b?version=1.1&t=1636015886942&imagePreview=1)
![](https://www.rcf.it/documents/20128/824637/003_SWM-BR-VSA-II-BLACK_kit.jpg/32ecad7a-1128-f3f9-8a52-0466c1397686?version=1.1&t=1636015890597&imagePreview=1)
![](https://www.rcf.it/documents/20128/824637/000_SWM-BR-VSA-II.png/407cbd19-3d98-55c8-2e92-4336b14e89a7?version=1.0&t=1654760302281&imagePreview=1)
![](https://www.rcf.it/documents/20128/824637/002_SWM-BR-VSA-II-BLACK_montata.jpg/894af584-6091-5456-e330-b489ab62ef1b?version=1.1&t=1636015886942&imagePreview=1)
![](https://www.rcf.it/documents/20128/824637/003_SWM-BR-VSA-II-BLACK_kit.jpg/32ecad7a-1128-f3f9-8a52-0466c1397686?version=1.1&t=1636015890597&imagePreview=1)
Features
- Two mounting points for the VSA loudspeaker rear side.
- Three holes for wall mounting through M5 wall plugs.
- Two bolts and nuts (used as pins) can be tightened to fix the VSA loudspeaker when the horizontal angle pointing is correct.
- Two holes to secure the VSA loudspeaker to the swivel bracket through two screws (M5x10).

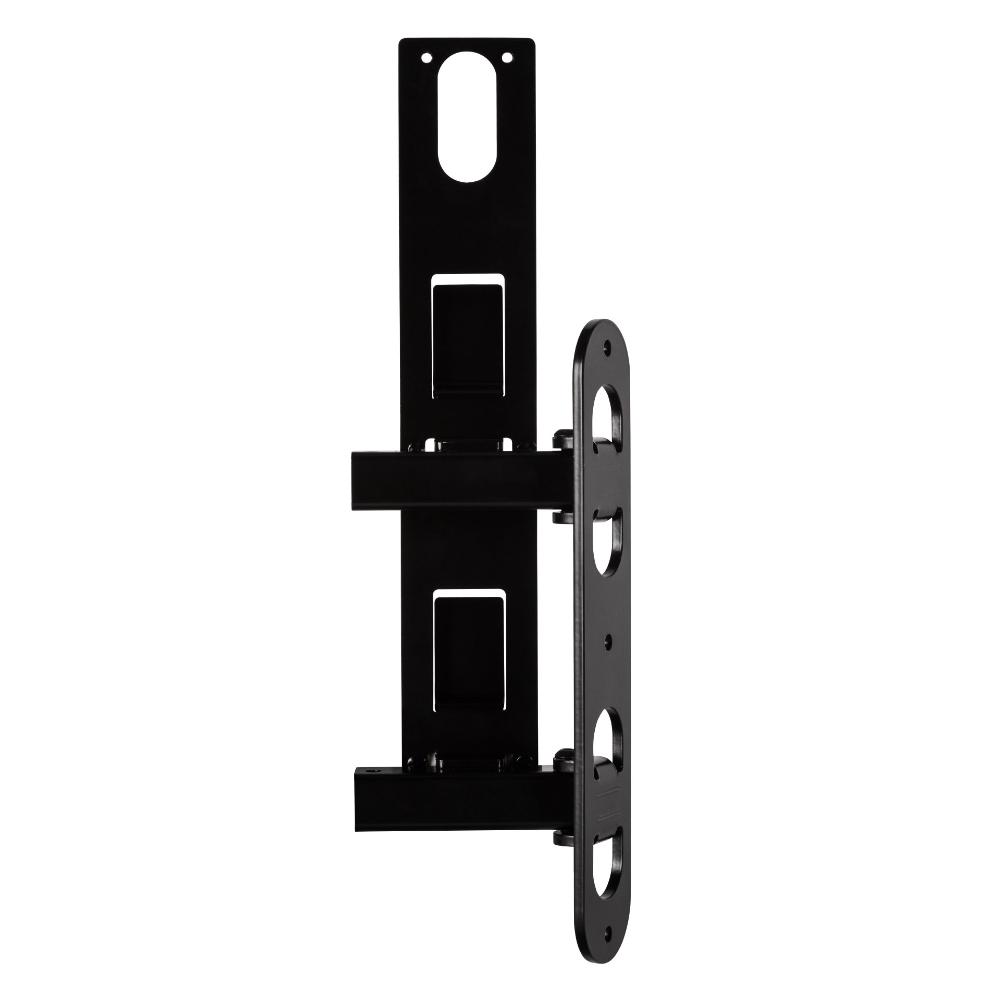

Each kit includes a pair of swivel brackets for wall mounting of a single RCF VSA 2050 II \ VSA 1250 II \ VSA 850 II Digitally steerable array loudspeaker system, with a horizontal angle pointing up to 60°.
Part number:
13360410
SWM-BR VSA II
White - RAL 9003, EAN 8024530016111
13360442
SWM-BR VSA II BLACK
Black - RAL 9005
Specifications
Physical specifications
Color
White - RAL 9003, Black - RAL 9005
Size
Width
318 mm / 12.52 inches
Weight
1.5 kg / 3.31 lbs
Shipping information
Package Height
74 mm / 2.91 inches
Package Width
314 mm / 12.36 inches
Package Depth
154 mm / 6.06 inches
Package Weight
1.7 kg / 3.75 lbs
