NEW

TOURING

SUB 808-AS

HIGH-PERFORMANCE ACTIVE SUBWOOFER

129 dB max SPL
40 Hz to 400 Hz frequency range
2 x 8’’ neodymium woofers, 2.5’’ v.c.
2000 W Class-D Amplifier

RDNet

BASS MOTION CONTROL

Where to buy

Features

129 dB max SPL
40 Hz to 400 Hz frequency range
2 x 8’’ neodymium woofers, 2.5’’ v.c.
2000 W Class-D Amplifier
RDNet Networked Management
Bass Motion Control excursion management
powerCON TRUE1 TOP mains connectors
Available in full black or white coating

SUB 808-AS is a compact low-profile high-performance active subwoofer. It features two vented-loaded 8” cone woofers powered by a 2000 Watts two-channel amplifier -one for each woofer- on a baltic birch plywood cabinet painted with black or white polyurea and weatherproof treatment. Management and tuning are available via RDNet software or using the two preset buttons, a polarity button, and a variable delay accessible from the back panel. The cabinet features rubber feet on two sides and two threaded pole-mounts for horizontal and vertical placement. Two stabilizing brackets make the vertical placement stable and firm. SUB 808-AS can be used stand-alone, in subwoofer arrays, or as the low-frequency complement for KX 515-A speaker.

NEW

Part number:

13000871
SUB 808-AS W
100-120V, White, EAN 8024530021924

13000872
SUB 808-AS W
220-240V, White, EAN 8024530022075

13000898
SUB 808-AS
100-120V, Black, EAN 8024530022877

13000899
SUB 808-AS
220-240V, Black, EAN 8024530022785

Advanced electronics

The high-powered Class-D amplifiers, tailored for each transducer, deploy pristine sound with efficient heat dissipation at the lowest possible distortion, along with low power consumption.

High-end AD/DA conversion up to 96 kHz - 32-bit floating-point, and onboard DSP for the best sound quality. Thanks to the proprietary RDNet networked management and control, every KX speaker provides in-depth remote monitoring through multiple sensors. The system engineer has immediate feedback of transducer status, fan speed, temperature, VU meters, limiters and much more.

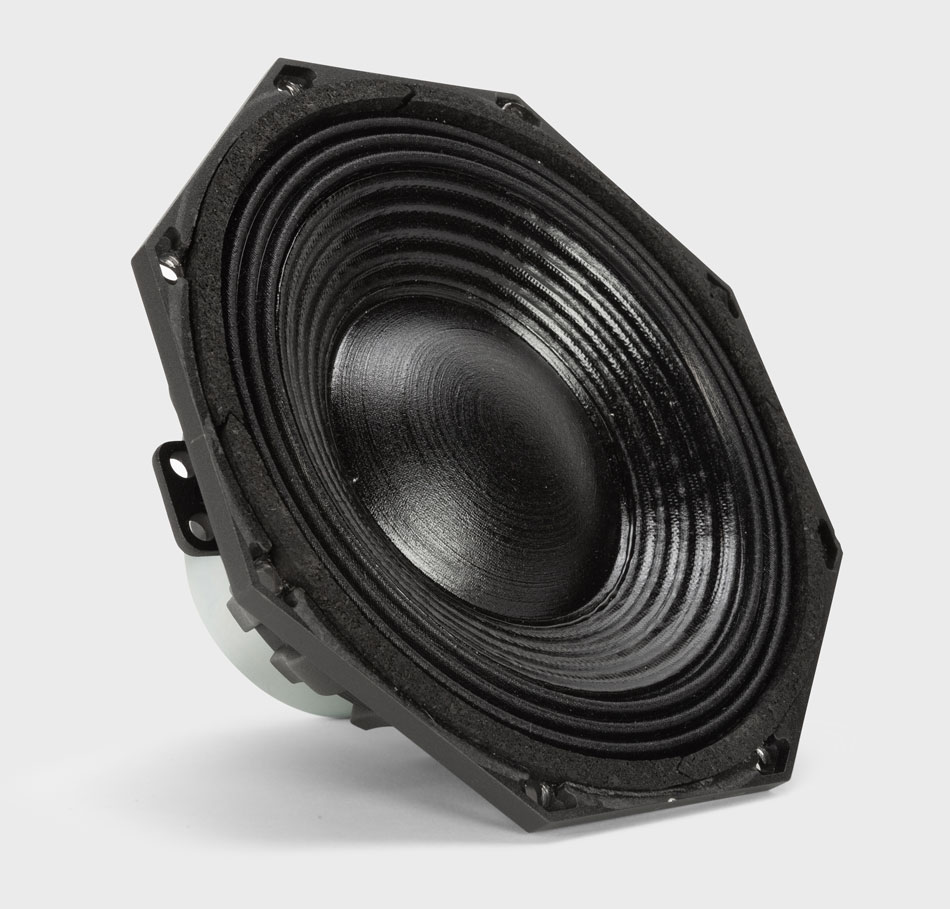

Legendary woofers

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to others in its category. Self-powered design, RDNet remote control, easy configuration of subwoofer arrays (i.e. cardioid subs), and impressive size/weight to SPL output ratio create an engaging, immersive experience for any audience.

SOUND SYSTEM MANAGEMENT AND CONTROL SOFTWARE

RDNet is an advanced platform for integrated monitoring and control of sound systems - from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.

Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.

A stunning sound system

Pair the KX 515-A with the SUB 808-AS subwoofer to extend the low-frequency range and create a powerful full-range main system with an incredibly small footprint. With multiple configuration options, the powerful DSP and RDNet remote management, there isn't a too big or too small venue.

Discover the KX 515-A

Good things come in small packages

Uncompromising fidelity and power with KX sonic signature. This means you have perfect phase and frequency compatibility among all KX speakers so you can serve up a breathtaking sonic experience in all your applications.

An unobstructed stage

Uncompromised sound without blocking critical sightlines. The ultimate flexibility for tight spaces, small stages, and small gigs with extreme portability. You can pack a full-range stereo system with two KX 515-A, two 808-AS subwoofers, poles, and cables in less than 200-liters volume.

Built for everyday use

Use it as a compact and powerful main system or to supplement a larger system. The waterproof cabinet is built in high-strength baltic birch plywood coated with black, robust, and scratch-resistant polyurea paint. Attached to a solid machined aluminum structure at the back, the amplifier heat dissipation is efficient and the cabinet is sturdy and stiff. A strong powder-coated metal grille protects the front, and an acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity.

Rig it anywhere

The only limit is your imagination. With multiple rigging accessories and the unobtrusive form factor of the cabinet, KX 515-A is suitable for a wide range of configurations including hanging, pole-, truss-, wall- or ceiling-mounting— at any angle in horizontal or vertical orientation. The rotatable waveguide (and rotatable logo) allows for perfect dispersion control at any position.

The speaker’s rigging is fast and easy using the practical Quick Fit socket to easily install accessories such as the clamp mount, pole mount, horizontal brackets, or using the two M10 threads on top and bottom of the cabinet. You will always find a place for KX 515-A.

Tour Ready Construction

Attached to a solid machined aluminum structure on the rear panel, the amplifier ensures efficient heat dissipation. The enclosure is internally reinforced and sturdy, equipped with waterproof powerCON® TRUE1 TOP mains connectors, guaranteeing durability under any outdoor conditions.

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

Specifications

Acoustical specifications

Frequency Response

40 Hz ÷ 400 Hz

Max SPL @ 1m

129 dB

Transducers

Woofer

2 x 8'' neo, 2.5'' v.c

Input/Output section

Input signal

bal/unbal

Input connectors

XLR, RDNet Ethercon

Output connectors

XLR, RDNet Ethercon

Input sensitivity

-2 dBu/+4 dBu

Processor section

Protections

Excurs.

Limiter

Fast Limiter

Controls

Volume

RDNet

Onboard

Power section

Total Power

2000 W Peak

Low frequencies

2000 W Peak

Cooling

Convection

Connections

Powercon TRUE1 TOP IN/OUT

Standard compliance

Safety agency

CE compliant

Physical specifications

Cabinet/Case Material

Baltic birch plywood

Hardware

2X M20 TOP AND SIDE
8X M10 2X SIDE

Handles

1 X SIDE

Pole mount/Cap

35 mm insert

Grille

Steel with clothing

Color

Black, White

Size / Weight

Height

243.5 mm / 9.59 inches

Width

603.5 mm / 23.76 inches

Depth

430 mm / 16.93 inches

Weight

20 kg / 44.09 lbs

Shipping information

Package Height

290 mm / 11.42 inches

Package Width

480 mm / 18.9 inches

Package Depth

650 mm / 25.59 inches

Package Weight

21 kg / 46.3 lbs
