Features
  • 15" high-efficiency RCF Precision 4" voice-coil woofer with Inside/Outside Coil Technology
  • 133 dB maximum sound pressure level
  • Response down to 35 Hz
  • Rectangular box enclosure with protective metal grille
  • 35 mm standard pole mount in top section of cabinet
  • Baltic Birch cabinet painted with black, heavy duty, textured epoxy
  • Integrated hand carry points

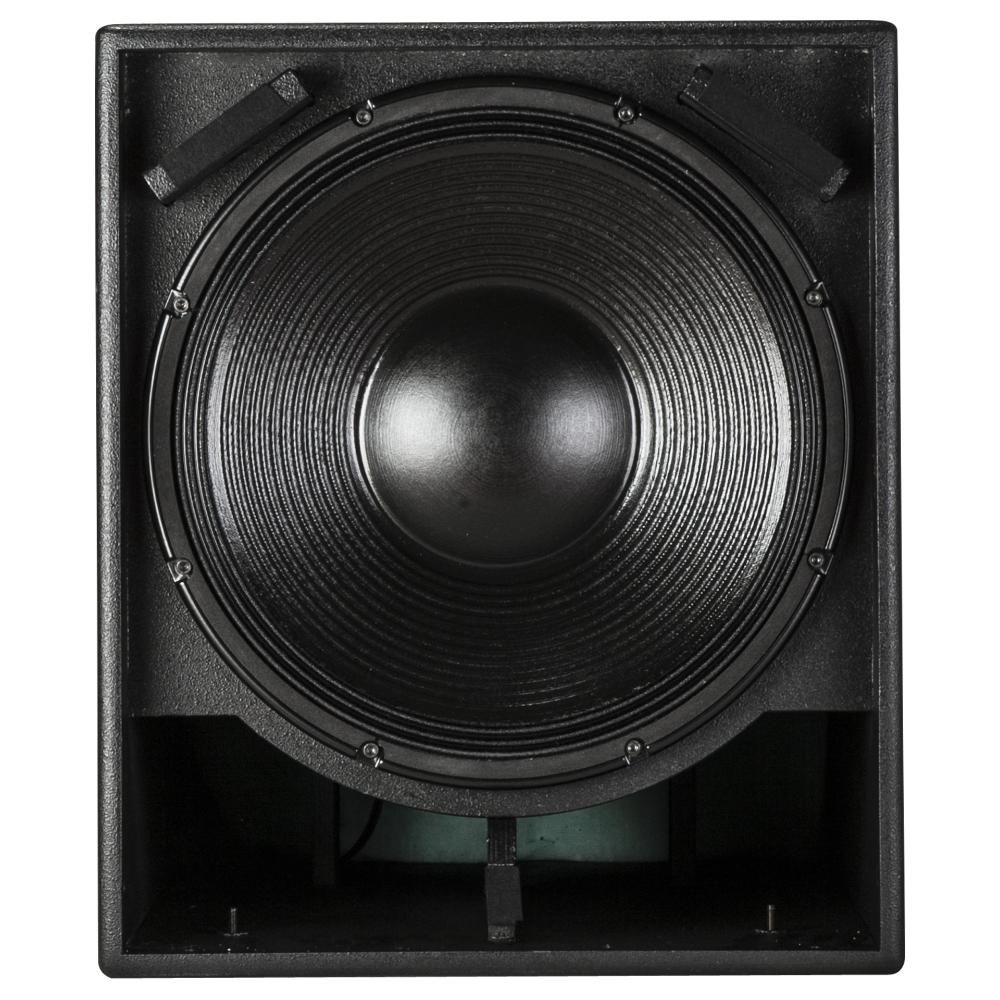

The S8015 II is a compact, high-output, bass reflex subwoofer. The system is equipped with an advanced, hypervented 15” RCF precision woofer. It features massive ceramic magnet and high excursion 4” copper voice coil. The cabinet is designed to achieve tight and maximised output. The system is able to produce a Max SPL of 133 dB and handles 1000 Watts AES. The loudspeaker enclosure shape is rectangular and the cabinet is constructed of multi-ply Baltic birch plywood and finished in a very resistant, textured, polyurethane black paint. It features a M20 polemount receptacle, rubber feet, 2 x recessed handles. The front steel grille is epoxy powder coated.

Part number:

13000398
S 8015 II
EAN 8024530010836

Recommended Power Amp

XPS SERIES

4 x 4000 W
Class D continuous power
at 2.7 Ohms
40-bit Floating-point
Processing at 96 kHz
Ready-to-Use
Configurations and presets
for RCF speakers
2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O
Advanced Fault Protections
for each amplifier channel and power supply
Responsive Image
Specifications
Acoustical specifications
Frequency Response (-10dB)
35 Hz ÷ 200 Hz
Max SPL @ 1m
133 dB
System Sensitivity
98 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
1500 W
Peak Power Handling
6000 W PEAK
Transducers
Woofer
15'' neo, 4.0'' v.c
Input/Output section
Input connectors
Speakon® NL4
Output connectors
Speakon® NL4
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Handles
Integrated hand carry points
Pole mount/Cap
M20 thread
Grille
Steel
Color
Black
Size / Weight
Height
529 mm / 20.83 inches
Width
440 mm / 17.32 inches
Depth
615 mm / 24.21 inches
Weight
34 kg / 74.96 lbs
Shipping information
Package Height
675 mm / 26.57 inches
Package Width
805 mm / 31.69 inches
Package Depth
565 mm / 22.24 inches
Package Weight
38 kg / 83.78 lbs
Downloads
MANUALS
PDF
2.3 MB
23-03-2018
SPECIFICATIONS
PDF
1.2 MB
04-11-2024
PDF
1.2 MB
04-11-2024
PDF
1.2 MB
04-11-2024
PDF
87 KB
11-07-2024
STANDARD COMPLIANCES
PDF
140 KB
15-09-2022
PDF
157 KB
15-09-2022
DRAWINGS
DXF
667 KB
01-06-2018
PDF
41 KB
01-06-2018
DXF
416 KB
22-01-2024
SOFTWARE
GLL
ZIP
64 KB
28-06-2017
