Features

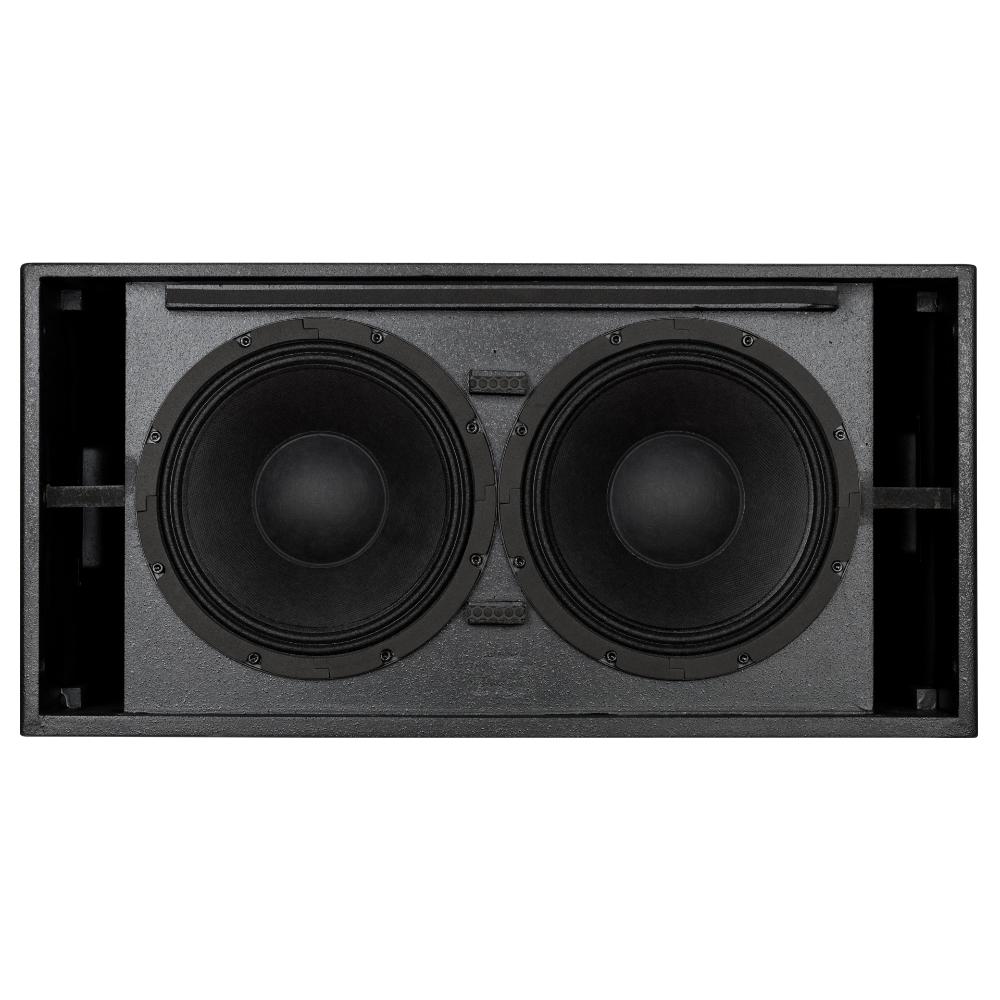

  • 2 x 10" high-efficiency 2.5" voice-coil woofer
  • 130 dB maximum sound pressure level
  • System Power rating 500 Watt RMS

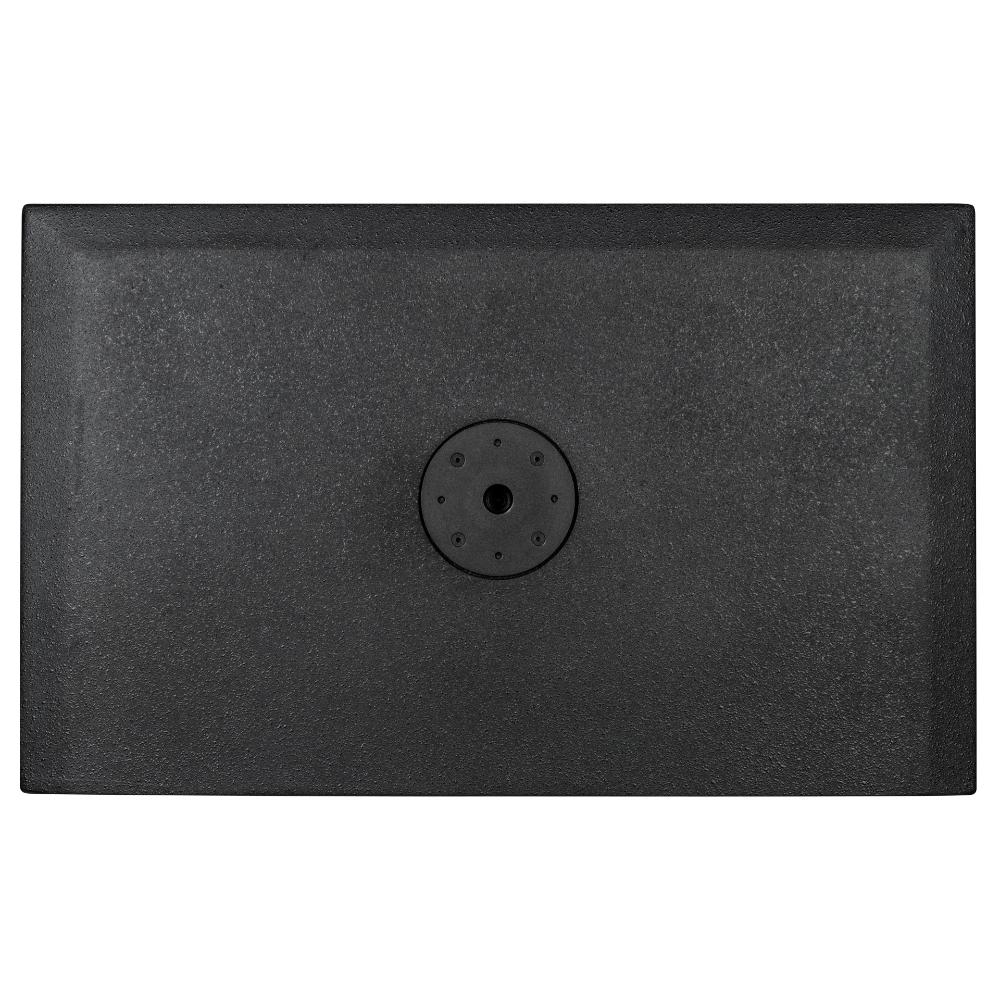

  • M20 standard pole mount in top section of cabinet

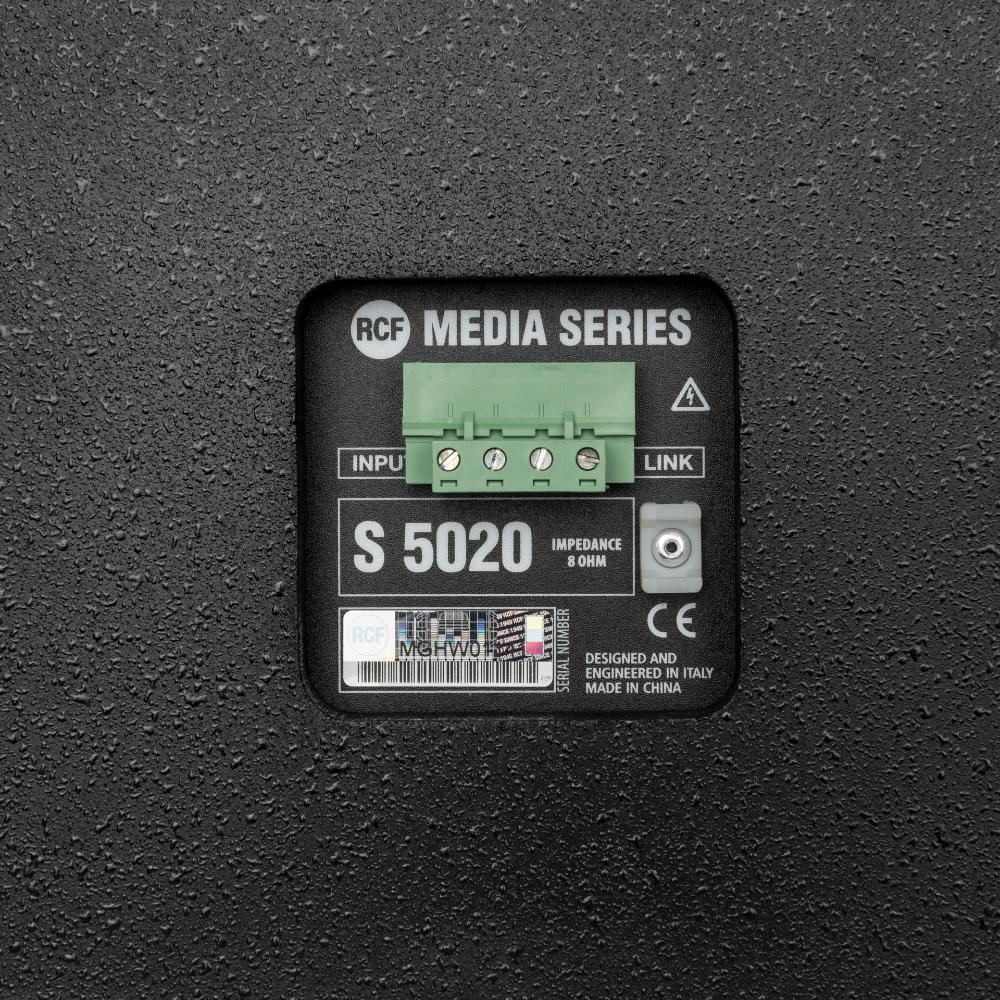

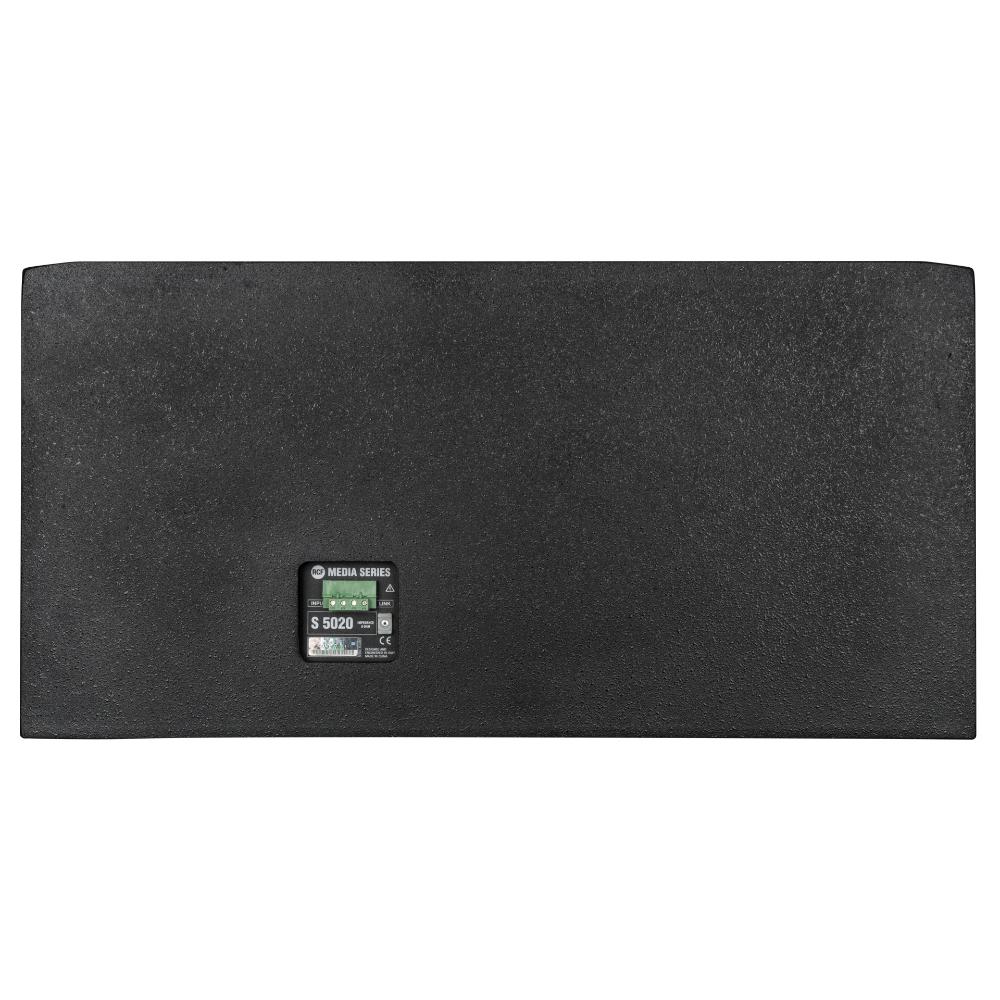

  • Recessed Euroblock Input-Output connectors

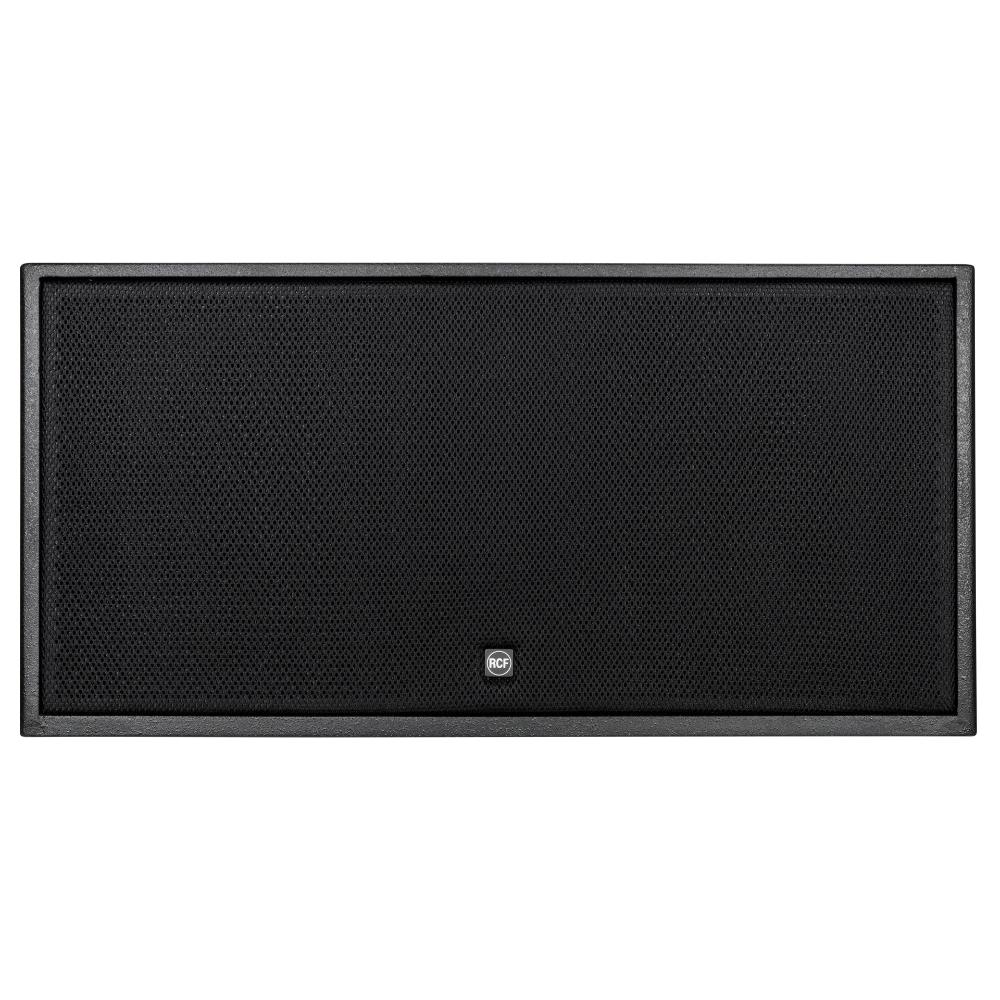

  • Protective metal grille, polyester fabric coated

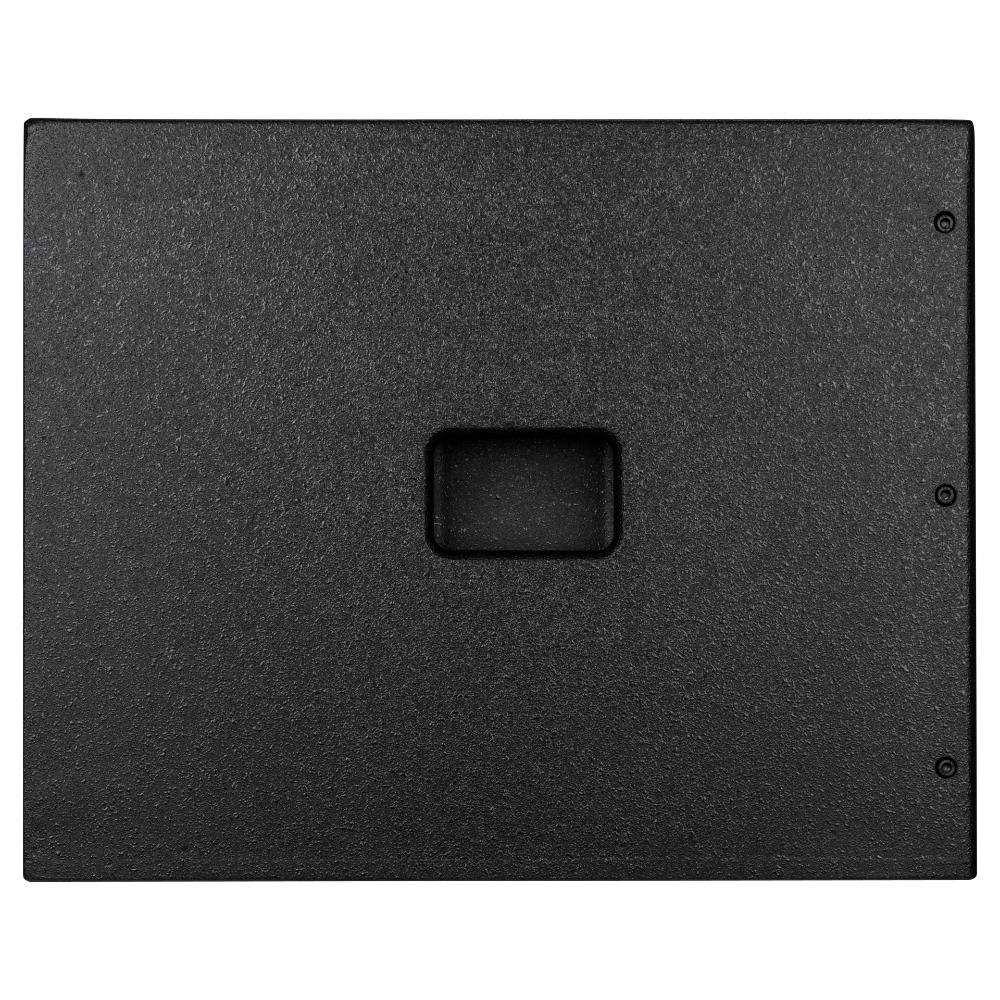

  • Integrated recessed hand carry points

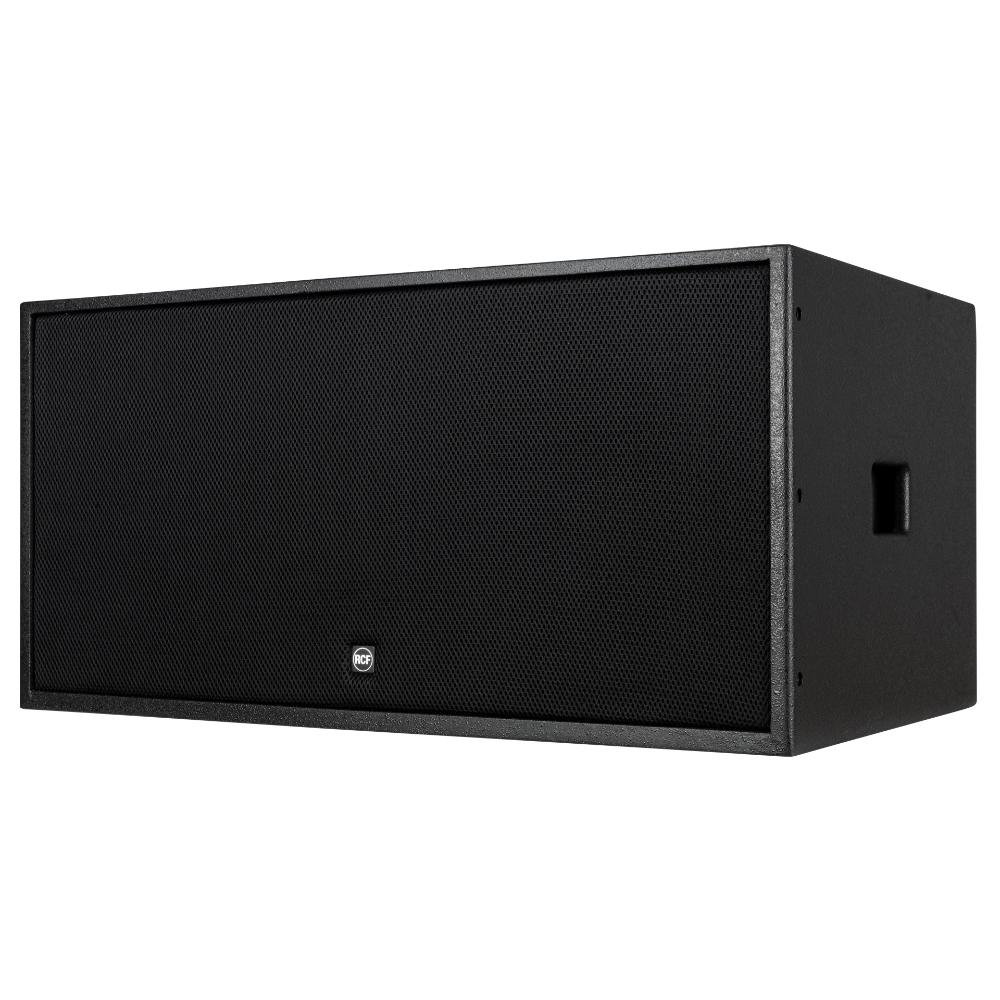

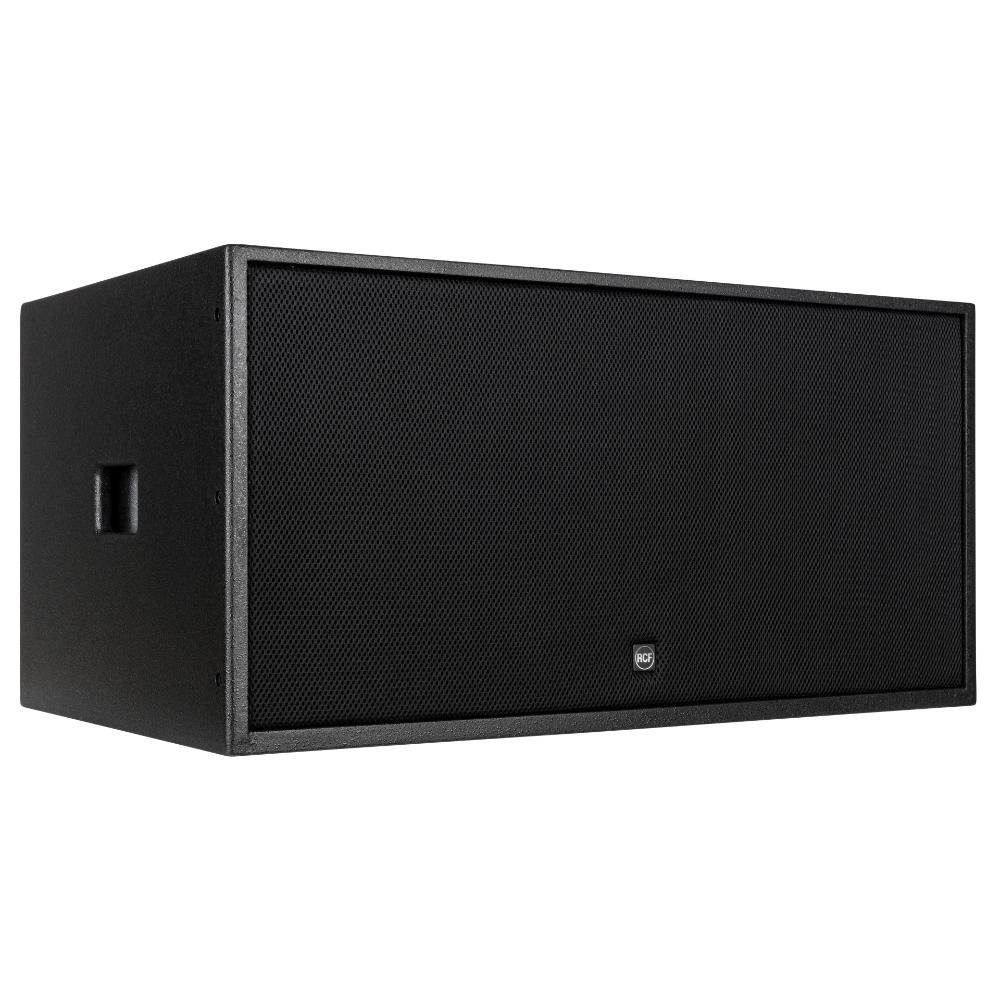

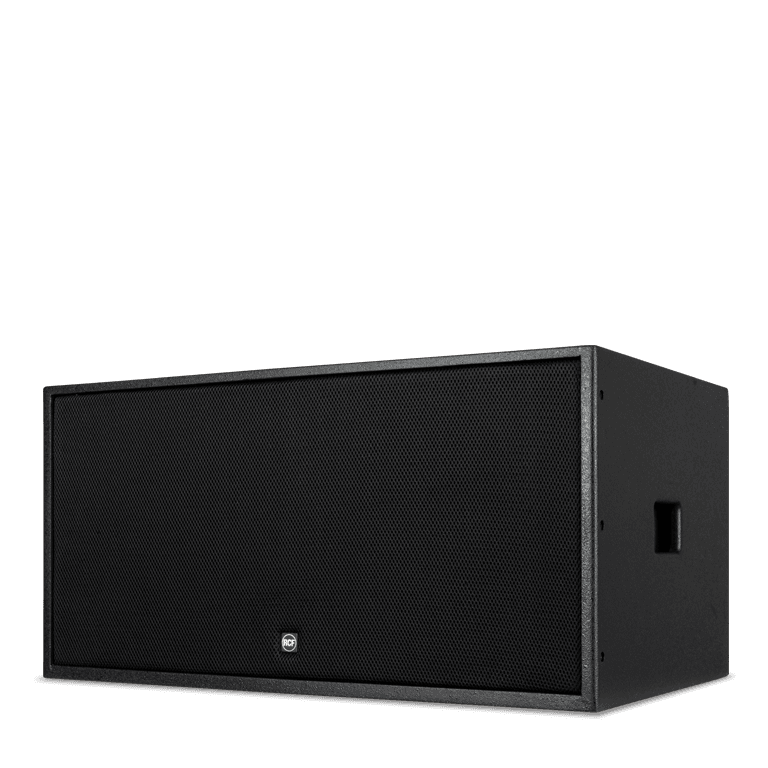

The S 5020 is a vented, high output, compact subwoofer system where the physically small size and impact of a dual 10-inch driver is desired, and works equally well for portable or install situations. Extending the frequency response of these systems to below 40Hz this highly efficient design is capable of providing output levels normally associated with considerably larger enclosures. A system suited to background music playback in applications ranging from clubs, bars and cafes, right through to theatres and AV presentations. The low-frequency transducers are dual 10” woofer with a 2,5” voice coil. This new woofer design is the result of the latest refinements in RCF experiences in compact active and passive subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range. It is engineered to complement MEDIA series full-range loudspeakers and is particularly well-suited in high-quality multi-media applications.


ARCHIVED

Part number:

13041019
S 5020
EAN 8024530011079

Specifications
Acoustical specifications
Frequency Response (-10dB)
50 Hz ÷ 200 Hz
Max SPL @ 1m
130 dB
System Sensitivity
98 dB
Power section
Nominal Impedance
4 ohm
Power Handling
500 W
Peak Power Handling
2000 W PEAK
Protections
Weather
Crossover Frequencies
Selectable
Transducers
Woofer
2 x 10'', 2.5'' v.c
Input/Output section
Input connectors
Euroblock
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
MDF
Pole mount/Cap
M20 thread
Grille
Steel with robust double mesh polyester clothing
Size / Weight
Height
340 mm / 13.39 inches
Width
680 mm / 26.77 inches
Depth
420 mm / 16.54 inches
Weight
28.8 kg / 63.49 lbs
Shipping information
Package Height
440 mm / 17.32 inches
Package Width
780 mm / 30.71 inches
Package Depth
520 mm / 20.47 inches
Package Weight
31.2 kg / 68.78 lbs
