Features
  • 12" high-efficiency 2.5" voice-coil woofer
  • 127 dB maximum sound pressure level
  • System Power rating 300 Watt RMS
  • M20 standard pole mount in top section of cabinet
  • Recessed Euroblock Input-Output connectors
  • Protective metal grille, polyester fabric coated
  • Integrated recessed hand carry points

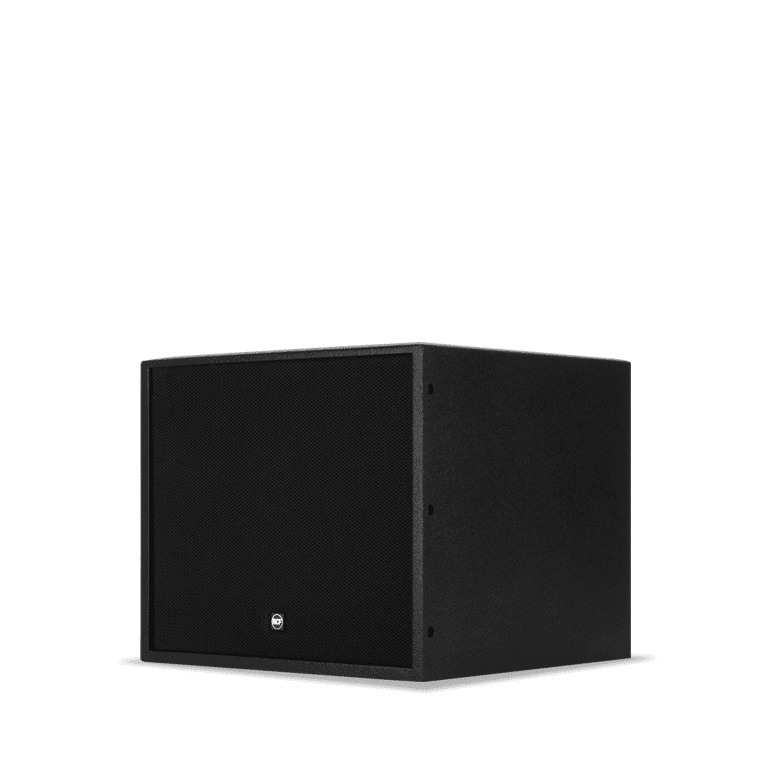

The S 5012 is a vented, high output, compact subwoofer system where the physically small size and impact of a 12-inch driver is desired, and works equally well for portable or install situations. Extending the frequency response of these systems to below 40Hz this highly efficient design is capable of providing output levels normally associated with considerably larger enclosures. A system suited to background music playback in applications ranging from clubs, bars and cafes, right through to theatres and AV presentations. The low-frequency transducer is a 12” woofer with a 2,5” voice coil. This new woofer design is the result of the latest refinements in RCF experiences in compact active and passive subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range. It is engineered to complement MEDIA series full-range loudspeakers and is particularly well-suited in high-quality multimedia applications.


ARCHIVED

Part number:

13041018
S 5012
EAN 8024530011062

Specifications
Acoustical specifications
Frequency Response (-10dB)
50 Hz ÷ 200 Hz
Max SPL @ 1m
127 dB
System Sensitivity
96 dB
Power section
Nominal Impedance
8 ohm
Power Handling
300 W
Peak Power Handling
1200 W PEAK
Transducers
Woofer
12'', 2.5'' v.c
Input/Output section
Input connectors
Euroblock
Output connectors
Euroblock
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
MDF
Pole mount/Cap
Yes
Grille
Steel with robust double mesh polyester clothing
Color
Black
Size
Height
380 mm / 14.96 inches
Width
450 mm / 17.72 inches
Depth
420 mm / 16.54 inches
Weight
18 kg / 39.68 lbs
Shipping information
Package Height
480 mm / 18.9 inches
Package Width
550 mm / 21.65 inches
Package Depth
520 mm / 20.47 inches
Package Weight
20.6 kg / 45.42 lbs
Downloads
MANUALS
PDF
325 KB
31-05-2024
PDF
325 KB
12-02-2016
SPECIFICATIONS
PDF
1 MB
20-08-2024
PDF
1 MB
20-08-2024
PDF
1 MB
20-08-2024
PDF
1 MB
20-08-2024
PDF
1 MB
20-08-2024
PDF
86 KB
11-07-2024
DRAWINGS
DXF
710 KB
01-06-2018
PDF
27 KB
01-06-2018
DXF
337 KB
22-01-2024
