RO 7102 GPO BOARD
Search RCF products
Choose search system
ARCHIVED
VOICE ALARM EN54
RO 7102
GPO BOARD
- Converts open-collector to dry closing contacts
- Resistors for emergency lines included
Features
- Converts open-collector to dry closing contacts
- Resistors for emergency lines included

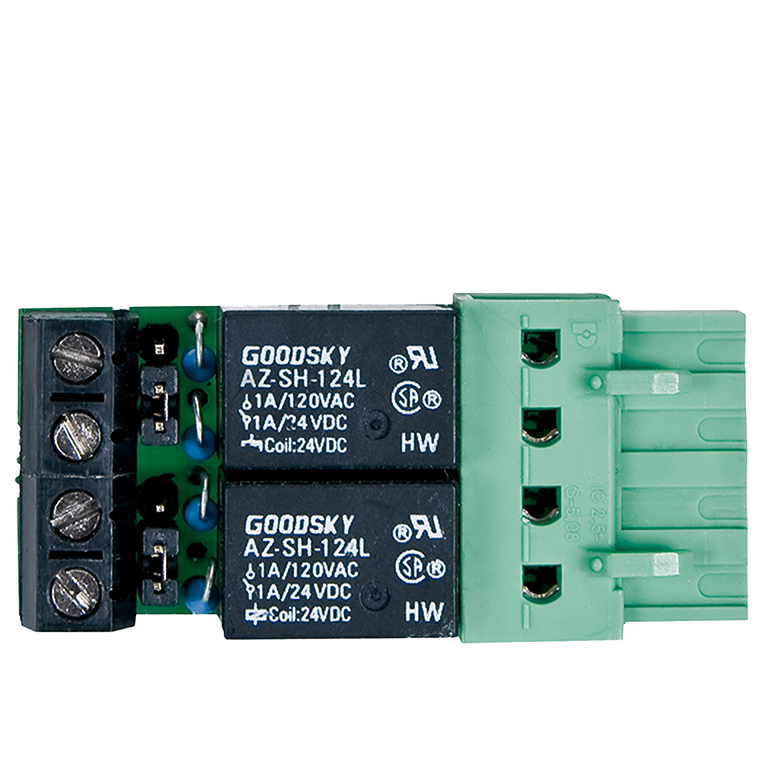

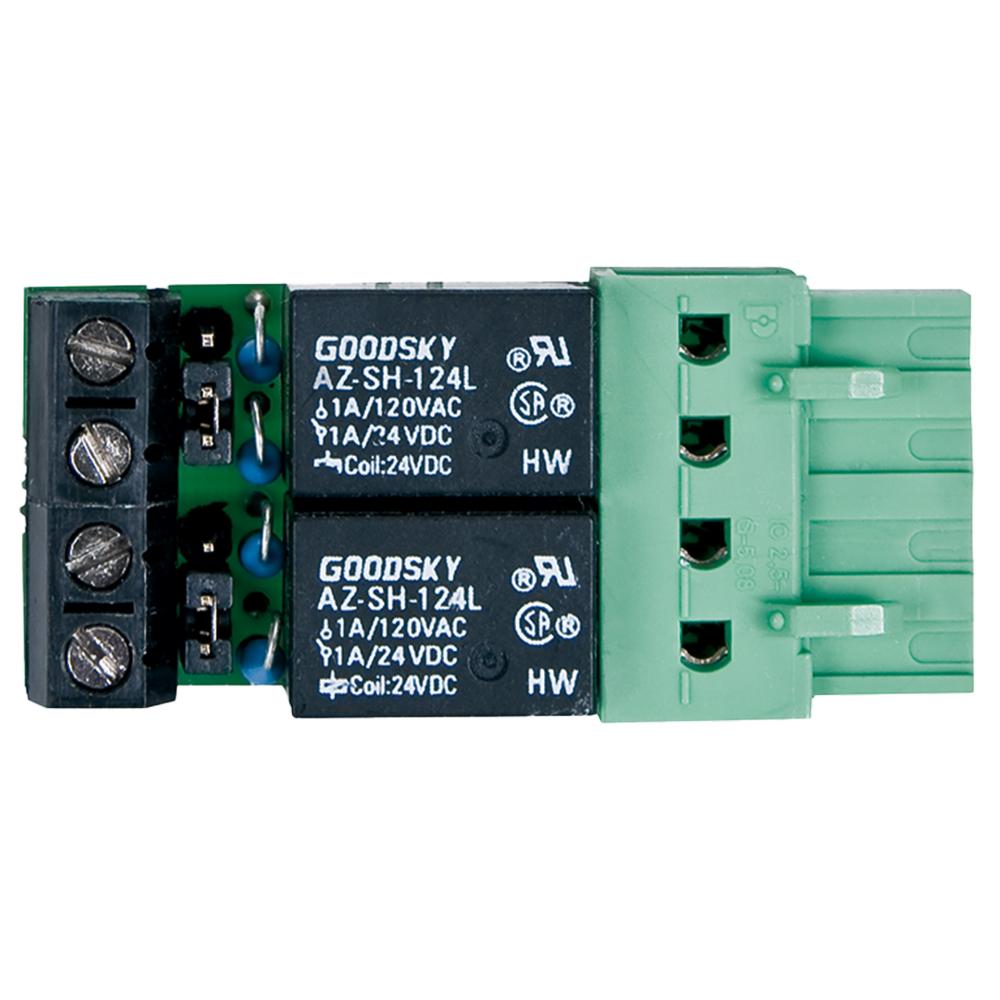

RO 7102 is an additional board for the DXT 7000 Voice Alarm system that can be directly connected to a couple of MU 7100EN control outputs. It converts the 2 MU 7100EN open-collector control outputs’ into 2 dry closing contacts that can be used as commands or external devices. It also has resistors needed for monitored emergency lines.
ARCHIVED
Part number:
17170151
RO 7102
EAN 8024530007195
Specifications
General specifications
Functions:
Converts the 2 MU 7100EN open-collector ‘control outputs’ into 2 dry closing ontacts - Line monitoring
Wire section:
0.4 ÷ 1.5 mm²
Max. voltage:
24 V DC
Max current:
0.5 A
Mic+line inputs:
1
Works with:
DXT 7000
Standard compliance
Safety agency
CE compliant
EN54-16 certified
Yes
CPR number
1438-CPR-0241
Size / Weight
Weight
0.1 kg / 0.22 lbs
Shipping information
Package Height
100 mm / 3.94 inches
Package Width
160 mm / 6.3 inches
Package Depth
200 mm / 7.87 inches
Package Weight
0.3 kg / 0.66 lbs
Downloads
MANUALS
SPECIFICATIONS
STANDARD COMPLIANCES
