Features
  • Fast response and low distortion
  • Easy to configure in stereo / mono / bridge modes
  • Extensive protective circuits ensure high reliability and operating safety
  • Front panel signal / clippings / protection/ temperature LEDs indicators
  • Minimum load impedance (stereo / mono): 2 Ohm
  • XLR input connectors
  • SPEAKON NL4 output connectors
  • Voltage clip switchable limiters

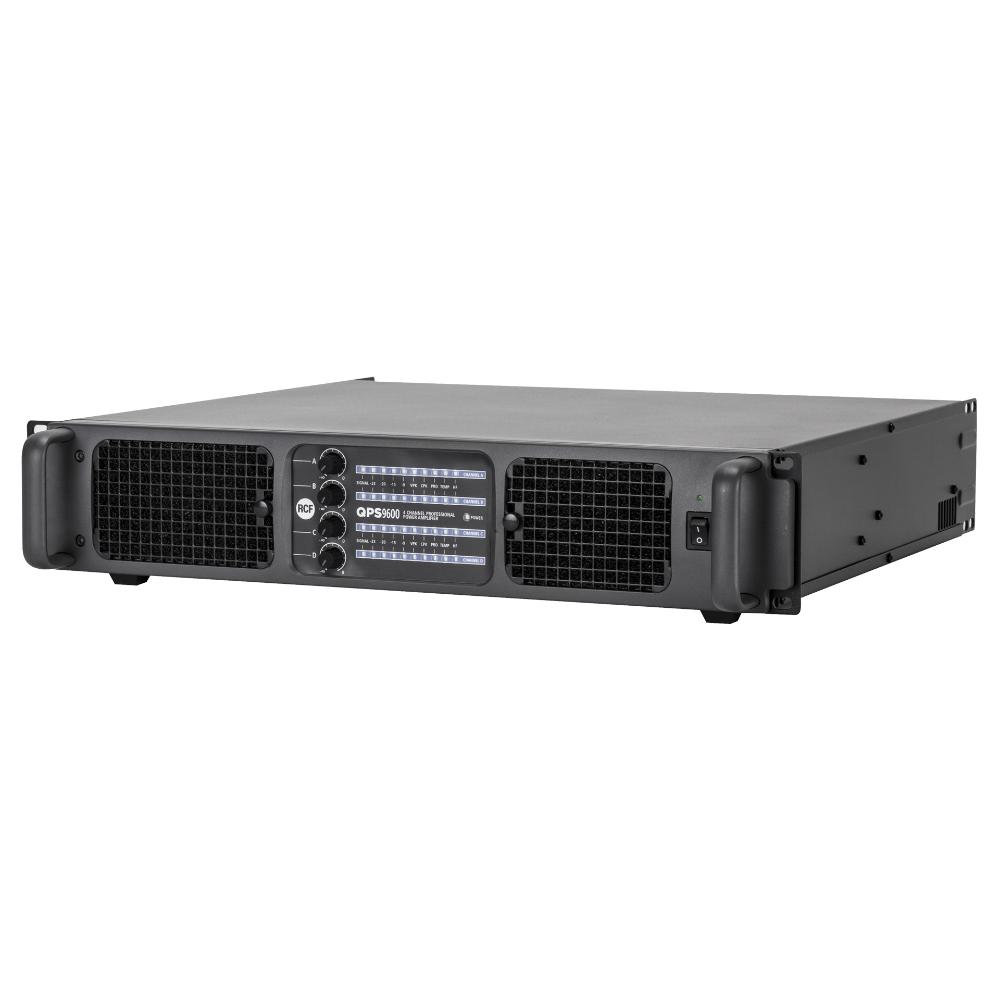

QPS 9600 is a 4 channel power amplifier that can handle exceptionally high power in a compact and lightweight 2 rack units space. Thanks to the class HD technology, this amplifier delivers up to 4 x 2400 W RMS @ 2 Ohm (4800 W RMS bridged @ 4 Ohm), weighting just 16 kg. It comes with switched mode power supply which ensures that a predominantly resistive load is presented to the mains power supply; this also leads to an improved amplifier performance at high output levels. Thanks to its high efficiency heat sinks and variable speed DC fans, the QPS 9600 can withstand the hardest heat conditions ensuring great reliability.


ARCHIVED

Part number:

12100003
QPS 9600
220V, EAN 8024530013530

12135102
QPS 9600
230V, EAN 8024530011635

12135103
QPS 9600
115V, EAN 8024530011642

Specifications
Amplifier specifications
Output Power
4 x 2400 W @ 2 ohm
4 x 2200 W @ 4 ohm
4 x 1300 W @ 8 ohm
Frequency Response (-3dB)
20 Hz ÷ 25 Hz
Distortion (THD+N) @ 1 kHz nominal power
<0.1 %
Input section
Total number of inputs
4
Balanced
4
Mono
4
Line inputs
4
Line connectors
XLR
Output section
Signal output number
2
Signal output connectors
XLR
Power output connectors
Speakon
Configuration and control
Configuration
DIP switch, Front panel
Protections
Cooling
Forced
Thermal
Yes
DC
Yes
Fuses
Yes
VHF (Very High Frequencies)
Yes
Power requirement
Operating voltage
220-240/115 V~ 50/60Hz
Power consumption (MAX)
1950 W
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Metal
Rack mounting
19", 2U
Size
Height
88 mm / 3.46 inches
Width
482 mm / 18.98 inches
Depth
445 mm / 17.52 inches
Weight
16 kg / 35.27 lbs
Shipping information
Package Height
150 mm / 5.91 inches
Package Width
580 mm / 22.83 inches
Package Depth
600 mm / 23.62 inches
Package Weight
18.5 kg / 40.79 lbs
Downloads
MANUALS
PDF
768 KB
02-09-2016
PDF
778 KB
08-09-2016
SPECIFICATIONS
PDF
458 KB
20-08-2024
PDF
462 KB
20-08-2024
PDF
460 KB
20-08-2024
PDF
464 KB
20-08-2024
DRAWINGS
PDF
494 KB
02-07-2024
