Features
  • 4 x 2,500 W class HD power amplifier
  • Fast response and low distortion
  • Stereo, parallel and bridge modes
  • Comprehensive protection circuits
  • Variable speed cooling
  • Signal, clip, fault led indicators
  • XLR inputs and speakON outputs
  • Limiter on each channel
  • 20 ÷ 20000 Hz frequency range

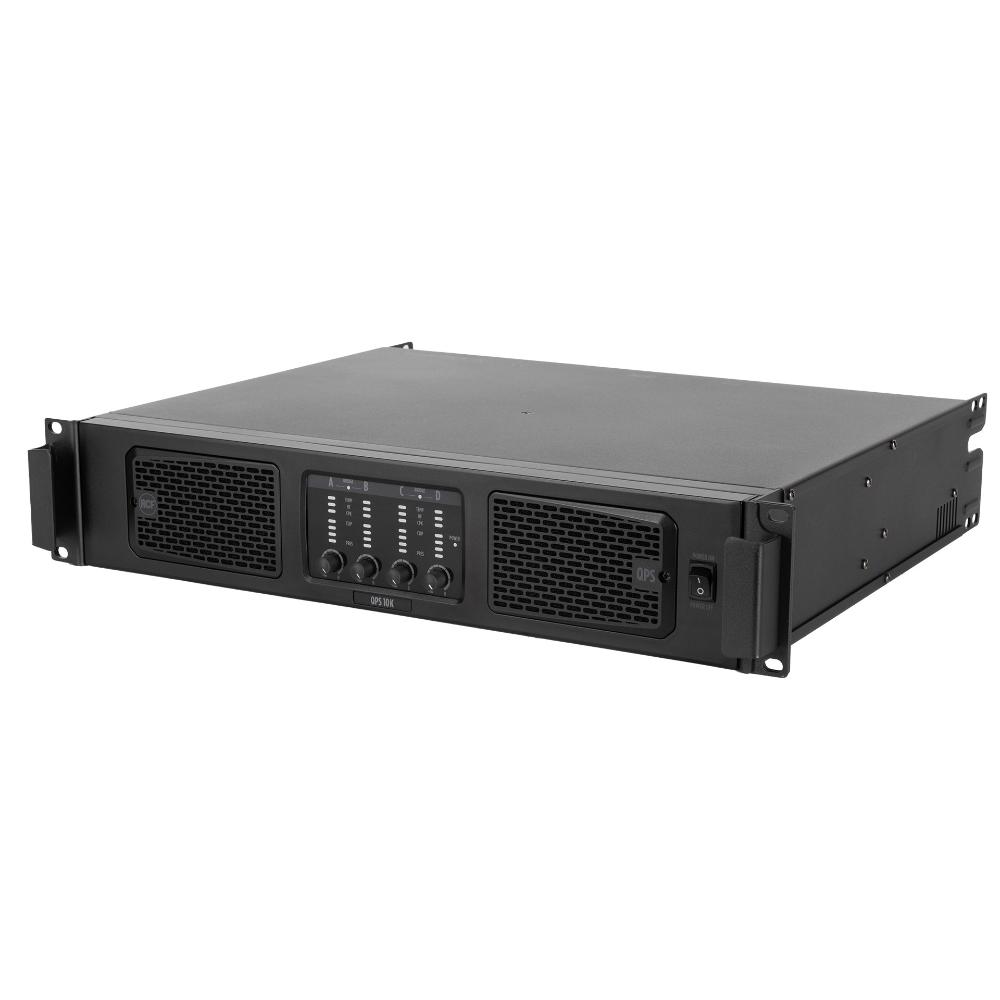

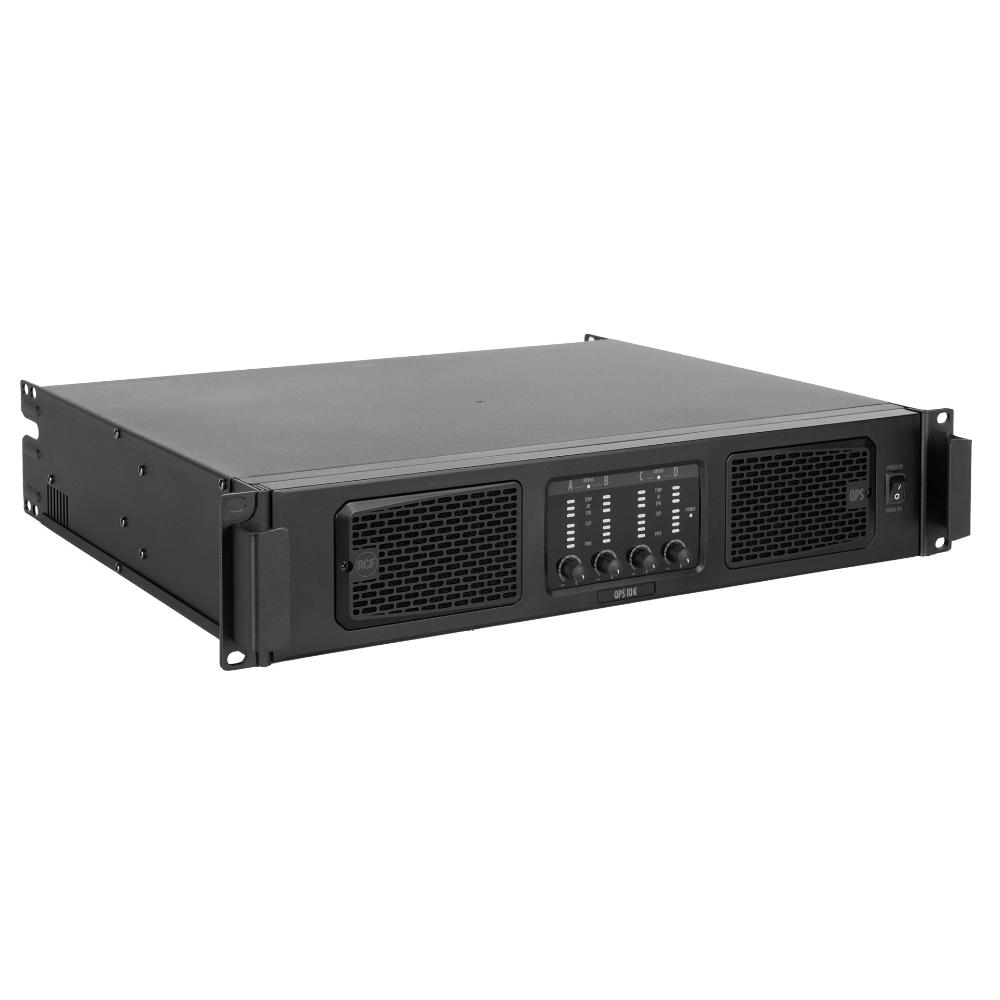

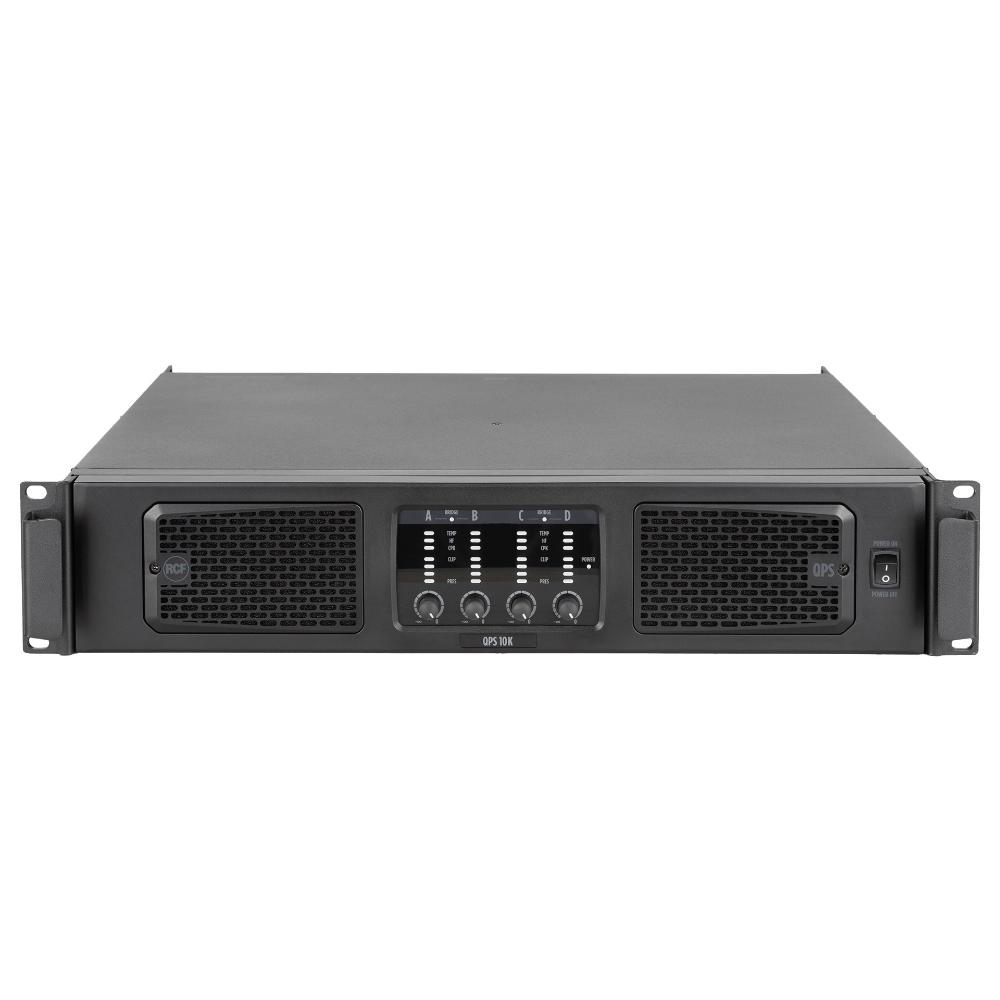

QPS Series is a range of four channel professional amplifiers that combines high-quality performance and reliability with the latest power amplification technologies. This high-value design offers, in compact 2-rack unit space, the sound quality and the durability of class HD amplifiers with the innovation of the latest power devices available. QPS 10K is a 4-channel power amplifier that delivers up to 4 x 2,500 W @ 2 Ohms. It features independent gain control, signal/clip and faults indicators, channels A and C XLR output link, parallel/bridge modes, and speakON output connectors. Moreover, it is protected against shorts and open circuits. Thanks to its high-efficiency heat sinks and variable speed fans, QPS 10K can withstand the most extreme heat conditions ensuring reliability.

Read More

Part number:

12100057
QPS 10K
220-240V, EAN 8024530019839

12100058
QPS 10K
100-120V, EAN 8024530019846

Responsive Image

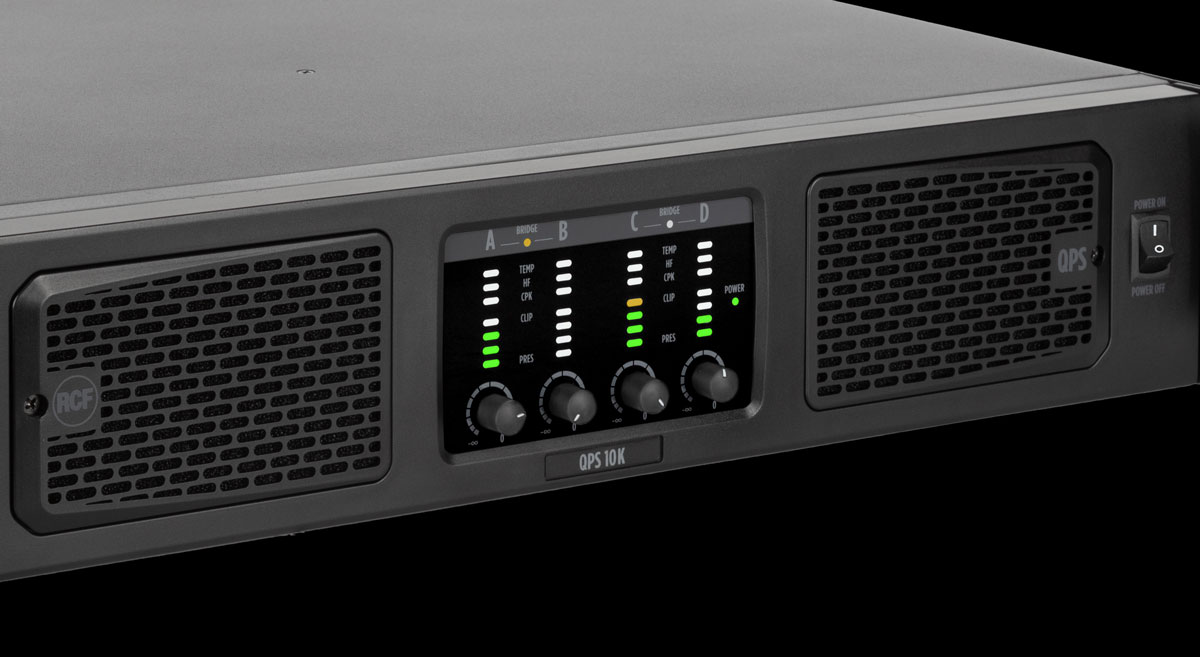

HD Designed Driving Power

Our HD amplifier technology features a very efficient power output section with a design focused on musicality, maintaining a natural and clear sound at all frequencies, with smooth highs and a tight, high impact low end. The power supply rails continuously track the input signal for remarkable signal purity while preserving the high efficiency of the Class-D design. QPS amplifiers are bridgeable and maintain high reliability with complex loads as low as 2 Ohms nominal.

Remarkable Audio Performance

With a very high signal-to-noise ratio, QPS amplifiers also boast a very low total harmonic distortion, making it perfect for highly demanding music applications hence delivering perfect vocal intelligibility.
Responsive Image
Responsive Image

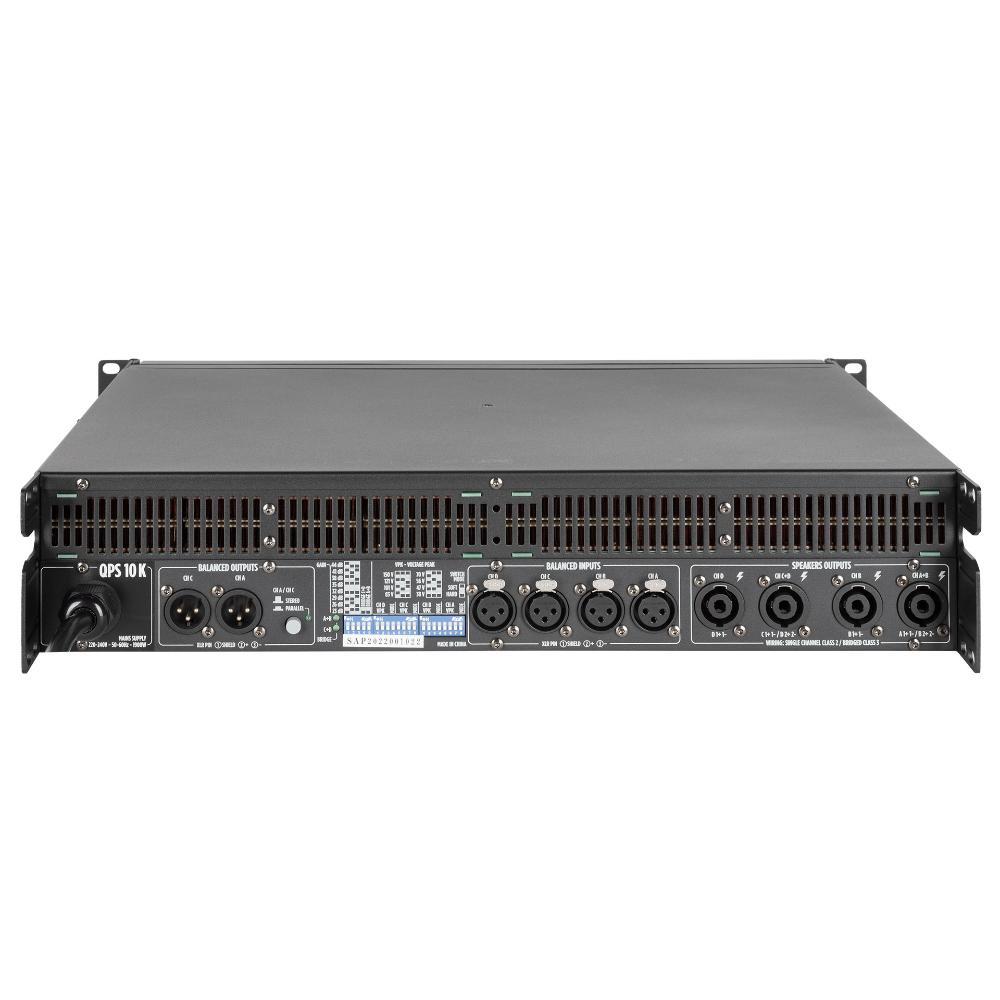

1     POWER CORD
Connect the power cord only to a mains socket outlet with a protective earthing connection.

2     BALANCED AUDIO OUTPUT (CH A, CH C)
Male XLR connector.

3     STEREO / PARALLEL SWITCH.
See the ‘Operation modes’ manual section.

4     BRIDGE LEDs (A+B) and (C+D).
When lit channels A and B (and/or C+D) are bridged (BRIDGE switches).
5     DIP-SWITCH SETTINGS AREA

6     CHANNELS BALANCED AUDIO INPUT

Female XLR connector.

7     CHANNELS SPEAKERS OUTPUTS
SPEAKON connector. See ‘Operation modes’ and ‘SPEAKON connector wiring’ manual sections.
Responsive Image

Self-protecting Architecture

QPS amplifiers implement several safety strategies protecting both the amplifier and the sound system, including an effective peak limiting protection for the transducers. The temperature-controlled continuous variable speed double-fan system (front to back), combined with the high-efficiency heat sinks, allows the amplifier to maintain a safe,  working temperature no matter the environmental temperature or the power output. The circuit is protected from overheating and short circuits, also including protections against infrasonic DC and Very High Frequency (VHF) peaks from non-musical signals that could damage transducers.
Specifications
Amplifier specifications
Amplifier Class
HD
Output Power
4 x 2500 W @ 2 ohm
4 x 2200 W @ 4 ohm
4 x 1400 W @ 8 ohm
2 x 5000 W @ 4 ohm (bridge)
2 x 4400 W @ 8 ohm (bridge)
Frequency Response (-3dB)
20 Hz ÷ 20000 Hz
SNR Analog inputs (“A” weighted)
>110 dB
Crosstalk
<70 dB
Distortion (THD+N) @ 1 kHz nominal power
<0.05 %
Input section
Total number of inputs
4
Balanced
4
Mono
4
Line inputs
4
Line connectors
XLR
Output section
Signal output number
2
Signal output connectors
XLR
Power output connectors
Speakon
Protections
Cooling
Forced
Short circuit
Yes
Thermal
Yes
DC
Yes
Fuses
Yes
VHF (Very High Frequencies)
Yes
Power requirement
Operating voltage
220-240/115 V~ 50/60Hz
Power consumption (MAX)
1900 W
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Metal
Handles
Metal handles included in the front panel
Color
Black - RAL 9005
Rack mounting
19", 2U
Size / Weight
Height
88 mm / 3.46 inches
Width
483 mm / 19.02 inches
Depth
399 mm / 15.71 inches
Weight
14.2 kg / 31.31 lbs
Shipping information
Package Height
150 mm / 5.91 inches
Package Width
572 mm / 22.52 inches
Package Depth
570 mm / 22.44 inches
Package Weight
15.5 kg / 34.17 lbs
