AVAILABLE ON ORDER
INSTALLED SOUND

Q 15

TWO-WAY POINT SOURCE MODULE
  • 138 dB Max SPL
  • 1500 W AES power handling
  • 45 ÷ 20000 Hz
  • 60° x 22.5° constant directivity coverage
Where to buy
Features Specifications Accessories Related products Downloads
Where to buy
Features
  • 138 dB Max SPL
  • 1500 W AES power handling
  • 45 ÷ 20000 Hz
  • 60° x 22.5° constant directivity coverage
  • 1 x 15" neodymium woofer, 4.0" v.c.
  • 4" neodymium compression driver
  • Baltic birch plywood cabinet
  • Steel front grille with clothing
  • Integrated array mechanics
  • Multi-pole Speakon connectors

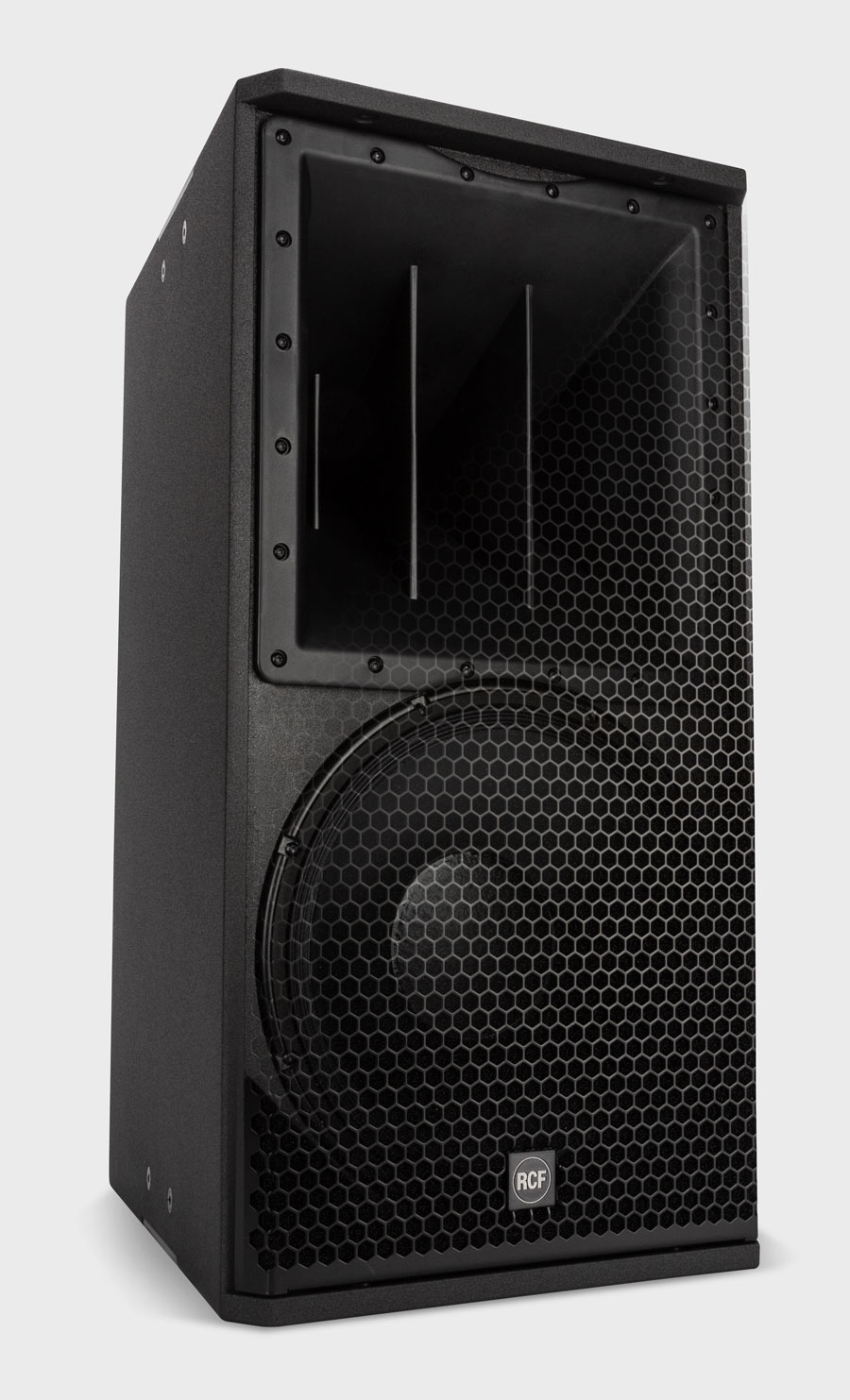

Q 15 is a two-way, bi-amp point source module for mid-distance and long-throw applications, combining a compact size with very high output and accurate speech and music reproduction. The system is equipped with the latest generation of RCF precision transducers featuring one 15" neodymium woofer and a 4" titanium-neodymium compression driver for a total of 1500 W power rating and 60° (vertical) and 22.5° (horizontal) directivity. The enclosure shape is trapezoidal and offers a 22.5° coupling angle on each side. Q Series typical applications span from point-source configurations for mid-distance applications to clusters up to 8 modules for long-throw applications. The grille is epoxy-coated, with a woven fabric backing for dust protection. The cabinet is made of multi-ply Baltic birch plywood with a highly resistant, textured, black polyurea finishing and features two rear-panel Neutrik Speakon NL4 connections for bi-amplification (4 poles)

AVAILABLE ON ORDER

Part number:

13000698
Q 15
EAN 8024530018726

Recommended Power Amp

XPS SERIES

4 x 4000 W
Class D continuous power
at 2.7 Ohms
40-bit Floating-point
Processing at 96 kHz
Ready-to-Use
Configurations and presets
for RCF speakers
2U Rack Space

for both touring and installed sound systems

Flexible 32-bit Routing
with analog, digital
and Dante I/O
Advanced Fault Protections
for each amplifier channel and power supply
Responsive Image

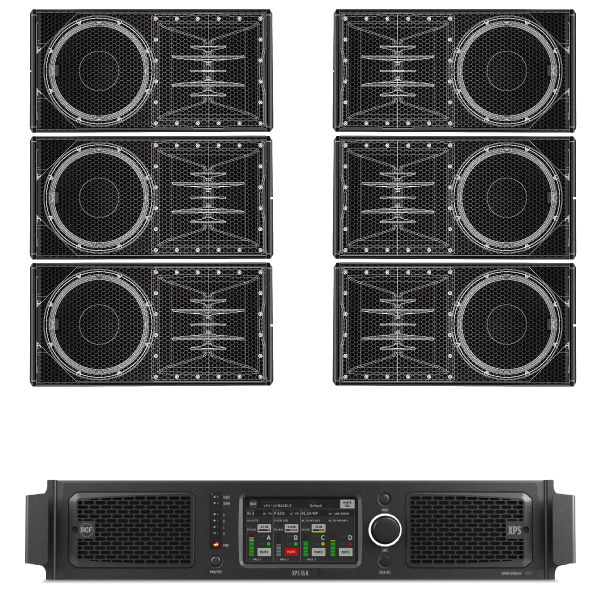

Bi-Amp Two-Way Line Array
6 x 15" Speakers (Q 15)
Medium Size Venues, Sports Facilities, and Nightclubs
Responsive Image

Constant curvature advantage

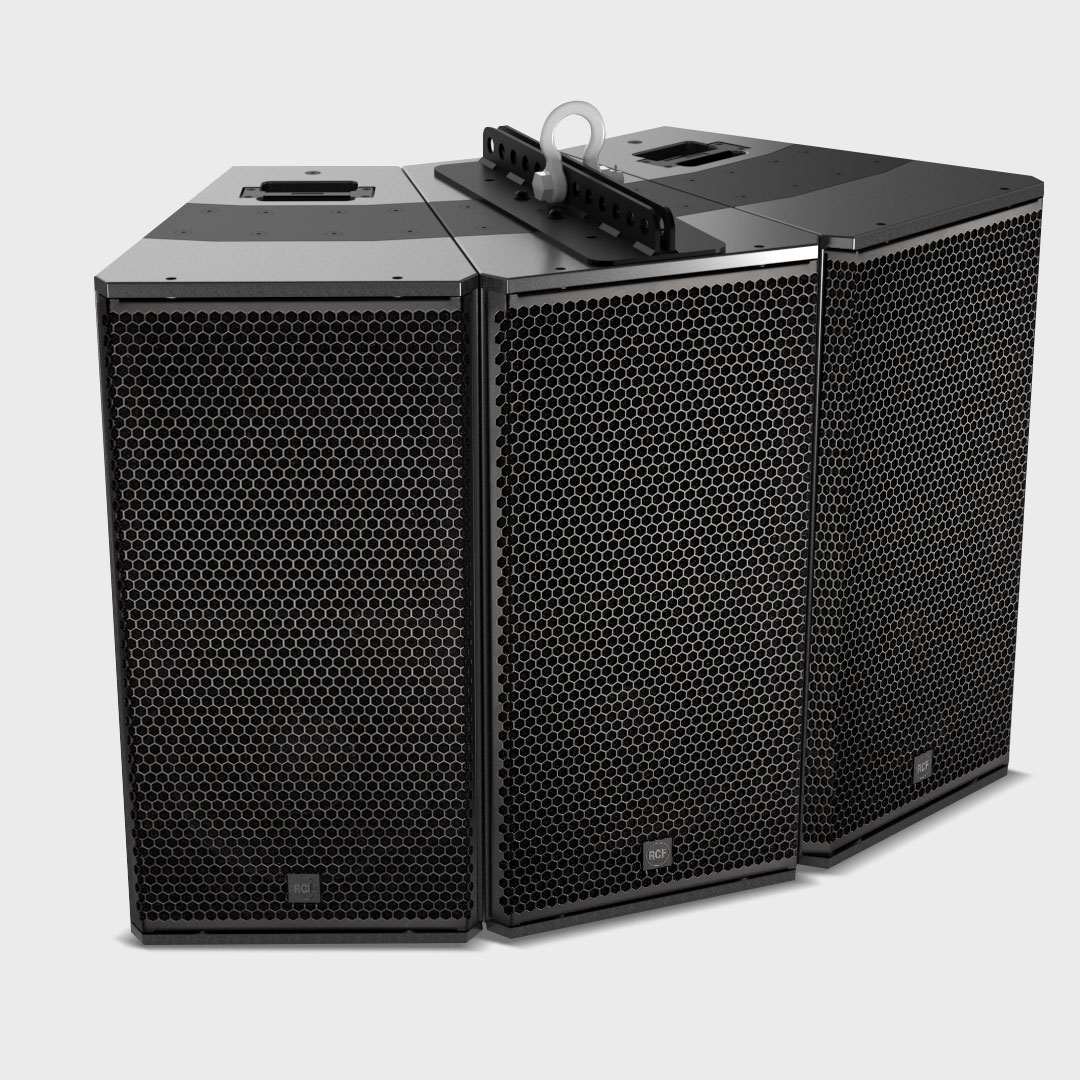

Delivering extraordinary clarity and power handling, the Q Series modules feature best in class flexibility for multiple applications. Due to its sleek form factor, the speaker is unobtrusive and preferred when space is a constraint. Component positioning of the Q Series and the ability to rotate the cabinet in any position, ensure precise directivity and a detailed sound image, reducing spots of break up or attenuation. RCF developed the Q Series for fixed installations requiring remarkable coverage and coherence in a premium yet discrete look. Despite their dimensions, Q Series speakers are built upon RCF’s premium concert-proven technologies for optimum power-to-size ratio able to cover large areas.
Responsive Image
Responsive Image

Legendary transducers

The RCF Q Series features state-of-the-art RCF transducers with neodymium magnets. RCF’s experienced engineering teams have developed and matched each component. A set of protections preserve product life and reliability.

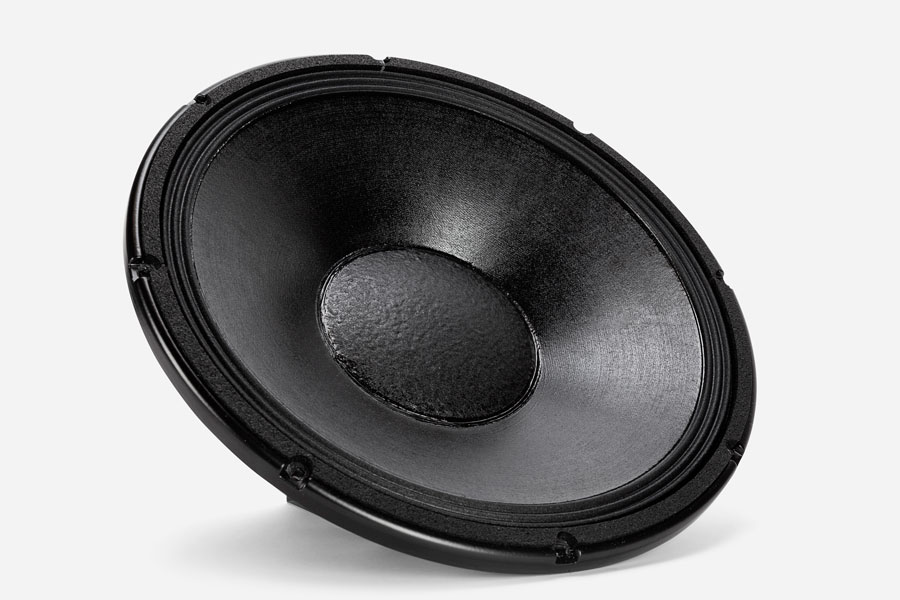

Low frequencies
  • 15" neodymium woofer, 4.0" v.c.
  • Water-resistant fiber doped cone
  • Polycotton M-roll surround
  • Hypervented magnetic structure
High frequencies

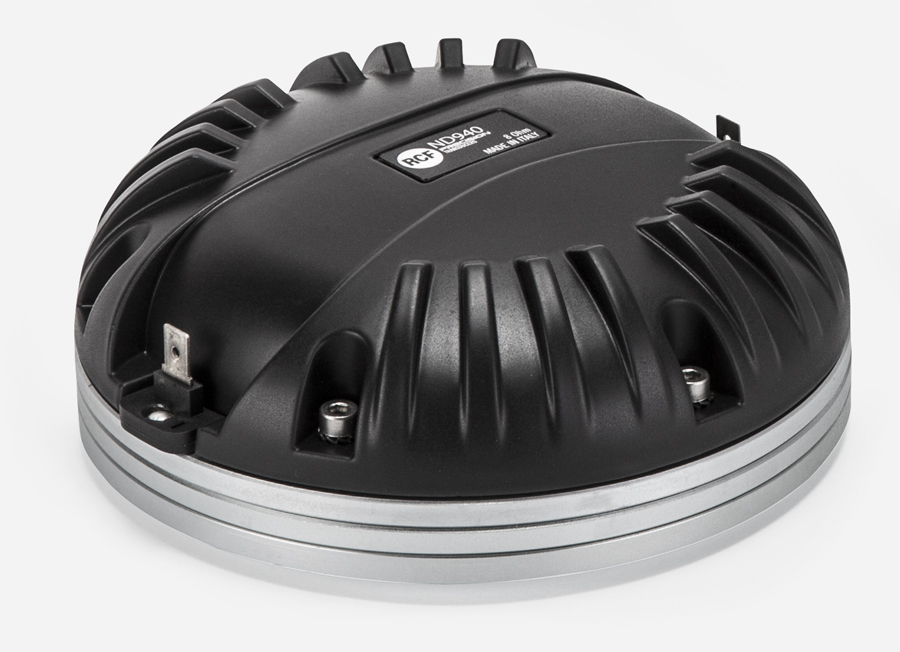

The ND940 Compression Driver in pure Titanium with a 4 inches voice coil works from 600 Hz. This allows a better impulse response, fast decay, translating in perfect vocal clarity and enhanced quality in mid-frequency — leaving the woofer to manage the lower part of the spectrum. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.
The speaker can only be powered by two amplifiers, one for each transducer (4 poles via NL4 connector).
Responsive Image
Responsive Image

Constant reliability

The Q Series speaker is carefully engineered to pack maximum output and superb sound quality with minimum size. The cabinet is made of high-quality water-resistant Baltic birch plywood with internal structural metal bracings, rigid and resonance-free. A special polyurea paint creates a very thick coating of the cabinet, making the speaker highly resistant to scratches, bumps, sun, and extreme weather conditions. The heavy-duty front grille is powder coated. A transparent-to-sound foam backing on the inside of the grille helps to further protect the transducers from dust.

Use anywhere attitude

Q Series speakers can be deployed either horizontally or vertically, with a coverage angle proportionally equal to the sum of the enclosures in the array (22.5° x n). The cabinet features multiple M10 suspension points on both sides. Optional rigging accessories include two fly-bars for horizontal (up to 4) and vertical placement (up to 6 with a single flybar, or 8 with double flybar), stainless steel plates for rigging, and -10 degree spacing to decrease the coverage angle for long-throw applications. All rigging is made of high-strength structural steel with a high safety factor. The compactness and lightweight of the system, combined with top of class suspension system, guarantee a fast and secure hanging procedure.
Vertical configurations
Responsive Image Responsive Image
Horizontal configurations
Responsive Image Responsive Image
Vertical hanging with a 10° angle
4 X 10° modules
Responsive Image
Vertical mixed configurations
4 X 10° modules + 2 x 22.5° modules
Responsive Image
Specifications
Acoustical specifications
Frequency Response (-10dB)
45 Hz ÷ 20000 Hz
Max SPL @ 1m
138 dB
Horizontal coverage angle
22.5°
Vertical coverage angle
60°
Directivity index Q
20
Power section
Amplification
Bi-Amp
Nominal Impedance LF
8 ohm
Power Handling LF
1350 W
Peak Power Handling LF
5400 W
Sensitivity LF
97 dB
Nominal Impedance HF
8 ohm
Power Handling HF
150 W
Peak Power Handling HF
600 W
Sensitivity HF
113 dB
Protections HF
Capacitor on Compression Driver
Recommended Amplifiers
XPS 16K, XPS 16KD, QPS 10K
Transducers
Compression Driver
1 x 1.4'' neo, 4.0'' v.c
Woofer
1 x 15'' neo, 4.0'' v.c
Input/Output section
Input connectors
Speakon® NL4
Output connectors
Speakon® NL4
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
Side and rear array rigging point
Handles
2
Grille
Steel
Color
Black - RAL 9005
Size / Weight
Height
860 mm / 33.86 inches
Width
446 mm / 17.56 inches
Depth
590 mm / 23.23 inches
Weight
55 kg / 121.25 lbs
Shipping information
Package Height
965 mm / 37.99 inches
Package Width
585 mm / 23.03 inches
Package Depth
775 mm / 30.51 inches
Package Weight
59 kg / 130.07 lbs
