Features
  • 80W RMS power handling
  • 114 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 130° constant directivity conical coverage angle
  • 6.5" high power woofer
  • 1" neodymium dome tweeter
  • Self extinguishing plastic body
  • Steel magnetic front grille
  • 4 pole EUROBLOCK connector (audio input and parallel link output)

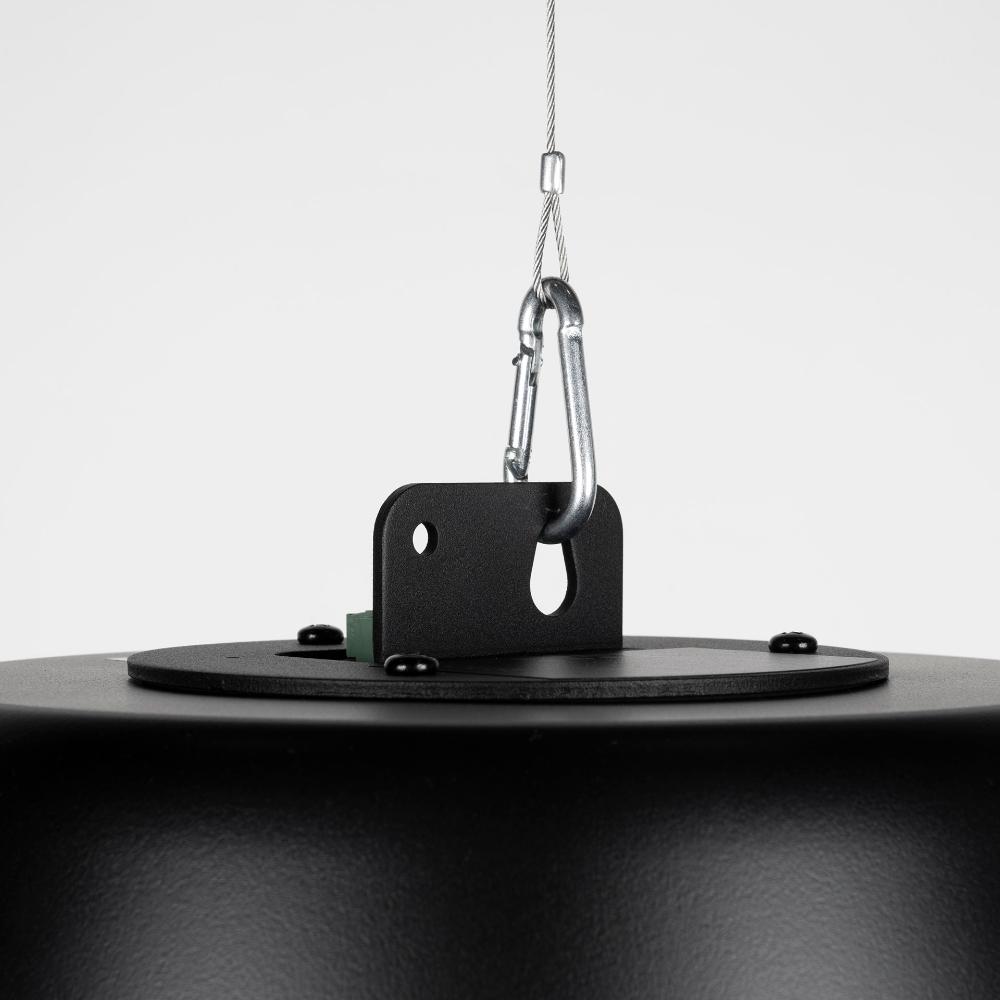

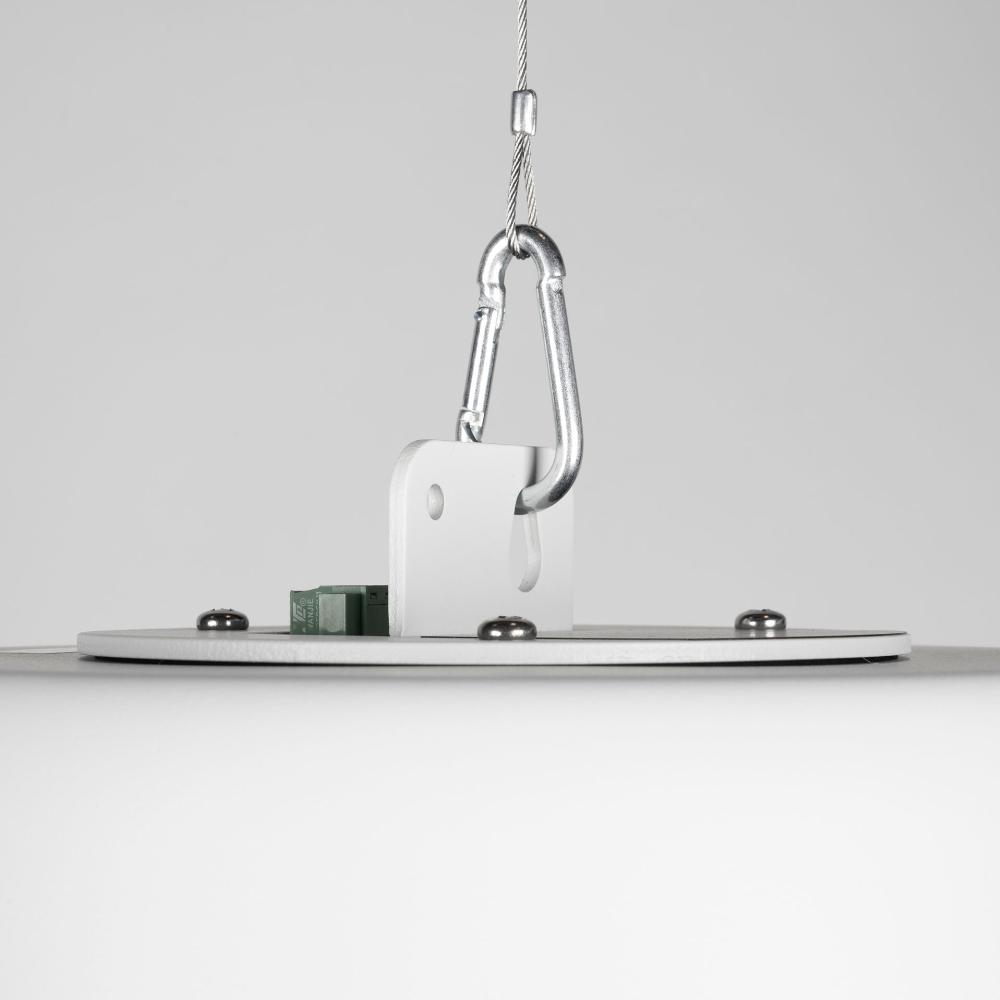

  • 5 m hanging cable included

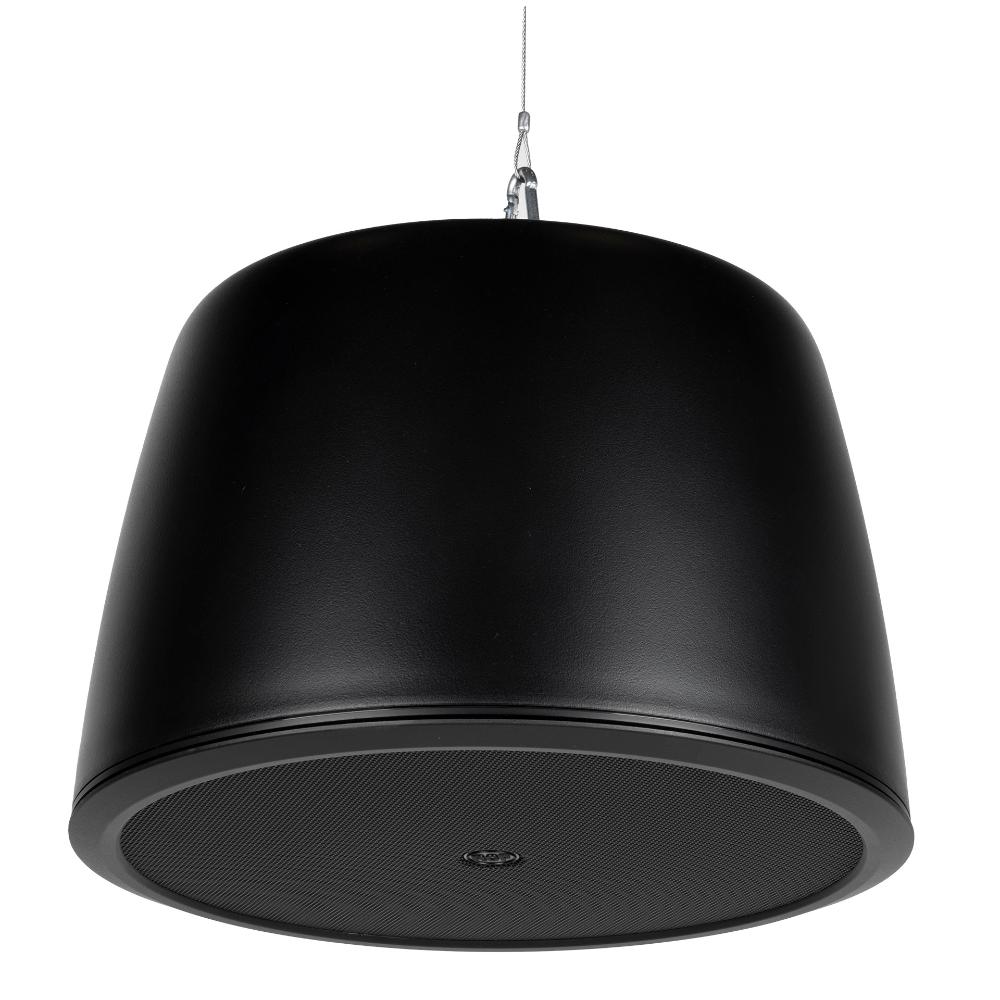

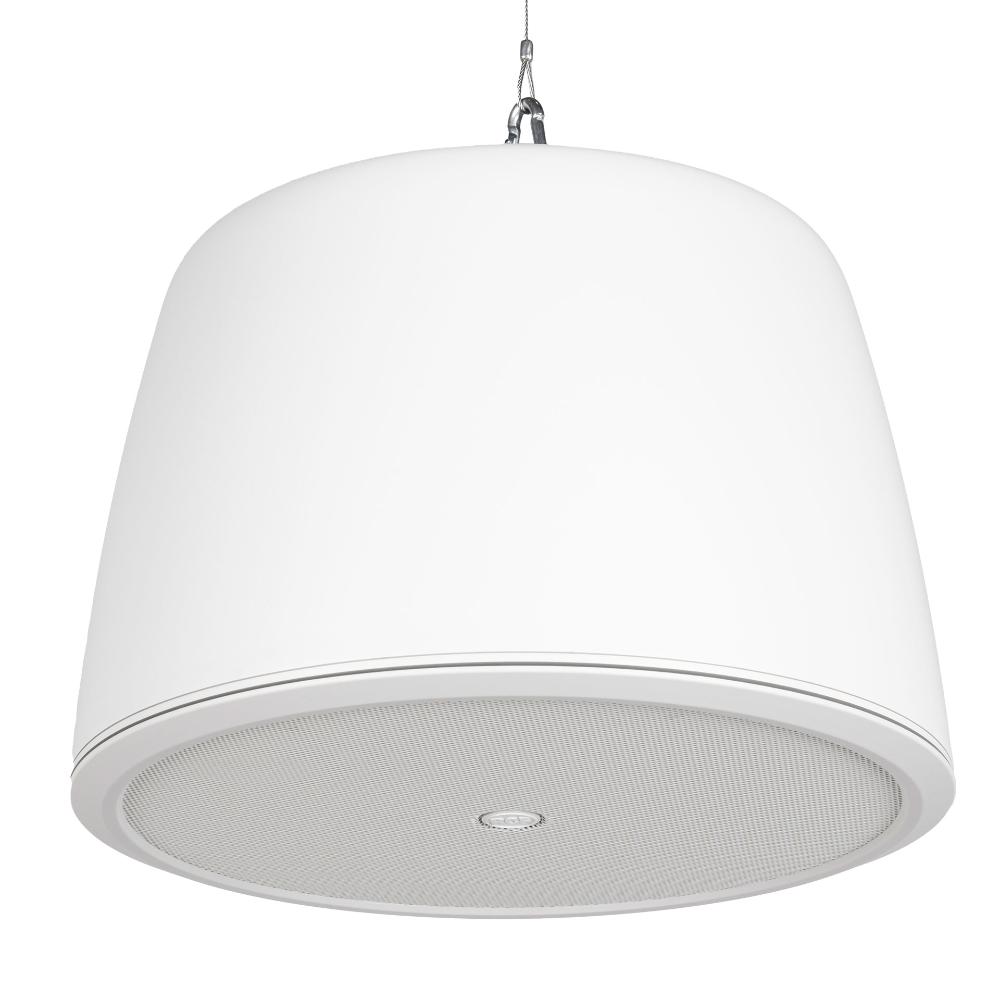

PMR 60T is a two-way pendant monitor speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and refined finishes, it is suitable for all environmental and architectural conditions. Featuring a 6.5’’ woofer and 80 W RMS power, it is also equipped with a transformer for connection to constant voltage lines (70/100 V). The high quality of its transducers (arranged in a coaxial configuration) guarantees faithful and precise musical reproduction throughout the audio spectrum and allows to reach truly remarkable sound pressure levels for such compact products. The connection is simple and safe thanks to the removable four-pole screw terminals. The front grille is fixed by magnets and can therefore be easily removed to access the power rotary switch.


NEW

Part number:

13100098
PMR 60T W
White - RAL 9003, EAN 8024530020606

13100100
PMR 60T B
Black - RAL 9005, EAN 8024530020590

Specifications
Acoustical specifications
Frequency Response (-10dB)
70 Hz ÷ 20000 Hz
Max SPL @ 1m
114 dB
Coverage angle
130°
System Sensitivity
89 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
80 W RMS
Peak Power Handling
320 W PEAK
Crossover Frequencies
2500 Hz
Recommended Amplifiers
DMA 504, DMA 162, DMA 82, DMA 162P
Transducers
Dome Tweeter
1 x 1.0'' neo, 1.0'' v.c
Woofer
1 x 6.5'', 1.2'' v.c
Input/Output section
Input connectors
Euroblock
Output connectors
Euroblock
Constant Voltage Transformer
70/100 V
Power selection 1
80 W - 125 ohm
Power selection 2
40 W - 250 ohm
Power selection 3
20 W - 500 ohm
Power selection 4
10 W - 1000 ohm
Power selection 5
5 W - 2000 ohm
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
ABS
Grille
Steel
Color
White - RAL 9003, Black - RAL 9005
Size / Weight
Height
236 mm / 9.29 inches
Diameter
300 mm / 11.81 inches
Weight
5.1 kg / 11.24 lbs
Shipping information
Package Height
340 mm / 13.39 inches
Package Width
362 mm / 14.25 inches
Package Depth
362 mm / 14.25 inches
Package Weight
6.5 kg / 14.33 lbs
Downloads
MANUALS
PDF
1.1 MB
10-03-2023
SPECIFICATIONS
PDF
402 KB
18-10-2024
PDF
404 KB
18-10-2024
DRAWINGS
DXF
1.4 MB
20-06-2024
PDF
222 KB
20-06-2024
PDF
538 KB
20-06-2024
