Features
  • 800 W RMS power handling
  • 132 dB max SPL
  • 50 Hz ÷ 200 Hz frequency range
  • 15" neodymium woofer, 4.0" v.c.
  • Weatherproof IP55 cabinet with UV protection
  • Aluminum grille
  • AISI 316L stainless steel bracket
  • 12 suspension points (M10)

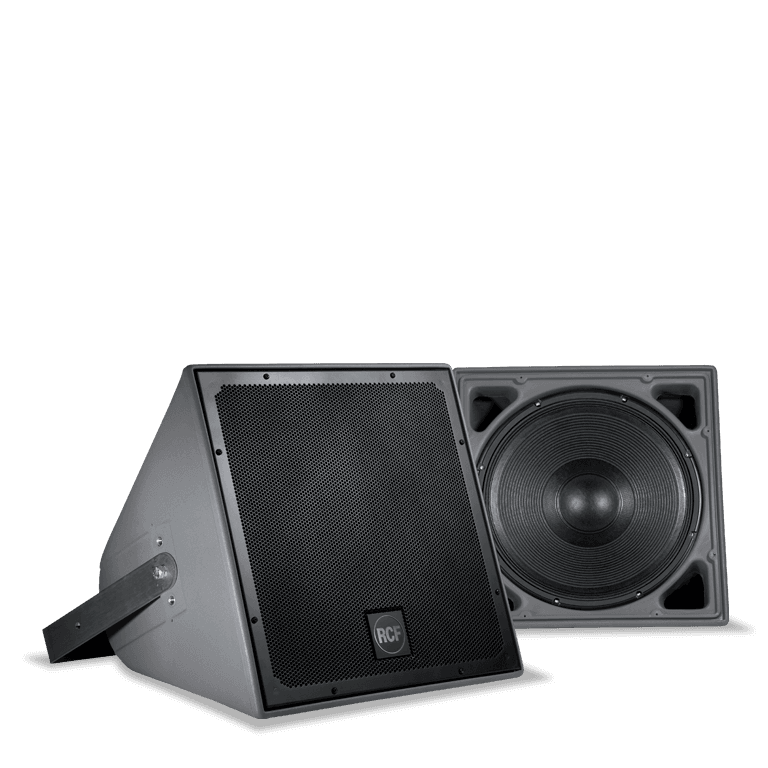

P 8015S is a weatherproof bass reflex subwoofer equipped with a 15" low-frequency neodymium transducer with a 4" voice coil offering power and efficiency for a variety of professional outdoor or indoor applications. The P 8015S has been specifically designed to reinforce the low-frequency range in P Series speakers array systems. The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements (International Protection Rating), equipped with M10 brass inserts (12x) and a durable and corrosion-resistant stainless steel U-Bracket and spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with a water-repellent fabric backing.

Part number:

13000230
P 8015S
EAN 8024530008819



All-weather performance

The single-piece rotomolded cabinet is fully UV protected, equipped with multiple brass inserts and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material, front logo is rotatable. All P series speakers meet IP55 standard requirements (International Protection Rating), suitable for indoor and outdoor applications.

Versatility for any application

Focusing on outdoor and indoor large spaces, P Series speakers are capable of true, concert-level high performance in a compact enclosure, installed individually or coupled in array configurations. Featuring coaxial, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coaxial or coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.

Responsive Image

LICC - Low Impedance Compensated Crossover

The system includes a high-level crossover network that features lower than conventional induction values. Its benefits are delay reduction, reduced phase shift and superior transient response for improved audio performance and stability.

CMD - Coverage Matching Design

RCF exclusive CMD technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity.
Responsive Image

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Responsive Image
Specifications
Acoustical specifications
Frequency Response (-10dB)
50 Hz ÷ 200 Hz
Max SPL @ 1m
132 dB
System Sensitivity
97 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
800 W
Peak Power Handling
3200 W PEAK
Transducers
Woofer
15'' neo, 4.0'' v.c
Input/Output section
Input connectors
Neoprene Cable
Standard compliance
IP protection grade
IP 55
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PE Low Density
Hardware
12 x M10 + U bracket and pair of spacers
Grille
Aluminum with waterproof clothing
Color
Black
Size / Weight
Height
463 mm / 18.23 inches
Width
463 mm / 18.23 inches
Depth
433 mm / 17.05 inches
Weight
16.5 kg / 36.38 lbs
Shipping information
Package Height
519 mm / 20.43 inches
Package Width
489 mm / 19.25 inches
Package Depth
489 mm / 19.25 inches
Package Weight
21.5 kg / 47.4 lbs
Accessories
videos

1 related videos

Downloads
MANUALS
PDF
5.6 MB
22-04-2024
SPECIFICATIONS
PDF
761 KB
18-10-2024
PDF
765 KB
22-10-2024
PDF
761 KB
18-10-2024
PDF
766 KB
22-10-2024
PDF
761 KB
18-10-2024
PDF
72 KB
11-07-2024
STANDARD COMPLIANCES
PDF
22 KB
11-05-2023
DRAWINGS
DXF
957 KB
01-06-2018
PDF
29 KB
01-06-2018
