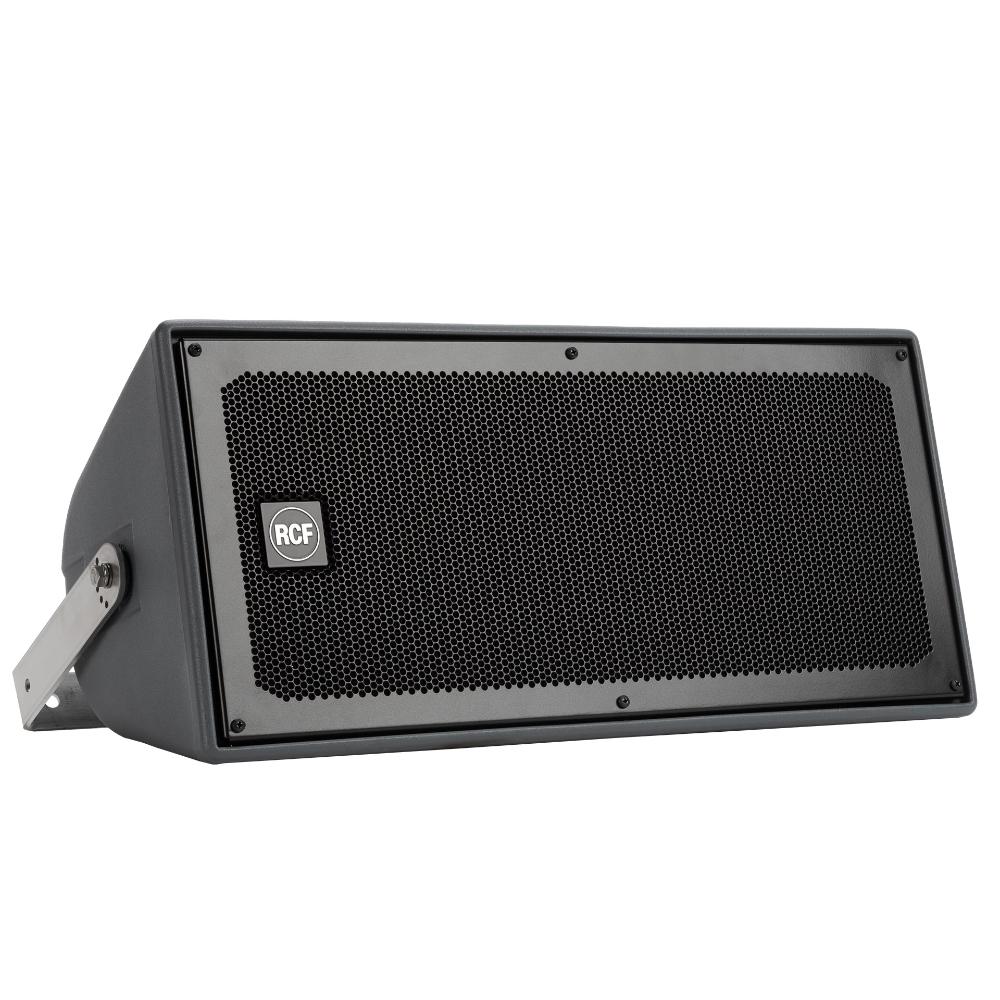

P 4228 WEATHERPROOF TWO-WAY SPEAKER
P 4228
WEATHERPROOF TWO-WAY SPEAKER
- 400 W RMS power handling
- 129 dB max SPL
- 80 Hz ÷ 20000 Hz frequency range
- 2 x 8" neodymium woofer, 2.5" v.c.
Features
- 400 W RMS power handling
- 129 dB max SPL
- 80 Hz ÷ 20000 Hz frequency range
- 2 x 8" neodymium woofer, 2.5" v.c.
- 2.5" v.c. neodymium compression driver
- 110° x 60° constant directivity
- Weatherproof IP55 cabinet with UV protection
- Aluminum grille

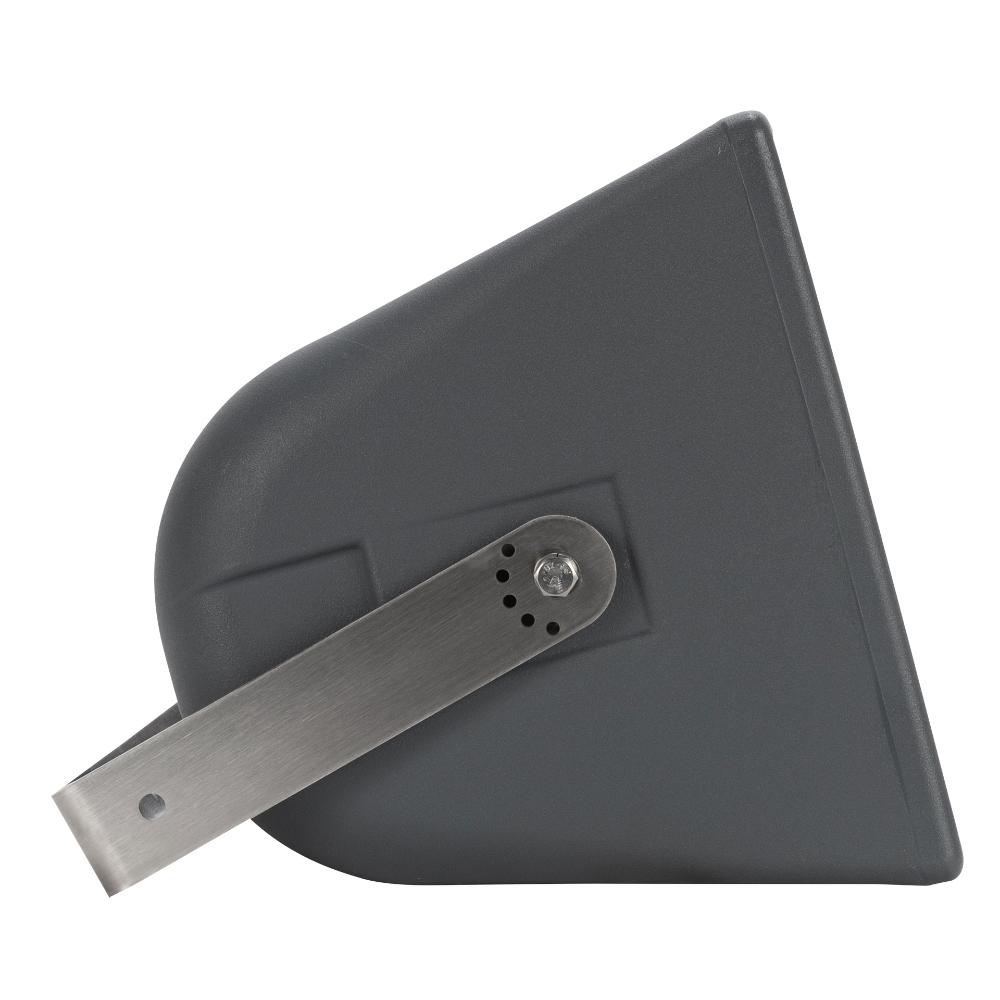

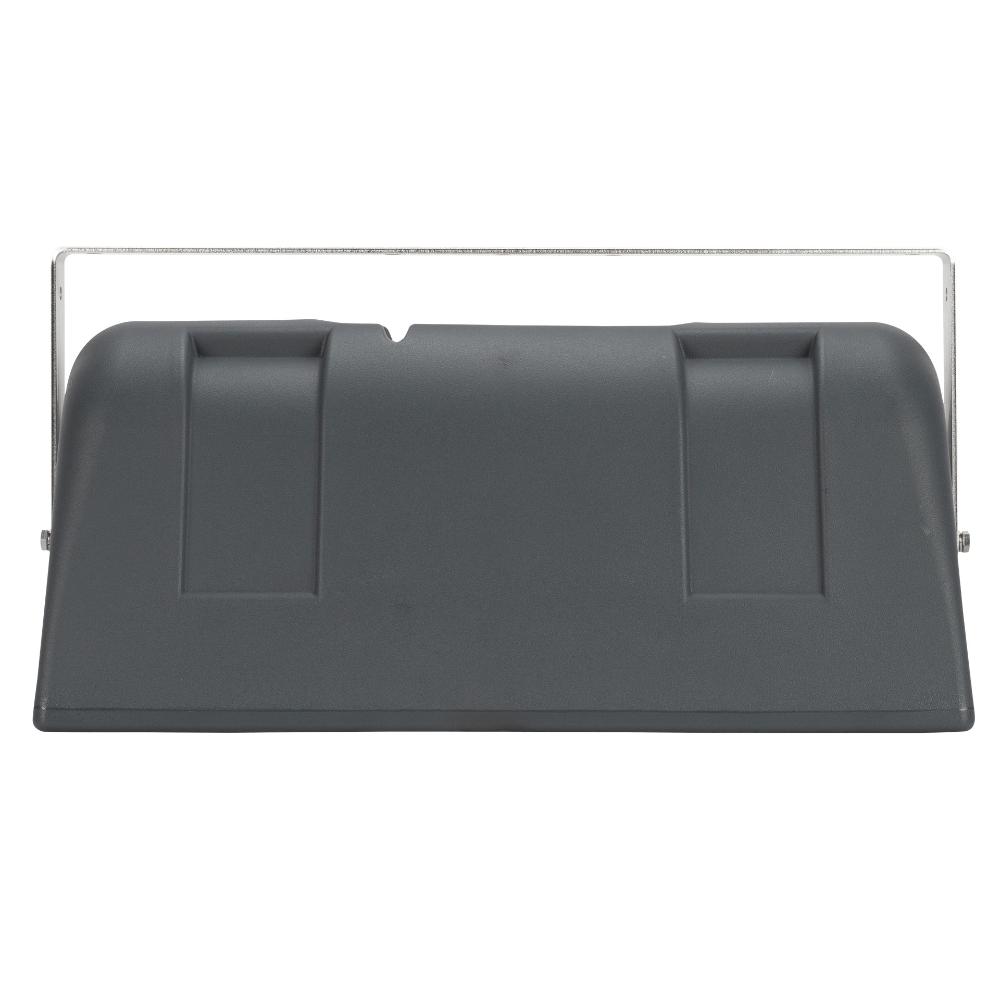

- AISI 316L stainless steel bracket
- Amphenol IP67 4 pole input connector

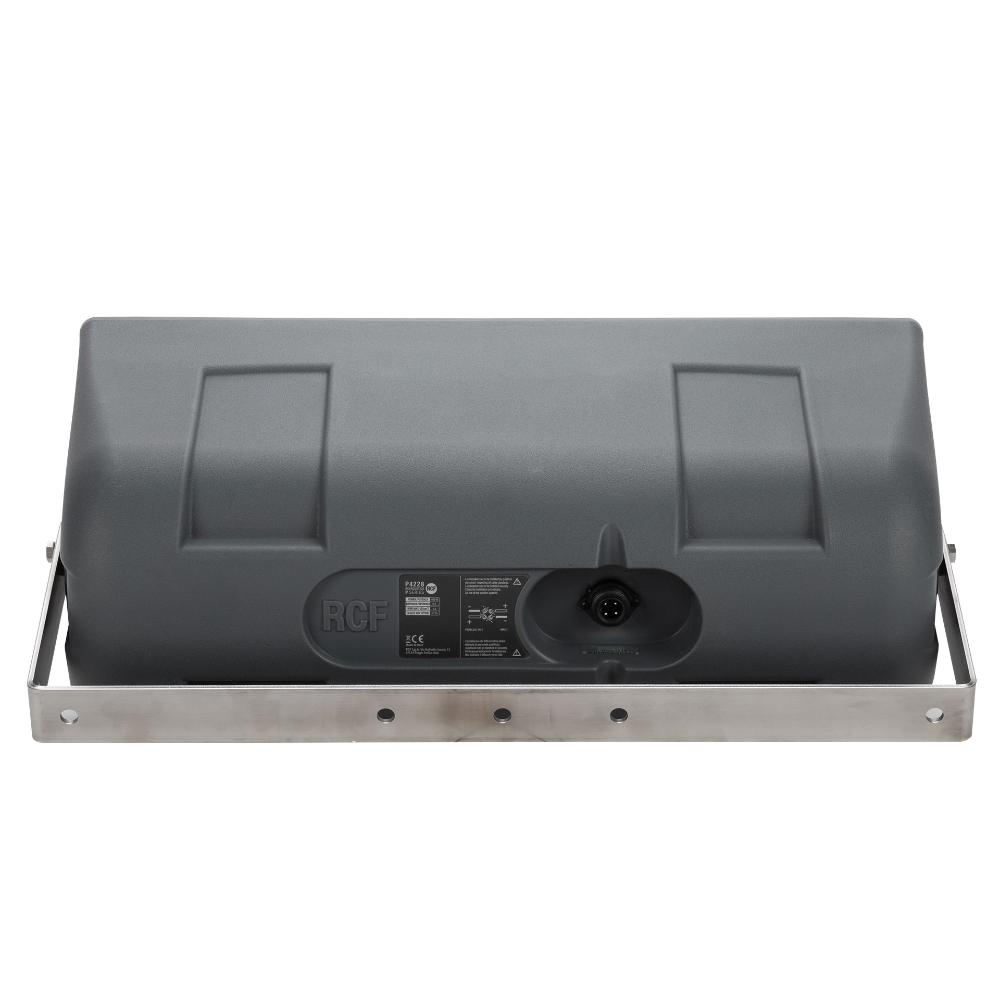

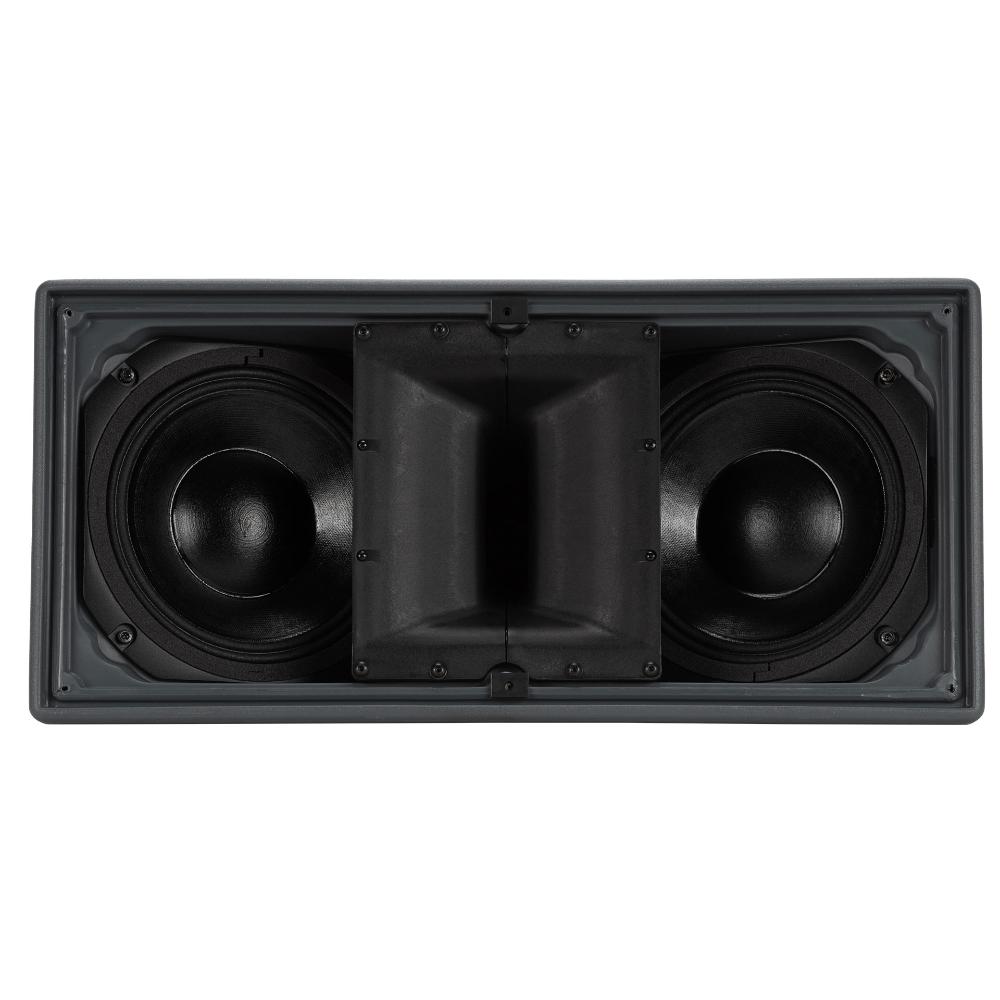

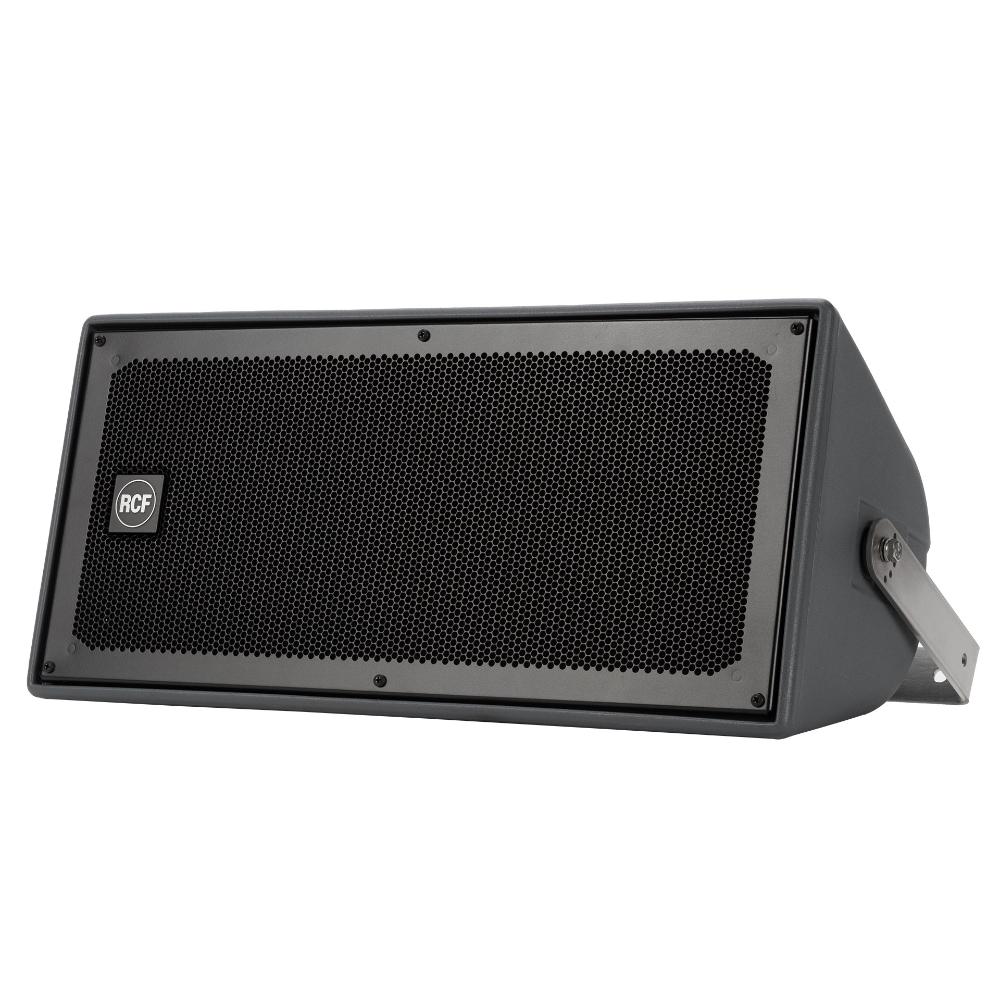

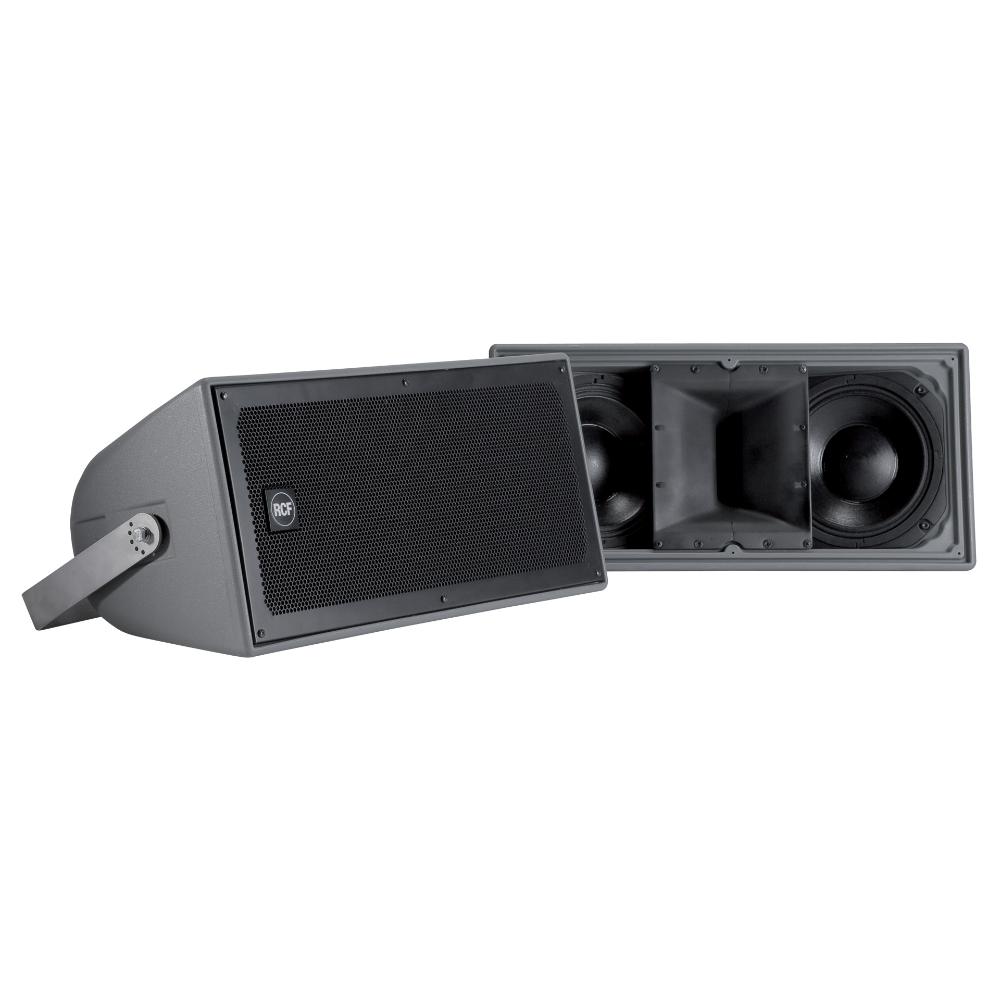

The P 4228 is a weatherproof full range, two-way speaker, suitable for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The high-frequency section includes a constant directivity CMD horn, loaded with a 1.4" RCF Precision neodymium compression driver with a 2.5" diaphragm assembly for smooth, highly controlled coverage. The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion. Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP 55 standard requirements, equipped with M8 brass inserts (4x) and one corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.
Part number:
13000199
P 4228
Grey, EAN 8024530008673
13100081

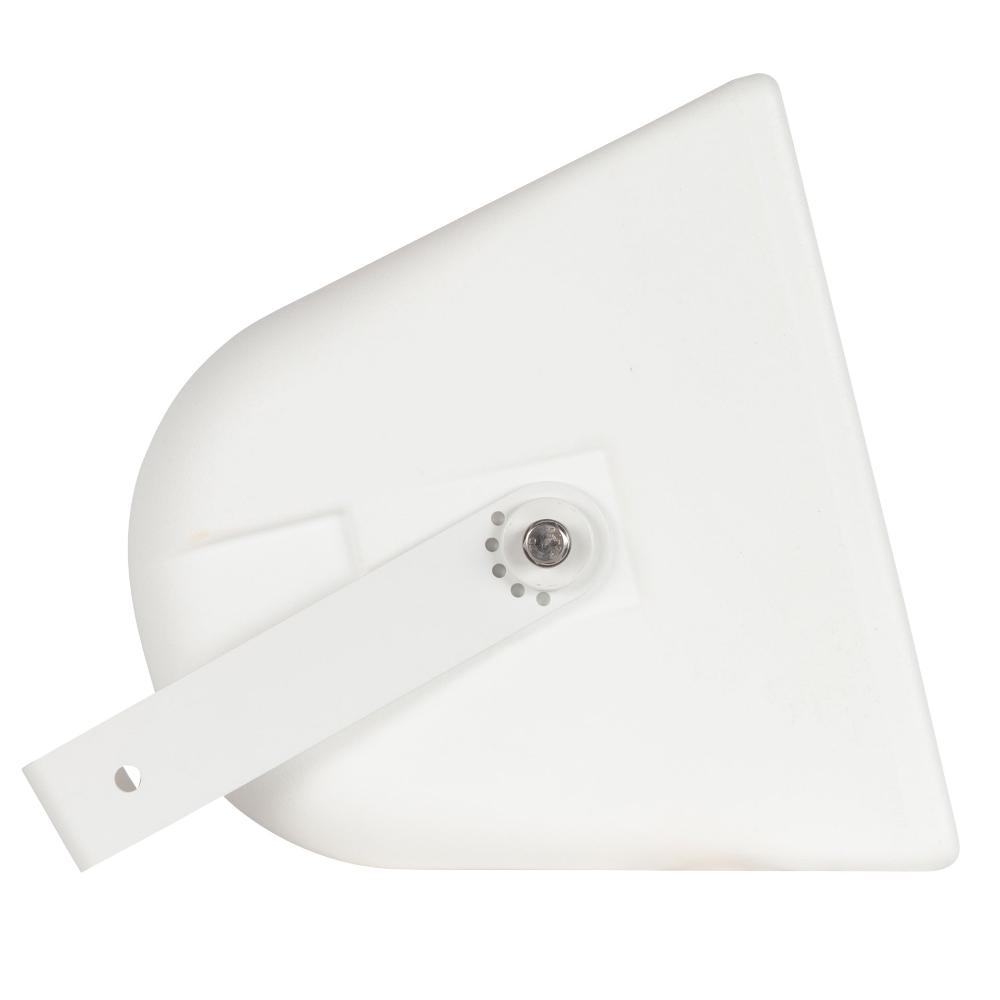

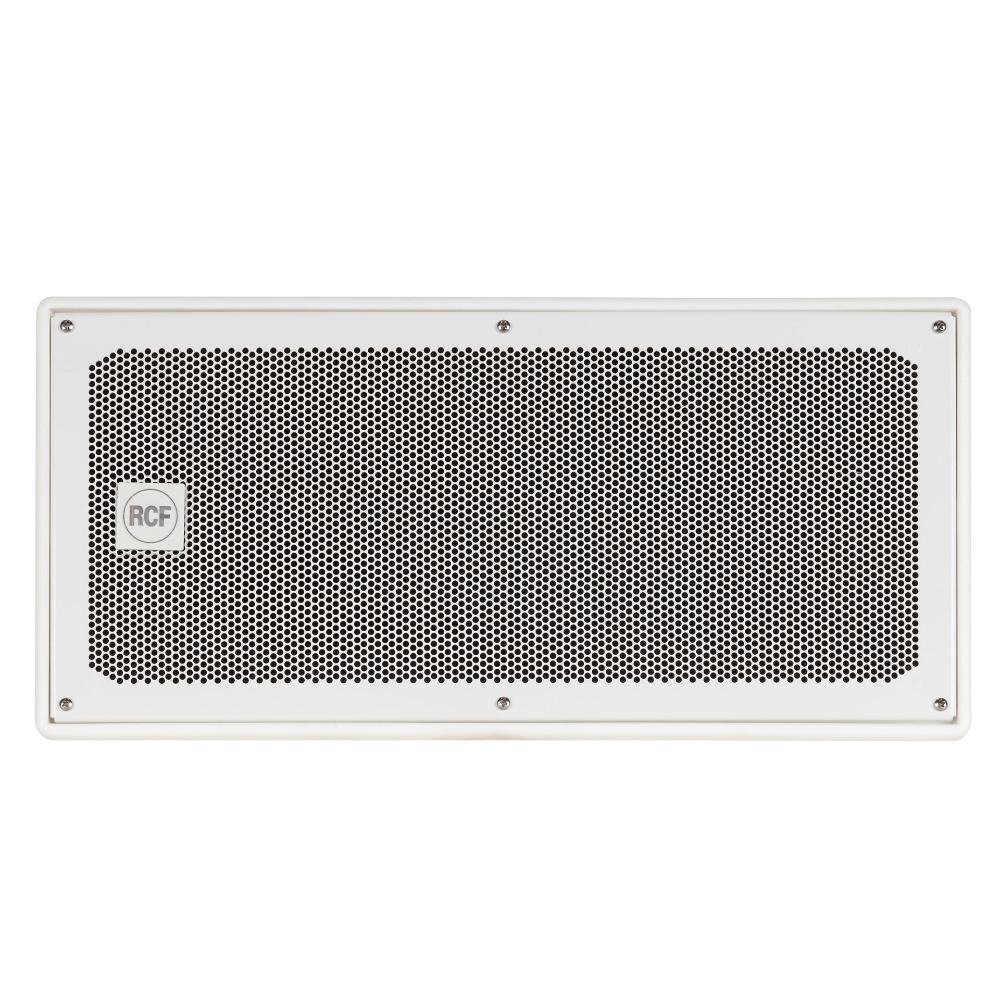

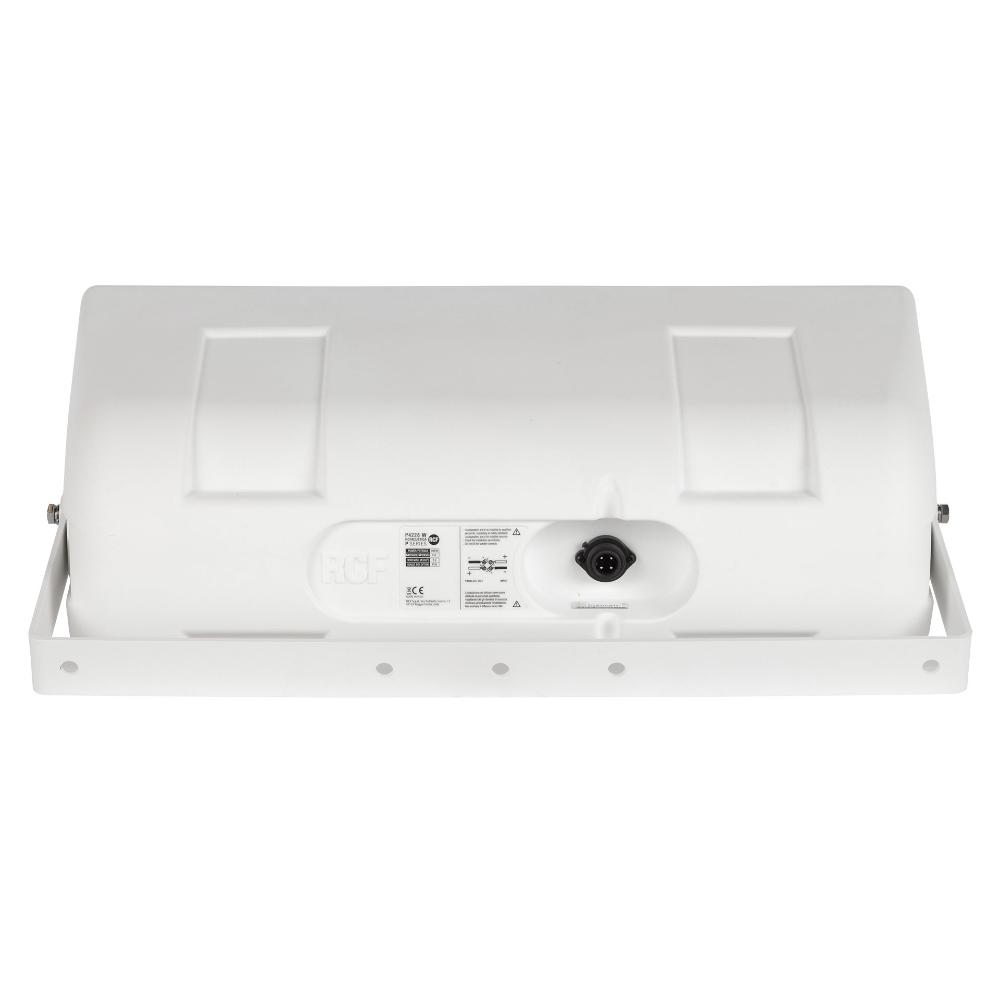

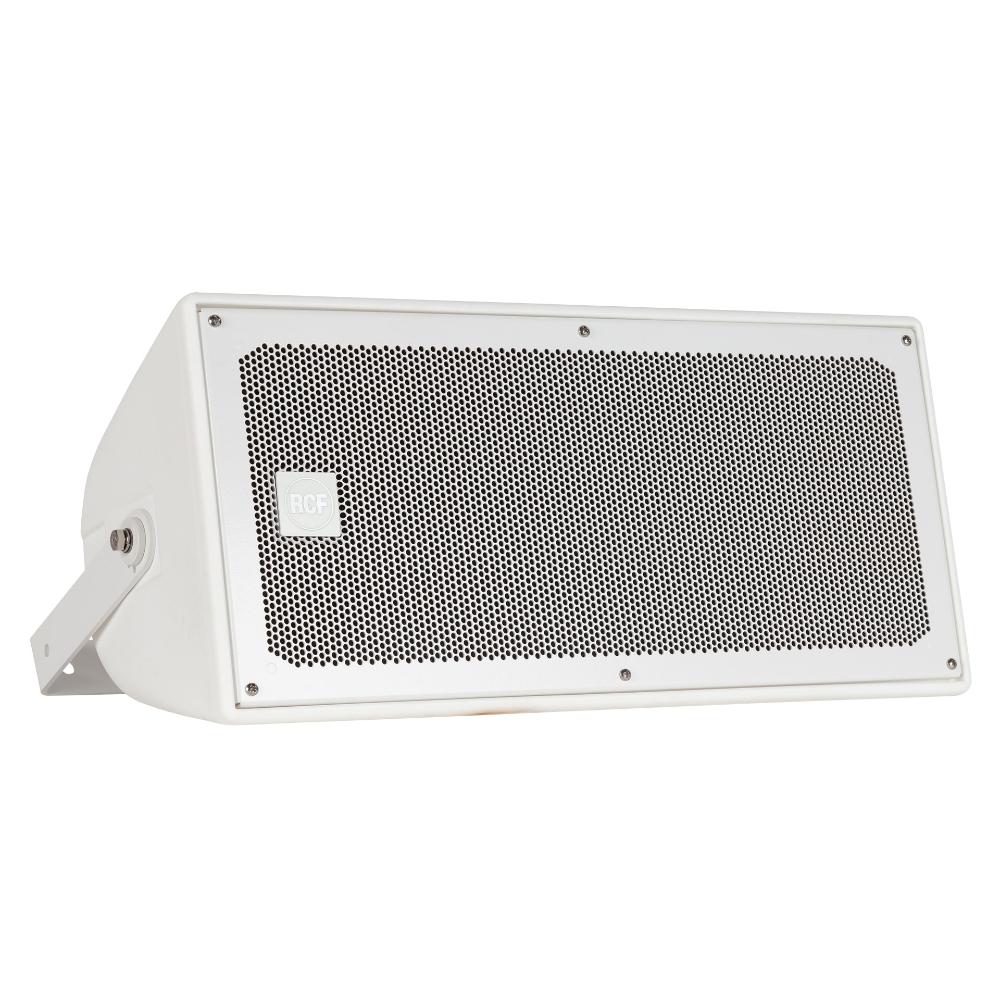

P 4228 W
White - RAL 9003, EAN 8024530017507
13100104

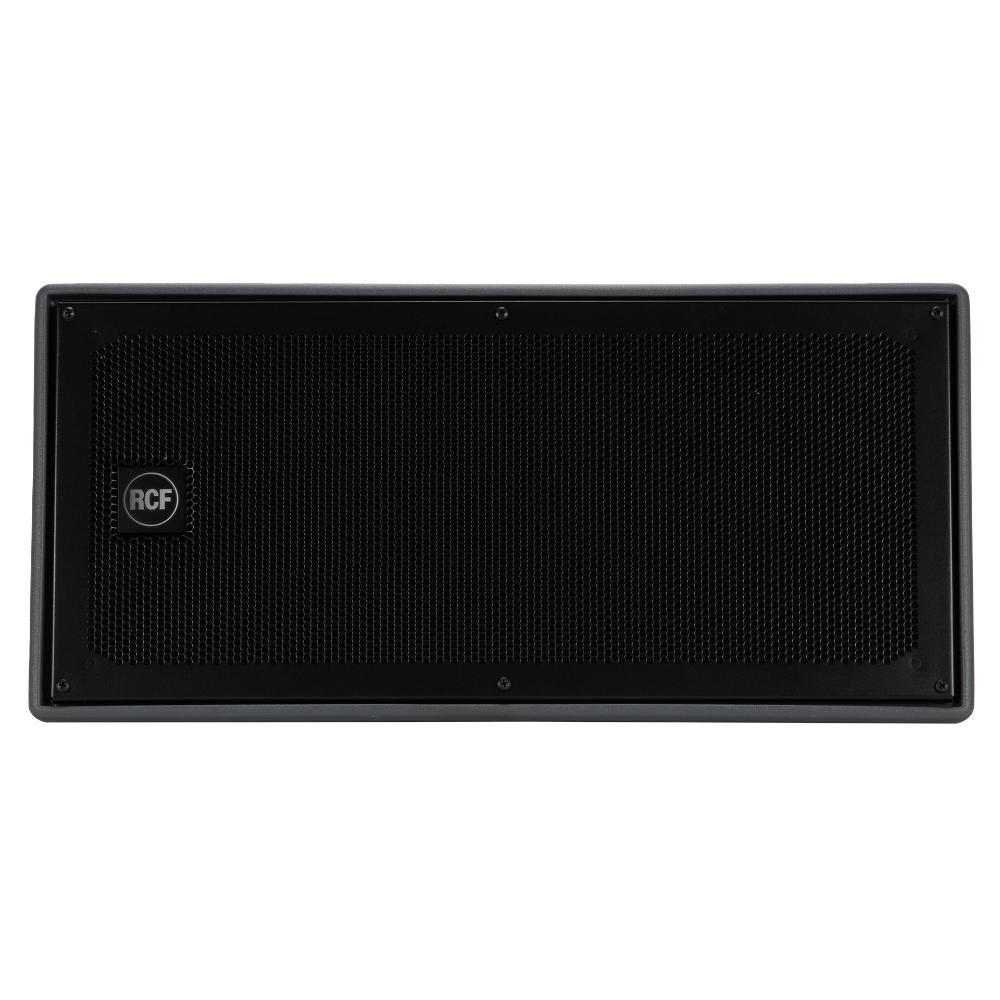

P 4228 B
Black - RAL 9005, EAN 8024530020613
Recommended Power Amp
XPS SERIES
at 2.7 Ohms
Processing at 96 kHz
Configurations and presets
for RCF speakers
for both touring and installed sound systems
with analog, digital
and Dante I/O
for each amplifier channel and power supply
Bi-Amp Two-Way Line Array

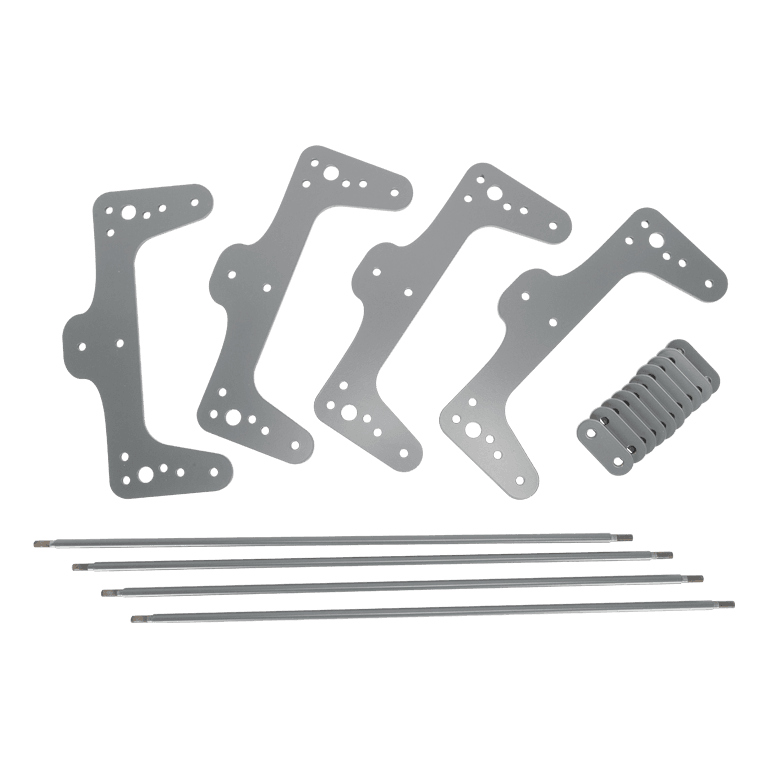

6 x double 8" Line Array (P 4228)
All-weather performance
Versatility for any application
LICC - Low Impedance Compensated Crossover
CMD - Coverage Matching Design
Customization without boundaries
