VOICE ALARM EN54 COMMERCIAL BUSINESS MUSIC INSTALLED

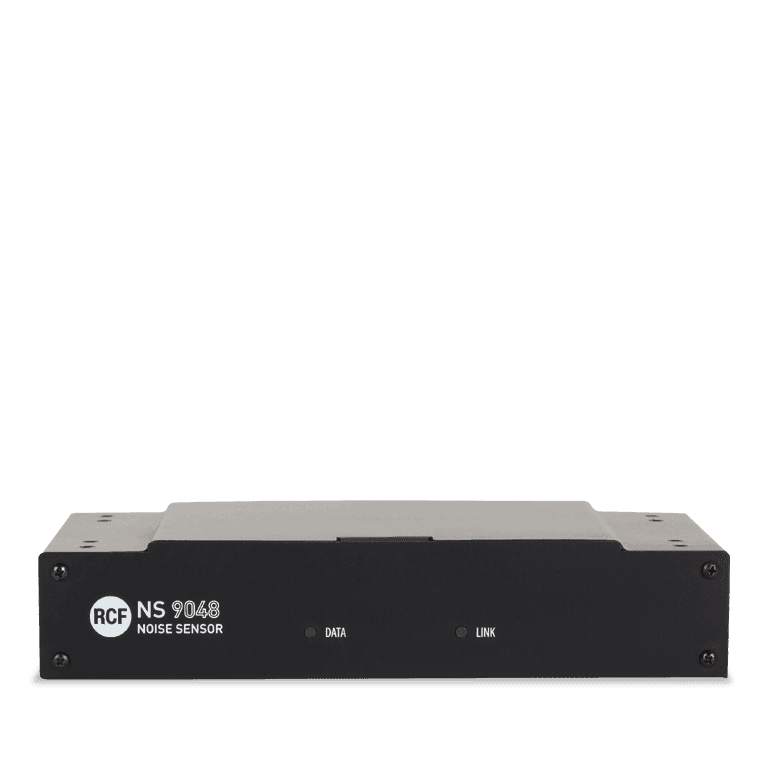

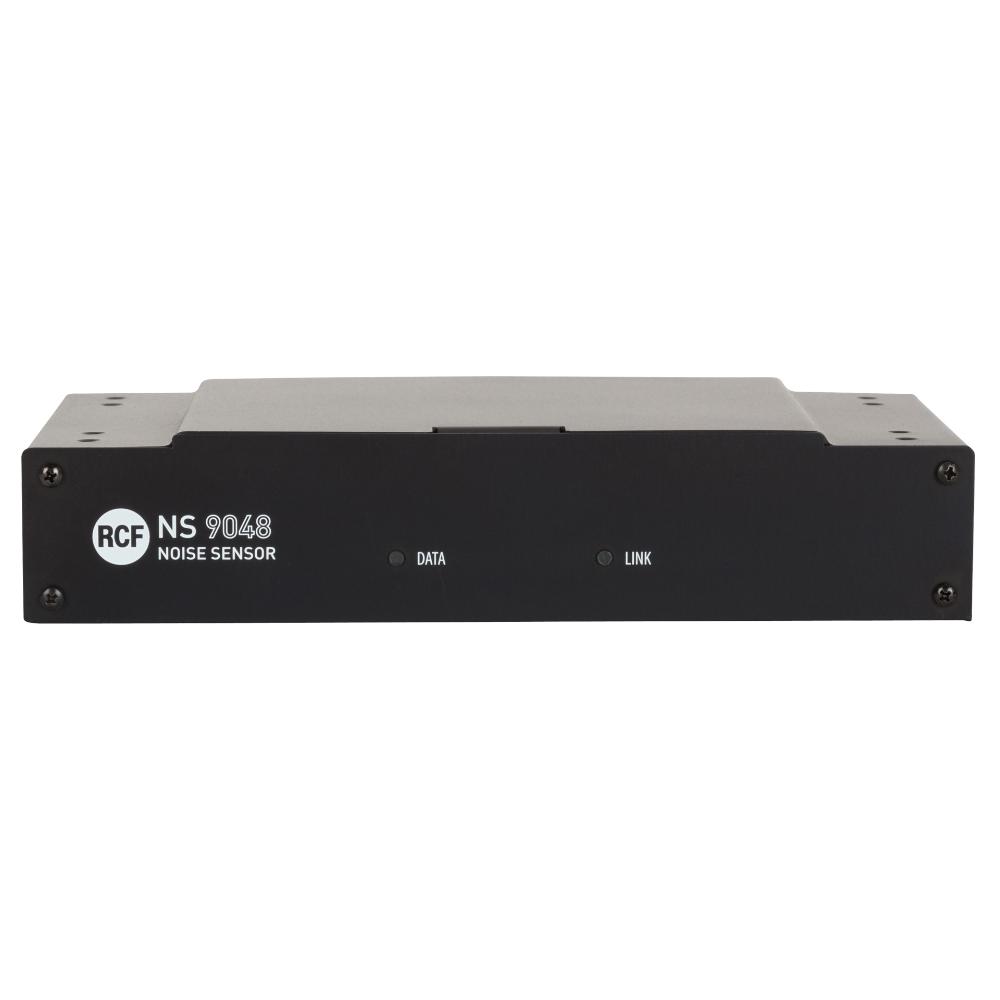

NS 9048

NOISE SENSOR

8 microphones for each unit
2 units can be connected to a DXT 9000 amplifier
Suitable for ceiling and rack installation
PC software configuration

Support

Features

8 microphones for each unit
2 units can be connected to a DXT 9000 amplifier
Suitable for ceiling and rack installation
PC software configuration

NS 9048 is a noise sensor that automatically adjust the volume level depending on the environment noise. It can be connected to any DXT 9000 power amplifiers and can act on every single system’s zones, measured with a variable number of microphones (up to a maximum of 8). It is specifically addressed to all those applications with a significantly different people affluence during the day. Works both with for 100 V speakers and capsule microphones.

ARCHIVED

Part number:

12399036
NS 9048
EAN 8024530014193

Specifications

General specifications

Commuication bus

Serial

Units connection

J-Type fire rated

Mic inputs

Mic Phantom

+5 V DC

Input connectors

Euroblock

Configuration

PC software

Operating voltage

24 V ÷ 48 V DC

Standard compliance

Safety agency

CE compliant

EN54-16 certified

Yes

CPR number

0068-CPR-002/2014

Physical specifications

Cabinet/Case Material

Metal

Color

Black

Rack mounting

1/2 19", 1U

Size / Weight

Height

43 mm / 1.69 inches

Width

215 mm / 8.46 inches

Depth

123 mm / 4.84 inches

Weight

1 kg / 2.2 lbs

Shipping information

Package Height

135 mm / 5.31 inches

Package Width

255 mm / 10.04 inches

Package Depth

59 mm / 2.32 inches

Package Weight

1.8 kg / 3.97 lbs

Downloads

MANUALS

USER MANUAL

PDF

1.8 MB

26-10-2016

SPECIFICATIONS

SPECSHEET ACCESSORIES - ENG

PDF

485 KB

21-01-2025

SPECSHEET ACCESSORIES - ITA

PDF

486 KB

21-01-2025

DRAWINGS

LINE ART 2D

PDF

841 KB

02-07-2024

LINE ART 2D

PDF

786 KB

20-06-2024
