NDX495

Features

• 1.75-inch PKX dome, polyimide surround
• Kapton former, edge wound aluminum voice coil
• 140W continuous program power handling @ 8O
• Frequency range: 500Hz - 20kHz
• 4-slot optimized geometry phase plug
• Copper inductance ring for extended response
• High-flux density neodymium magnet
• Recommended for 2-way speaker design

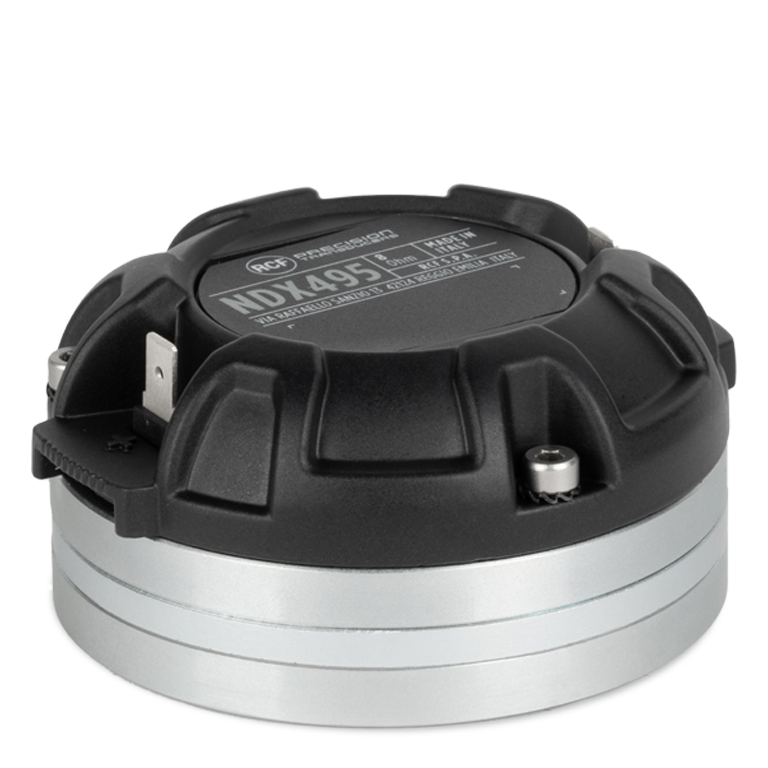

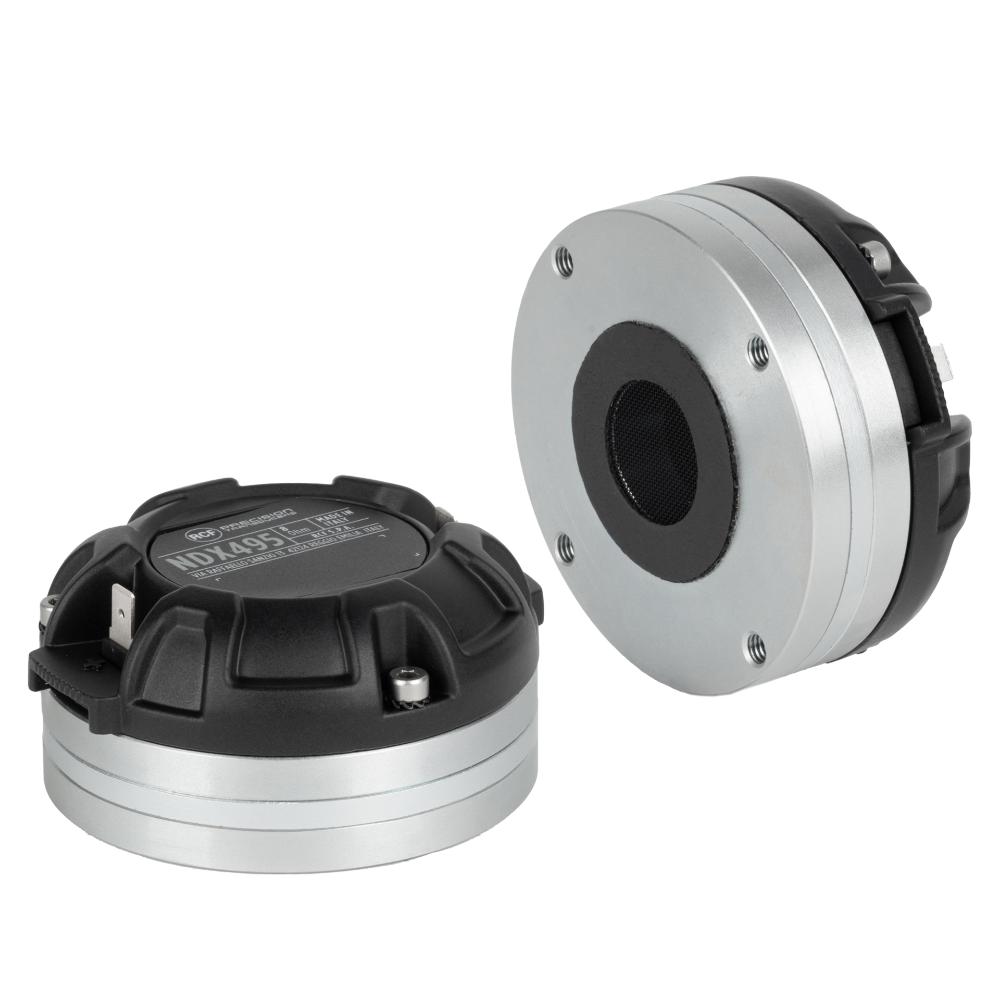

The 1.75" PKX dome NDX495 is a compression driver for professional applications where high-quality sound and long-term reliability are required. The ultra-compact size and the low recommended crossover point from 1000 Hz make this transducer ideal for two-way cabinet designs and three-way loudspeaker systems. PKX (modified polyether ether ketone) is a rigid yet lightweight material, optimized with reinforcing ribs, offering remarkable precision and reliability compared with other polymeric materials. The voice coil utilizes ultralight edge wound aluminum wire, class-leading neodymium magnets, a 4-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The driver specifies 140 Watts of continuous power handling, with a sensitivity of of 109 dB.
