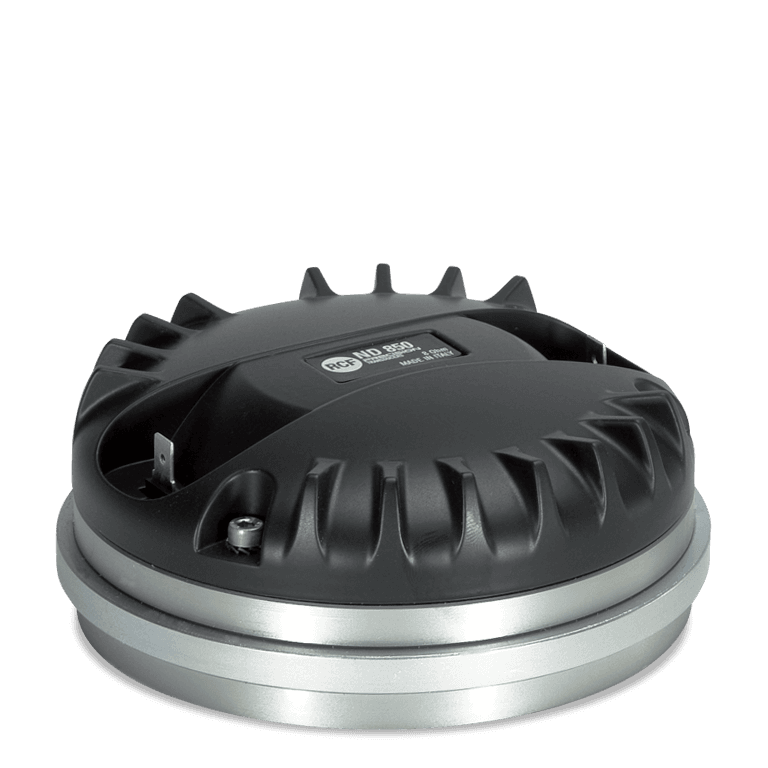

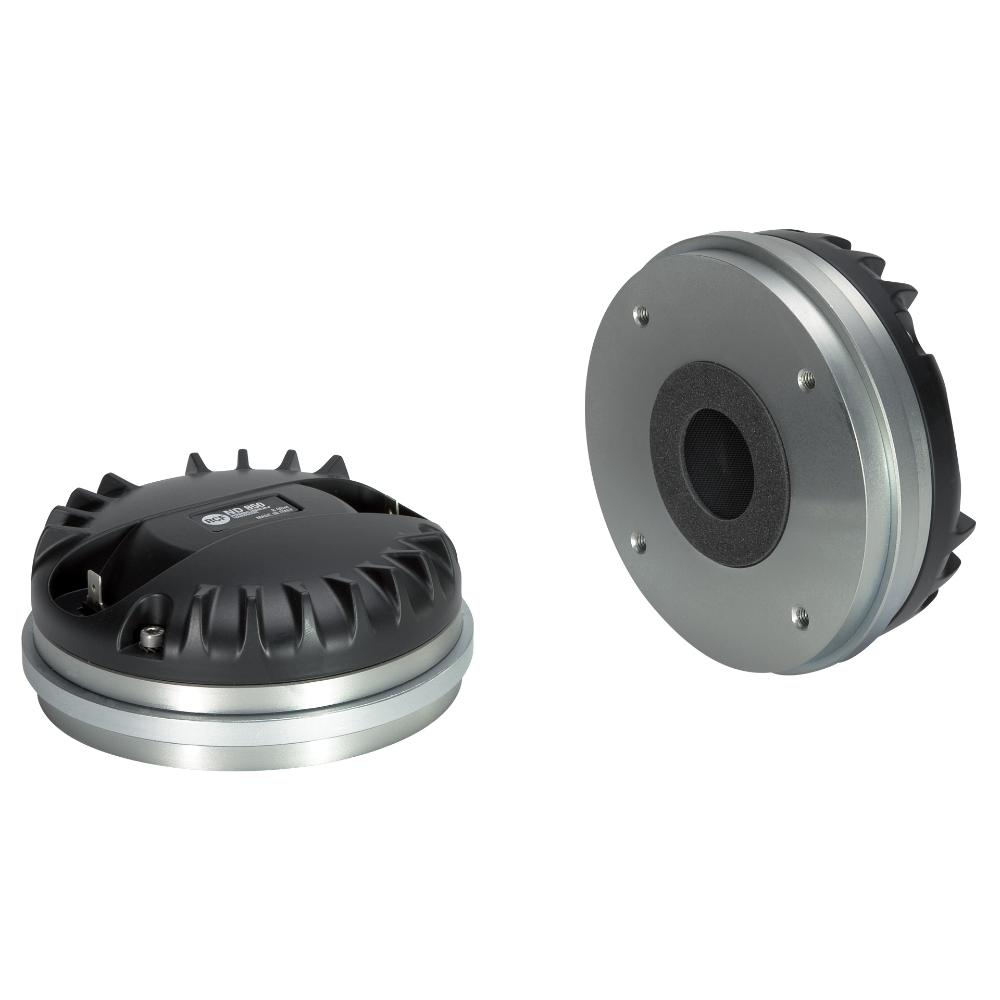

ND858Y 1.4

Features

• 3-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
• 220W continuous program power handling
• Frequency range: 500Hz - 20kHz
• 3-slot optimized geometry phase plug
• Titanium diaphragm
• Copper inductance ring for extended response
• Vented, damped, low distortion suspension system
• Nedymium magnet assembly

The ND858Y 1.4 is a high frequency performance 3-inch diaphragm compression driver with a 1.4-inch exit throat featuring several state of the art technologies. The diaphragm is precision formed from 0.05mm thick pure titanium. The suspension is based on a vented and damped design in order to provide low distortion. Voice coil assembly is designed using high temperature kapton former.
