PRECISION TRANSDUCERS

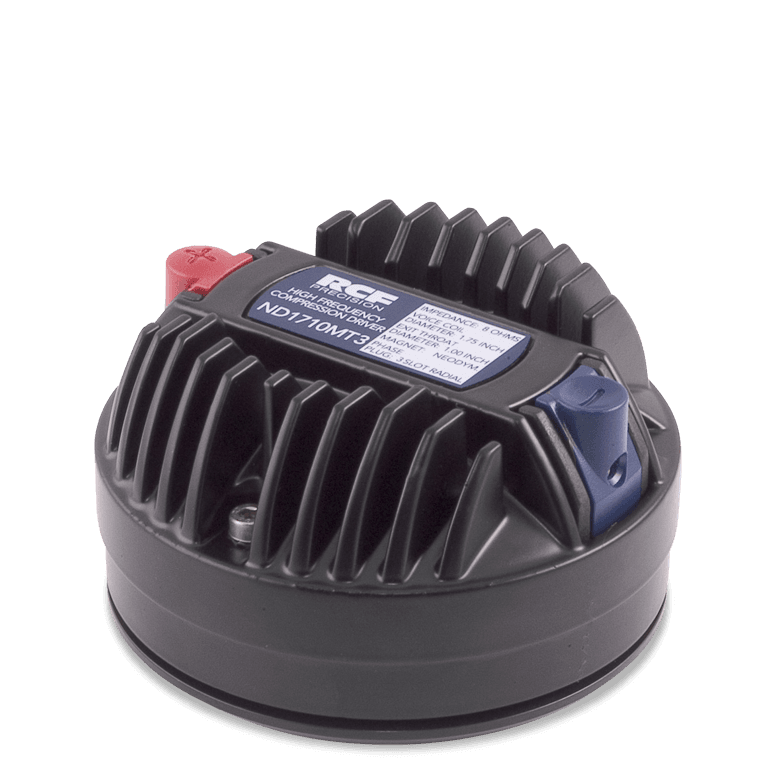

ND1710-MT3

DRIVER

1.75-inch Diaphragm, 1-inch Exit Throat / Pure Titanium Compression Driver
80W continuous program power handling
Frequency range: 1000Hz - 20kHz
3-slot optimized geometry phase plug

Support

Features

1.75-inch Diaphragm, 1-inch Exit Throat / Pure Titanium Compression Driver
80W continuous program power handling
Frequency range: 1000Hz - 20kHz
3-slot optimized geometry phase plug
Aluminium rear cover featuring an advanced vented fin heat dissipation design
Copper inductance ring for extended response
Vented, damped, low distortion suspension system

The ND1710-MT3 is a high performance 1.75-inch diaphragm compression driver with a 1-inch exit throat featuring several state of the art technologies. The diaphragm and suspension are precision formed from 0.025mm thick pure titanium. The suspension is based on a vented mylar design.

ARCHIVED

Part number:

15120017
ND1710-MT3

Specifications

General specifications

Exit Throat Diameter

1.0 inch / 25 mm

Related Impedance

8 ohm

Program Power (watt)

80 W

Power handling capacity

40 W

Sensitivity

109 dB

Frequency range

1000 - 20000 Hz

Diaphragm Material

Pure Titanium

Suspension Material

Mylar

Suspension Design

Radial

Minimum Impedance (ohm)

9.00 ohm

Voice Coil Diameter

1.75 inch / 44 mm

Voice Coil Winding Material

Edgewound Aluminum

Voice Coil Former Design

Straight - Nomex

Number of layers

Kind of layers

outside

Flux Density

2.0 T

Phase Plug Design

3 slot

Phase Plug Material

PP Composite

Magnetics

Neodymium

Voice Coil Demodulation Ring

Copper

Thiele - small parameters

Bl factor (Bl) (T x m)

8.10 T x m

Mounting information

Overall diameter

102 mm / 4.02 inches

Overall height

60 mm / 2.36 inches

Mounting

4 x 5 mm threaded holes at 90°

Standard compliance

Safety agency

CE compliant

Size / Weight

Weight

1.33 kg / 2.93 lbs

Shipping information

Package Height

90 mm / 3.54 inches

Package Width

160 mm / 6.3 inches

Package Depth

160 mm / 6.3 inches

Package Weight

1.46 kg / 3.22 lbs
