ARCHIVED

PRECISION TRANSDUCERS

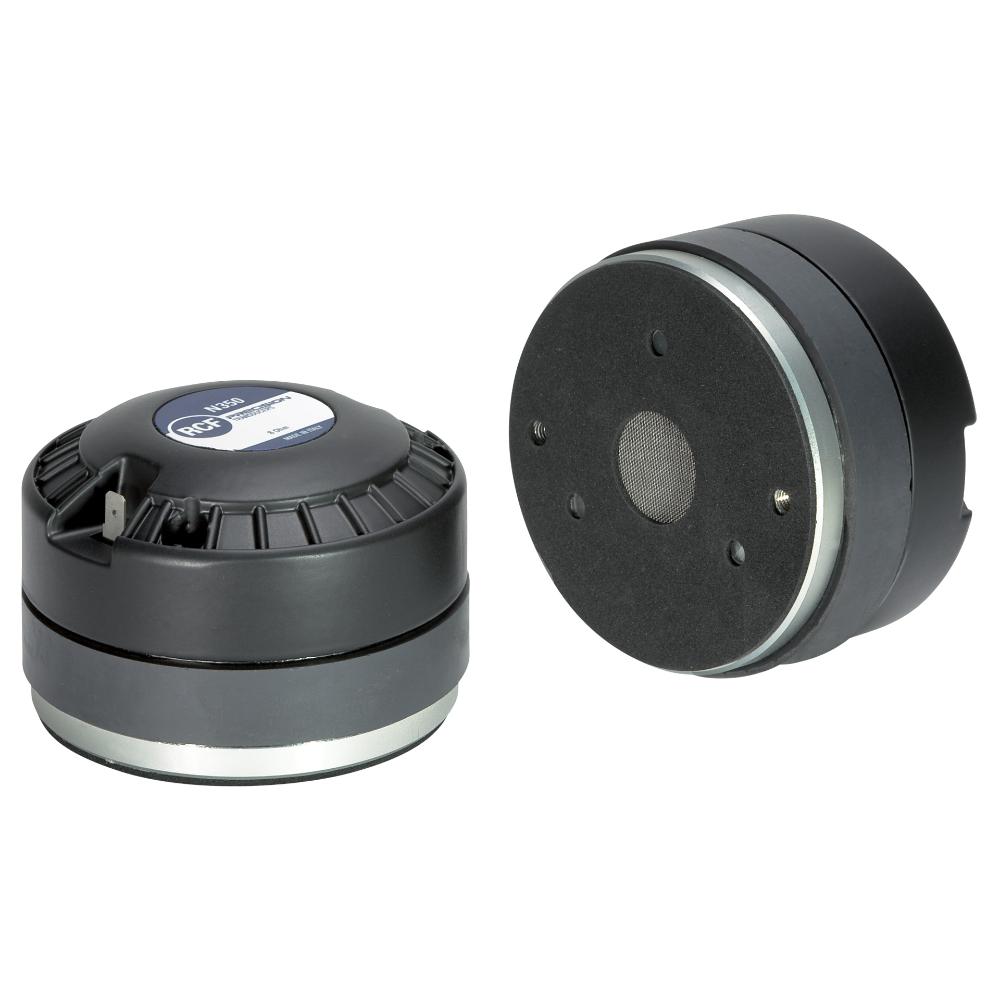

N350

DRIVER

1.75-inch Diaphragm, 1-inch Exit Throat
80W continuous program power handling
Frequency range: 1500Hz - 20kHz
2-slot optimized geometry phase plug

Support

Features

1.75-inch Diaphragm, 1-inch Exit Throat
80W continuous program power handling
Frequency range: 1500Hz - 20kHz
2-slot optimized geometry phase plug
Aluminium rear cover
Vented suspesion system

The N350 features 1.75-inch diaphragm with a 1-inch exit throat. The diaphragm and suspension are precision formed from 0.125mm thick Mylar film. Voice coil assembly is designed using high temperature kapton former, rectangular profile copper clad aluminium wire assembled using advanced specially formulated adhesives.

ARCHIVED

Part number:

15120056
N350
8ohm

Specifications

General specifications

Exit Throat Diameter

1.0 inch / 25 mm

Related Impedance

8 ohm

Program Power (watt)

80 W

Power handling capacity

40 W

Sensitivity

107 dB

Frequency range

1500 - 20000 Hz

Diaphragm Material

Mylar

Suspension Material

Mylar

Suspension Design

Radial

Minimum Impedance (ohm)

8.30 ohm

Voice Coil Diameter

1.75 inch / 44 mm

Voice Coil Winding Material

Edgewound Aluminum

Voice Coil Former Design

Straight - Kapton

Number of layers

Kind of layers

outside

Flux Density

1.4 T

Phase Plug Design

2 slot

Phase Plug Material

PP Composite

Magnetics

Ceramic

Thiele - small parameters

Bl factor (Bl) (T x m)

5.90 T x m

Mounting information

Overall diameter

102 mm / 4.02 inches

Overall height

60 mm / 2.36 inches

Mounting

2 x 6 mm threaded holes at 180°

Standard compliance

Safety agency

CE compliant

Size / Weight

Weight

1.71 kg / 3.77 lbs

Shipping information

Package Height

85 mm / 3.35 inches

Package Width

160 mm / 6.3 inches

Package Depth

155 mm / 6.1 inches

Package Weight

1.83 kg / 4.03 lbs

Downloads

SPECIFICATIONS

SPECSHEET - ENG

PDF

438 KB

19-08-2024

ACOUSTIC MEASUREMENTS

PDF

63 KB

11-07-2024
