ARCHIVED
VOICE ALARM EN54

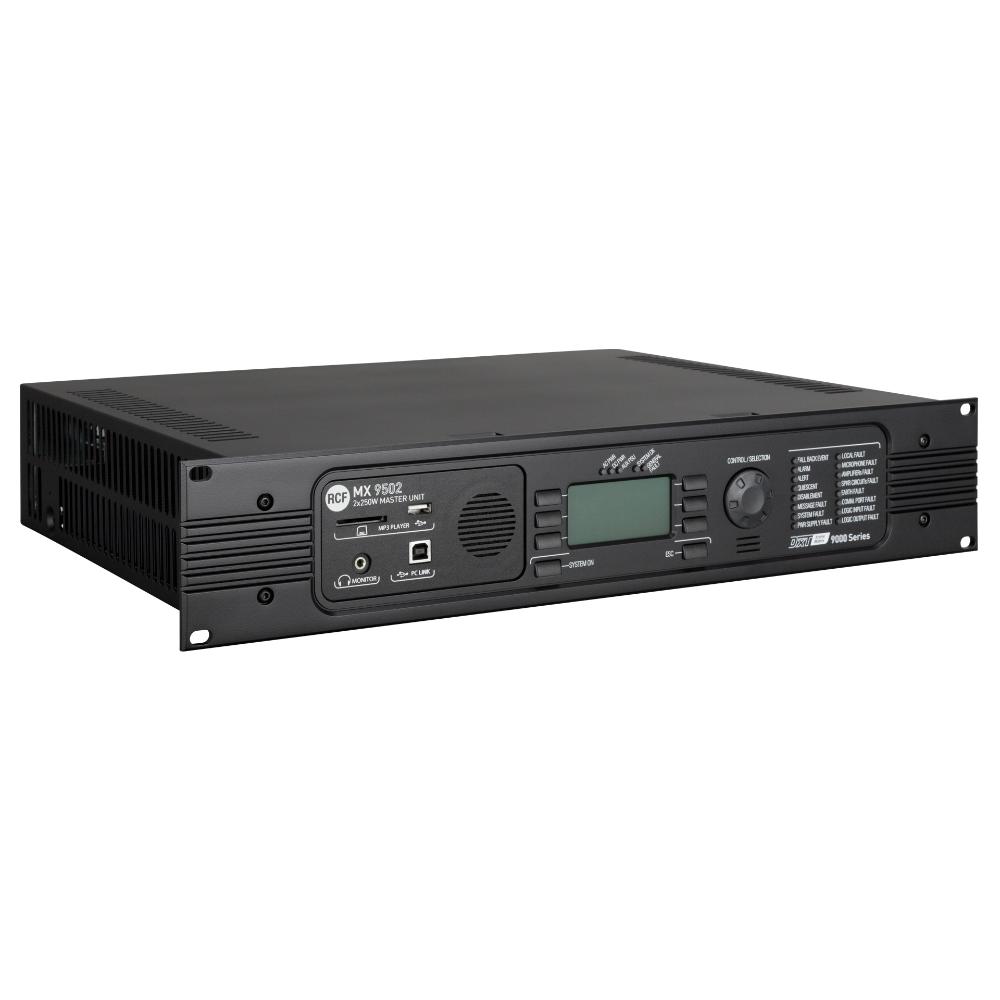

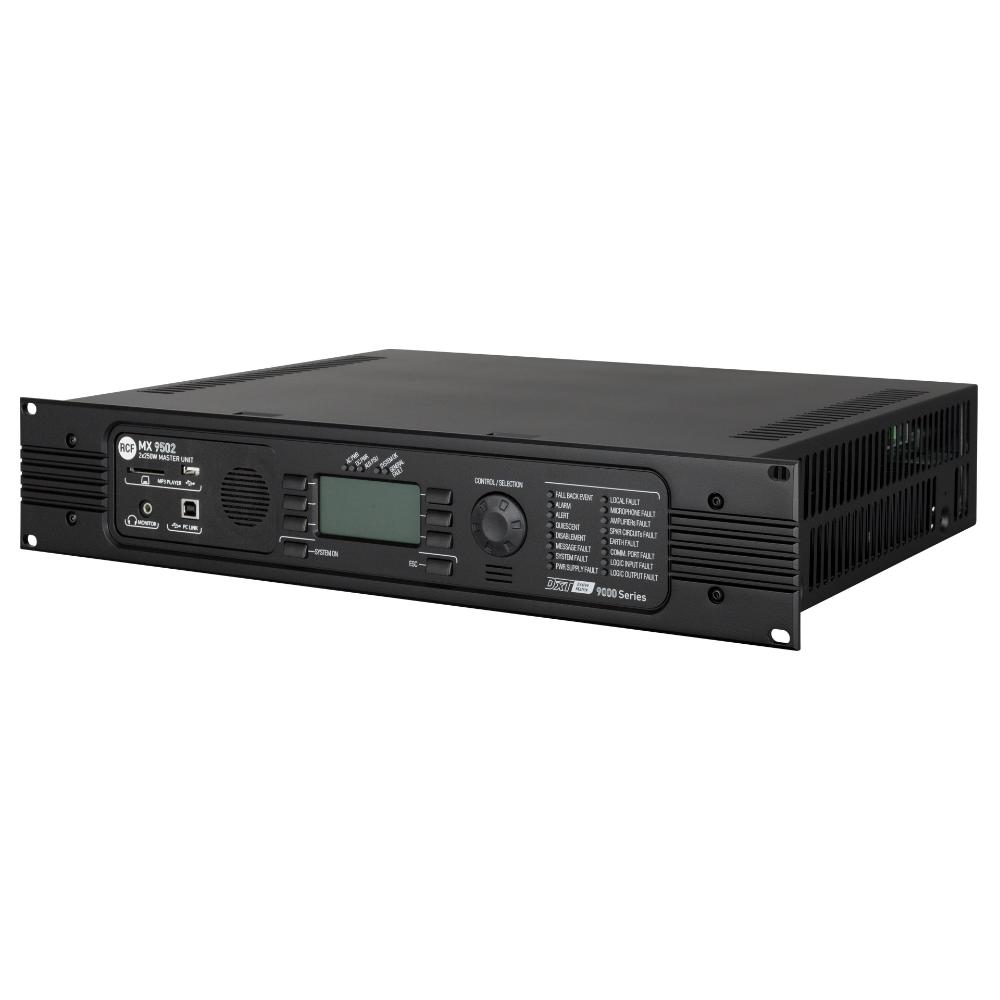

MX 9502
AMPLIFIED MASTER UNIT
- 8 x 6 configurable digital matrix
- Powerful DSP platform on-board
- 2 x 250 W power amplifier
Features
- 8 x 6 configurable digital matrix
- Powerful DSP platform on-board
- Dual AC and DC power supply
- 2 x 250 W power amplifier
- PC software configuration
- Emergency messages on monitored memory
- 12 configurable monitored GPI
- 8 configurable monitored GPO

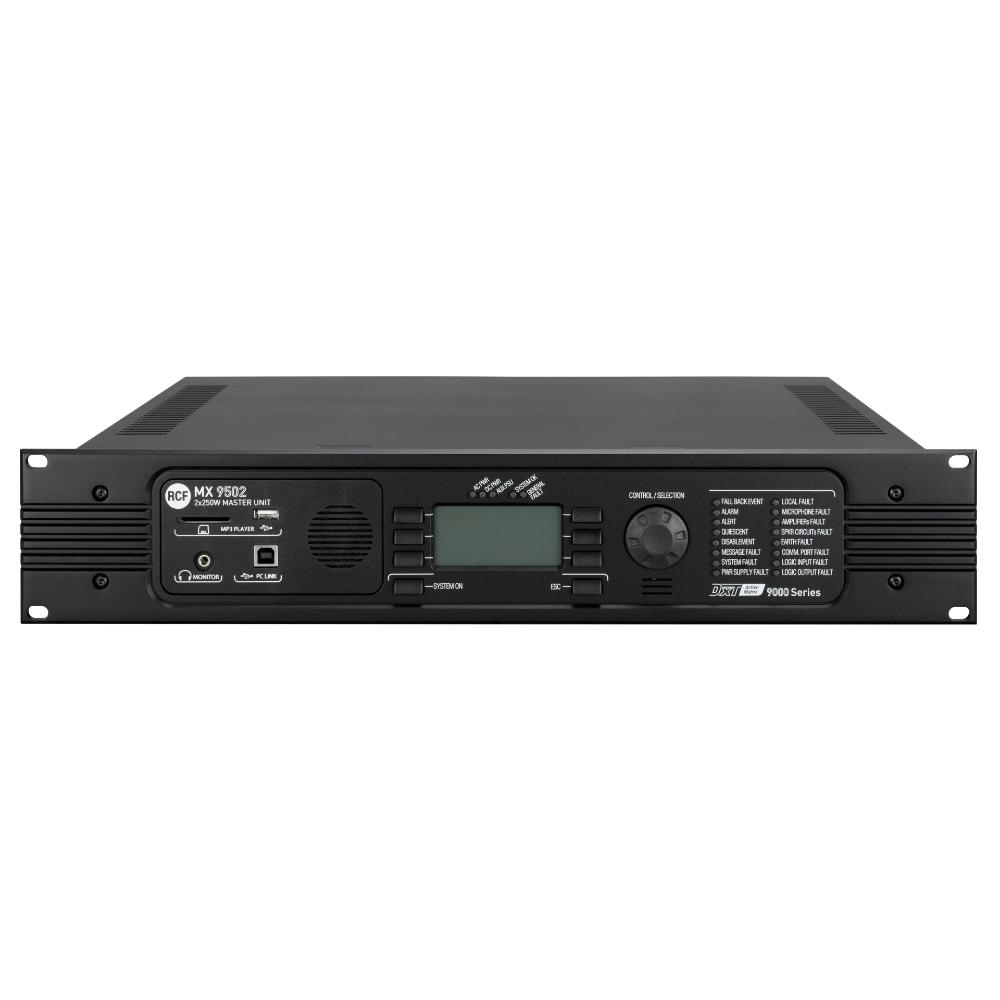

- Front panel HMI
MX 9502 is the DXT 9000 system master unit with 2 x 250 W Class D on-board power amplifier: it shall be used for small and medium applications limited requiring limited output power and number of zones. It can work as indipendent unit or in comination with amplified slave units. The system can be completed with several models of emergency microphone consoles, EN 54-4 power supplies, accessories and management/monitoring software.
ARCHIVED
Part number:
17170174
MX 9502
EAN 8024530010904
Specifications
System specifications
Number of zones managed
126
Built-in power amplifier
Yes
Spare amplifier automatic change-over
Yes
Max number of consoles
32
Number of console buses
2
Number of simultaneous emergency audio channels
4
Number of digital audio channels
4
Max number of units connectable
32
Communication bus
RCF bus
Connection Cables
FTP CAT 5, FTP CAT 6, J-Type fire-rated
Integrated pre-recorded emergency messages
Yes
Integrated pre-recorded routine messages
Yes
Message scheduler
Yes
Remote monitoring
Yes
Protocols for system integration
Open TPC-IP
Amplifier specifications
Amplifier Class
D
Number of channels
2
Output power @ 100 V (W)
500 W RMS
A/B speakers line
Yes
Frequency Response (-3dB)
20 Hz ÷ 20000 kHz
Distortion (THD+N) @ 1 kHz nominal power
<0.01 %
Line ring
Yes
Input section
Total number of inputs
8
Balanced
5
Unbalanced
3
Mono
8
Line inputs
5
Line connectors
Euroblock, RCA
Mic+Line inputs
1
Mic+Line connectors
Euroblock
Mic+Line Phantom
24 V DC
VOX
Yes
Paging inputs
2
Paging connectors
RJ45
Paging command
Serial
Paging emergency
Yes
General Purpose Inputs (GPI)
12
Programmable GPI
Yes
Monitored GPI
8
Photo-coupled GPI
4

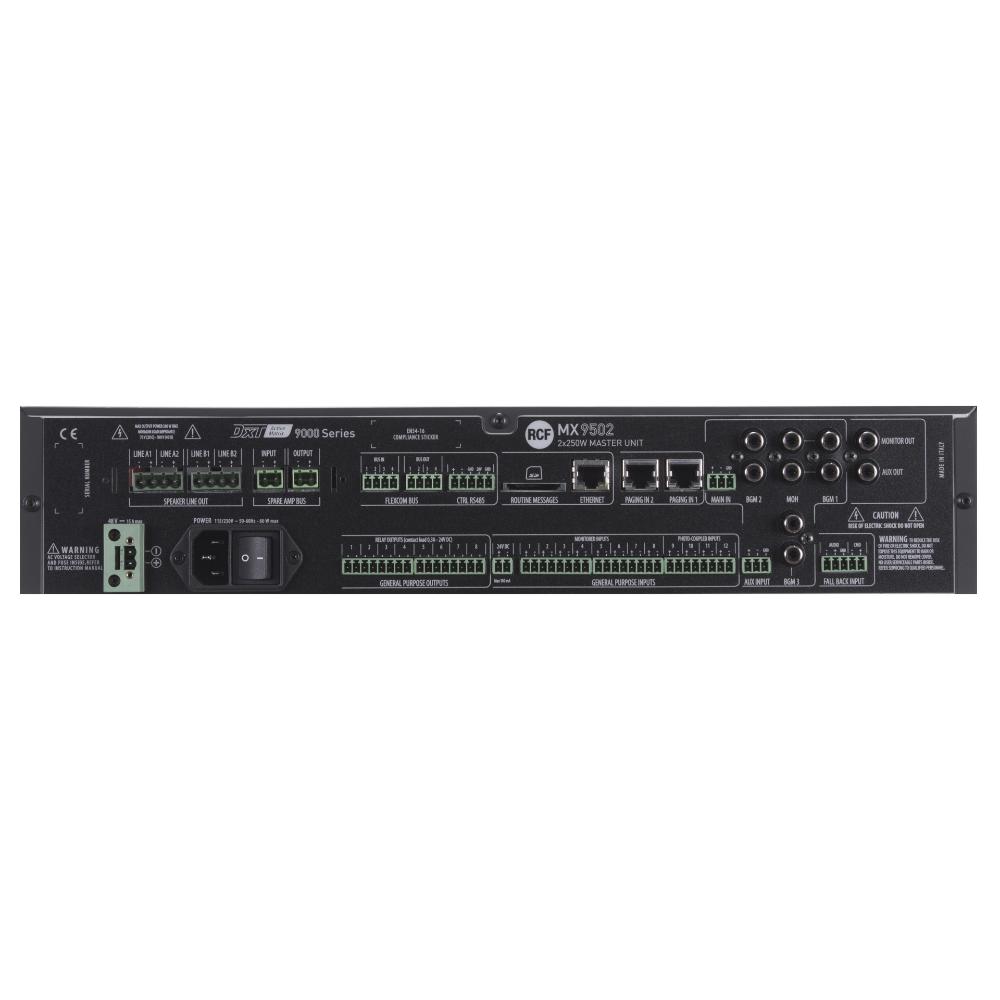

Output section
Signal output number
4
Signal output connectors
JACK, RCA
Power output lines
2
General Purpose Outputs (GPO)
8
Programmable GPO
Yes
Monitored GPO
8
Processing
DSP
Yes
EQ Filters
Yes
Compressors
Yes
Tone controls
Yes
High-pass filter
200 Hz
Automatic gain control
Yes
Controls
Configuration
Ethernet, Front panel, PC Software
Number of programs/presets
64
Priority
Yes
Music on hold
Yes
Chime tone
Yes
Protections
Cooling
Convection/Forced
Short circuit
Yes
Thermal
Yes
DC
Yes
Fuses
Yes
VHF (Very High Frequencies)
Yes
Audio sources
USB pen drives
Yes
SD card
Yes
Power requirement
Operating voltage
220-240/115 V~ 50/60Hz
Voltage selection
Internal
DC power
Yes
DC power value
48 V
Max current AC
4
Max current DC
15
Power consumption (MAX)
800 W
Standard compliance
Safety agency
CE compliant
EN54-16 certified
Yes
CPR number
0068-CPR-002/2014
Physical specifications
Cabinet/Case Material
Metal
Rack mounting
19", 2U
Size / Weight
Height
88 mm / 3.46 inches
Width
482 mm / 18.98 inches
Depth
350 mm / 13.78 inches
Weight
8 kg / 17.64 lbs
Shipping information
Package Height
204 mm / 8.03 inches
Package Width
549 mm / 21.61 inches
Package Depth
474 mm / 18.66 inches
Package Weight
8 kg / 17.64 lbs
