VOICE ALARM EN54

MT 7308

POWER AMPLIFIERS MANAGER
  • Manages up to 8 power amplifiers
  • 500 W maximum power of each amplifier
  • Up to 8 zones managed
  • PC software configuration
Where to buy
Features Specifications Accessories Downloads
Where to buy
Features
  • Manages up to 8 power amplifiers
  • 500 W maximum power of each amplifier
  • Up to 8 zones managed
  • PC software configuration

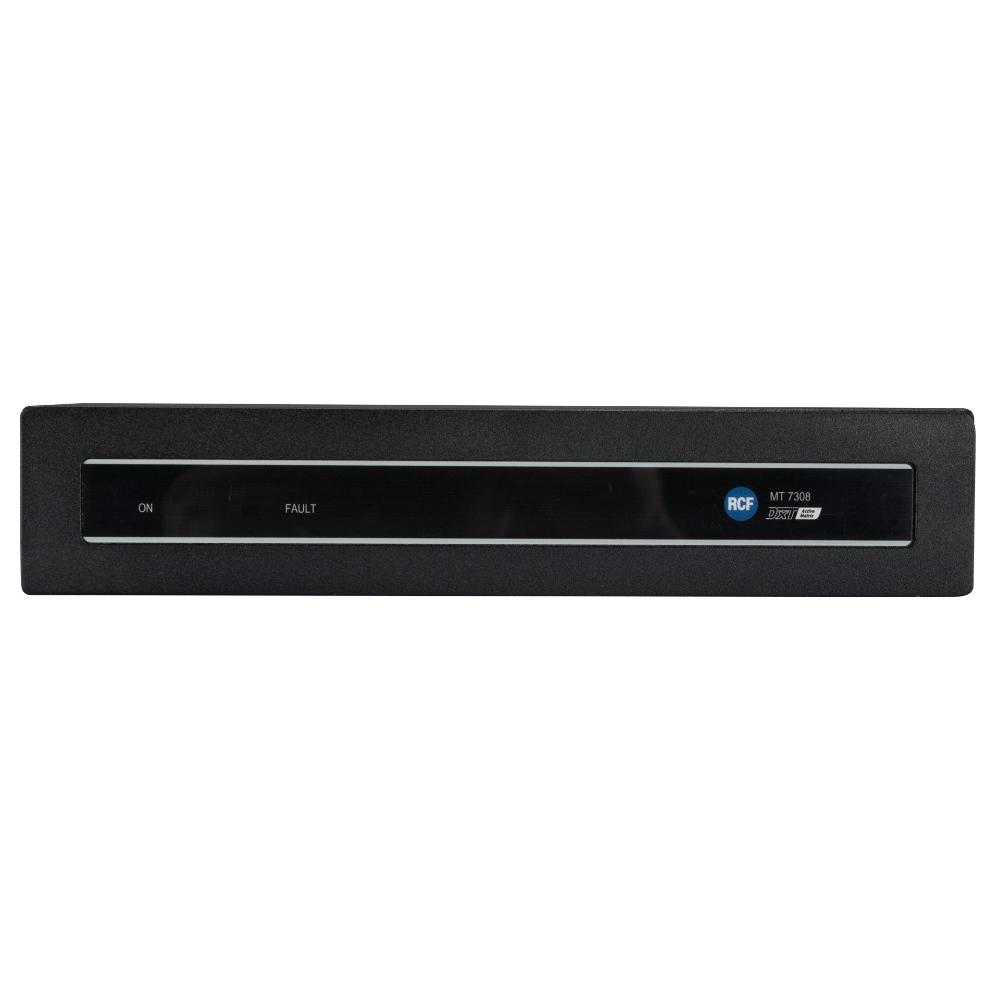

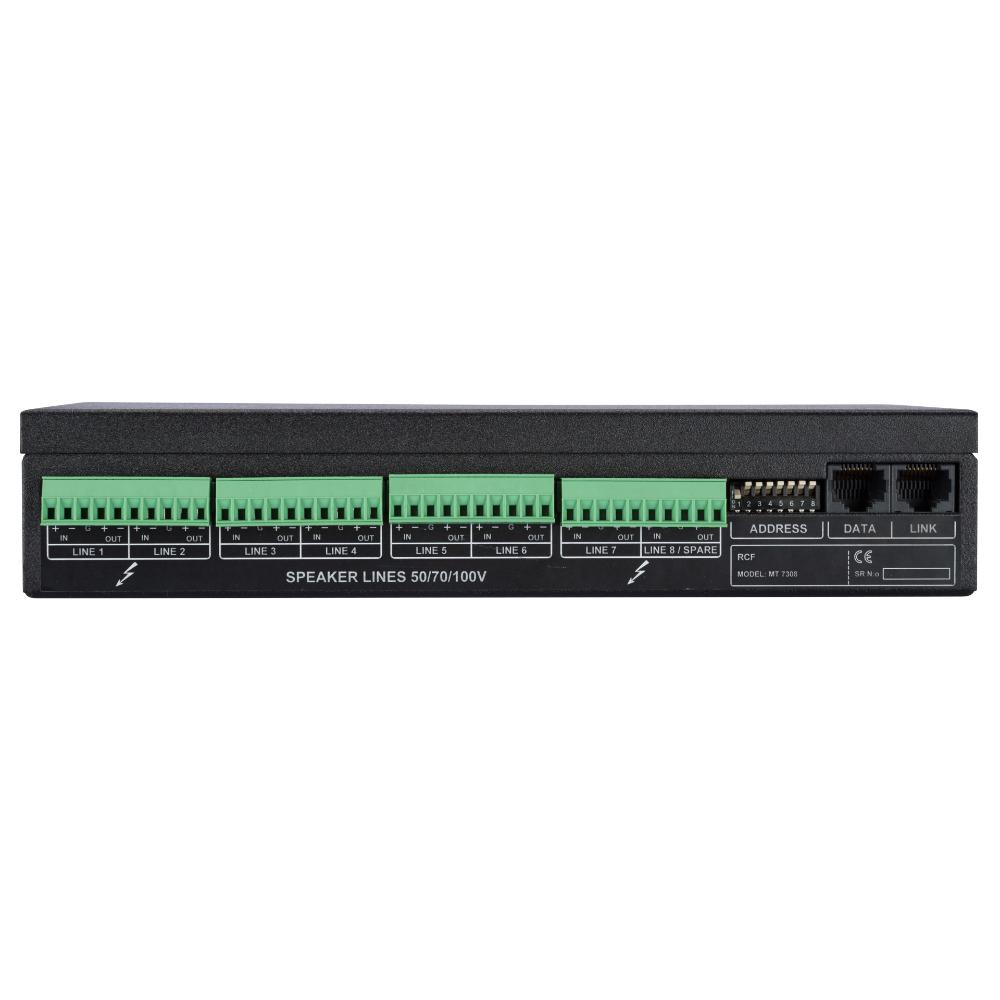

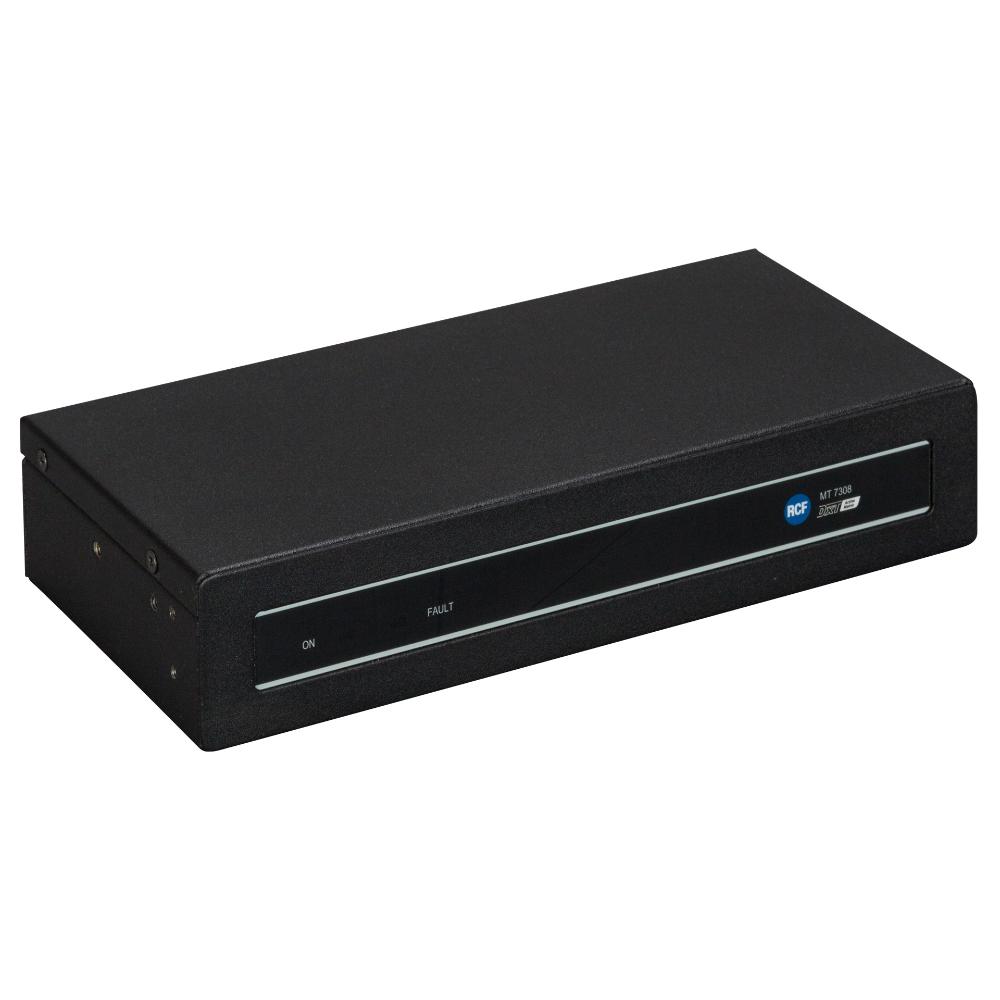

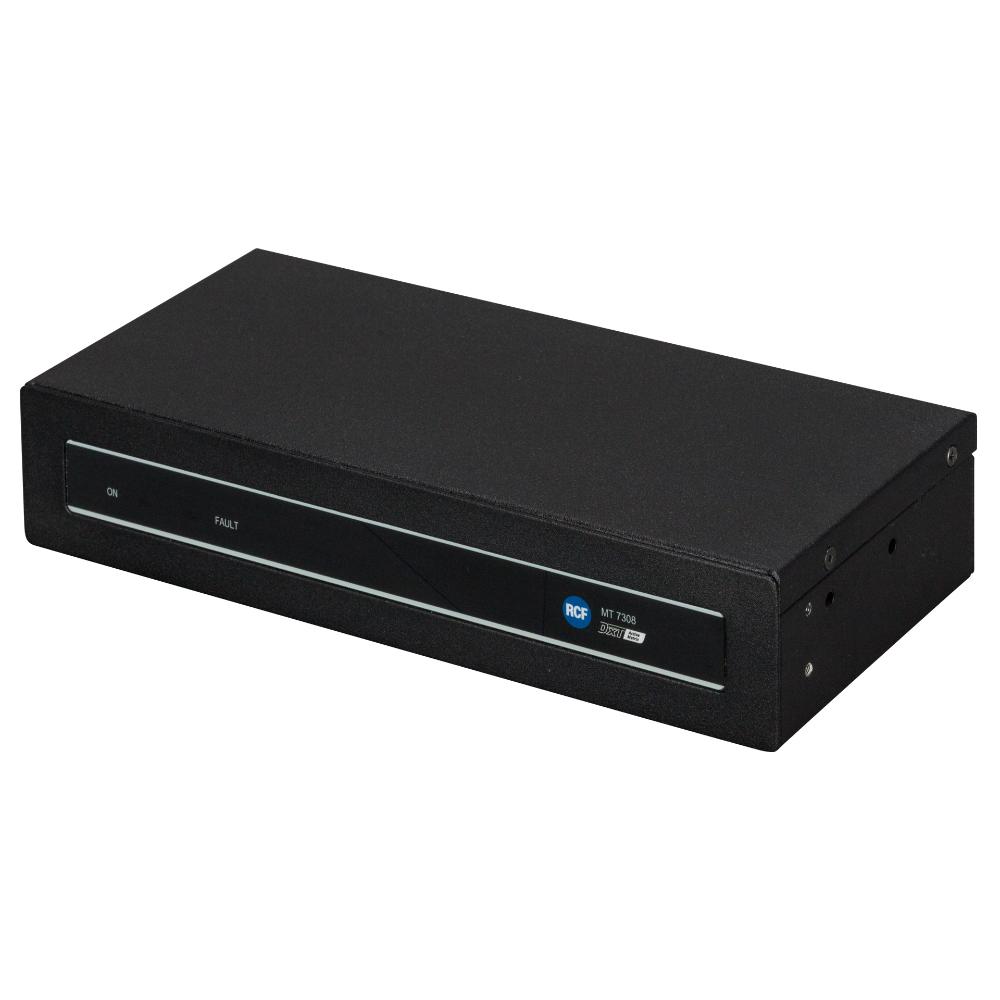

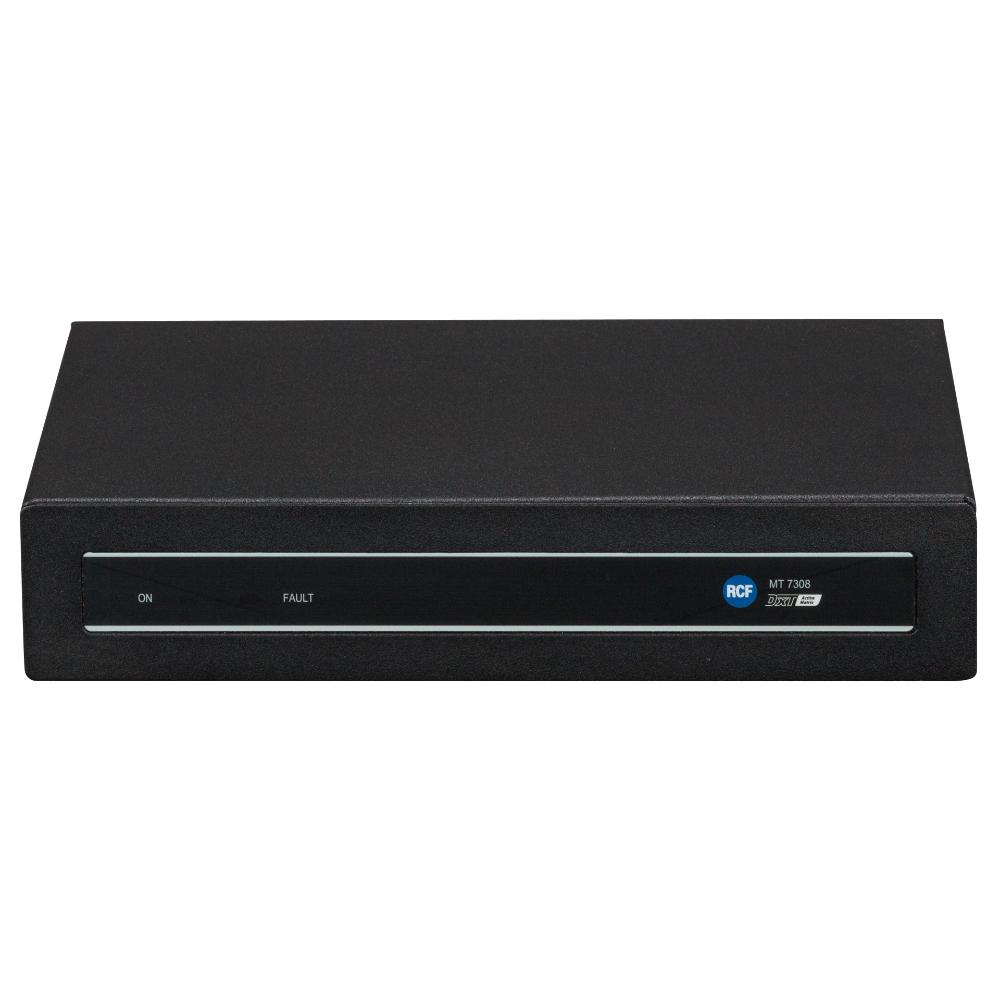

MT 7308 is a power amplifiers manager unit of the DXT 7000 Voice Alarm system, suitable to control up to 8 additional power amplifiers and several speaker lines, according to EN 54-16 norm. It works connected to the MU 7100EN master unit. When speaker lines drive high power loads, it could be convenient to optimize the system configuration by using one or more dedicated power amplifiers dimensioned according the loads involved.

Part number:

17170159
MT 7308
EAN 8024530007225

Specifications
General specifications
Number of zones managed:
8
Max number of units connectable:
2 (for each MU 7100EN)
Max power of each external amplifier:
500 W RMS
Spare amplifier automatic change-over:
Yes
Communication bus:
Serial
Connection cables:
FTP CAT 5, FTP CAT 6
Output lines connectors:
Euroblock
Configuration
PC software
Standard compliance
Safety agency
CE compliant
EN54-16 certified
Yes
CPR number
1438-CPR-0241
Physical specifications
Cabinet/Case Material
Metal
Rack mounting
1/2 19", 1U , Optional rack mounting accessory required
Size / Weight
Height
44 mm / 1.73 inches
Width
215 mm / 8.46 inches
Weight
0.98 kg / 2.16 lbs
Shipping information
Package Weight
0.98 kg / 2.16 lbs
Accessories
Downloads
MANUALS
USER MANUAL
PDF
1 MB
30-03-2022
SPECIFICATIONS
SPECSHEET - DEU
PDF
655 KB
18-10-2024
SPECSHEET - ENG
PDF
649 KB
18-10-2024
SPECSHEET - FRA
PDF
655 KB
18-10-2024
SPECSHEET - ITA
PDF
650 KB
18-10-2024
SPECSHEET - SPA
PDF
652 KB
18-10-2024
STANDARD COMPLIANCES
CE DECLARATION OF CONFORMITY - ENG
PDF
453 KB
21-12-2021
DECLARATION OF PERFORMANCE - ITA
PDF
1.2 MB
28-08-2023
DECLARATION OF PERFORMANCES - ENG
PDF
1.2 MB
28-08-2023
CPR Certificate
PDF
848 KB
22-07-2020
DRAWINGS
LINE ART 2D
PDF
337 KB
02-07-2024
