COMMERCIAL AUDIO BUSINESS MUSIC

MR 50

PAIR OF TWO-WAY SPEAKERS
  • 60 W (8 ohm) power handling
  • 110 dB max SPL
  • IP 55 protection grade
  • Colour black RAL 9005 and white RAL 9003
IP55
Where to buy
Features Specifications Accessories Related products Downloads
Where to buy
Features
  • 60 W (8 ohm) power handling
  • 110 dB max SPL
  • 60 ÷ 20000 Hz frequency range
  • 110° x 100° coverage angles
  • 1 x 5" woofer (1’’ v.c.)
  • 1 x 1" dome tweeter (0.8’’ v.c.) neodymium magnet
  • Colour black RAL 9005 and white RAL 9003
  • IP 55 protection grade
  • Swivel wall mount accessory included
  • 4 pole EUROBLOCK connector

MR 50 is a bass-reflex two-way speaker designed to deliver uncompromised audio performance and high reliability in fixed installations. Blend in with any environment and deliver deep bass, smooth midrange, and finely-detailed high-frequency response. Quality components and careful acoustic design make MR 50 the perfect speaker for listening in the most demanding applications. Suitable for indoor and outdoor installation.

Part number:

13100038
MR 50
Black - RAL 9005, EAN 8024530017187

13100040
MR 50 W
White - RAL 9003, EAN 8024530017293

Responsive Image

Versatile sound

Elegant and discreet design, combined with an excellent audio performance, represent the RCF sound. MR speakers are ideal both for speech and music reproduction in any business and A/V application and deliver deep bass, smooth midrange, and finely-detailed high-frequency response.

Smooth installation

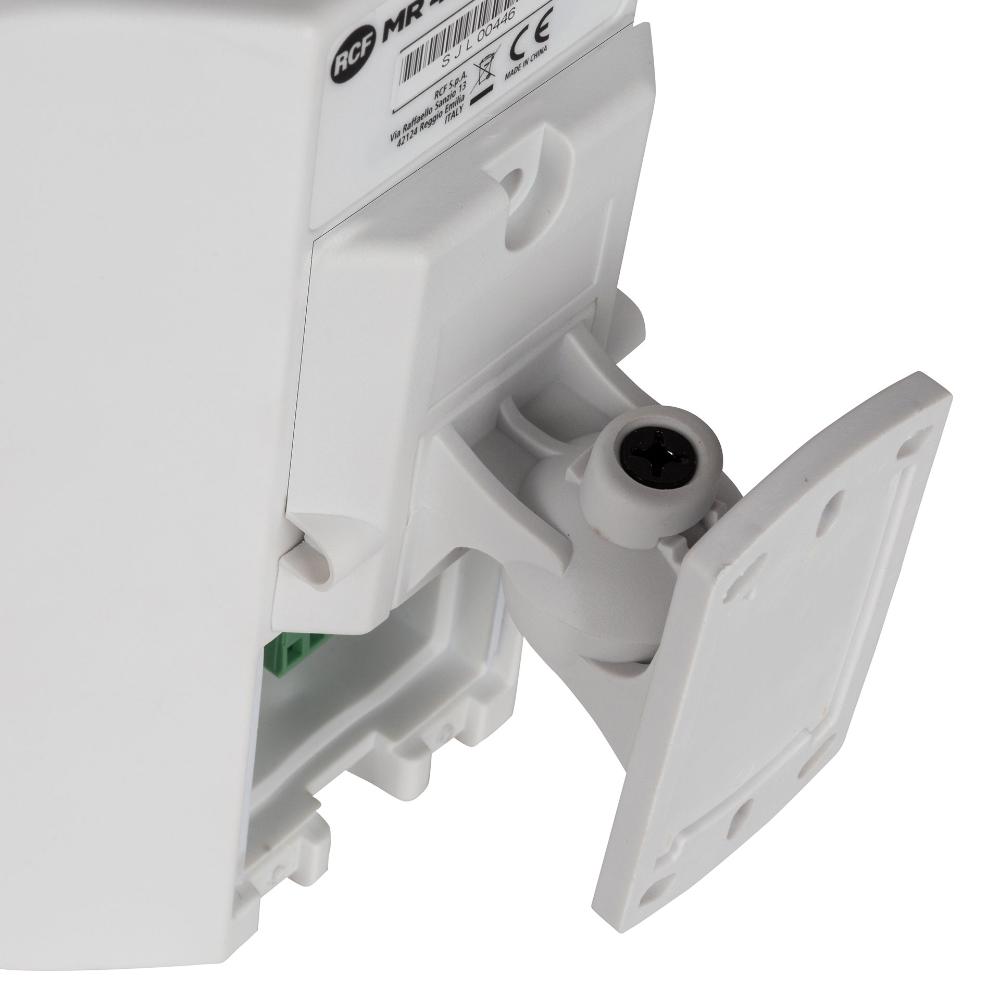

Housed in a robust plastic cabinet, the MR series delivers uncompromising audio performance and reliability in fixed installations where the speakers would blend into any environment. MR speakers are easy to install, with included and optional accessories to increase installation flexibility for wall mounting.
(the accessory shown in the picture is not included)
Responsive Image
Responsive Image

Uncompromised performance

Quality components and careful acoustic design make the MR series a perfect choice for applications such as speech and music reproduction in all A/V applications. Designed for easy installation into bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls or audio monitoring facilities.

All models use purpose-designed 1” voice coil woofers and 0.8” voice coil dome tweeters, combined with RCF Low Inductance Compensated Crossover (LICC) to assure exceptional audio performance and long-term reliability.
Specifications
Acoustical specifications
Frequency Response (-10dB)
60 Hz ÷ 20000 Hz
Max SPL @ 1m
110 dB
Horizontal coverage angle
110°
Vertical coverage angle
100°
Directivity index Q
7
System Sensitivity
87 dB
Power section
Nominal Impedance
8 ohm
Power Handling
60 W
Peak Power Handling
240 W PEAK
Protections
Bulb lamp
Crossover Frequencies
3000 Hz
Recommended Amplifiers
DMA 504, DMA 162, DMA 82, DMA 162P
Transducers
Dome Tweeter
1 x 1.0'' neo, 0.8'' v.c
Woofer
1 x 5.0'', 1.0'' v.c
Input/Output section
Input connectors
Euroblock
Output connectors
Euroblock
Standard compliance
IP protection grade
IP 55
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Hardware
Wall mount bracket
Grille
Aluminium
Color
Black - RAL 9005, White - RAL 9003
Size / Weight
Height
270 mm / 10.63 inches
Width
187 mm / 7.36 inches
Depth
167 mm / 6.57 inches
Weight
3.8 kg / 8.38 lbs
Shipping information
Package Height
370 mm / 14.57 inches
Package Width
510 mm / 20.08 inches
Package Depth
250 mm / 9.84 inches
Package Weight
8.5 kg / 18.74 lbs
