COMMERCIAL AUDIO BUSINESS MUSIC

MR 40

PAIR OF TWO-WAY SPEAKERS
  • 40 W (8 ohm) power handling
  • 108 dB max SPL
  • IP 55 protection grade
  • Colour black RAL 9005 and white RAL 9003
IP55
Where to buy
Features Specifications Accessories Related products Downloads
Where to buy
Features
  • 40 W (8 ohm) power handling
  • 108 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 110° x 100° coverage angles
  • 1 x 4" woofer (1’’ v.c.)
  • 1 x 1" dome tweeter (0.8’’ v.c.) neodymium magnet
  • Colour black RAL 9005 and white RAL 9003
  • IP 55 protection grade
  • Swivel Wall mount accessory included
  • 4 pole EUROBLOCK connector

MR 40 is a bass-reflex two-way speaker designed to deliver uncompromised audio performance and high reliability in fixed installations. Blend in with any environment and deliver deep bass, smooth midrange, and finely-detailed high-frequency response. Quality components and careful acoustic design make the MR 40 the perfect speaker for listening in demanding applications. Suitable for indoor and outdoor installation.

Part number:

13100034
MR 40
Black - RAL 9005, EAN 8024530017255

13100036
MR 40 W
White - RAL 9003, EAN 8024530017194

Responsive Image

Versatile sound

Elegant and discreet design, combined with an excellent audio performance, represent the RCF sound. MR speakers are ideal both for speech and music reproduction in any business and A/V application and deliver deep bass, smooth midrange, and finely-detailed high-frequency response.

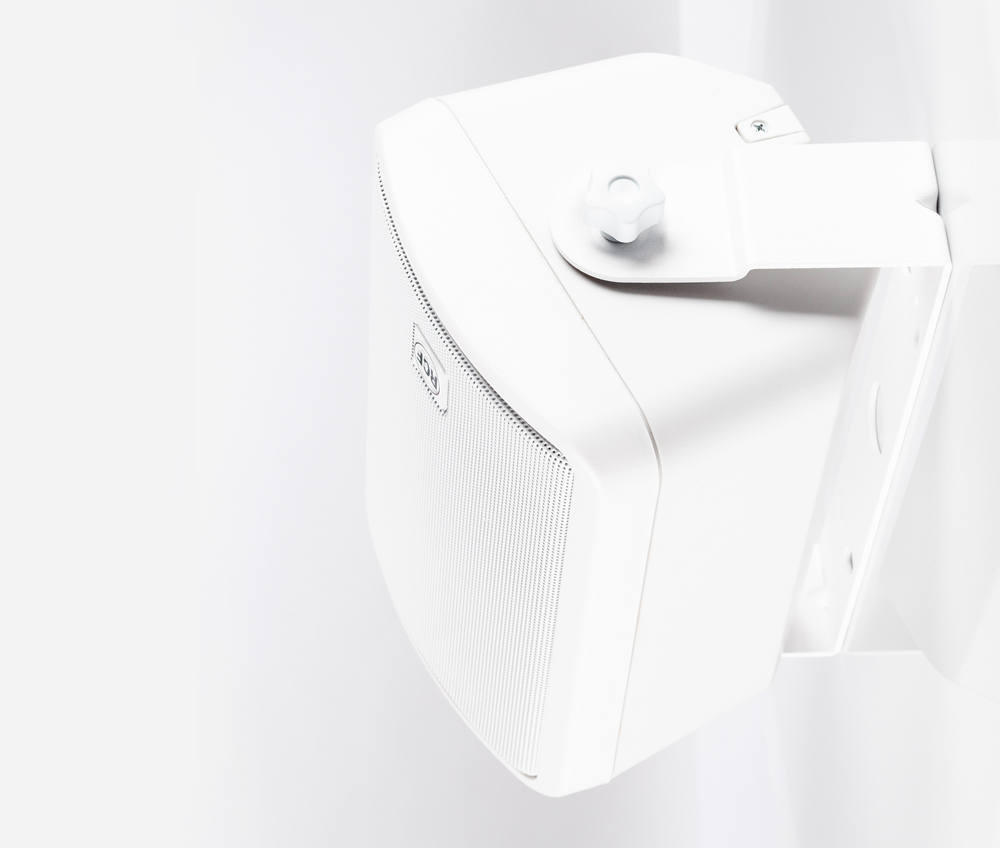

Smooth installation

Housed in a robust plastic cabinet, the MR series delivers uncompromising audio performance and reliability in fixed installations where the speakers would blend into any environment. MR speakers are easy to install, with included and optional accessories to increase installation flexibility for wall mounting.
(the accessory shown in the picture is not included)
Responsive Image
Responsive Image

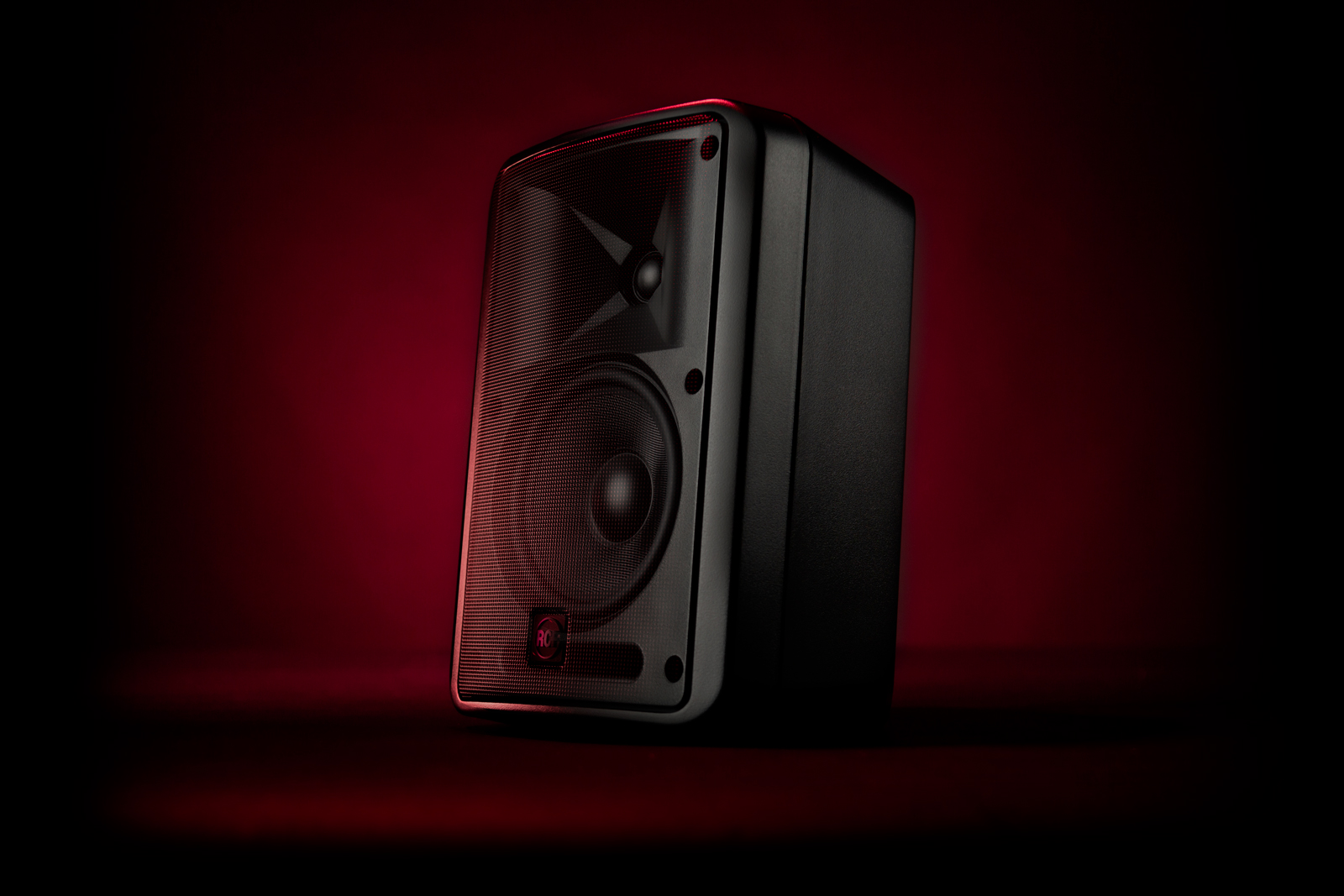

Uncompromised performance

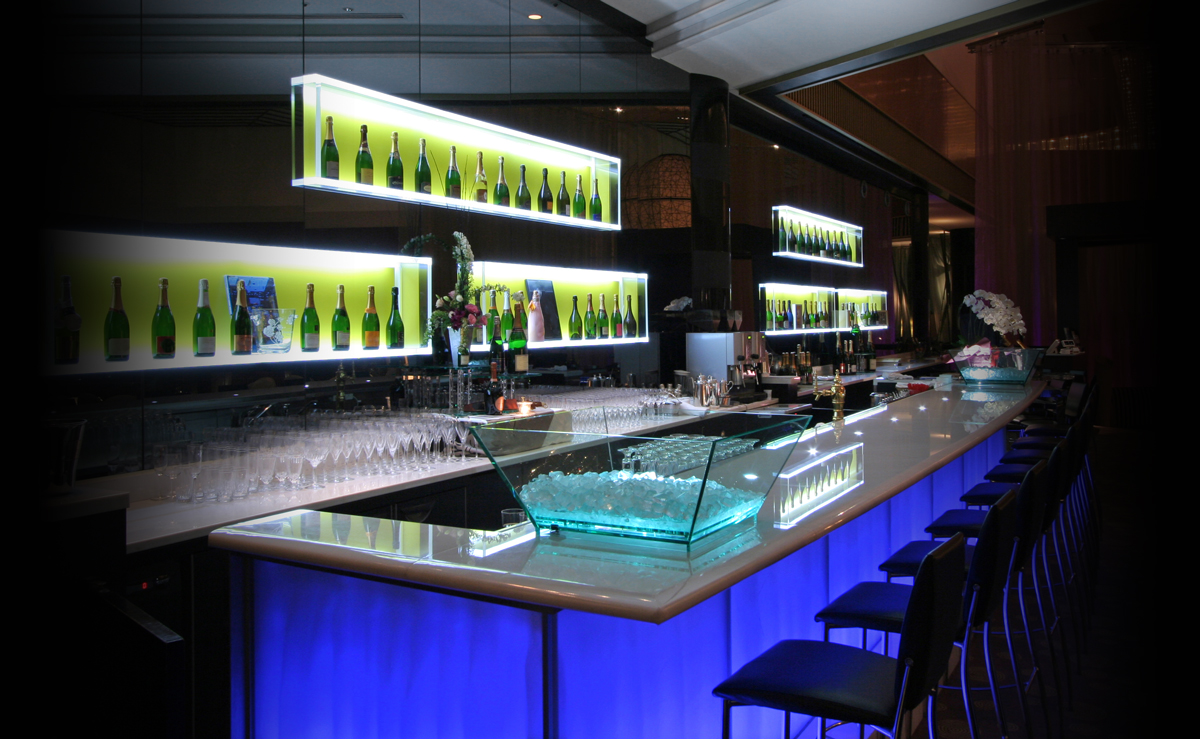

Quality components and careful acoustic design make the MR series a perfect choice for applications such as speech and music reproduction in all A/V applications. Designed for easy installation into bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls or audio monitoring facilities.

All models use purpose-designed 1” voice coil woofers and 0.8” voice coil dome tweeters, combined with RCF Low Inductance Compensated Crossover (LICC) to assure exceptional audio performance and long-term reliability.
Specifications
Acoustical specifications
Frequency Response (-10dB)
70 Hz ÷ 20000 Hz
Max SPL @ 1m
108 dB
Horizontal coverage angle
110°
Vertical coverage angle
100°
Directivity index Q
7
System Sensitivity
86 dB
Power section
Nominal Impedance
8 ohm
Power Handling
40 W
Peak Power Handling
160 W PEAK
Protections
Bulb lamp
Crossover Frequencies
3000 Hz
Recommended Amplifiers
DMA 504, DMA 162, DMA 82, DMA 162P
Transducers
Dome Tweeter
1 x 1.0'' neo, 0.8'' v.c
Woofer
1 x 4.0'', 1.0'' v.c
Input/Output section
Input connectors
Euroblock
Output connectors
Euroblock
Standard compliance
IP protection grade
IP 55
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Hardware
Wall mount bracket
Grille
Aluminium
Color
Black - RAL 9005, White - RAL 9003
Size / Weight
Height
216 mm / 8.5 inches
Width
154 mm / 6.06 inches
Depth
135 mm / 5.31 inches
Weight
2.2 kg / 4.85 lbs
Shipping information
Package Height
285 mm / 11.22 inches
Package Width
400 mm / 15.75 inches
Package Depth
235 mm / 9.25 inches
Package Weight
5.3 kg / 11.68 lbs
Accessories
Related products
Downloads
MANUALS
USER MANUAL
PDF
725 KB
08-10-2020
SPECIFICATIONS
SPECSHEET - DEU
PDF
1 MB
18-10-2024
SPECSHEET - ENG
PDF
1 MB
18-10-2024
SPECSHEET - FRA
PDF
1 MB
18-10-2024
SPECSHEET - ITA
PDF
1 MB
18-10-2024
SPECSHEET - SPA
PDF
1 MB
18-10-2024
ARCHITECTURAL SPECIFICATIONS - ENG
TXT
2 KB
08-10-2024
ACOUSTIC MEASUREMENTS
PDF
548 KB
11-07-2024
STANDARD COMPLIANCES
CE DECLARATION OF CONFORMITY - ENG
PDF
182 KB
13-10-2022
UKCA DECLARATION OF CONFORMITY - ENG
PDF
202 KB
13-10-2022
DRAWINGS
LINE ART 2D
DXF
1.1 MB
22-01-2024
LINE ART 2D
PDF
237 KB
22-01-2024
LINE ART 2D
PDF
381 KB
09-07-2024
LINE ART 3D
DXF
732 KB
22-01-2024
SOFTWARE
GLL
ZIP
753 KB
11-05-2021
