PRECISION TRANSDUCERS

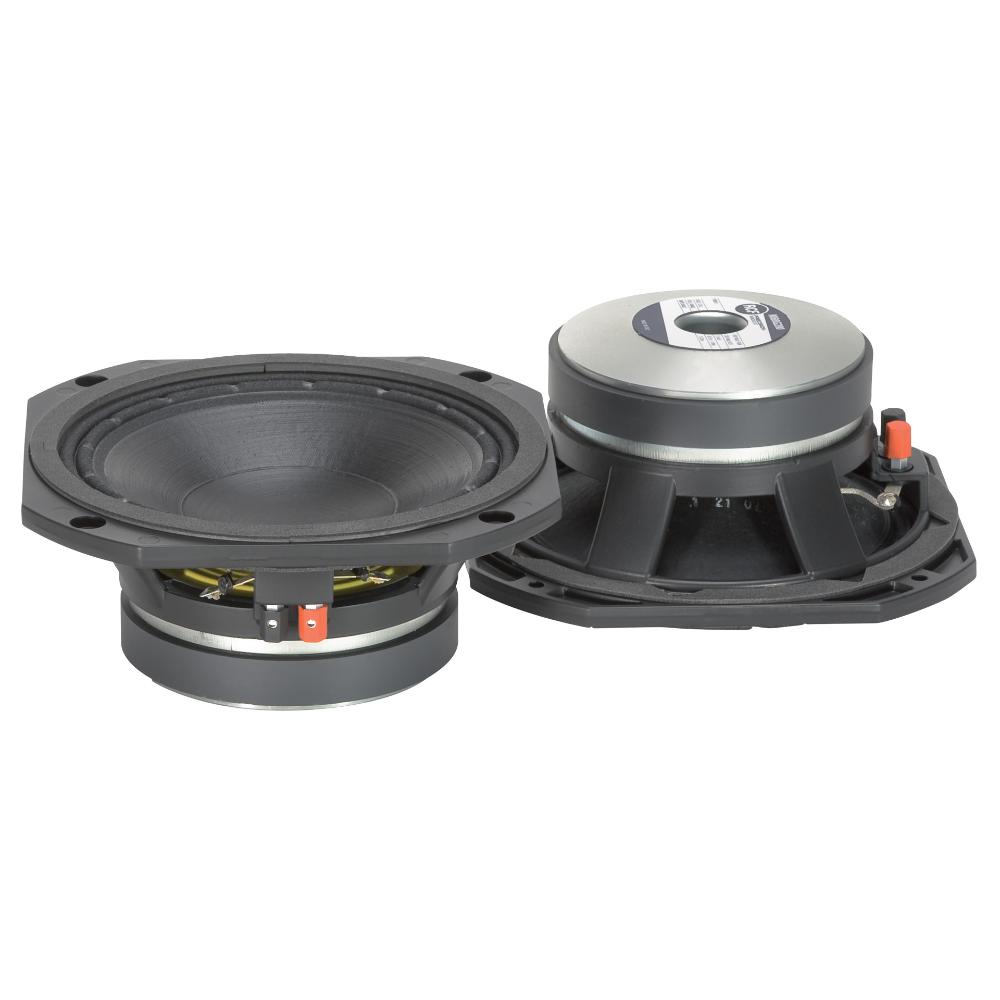

MB8G200

MID-BASS

2-inch, fiberglass former, copper voice coil
400W continuous program power handling
94 dB Sensitivity
60 Hz – 4 kHz Frequency range

Support

Features

2-inch, fiberglass former, copper voice coil
400W continuous program power handling
94 dB Sensitivity
60 Hz – 4 kHz Frequency range
M-roll damped surround

The MB8G200 is a professioanl mid-bass woofer featuring very high output and dynamics. The equipment, used a 22 coil, fiberglass former and copper inside / outside winding, has enable a very good transient peak response and has allowed good extension on mid-high frequencies. A specially designed M-roll surround guarantee a very low midrange distortion and perfect damping of the spurius resonances. Inverted dust cap for minimum cone break-up.

ARCHIVED

Part number:

11100018
MB8G200

Specifications

General specifications

Nominal Diameter

8 inch / 203 mm

Rated Impedance

8 ohm

Program Power (watt)

400 W

Power handling capacity

200 W

Sensitivity

94.0 dB

Frequency range

60 - 4000 Hz

Effective piston diameter

165 mm / 6.5 inch

Max. Excursion Before Damage

30 mm / 1.18 inch

Minimum Impedance (ohm)

6.2 ohm

Voice Coil Diameter

2.0 inch / 51 mm

Voice Coil Winding Material

Copper

Voice Coil Length

16 mm / 0.63 inch

Number of layers

Kind of layers

outside

Top Plate Thickness

8 mm / 0.31 inch

Cone Design

Curved

Surround Material

Polycotton

Surround Design

M-roll

Magnets

Ceramic

Spider

Thiele - small parameters

Resonance frequency (Fs)

76 Hz

DC resistance (Re) (ohm)

4.80 ohm

Mechanical factor

3.70 Qms

Electrical factor

0.37 Qes

Total factor

0.33 Qts

Bl factor (Bl) (T x m)

12.50 T x m

Effective moving mass (Mms)

25.0 g

Equivalent Cas air loaded (Vas)

11.0 liters

Effective piston area (Sd)

0.020 m2

Max. linear excursion (Xmax)

6 mm

Voice coil inductance @ 1kHz (Le1k)

1.40 mH

Half-space efficency (Eff)

1.26%

Mounting information

Overall diameter

239 mm / 9.41 inches

Bolt circle diameter

221 mm / 8.7 inch

Bolt hole diameter

7 mm / 0.28 inch

Front mount baffle cut-out

184 mm / 7.24 inch

Rear mount baffle cut-out

184 mm / 7.24 inch

Volume occupied by the driver

0.8 liters / 0.03 ft3

Standard compliance

Safety agency

CE compliant

Size / Weight

Height

99 mm / 3.9 inches

Diameter

208 mm / 8.19 inches

Weight

3.54 kg / 7.8 lbs

Shipping information

Package Height

160 mm / 6.3 inches

Package Width

245 mm / 9.65 inches

Package Depth

230 mm / 9.06 inches

Package Weight

4.03 kg / 8.88 lbs
