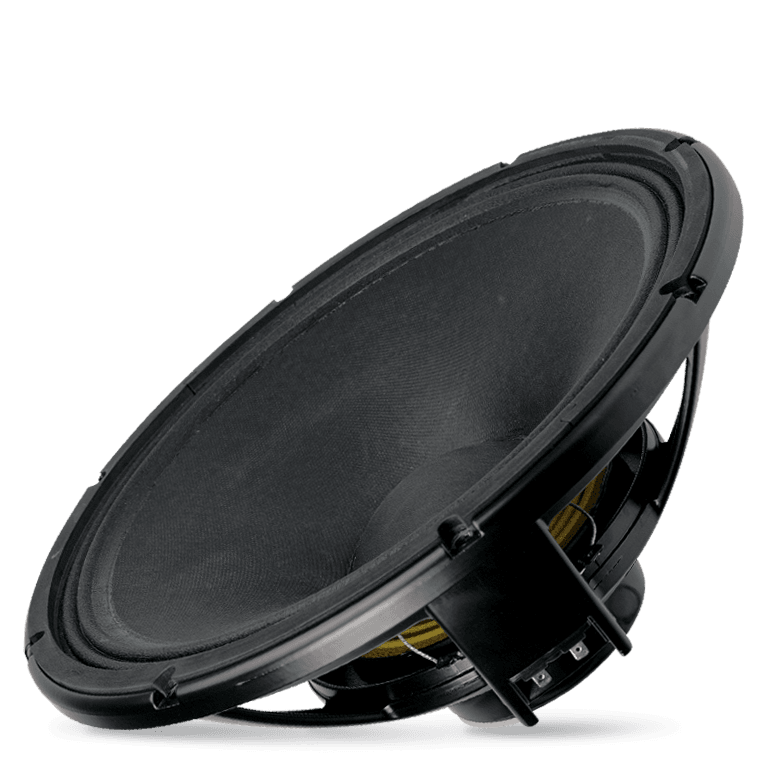

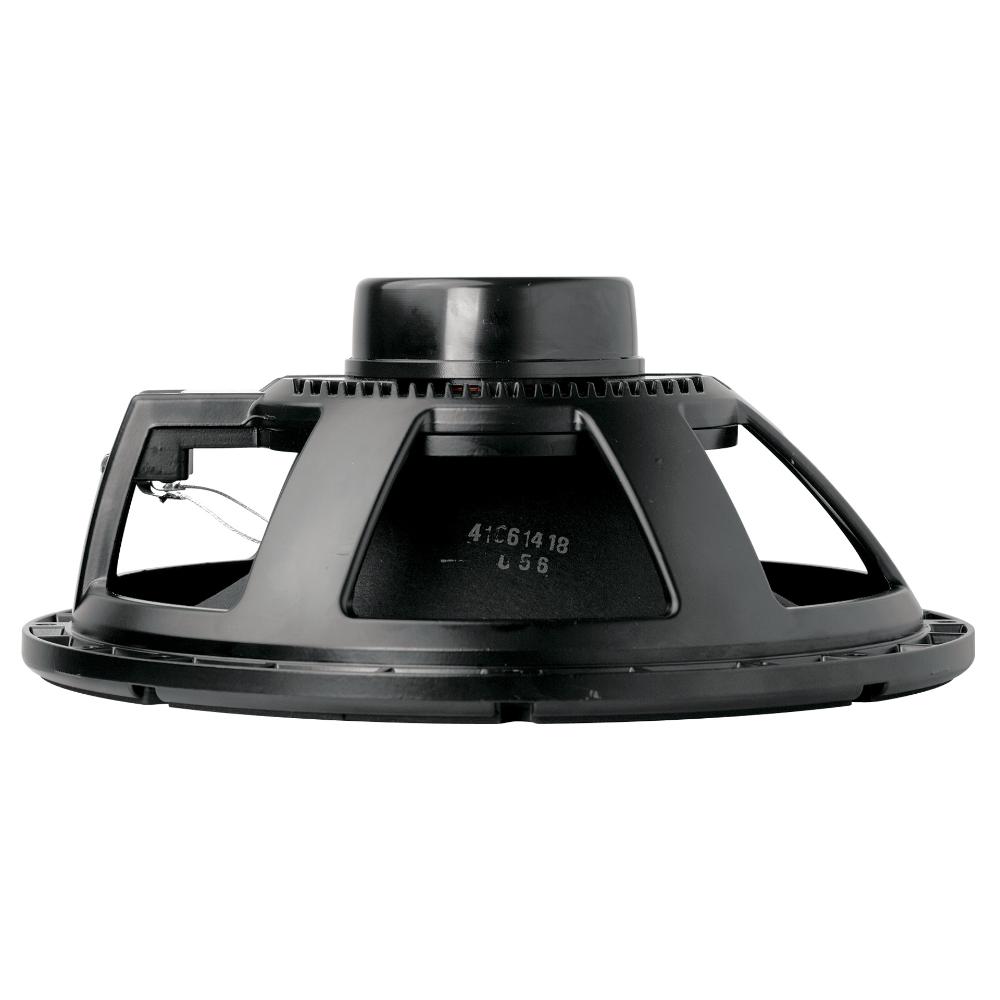

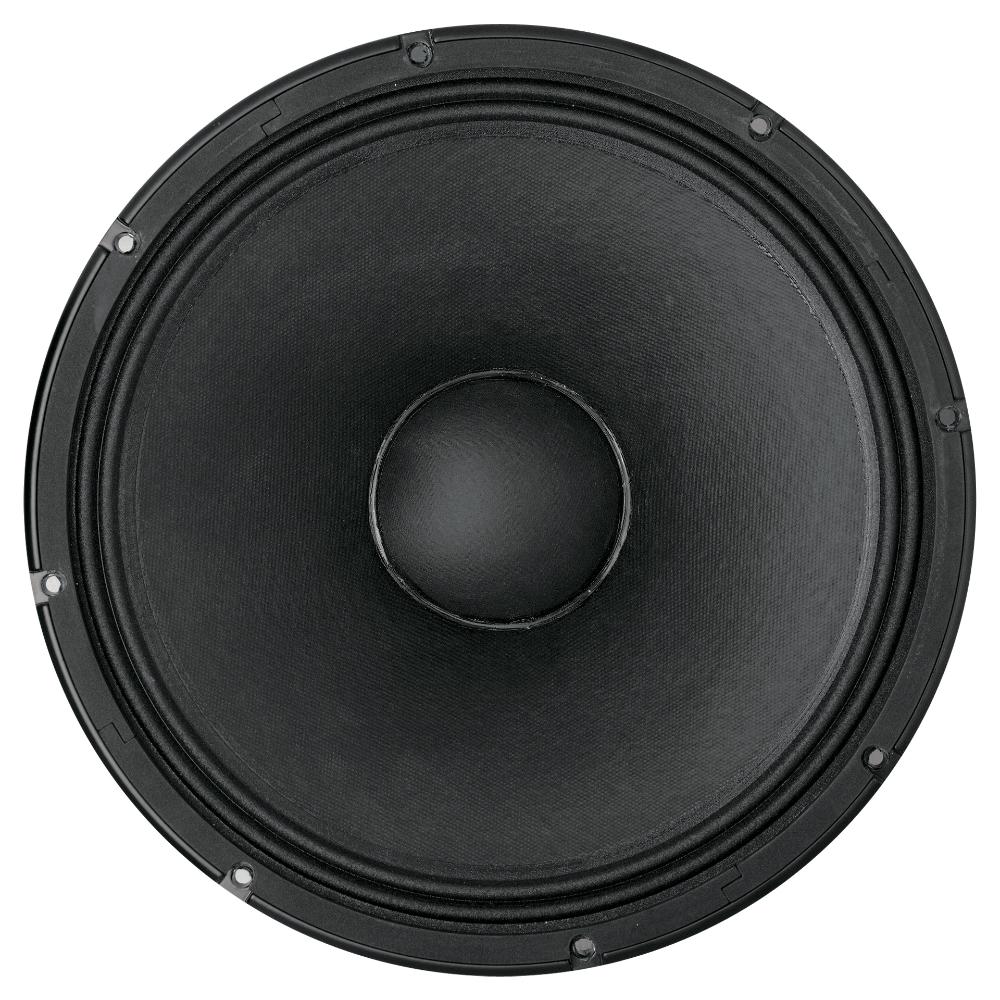

PRECISION TRANSDUCERS

MB15N351

MID - BASS
  • 3.5-inch, inside/outside copper voice coil
  • 1300W continuous program power handling
  • 100 dB Sensitivity
  • 40 Hz – 3 kHz Frequency range
Where to buy
Features Specifications Related products Downloads
Where to buy
Features
  • 3.5-inch, inside/outside copper voice coil
  • 1300W continuous program power handling
  • 100 dB Sensitivity
  • 40 Hz – 3 kHz Frequency range
  • Dual-forced air ventilation for minimum power compression
  • Dual spider design with silicon based dampening control

This MB15N351 is designed to provide an excellent linearity in the frequency response with low distortion. The transducer is built around a very stronger neodymium magnetic structure and a new 3,5” voice coil, this combination provides to increase the power handling especially in comparison a standard 3" voice coil. The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation for minimize the power compression at the higher power handling.

Part number:

11100025
MB15N351
8ohm

Specifications
General specifications
Nominal Diameter
15 inch / 381 mm
Rated Impedance
8 ohm
Program Power (watt)
1300 W
Power handling capacity
650 W
Sensitivity
100.0 dB
Frequency range
40 - 3000 Hz
Effective piston diameter
330 mm / 12.99 inch
Max. Excursion Before Damage
39 mm / 1.54 inch
Minimum Impedance (ohm)
6.8 ohm
Voice Coil Diameter
3.5 inch / 89 mm
Voice Coil Winding Material
Copper
Voice Coil Length
17 mm / 0.67 inch
Number of layers
2
Kind of layers
inside/outside
Top Plate Thickness
11 mm / 0.43 inch
Cone Design
Curved
Surround Material
Polycotton
Surround Design
M-roll
Magnets
Neodymium
Dual-force air ventilation
Yes
Spider
03
Thiele - small parameters
Resonance frequency (Fs)
42 Hz
DC resistance (Re) (ohm)
5.60 ohm
Mechanical factor
4.00 Qms
Electrical factor
0.24 Qes
Total factor
0.22 Qts
Bl factor (Bl) (T x m)
22.50 T x m
Effective moving mass (Mms)
80.0 g
Equivalent Cas air loaded (Vas)
191.0 liters
Effective piston area (Sd)
0.090 m2
Max. linear excursion (Xmax)
6 mm
Voice coil inductance @ 1kHz (Le1k)
1.65 mH
Half-space efficency (Eff)
5.68%
Mounting information
Overall diameter
393 mm / 15.47 inches
Bolt circle diameter
371-376 mm / 14.61-14.8 inch
Bolt hole diameter
7 mm / 0.28 inch
Front mount baffle cut-out
354 mm / 13.94 inch
Rear mount baffle cut-out
354 mm / 13.94 inch
Volume occupied by the driver
3.8 liters / 0.15 ft3
Standard compliance
Safety agency
CE compliant
Size / Weight
Height
180 mm / 7.09 inches
Diameter
393 mm / 15.47 inches
Weight
5.16 kg / 11.38 lbs
Shipping information
Package Height
230 mm / 9.06 inches
Package Width
440 mm / 17.32 inches
Package Depth
440 mm / 17.32 inches
Package Weight
6.52 kg / 14.37 lbs
