PRECISION TRANSDUCERS

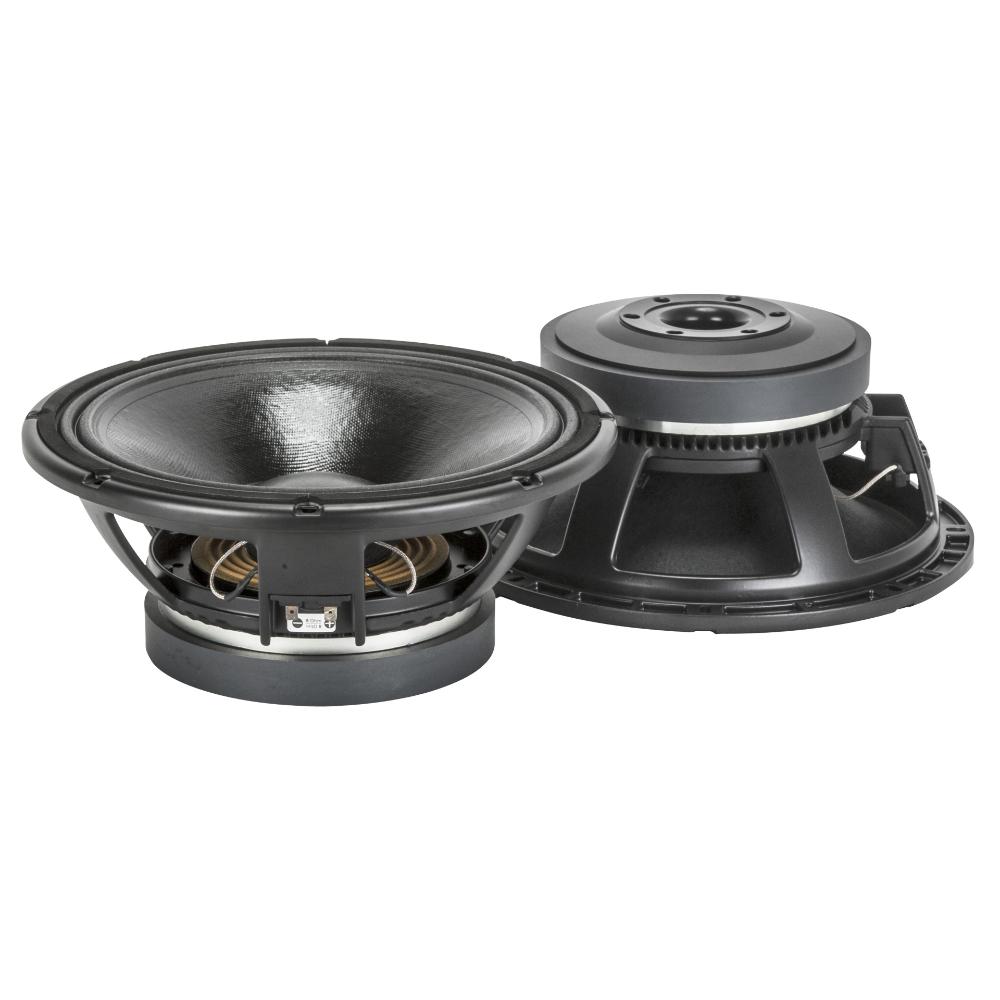

MB12X301

MID - BASS

3-inch, fibreglass inside/outside copper voice coil
1000W continuous program power handling
98.0 dB Sensitivity
45 Hz – 2.5 kHz Frequency range

Support

Features

3-inch, fibreglass inside/outside copper voice coil
1000W continuous program power handling
98.0 dB Sensitivity
45 Hz – 2.5 kHz Frequency range
Dual Forced Hyperventing System
M-roll surround and exponential cone geometry

The MB12X301 is designed to provide an excellent frequency response linearity with very low distortion. A strong magnetic structure guarantee dynamic and precision. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling. M-roll surround, exponential cone geometry and spider design offer great linearity and precise reproduction.

ARCHIVED

Part number:

11100105
MB12X301
8ohm

Specifications

General specifications

Nominal Diameter

12 inch / 305 mm

Rated Impedance

8 ohm

Program Power (watt)

1000 W

Power handling capacity

500 W

Sensitivity

98.0 dB

Frequency range

45 - 2500 Hz

Effective piston diameter

260 mm / 10.24 inch

Max. Excursion Before Damage

39 mm / 1.54 inch

Minimum Impedance (ohm)

6.7 ohm

Voice Coil Diameter

3.0 inch / 76 mm

Voice Coil Winding Material

Copper

Voice Coil Length

17 mm / 0.67 inch

Number of layers

Kind of layers

inside/outside

Top Plate Thickness

10 mm / 0.39 inch

Cone Design

Curved

Surround Material

Polycotton

Surround Design

M-roll

Magnets

Ceramic

Hypervented magnetic structure

Yes

Spider

Thiele - small parameters

Resonance frequency (Fs)

50 Hz

DC resistance (Re) (ohm)

5.40 ohm

Mechanical factor

9.00 Qms

Electrical factor

0.30 Qes

Total factor

0.29 Qts

Bl factor (Bl) (T x m)

18.00 T x m

Effective moving mass (Mms)

57.0 g

Equivalent Cas air loaded (Vas)

70.0 liters

Effective piston area (Sd)

0.050 m2

Max. linear excursion (Xmax)

6 mm

Voice coil inductance @ 1kHz (Le1k)

0.60 mH

Half-space efficency (Eff)

2.80%

Mounting information

Overall diameter

320 mm / 12.6 inches

Bolt circle diameter

293-304 mm / 11.54-11.97 inch

Bolt hole diameter

7 mm / 0.28 inch

Front mount baffle cut-out

282 mm / 11.1 inch

Rear mount baffle cut-out

284 mm / 11.18 inch

Volume occupied by the driver

2.2 liters / 0.09 ft3

Standard compliance

Safety agency

CE compliant

Size / Weight

Height

143 mm / 5.63 inches

Diameter

320 mm / 12.6 inches

Weight

7.57 kg / 16.69 lbs

Shipping information

Package Height

210 mm / 8.27 inches

Package Width

360 mm / 14.17 inches

Package Depth

360 mm / 14.17 inches

Package Weight

8.51 kg / 18.76 lbs
