PRECISION TRANSDUCERS

MB10N305

MID - BASS

3-inch, fibreglass inside/outside aluminium voice coil
1000W continuous program power handling
97.5 dB Sensitivity
55 Hz – 3.5 kHz Frequency range

Where to buy

Features

3-inch, fibreglass inside/outside aluminium voice coil
1000W continuous program power handling
97.5 dB Sensitivity
55 Hz – 3.5 kHz Frequency range
Dual-forced air ventilation for minimum power compression
M-roll surround and exponential cone geometry

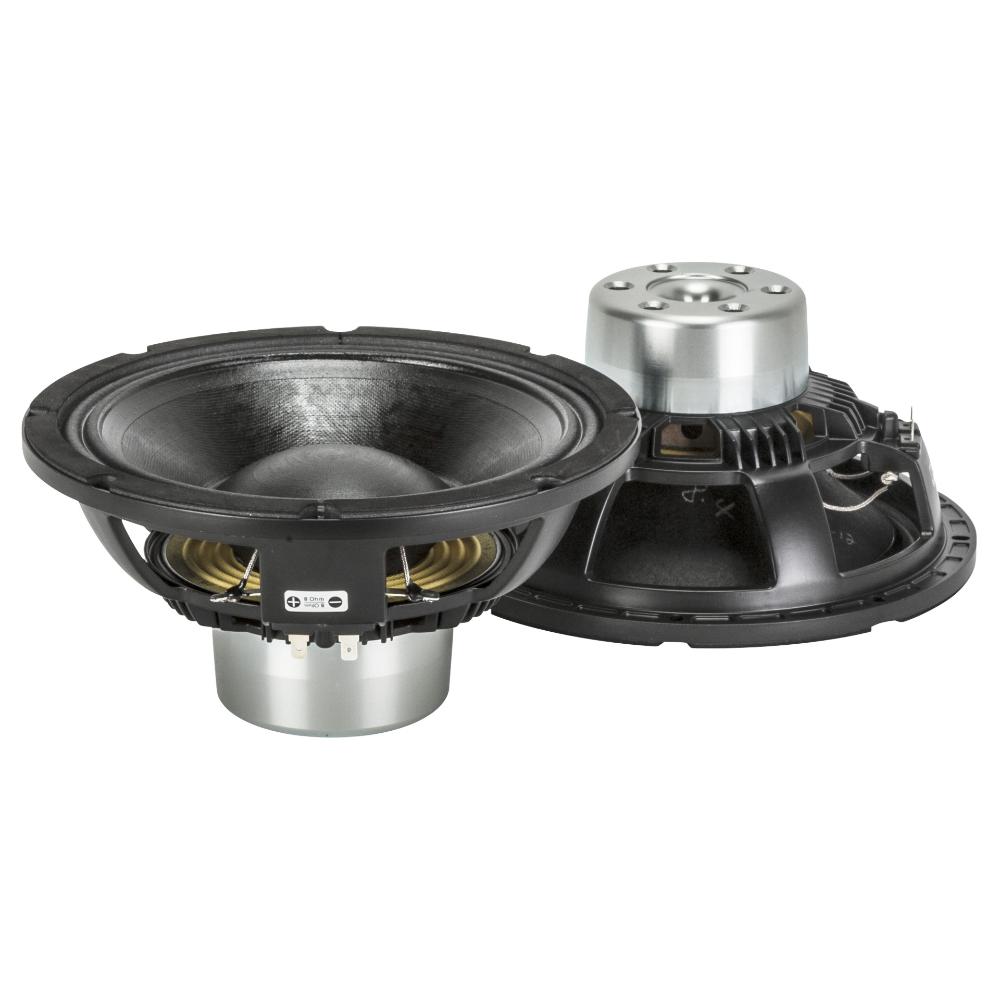

The MB10N305 is a hypervented neo, high linearity mid-bass. The magnetic structure is powered by a large neodymium magnet that provides an extremely high flux density in the gap. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special airforced ventilations are provided for voice coil, magnet assembly and basket. M-roll surround and spider design offer great linearity and precise reproduction.

Part number:

11100111
MB10N305
8ohm

Specifications

General specifications

Nominal Diameter

10 inch / 254 mm

Rated Impedance

8 ohm

Program Power (watt)

1000 W

Power handling capacity

500 W

Sensitivity

97.5 dB

Frequency range

55 - 3500 Hz

Effective piston diameter

210 mm / 8.27 inch

Max. Excursion Before Damage

34 mm / 1.34 inch

Minimum Impedance (ohm)

6.9 ohm

Voice Coil Diameter

3.0 inch / 76 mm

Voice Coil Winding Material

Aluminum

Voice Coil Length

14 mm / 0.55 inch

Number of layers

Kind of layers

inside/outside

Top Plate Thickness

10 mm / 0.39 inch

Cone Design

Curved

Surround Material

Polycotton

Surround Design

M-roll

Magnets

Neodymium

Hypervented magnetic structure

Yes

Spider

Thiele - small parameters

Resonance frequency (Fs)

60 Hz

DC resistance (Re) (ohm)

5.60 ohm

Mechanical factor

4.00 Qms

Electrical factor

0.24 Qes

Total factor

0.23 Qts

Bl factor (Bl) (T x m)

18.50 T x m

Effective moving mass (Mms)

37.0 g

Equivalent Cas air loaded (Vas)

31.0 liters

Effective piston area (Sd)

0.040 m2

Max. linear excursion (Xmax)

5 mm

Voice coil inductance @ 1kHz (Le1k)

0.90 mH

Half-space efficency (Eff)

2.90%

Mounting information

Overall diameter

260 mm / 10.24 inches

Bolt circle diameter

241-246 mm / 9.49-9.69 inch

Bolt hole diameter

6 mm / 0.24 inch

Front mount baffle cut-out

234 mm / 9.21 inch

Rear mount baffle cut-out

234 mm / 9.21 inch

Volume occupied by the driver

1.4 liters / 0.06 ft3

Standard compliance

Safety agency

CE compliant

Size / Weight

Height

126 mm / 4.96 inches

Diameter

260 mm / 10.24 inches

Weight

3.2 kg / 7.05 lbs

Shipping information

Package Height

169 mm / 6.65 inches

Package Width

289 mm / 11.38 inches

Package Depth

289 mm / 11.38 inches

Package Weight

3.8 kg / 8.38 lbs
