PRECISION TRANSDUCERS

MB10N251

MID - BASS

2.5-inch , fibreglass former, aluminum voice coil
600 Watt continuous program power handling
97 dB Sensitivity
50 Hz - 3.5kHz Frequency range

Where to buy

Features

2.5-inch , fibreglass former, aluminum voice coil
600 Watt continuous program power handling
97 dB Sensitivity
50 Hz - 3.5kHz Frequency range
Forced air ventilation
M-roll surround and exponential cone geometry

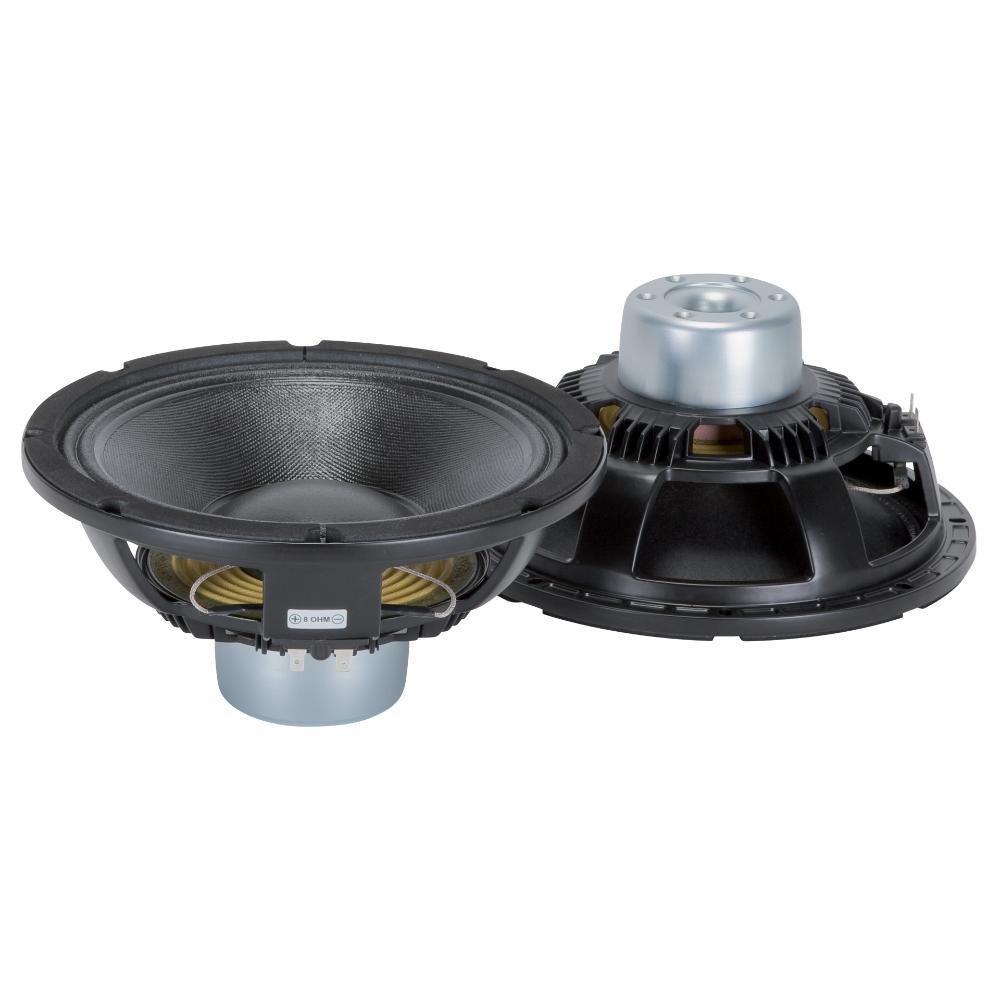

The MB10N251 is a 10” neodymium mid-bass driver with an excellent linearity, good efficiency and high power handling capabilities. The 2,5” aluminium voice coil combined with a high strength fibreglass former allows high efficiency and good frequency response extension. Aluminium basket and magnetic assembly design provide an excellent heat dissipation and very low power compression. The M-roll surround shape combined to spider design offer good linear displacement and precise low frequency reproduction.

Part number:

11100064
MB10N251
8ohm

Specifications

General specifications

Nominal Diameter

10 inch / 254 mm

Rated Impedance

8 ohm

Program Power (watt)

600 W

Power handling capacity

300 W

Sensitivity

97.0 dB

Frequency range

50 - 3500 Hz

Effective piston diameter

210 mm / 8.27 inch

Max. Excursion Before Damage

40 mm / 1.57 inch

Minimum Impedance (ohm)

6.4 ohm

Voice Coil Diameter

2.5 inch / 63 mm

Voice Coil Winding Material

Aluminum

Voice Coil Length

14 mm / 0.55 inch

Number of layers

Kind of layers

outside

Top Plate Thickness

9 mm / 0.35 inch

Cone Design

Curved

Surround Material

Polycotton

Surround Design

M-roll

Magnets

Neodymium

Dual-force air ventilation

Yes

Spider

Thiele - small parameters

Resonance frequency (Fs)

55 Hz

DC resistance (Re) (ohm)

5.10 ohm

Mechanical factor

4.20 Qms

Electrical factor

0.29 Qes

Total factor

0.27 Qts

Bl factor (Bl) (T x m)

15.20 T x m

Effective moving mass (Mms)

36.0 g

Equivalent Cas air loaded (Vas)

39.0 liters

Effective piston area (Sd)

0.040 m2

Max. linear excursion (Xmax)

5 mm

Voice coil inductance @ 1kHz (Le1k)

1.30 mH

Half-space efficency (Eff)

2.20%

Mounting information

Overall diameter

260 mm / 10.24 inches

Bolt circle diameter

241-246 mm / 9.49-9.69 inch

Bolt hole diameter

6 mm / 0.24 inch

Front mount baffle cut-out

234 mm / 9.21 inch

Rear mount baffle cut-out

234 mm / 9.21 inch

Volume occupied by the driver

1.2 liters / 0.05 ft3

Standard compliance

Safety agency

CE compliant

Physical specifications

Color

Black

Size / Weight

Height

123 mm / 4.84 inches

Diameter

260 mm / 10.24 inches

Weight

2.5 kg / 5.51 lbs

Shipping information

Package Height

180 mm / 7.09 inches

Package Width

290 mm / 11.42 inches

Package Depth

290 mm / 11.42 inches

Package Weight

3 kg / 6.61 lbs
