CUSTOM

PRECISION TRANSDUCERS

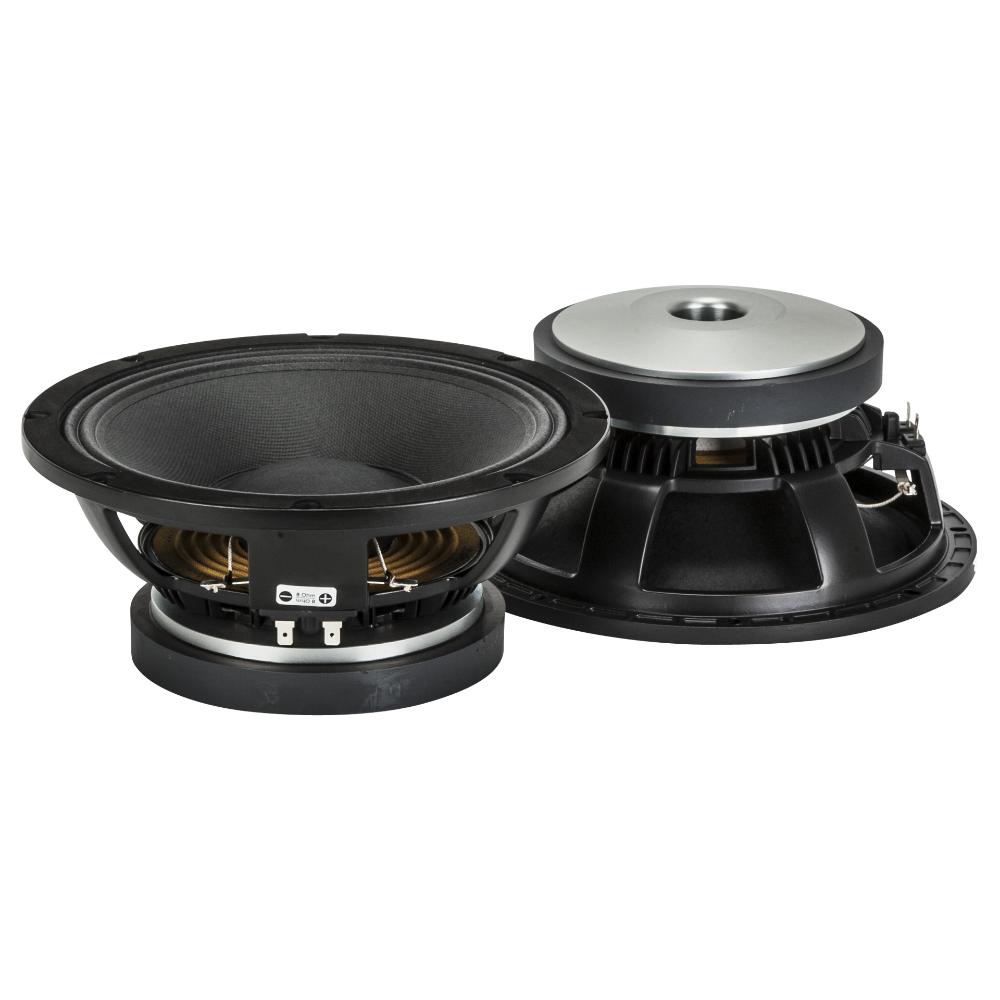

MB10G253

MID - BASS

2.5-inch , fibreglass former, aluminum voice coil
600 Watt continuous program power handling
98.5 dB Sensitivity
55 Hz - 3.0kHz Frequency range

Where to buy

Features

2.5-inch , fibreglass former, aluminum voice coil
600 Watt continuous program power handling
98.5 dB Sensitivity
55 Hz - 3.0kHz Frequency range
M-roll surround and exponential cone geometry

The MB10G253 is designed to provide an excellent frequency response linearity with very low distortion. A strong magnetic structure guarantee dynamic and precision. M-roll surround and spider design offer great linearity and precise reproduction.

CUSTOM

Part number:

11100104
MB10G253
8ohm

Specifications

General specifications

Nominal Diameter

10 inch / 254 mm

Rated Impedance

8 ohm

Program Power (watt)

600 W

Power handling capacity

300 W

Sensitivity

99.0 dB

Frequency range

55 - 3000 Hz

Effective piston diameter

210 mm / 8.27 inch

Max. Excursion Before Damage

40 mm / 1.57 inch

Minimum Impedance (ohm)

6.0 ohm

Voice Coil Diameter

2.5 inch / 63 mm

Voice Coil Winding Material

Aluminum

Voice Coil Length

18 mm / 0.71 inch

Number of layers

Kind of layers

inside/outside

Top Plate Thickness

8 mm / 0.31 inch

Cone Design

Curved

Surround Material

Polycotton

Surround Design

M-roll

Thiele - small parameters

Resonance frequency (Fs)

76 Hz

DC resistance (Re) (ohm)

5.20 ohm

Mechanical factor

8.00 Qms

Electrical factor

0.35 Qes

Total factor

0.34 Qts

Bl factor (Bl) (T x m)

14.90 T x m

Effective moving mass (Mms)

33.0 g

Equivalent Cas air loaded (Vas)

24.0 liters

Effective piston area (Sd)

0.040 m2

Max. linear excursion (Xmax)

7 mm

Voice coil inductance @ 1kHz (Le1k)

1.05 mH

Half-space efficency (Eff)

2.71%

Mounting information

Overall diameter

260 mm / 10.24 inches

Bolt circle diameter

241-246 mm / 9.49-9.69 inch

Bolt hole diameter

6 mm / 0.24 inch

Front mount baffle cut-out

232 mm / 9.13 inch

Rear mount baffle cut-out

232 mm / 9.13 inch

Volume occupied by the driver

1.2 liters / 0.05 ft3

Standard compliance

Safety agency

CE compliant

Physical specifications

Color

Black

Size / Weight

Weight

4.9 kg / 10.8 lbs

Shipping information

Package Height

810 mm / 31.89 inches

Package Width

1055 mm / 41.54 inches

Package Depth

855 mm / 33.66 inches

Package Weight

4.9 kg / 10.8 lbs
