Features
  • High Quality 2-way passive loudspeaker

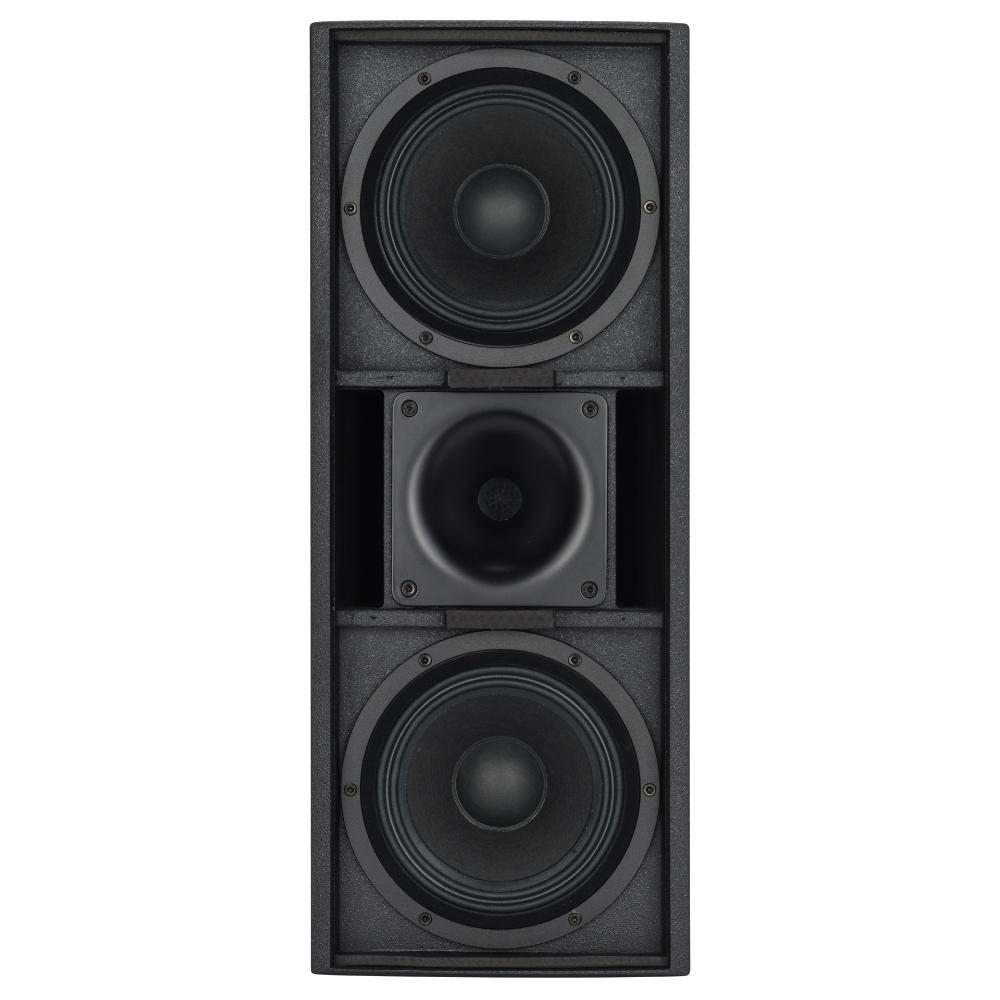

  • 2 x 6.5" woofer, vented
  • 1 x 1" in driver, on 90°x90° CD horn
  • High Power Handling ‘Low Impedance Compensated Crossover', with electronic protection for the driver
  • 120W AES power handling

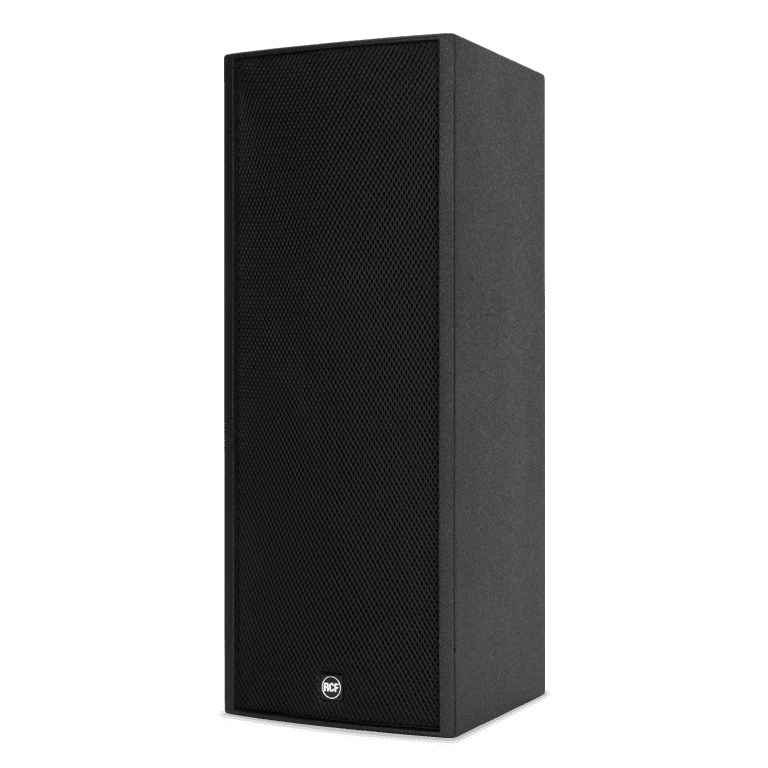

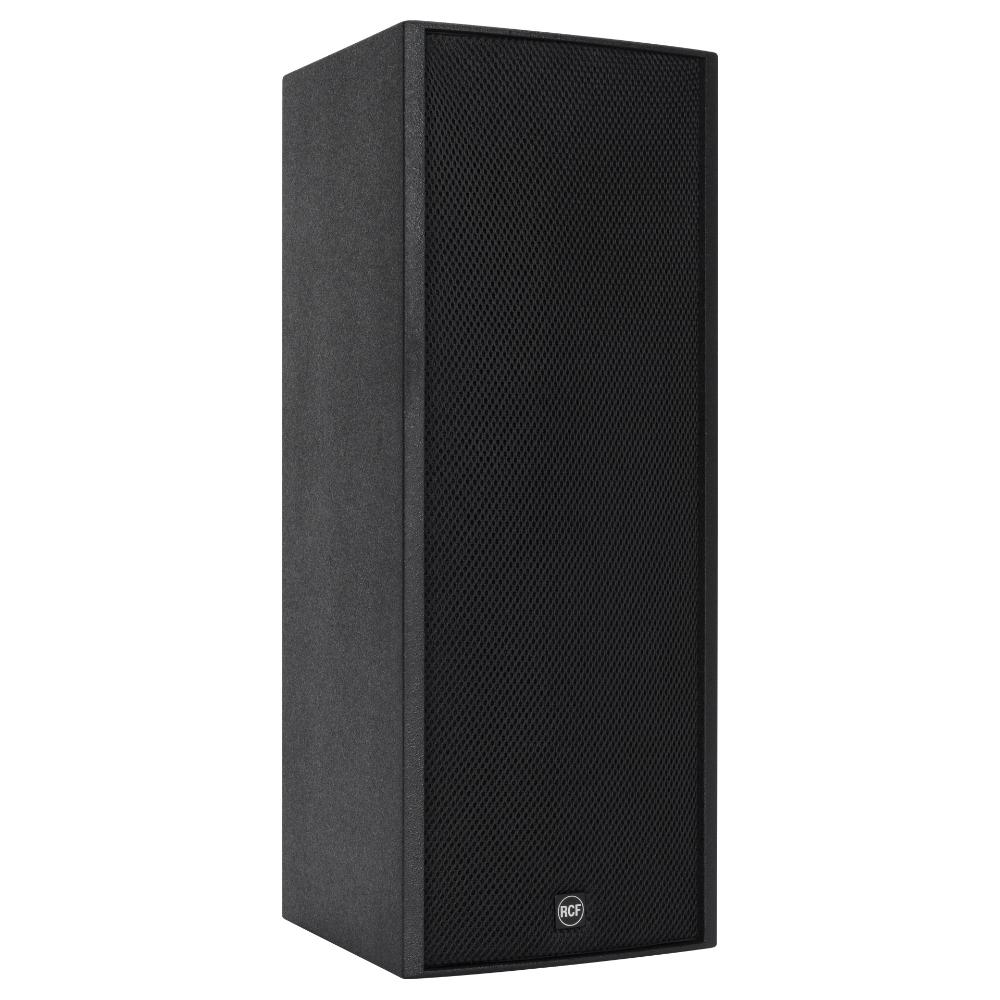

  • Steel Front Grille with robust double mesh polyester clothing
  • Rotatable RCF front logo
  • Installation points are available on the rear panel, top and bottom

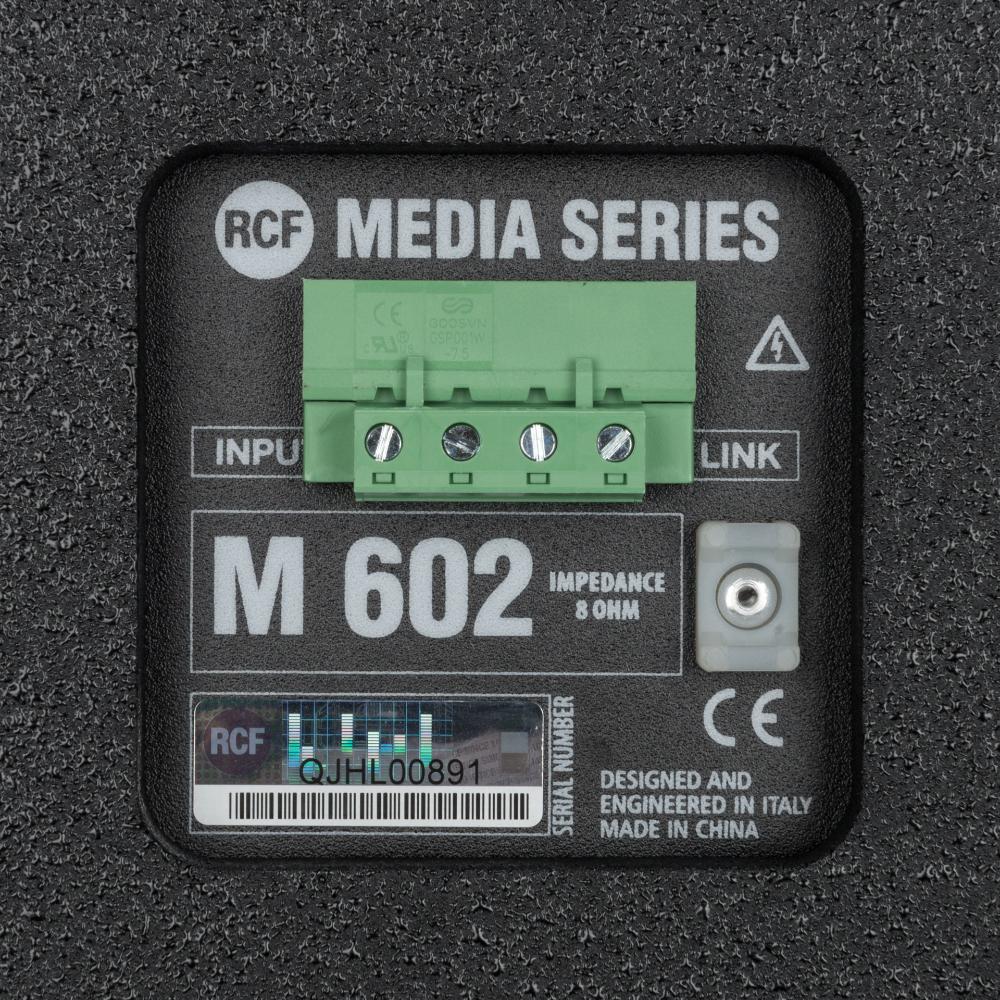

  • All models have a 4-pin EUROBLOCK connector (audio input and parallel link output)

M 602 is a multipurpose two-way twin-woofer full-range speaker system, suitable in a wide range of installations. The compactness, together with the elegant and neutral design with accurate finishing make M 602 suitable for almost any environment and architectural constraint. Available mounting accessories allow you to use the M 602 wall or ceiling mounted, with reference to the several possible applications. The M 602 has a controlled coverage through its twin 6" and the precise constant directivity horn. The SPL and the level of undistorted sound the M 602 can reach is far above any expectation from such a compact solution. The M 602 features high sensitivity thanks to the use of oversized magnets and a comfortable sound quality with smooth and wide frequency response performed thanks to the Kapton diaphragm compression driver loaded with a constant directivity horn. The LICC crossover design includes an electronic protection on high frequency device.


ARCHIVED

Part number:

13041012
M 602
EAN 8024530007553

Specifications
Acoustical specifications
Frequency Response (-10dB)
70 Hz ÷ 20000 Hz
Max SPL @ 1m
122 dB
Horizontal coverage angle
90°
Vertical coverage angle
90°
Directivity index Q
10
System Sensitivity
95 dB
Power section
Nominal Impedance
8 ohm
Power Handling
120 W
Peak Power Handling
480 W PEAK
Protections
Dynamic active mosfet
Crossover Frequencies
2000 Hz
Transducers
Compression Driver
1.0'', 1.5'' v.c
Woofer
2 x 6.5'', 1.5'' v.c
Input/Output section
Input connectors
Euroblock
Output connectors
Euroblock
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
MDF
Hardware
8 x M6, 2 x M10
Grille
Steel with robust double mesh polyester clothing
Color
Black
Size / Weight
Height
540 mm / 21.26 inches
Width
215 mm / 8.46 inches
Depth
230 mm / 9.06 inches
Weight
11.6 kg / 25.57 lbs
Shipping information
Package Height
609 mm / 23.98 inches
Package Width
302 mm / 11.89 inches
Package Depth
287 mm / 11.3 inches
Package Weight
12.6 kg / 27.78 lbs
