LI 7903
LOCAL INPUT DEVICE
- Local audio source management
- 3 configurable buttons
- Suitable for wall-mount
Features
- Local audio source management
- 3 configurable buttons
- Suitable for wall-mount

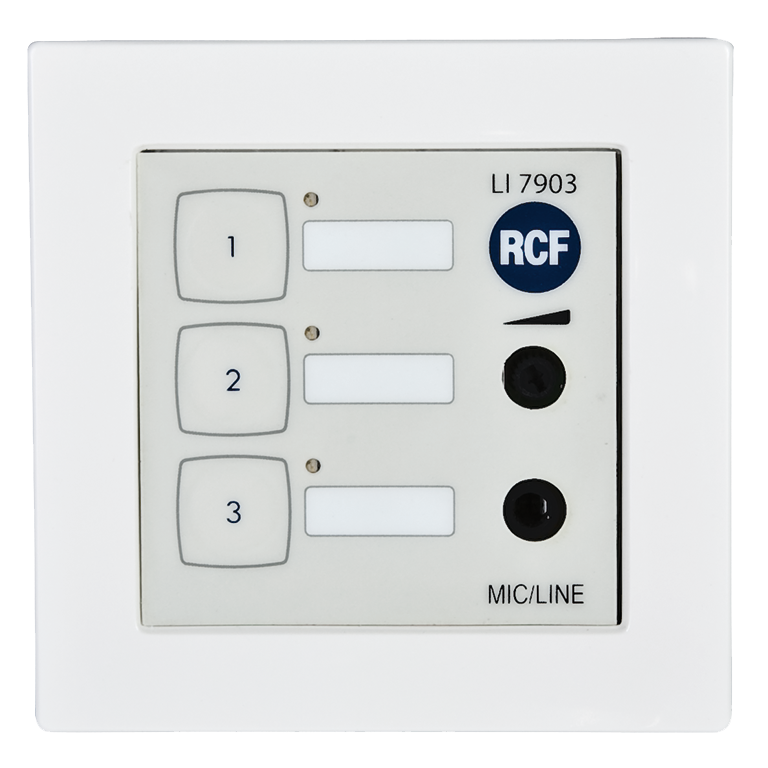

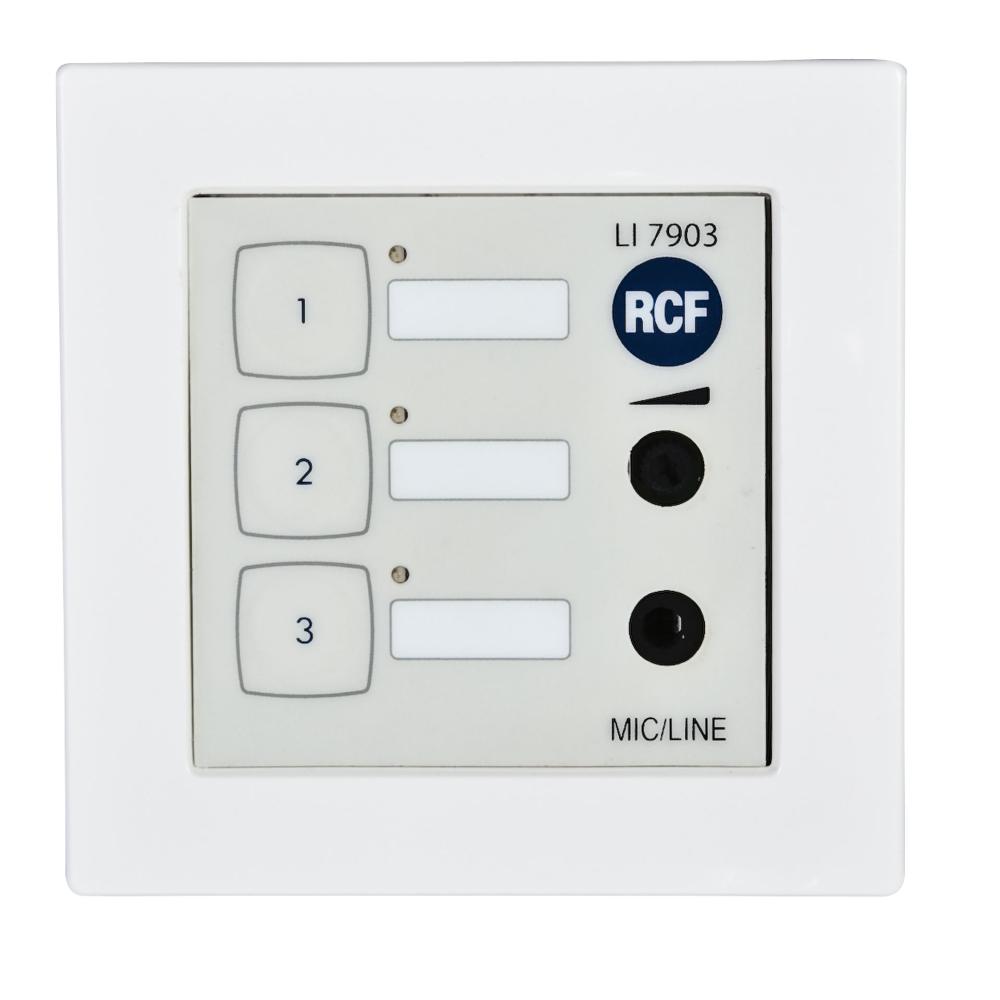

LI 7903 is a local input device allowing the connection and routing of a local program source. It features 3 function buttons that can be individually programmed. To be wall mounted by using the accessories provided.
ARCHIVED
Part number:
17170141
LI 7903
EAN 8024530006372
Specifications
General specifications
Functions:
Local paging
Message paging
MU 7100EN control output function
Change MU 71 0EN preset
Line non active on paging
Message paging
MU 7100EN control output function
Change MU 71 0EN preset
Line non active on paging
Configuration:
DIP switch
Cable:
FTP CAT5 / CAT6
Works with:
DXT 7000
Mic+line inputs:
1
Mic+line phantom:
24 V DC
Mic+line connector:
Jack
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Hardware
Wall mount box
Color
White
Size / Weight
Weight
0.1 kg / 0.22 lbs
Shipping information
Package Height
100 mm / 3.94 inches
Package Width
160 mm / 6.3 inches
Package Depth
200 mm / 7.87 inches
Package Weight
0.3 kg / 0.66 lbs
