PRECISION TRANSDUCERS

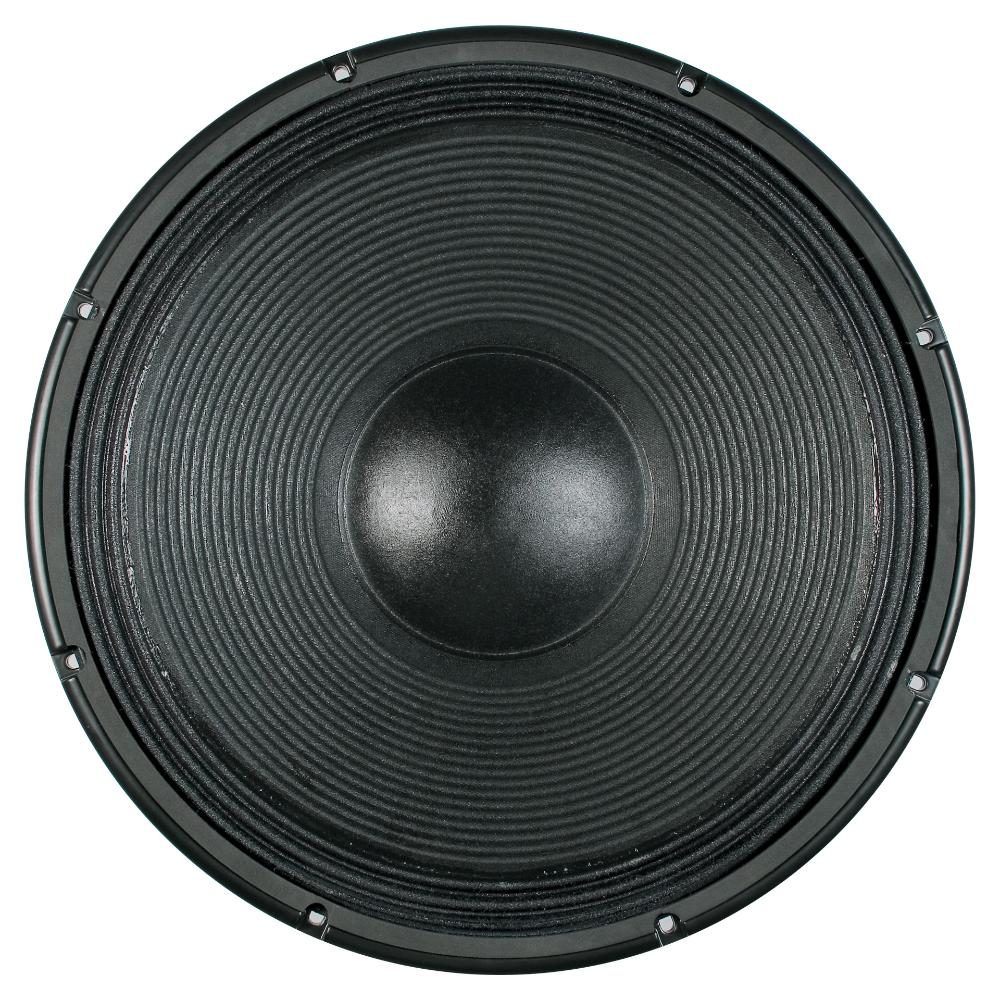

LF18N401

WOOFER

4 - inch, fiberglass inside-outside copper voice coil
2400 Watt continuous program power handling
98 dB Sensitivity
30 Hz - 1 kHz Frequency range

Where to buy

Features

4 - inch, fiberglass inside-outside copper voice coil
2400 Watt continuous program power handling
98 dB Sensitivity
30 Hz - 1 kHz Frequency range
Dual-forced air ventilation and 15mm top plate for minimum power compression
Dual spider design with silicon based dampening control
Triple-roll surround and corrugated straight cone geometry

Incredibly linear frequency response characteristics,the highest power handling of any comparable 18-inch neodymium transducer, the lowest power compression. The LF18N401 uses a fibre loaded cone assembly along with a high excursion triple roll,constant geometry surround. This combination provides remarkablestrength venting system guarantee a very efficient voice coil ventilation for minimum power compression and higher power handling.

Part number:

11100010
LF18N401
8ohm

Specifications

General specifications

Nominal Diameter

18 inch / 457 mm

Rated Impedance

8 ohm

Program Power (watt)

2400 W

Power handling capacity

1200 W

Sensitivity

98.0 dB

Frequency range

30 - 1000 Hz

Effective piston diameter

395 mm / 15.55 inch

Max. Excursion Before Damage

52 mm / 2.05 inch

Minimum Impedance (ohm)

6.3 ohm

Voice Coil Diameter

4.0 inch / 102 mm

Voice Coil Winding Material

Copper

Voice Coil Length

25 mm / 0.98 inch

Number of layers

Kind of layers

inside/outside

Top Plate Thickness

15 mm / 0.59 inch

Cone Design

Straight

Surround Material

Polycotton

Surround Design

Triple roll

Magnets

Neodymium

Dual-force air ventilation

Yes

Spider

Thiele - small parameters

Resonance frequency (Fs)

32 Hz

DC resistance (Re) (ohm)

5.10 ohm

Mechanical factor

6.50 Qms

Electrical factor

0.27 Qes

Total factor

0.26 Qts

Bl factor (Bl) (T x m)

27.80 T x m

Effective moving mass (Mms)

201.0 g

Equivalent Cas air loaded (Vas)

257.0 liters

Effective piston area (Sd)

0.120 m2

Max. linear excursion (Xmax)

9 mm

Voice coil inductance @ 1kHz (Le1k)

2.50 mH

Half-space efficency (Eff)

3.01%

Mounting information

Overall diameter

465 mm / 18.31 inches

Bolt circle diameter

442-447 mm / 17.4-17.6 inch

Bolt hole diameter

7 mm / 0.28 inch

Front mount baffle cut-out

424 mm / 16.69 inch

Rear mount baffle cut-out

424 mm / 16.69 inch

Volume occupied by the driver

5.5 liters / 0.22 ft3

Standard compliance

Safety agency

CE compliant

Size / Weight

Height

204 mm / 8.03 inches

Diameter

465 mm / 18.31 inches

Weight

9.5 kg / 20.94 lbs

Shipping information

Package Height

260 mm / 10.24 inches

Package Width

520 mm / 20.47 inches

Package Depth

500 mm / 19.69 inches

Package Weight

11.4 kg / 25.13 lbs
