ARCHIVED

PRECISION TRANSDUCERS

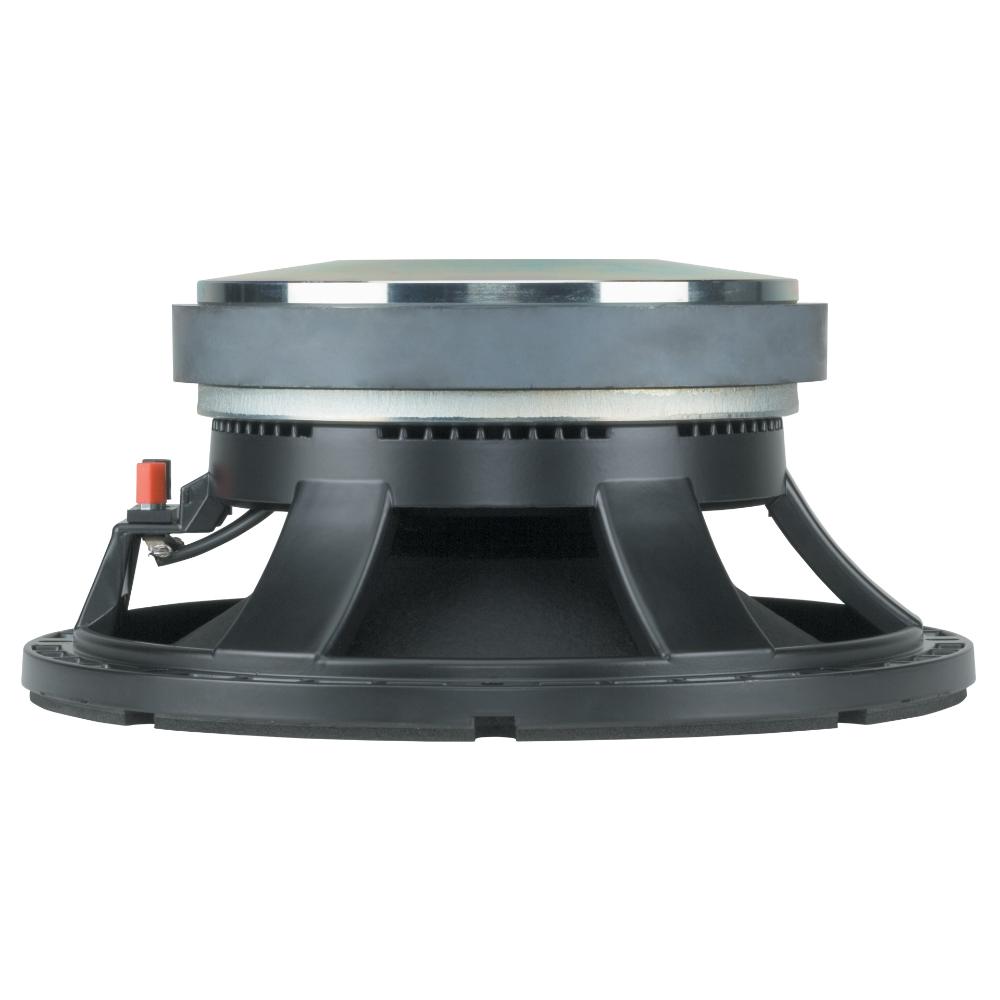

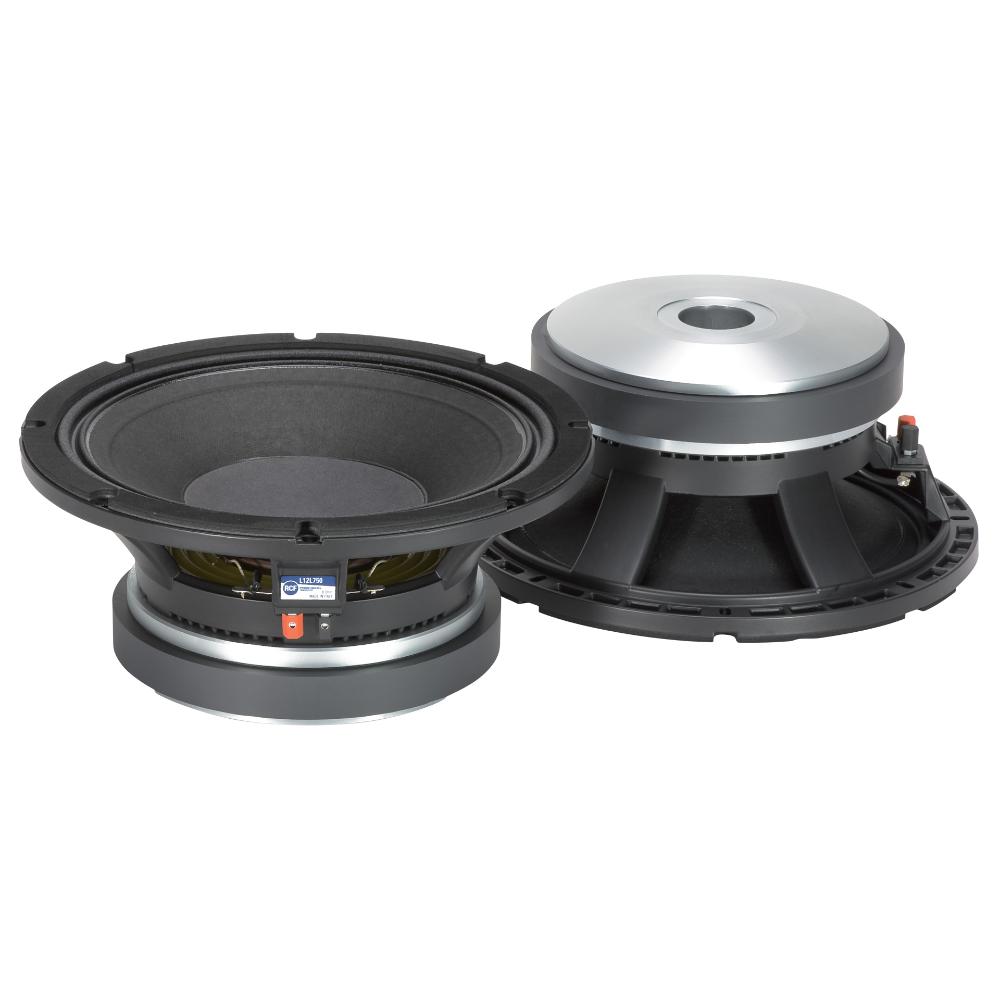

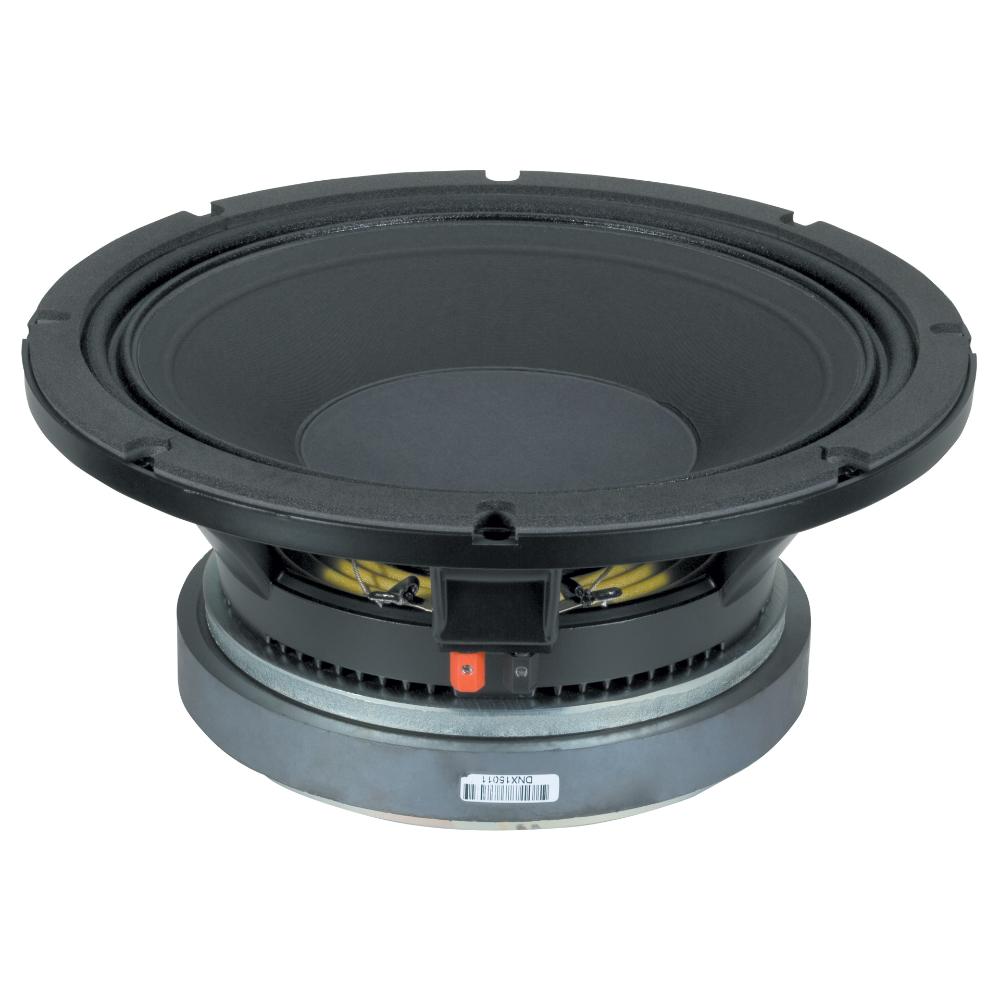

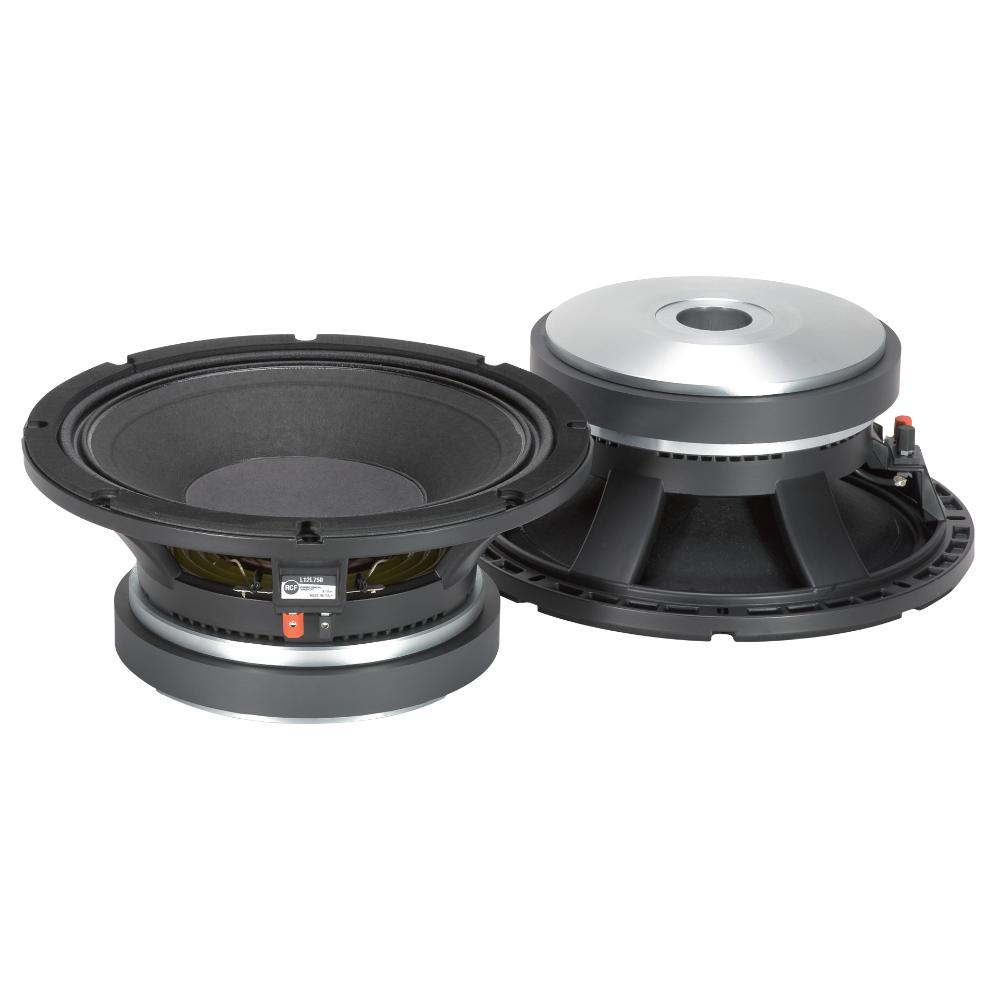

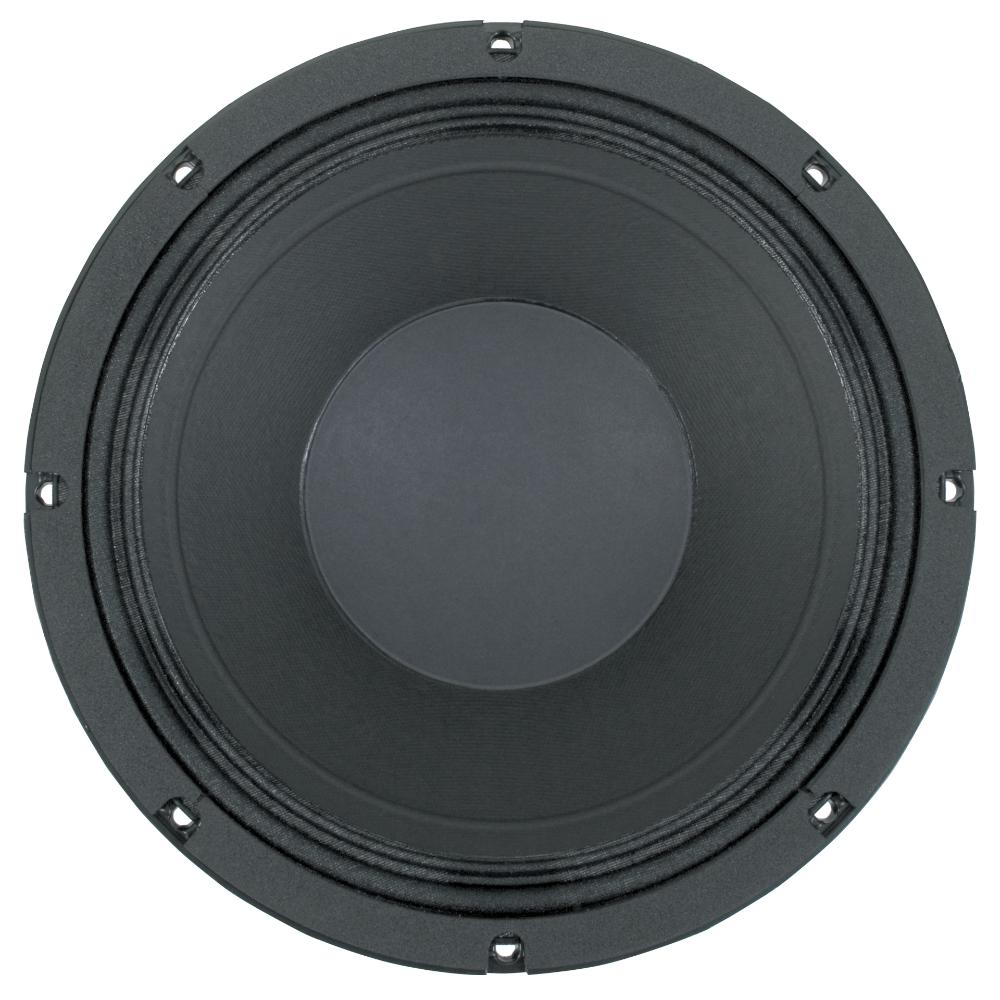

L12L750

MID-BASS

4-inch, fiberglass former, edgewound aluminum voice coil
700W continuous program power handling
101 dB Sensitivity
60 Hz – 2 kHz Frequency range

Support

Features

4-inch, fiberglass former, edgewound aluminum voice coil
700W continuous program power handling
101 dB Sensitivity
60 Hz – 2 kHz Frequency range
Shaped Shallow Triple-roll damped surround
Inverted dust cap

Very high efficiency and extended linearity are special features of this mid-bass transducer. Very efficient heat dissipation is ensured by a radiator that is part of the basket design. The aluminum voice coil offer a properly aligned Q factor and a very high sensitivity. A specially designed Shallow Triple-roll surround guarantee a very low midrange distortion. Fiberglass former voice coil, polycotton suspensions and treated cone provide the very high power handling.

ARCHIVED

Part number:

11140037
L12L750
8ohm

Specifications

General specifications

Nominal Diameter

12 inch / 305 mm

Rated Impedance

8 ohm

Program Power (watt)

700 W

Power handling capacity

350 W

Sensitivity

101.0 dB

Frequency range

60 - 2000 Hz

Effective piston diameter

260 mm / 10.24 inch

Max. Excursion Before Damage

40 mm / 1.57 inch

Minimum Impedance (ohm)

7.2 ohm

Voice Coil Diameter

4.0 inch / 102 mm

Voice Coil Winding Material

Aluminum

Voice Coil Length

12 mm / 0.47 inch

Number of layers

Kind of layers

outside

Top Plate Thickness

10 mm / 0.39 inch

Cone Design

Curved

Surround Material

Polycotton

Surround Design

Triple roll

Magnets

Ceramic

Spider

Thiele - small parameters

Resonance frequency (Fs)

62 Hz

DC resistance (Re) (ohm)

5.20 ohm

Mechanical factor

4.10 Qms

Electrical factor

0.29 Qes

Total factor

0.27 Qts

Bl factor (Bl) (T x m)

18.80 T x m

Effective moving mass (Mms)

50.0 g

Equivalent Cas air loaded (Vas)

52.0 liters

Effective piston area (Sd)

0.050 m2

Max. linear excursion (Xmax)

4 mm

Voice coil inductance @ 1kHz (Le1k)

1.25 mH

Half-space efficency (Eff)

4.12%

Mounting information

Overall diameter

320 mm / 12.6 inches

Bolt circle diameter

296-304 mm / 11.65-11.97 inch

Bolt hole diameter

7 mm / 0.28 inch

Front mount baffle cut-out

286 mm / 11.26 inch

Rear mount baffle cut-out

284 mm / 11.18 inch

Volume occupied by the driver

2.9 liters / 0.11 ft3

Standard compliance

Safety agency

CE compliant

Physical specifications

Color

Black

Size / Weight

Height

138 mm / 5.43 inches

Diameter

320 mm / 12.6 inches

Weight

11.4 kg / 25.13 lbs

Shipping information

Package Height

210 mm / 8.27 inches

Package Width

360 mm / 14.17 inches

Package Depth

360 mm / 14.17 inches

Package Weight

12.4 kg / 27.34 lbs
