PRECISION TRANSDUCERS

L10Y568

MID-BASS

2-inch, inside/outside aluminum voice coil
400W continuous program power handling
97.5 dB Sensitivity
50 Hz – 3 kHz Frequency range

Support

Features

2-inch, inside/outside aluminum voice coil
400W continuous program power handling
97.5 dB Sensitivity
50 Hz – 3 kHz Frequency range
M-roll surround and exponential cone geometry
Copper ring

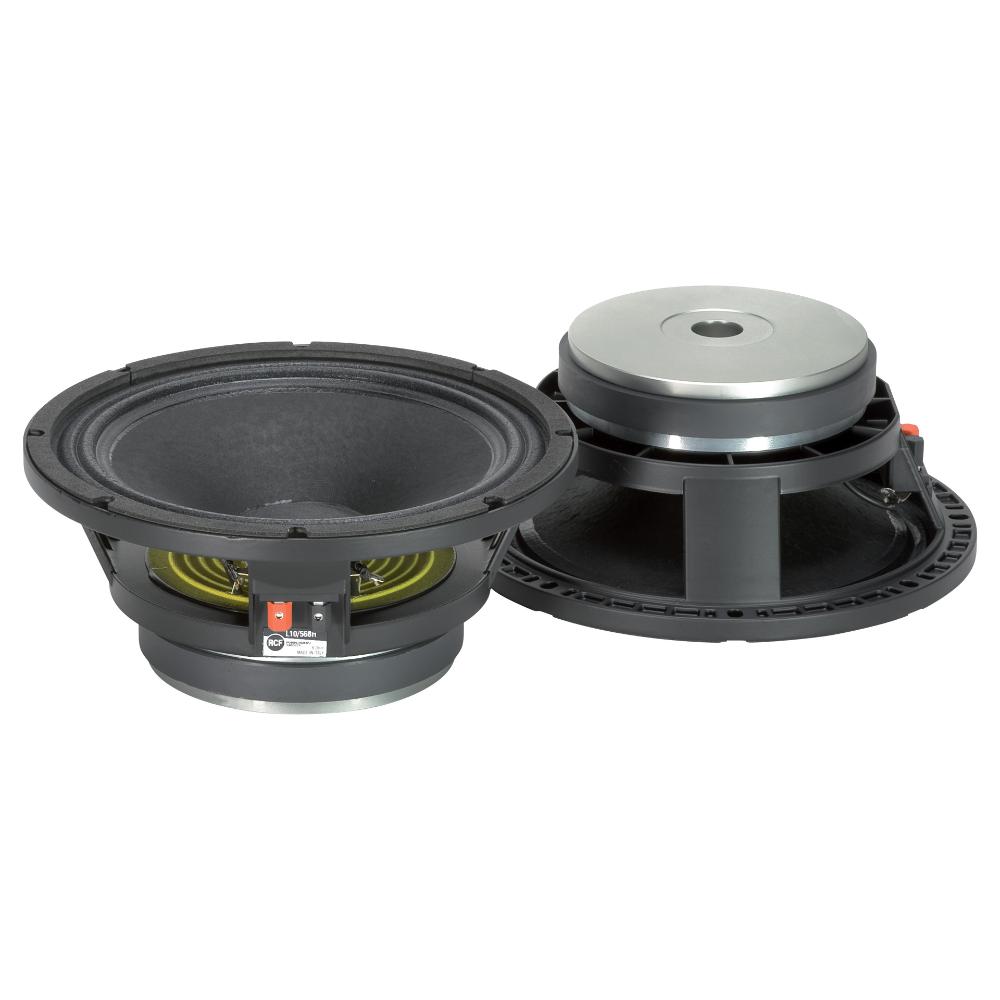

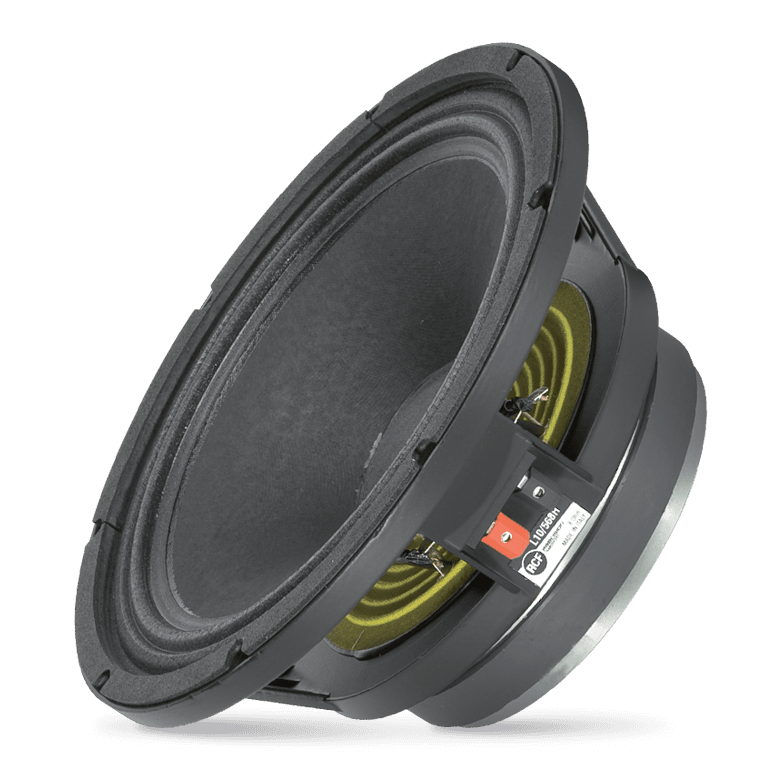

High efficiency 10" mid-bass. Very high sensitivity, excellent linearity. A copper ring helps reducing distortion and smooting the response up to 3 kHz. Voice coil construction, suspensions and cone materials designed to survive at 350 Watt RMS power.

ARCHIVED

Part number:

11100136
L10Y568
8ohm

Specifications

General specifications

Nominal Diameter

10 inch / 254 mm

Rated Impedance

8 ohm

Program Power (watt)

400 W

Power handling capacity

200 W

Sensitivity

97.5 dB

Frequency range

50 - 3000 Hz

Effective piston diameter

210 mm / 8.27 inch

Max. Excursion Before Damage

40 mm / 1.57 inch

Minimum Impedance (ohm)

6.6 ohm

Voice Coil Diameter

2.0 inch / 51 mm

Voice Coil Winding Material

Copper

Voice Coil Length

13 mm / 0.51 inch

Number of layers

Kind of layers

inside/outside

Top Plate Thickness

9 mm / 0.35 inch

Cone Design

Curved

Surround Material

Polycotton

Surround Design

M-roll

Thiele - small parameters

Resonance frequency (Fs)

70 Hz

DC resistance (Re) (ohm)

5.10 ohm

Mechanical factor

6.00 Qms

Electrical factor

0.41 Qes

Total factor

0.38 Qts

Bl factor (Bl) (T x m)

12.80 T x m

Effective moving mass (Mms)

30.0 g

Equivalent Cas air loaded (Vas)

29.0 liters

Effective piston area (Sd)

0.040 m2

Max. linear excursion (Xmax)

4 mm

Voice coil inductance @ 1kHz (Le1k)

1.05 mH

Half-space efficency (Eff)

2.37%

Mounting information

Overall diameter

260 mm / 10.24 inches

Bolt circle diameter

242-247 mm / 9.53-9.72 inch

Bolt hole diameter

7 mm / 0.28 inch

Front mount baffle cut-out

230 mm / 9.06 inch

Rear mount baffle cut-out

229 mm / 9.02 inch

Volume occupied by the driver

1.1 liters / 0.04 ft3

Standard compliance

Safety agency

CE compliant

Size / Weight

Weight

5 kg / 11.02 lbs

Shipping information

Package Height

180 mm / 7.09 inches

Package Width

285 mm / 11.22 inches

Package Depth

285 mm / 11.22 inches

Package Weight

5.5 kg / 12.13 lbs

Downloads

SPECIFICATIONS

SPECSHEET - ENG

PDF

488 KB

19-08-2024

ACOUSTIC MEASUREMENTS

PDF

61 KB

11-07-2024

DRAWINGS

LINE ART 2D

PDF

211 KB

23-03-2018
